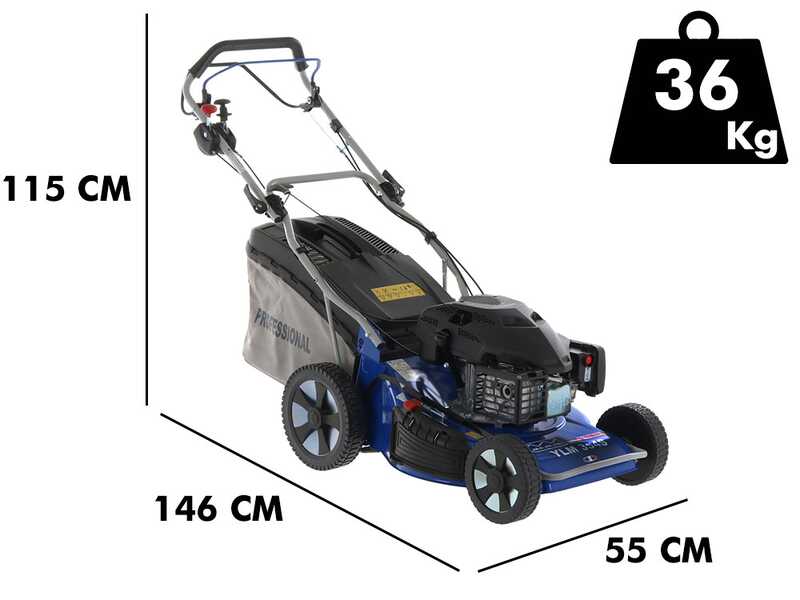

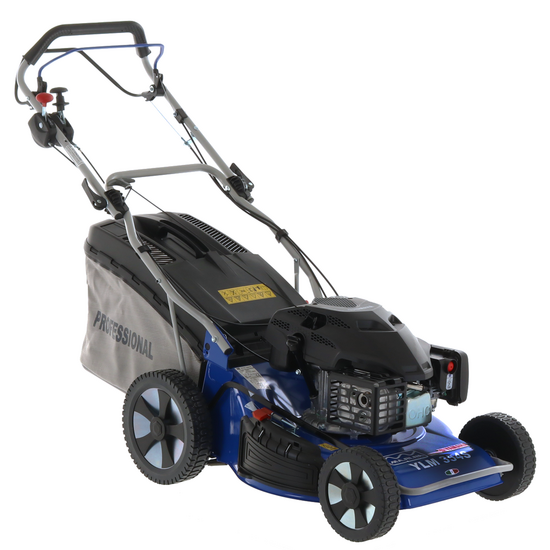

Ma.ri.na Systems YLM 354S VV Self-propelled Petrol Lawn Mower - 52 cm Cutting Width - Yamaha MA190 Engine - 4 in1

The Ma.Ri.Na Systems YLM 354S VV lawn mower is designed for the most demanding customers who need an highly performing, reliable and professional machine, specifically for so as to perfectly take care of their green space.

This machine is a 4in1 lawn mower equipped with all the cutting systems for satisfying every need:

• Grass collection system with 70 L grass collector
• Mulching plug
• Side discharge
• Rear discharge

The housing, entirely made of steel, is 1.9 mm thick.

Easy to use for everyone thanks to its manoeuvrability and versatility. It is ideal for any user who wants to take care of the home garden and wants excellent results in a short time.

The YLM 354S VV is a powerful, reliable and very versatile lawn mower. It is equipped with a powerful Yamaha MA190 engine, with 5 Hp of rated power and low profile with heavy-duty transmission, aluminium gearbox and bronze gears to optimise the size and durability of the engine.

This lawn mower model is provided with 52 cm cutting width. It can be also adjusted through a centralised lever in 5 different positions, from 20 mm to 65 mm.

Centralised cutting height adjustment system: possibility to adjust the cutting height by means of a single lever.

Four 200-280 mm large galvanised metal wheels featuring double sealed bearings, which are moist resistant and allow a professional cut even on not perfectly levelled lawns. They are mounted on ball bearings for ensuring to the lawn mower the maximum ease of movement.

The rubber-coated handlebar id equipped with a micrometric device for adjusting the handlebar height. By means two side quick levers (open and close) it is possible to adjust the handlebar height according to the Operator’s needs.

Standard front bull bar to highly protect the machine.

Traction drive with speed variator from 2 Km/h to 3.2 Km/h.

This lawn mower is suitable for surfaces up to 2200 s.q. m.

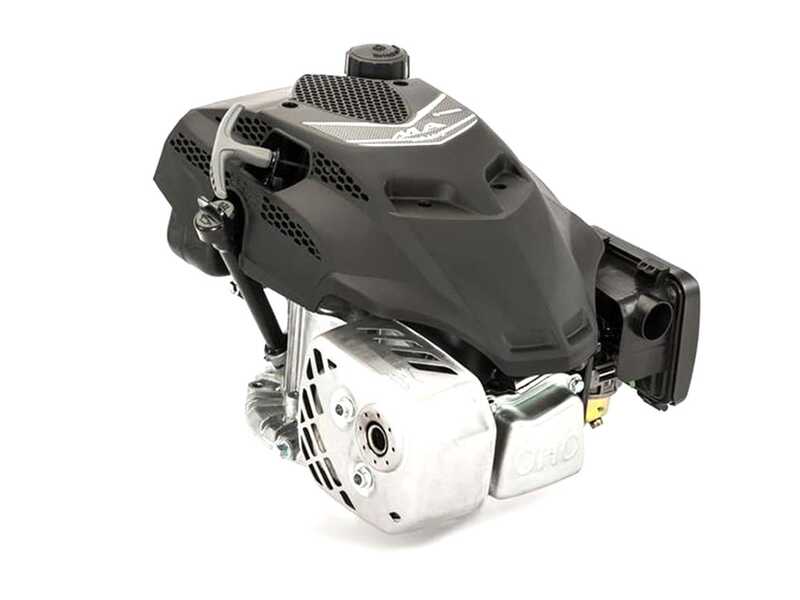

The Yamaha MA190 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 190 cc.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

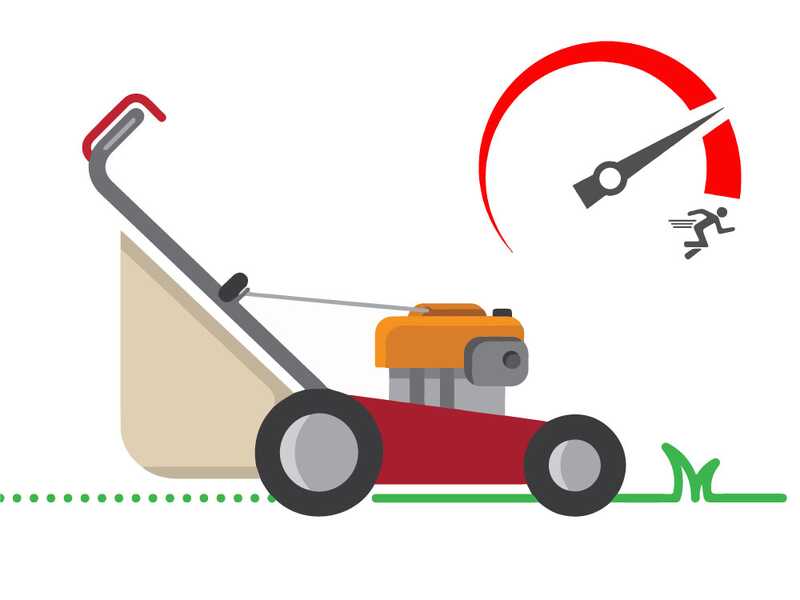

The machine is equipped with a speed variator.

A great advantage compared with the other only self-propelled lawn mowers.

Thanks to the handy dash-mounted lever, the speed variator allows you to adjust the forwarding speed and use the minimum traction in non-rectilinear paths or in curves and to carry out a bit slower manoeuvres.

It also allows using the lawn mower at its max. working speed even when the grass is regularly cut, not too high or not too thick. It is also possible to use it at max. operating speed even on regularly cut and not too high or thick grass and to operate faster on even lawn without many obstacles.

Very appreciated by professionals who are faced with different situations or for those who have a particularly rough garden with obstacles.

Traction drive with speed variator from 2 Km/h to 3.2 Km/h.

WARNING! The speed regulator must be activated only while the machine is moving, in order to avoid malfunctions and/or damages.

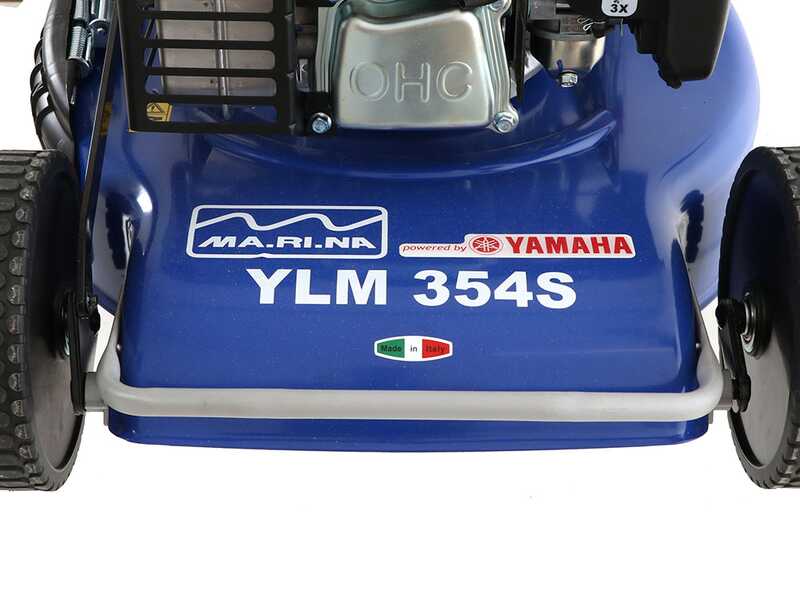

Extremely sturdy, reinforced enamelled steel housing for a long service life.

Steel front bumper that further protects the already sturdy housing.

Standard front bull bar to highly protect the machine.

52 cm double Grinder blade, sturdy and specifically designed for the mulching cutting system: heavy-duty "finned" blade with special extended wings at both ends that creates a much more powerful air flow than standard blades.

Focus on the high thickness of the housing. This makes it highly impact resistant and hardly deformable.

Housing thickness: 1.9 mm

Washing joint

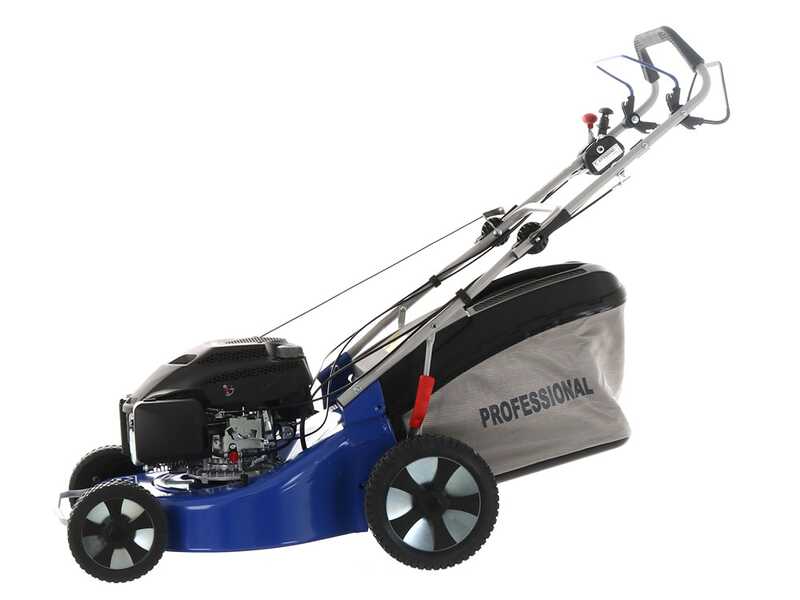

Four 200-280 mm large galvanised metal wheels featuring double sealed bearings, which are moist resistant and allow a professional cut even on not perfectly levelled lawns. They are mounted on double sealed ball bearings to make it as easy as possible to move the lawn mower.

The high-wheel system make them highly long-lasting and guarantees an incredible manoeuvrability.

Rear wheels diameter: 200 mm

Front wheels diameter: 280 mm

The Ma.Ri.Na. Systems lawn mower is equipped with 5 cutting height adjustments, from 20 mm to 65 mm.

It is equipped with galvanised wheels, certainly much more resistant than standard wheels.

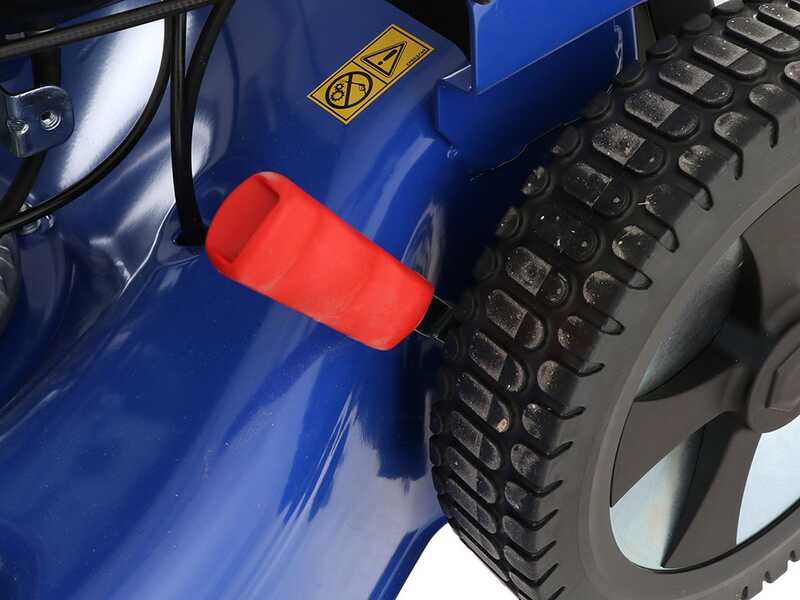

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply operate the proper lever to lift the machine.

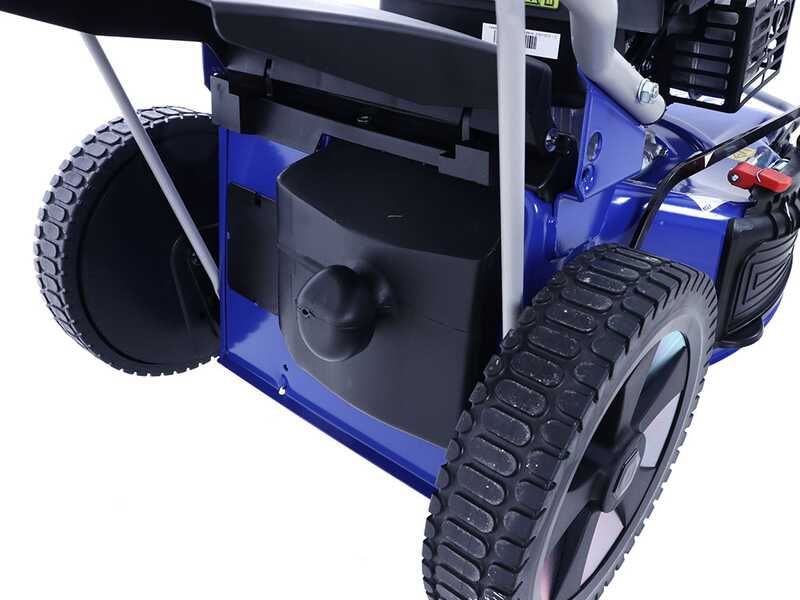

MULCHING CUTTING SYSTEM

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

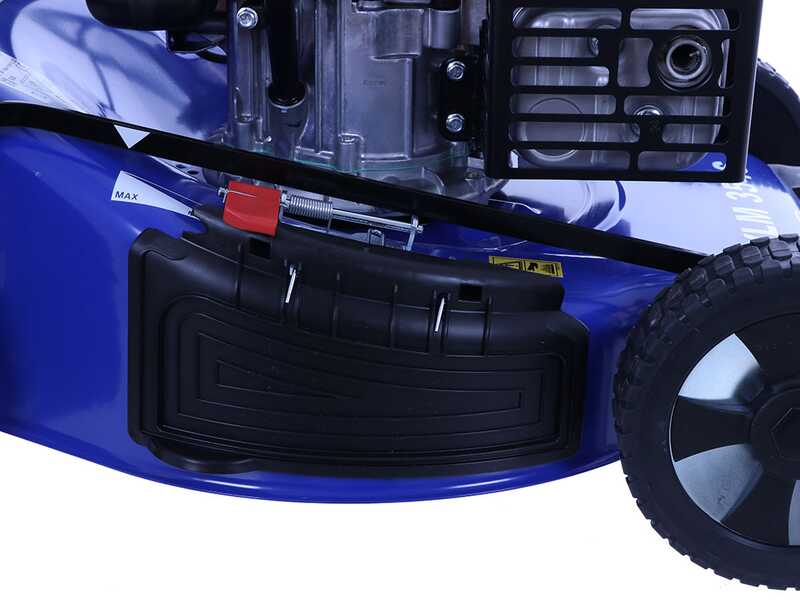

SIDE DISCHARGE SYSTEM

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

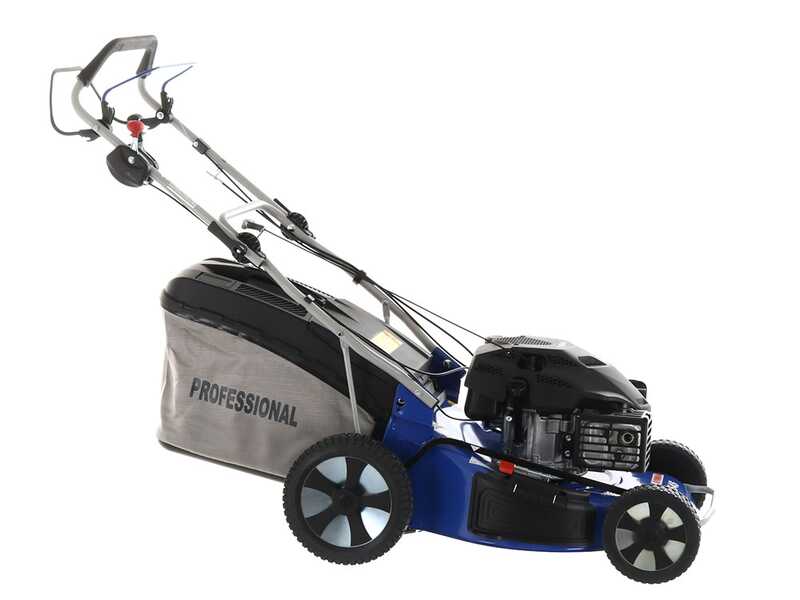

GRASS COLLECTION SYSTEM:

The lawn mower is equipped with a 70 L hybrid grass collector, very easy to remove and empty.

The lower part is made of plastic, which gives strength and sturdiness, avoiding the canvas to tear if in contact with the lawn.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

Grass collector full level indicator: the switch rises when the grass collector is full.

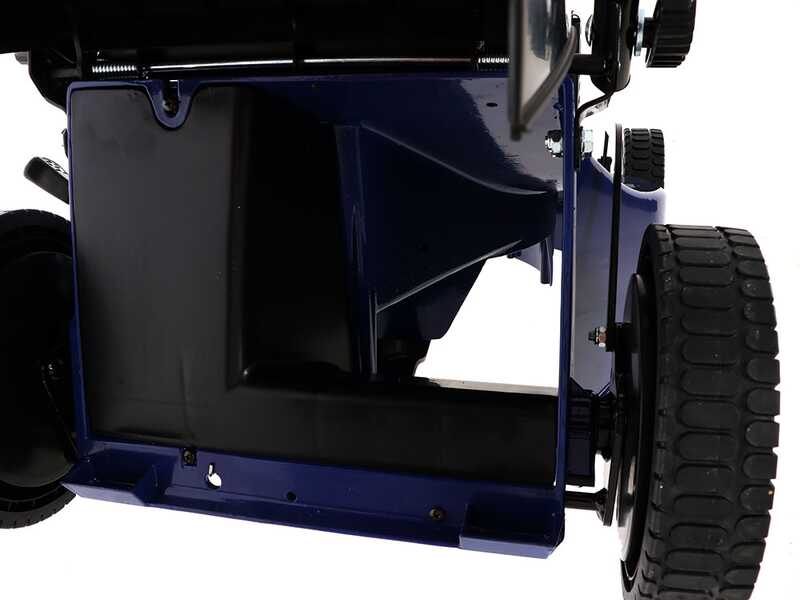

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

Heavy-duty ergonomic aluminium handlebar with soft grip.

Micrometric cutting height adjustment system.

Coated handlebar for optimal working comfort.

Easy and user-friendly controls placed on the handlebar.

Blade engagement lever (in front of the handlebar)

Adjustments available:

• Example 1
• Example 2

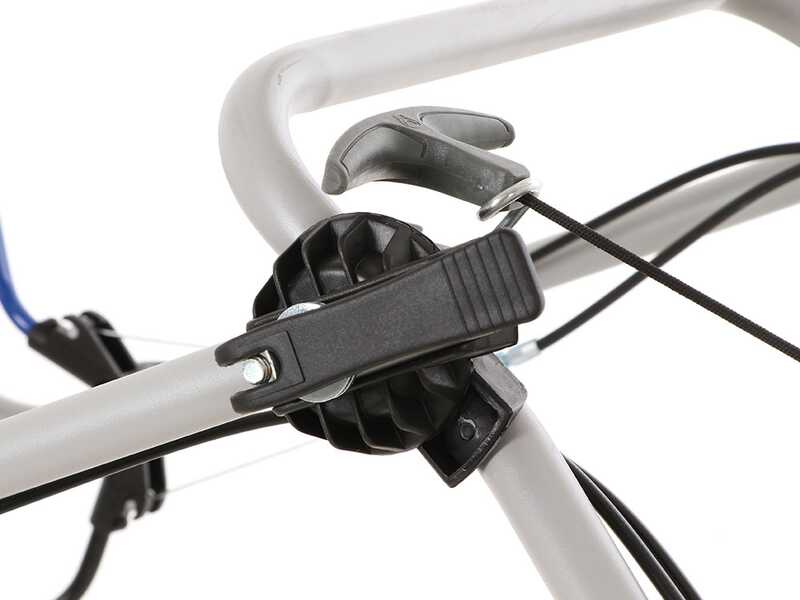

Handlebar tilt adjustment:

The handlebar is equipped with micrometric height adjustment device by means two quick side levers (open and close), for adjusting the handlebar height according to your needs.

Rotation speed adjustment: the red knob allows adjusting the blade rotation speed.

Speed variator: the black knob allows adjusting the machine forward speed.
