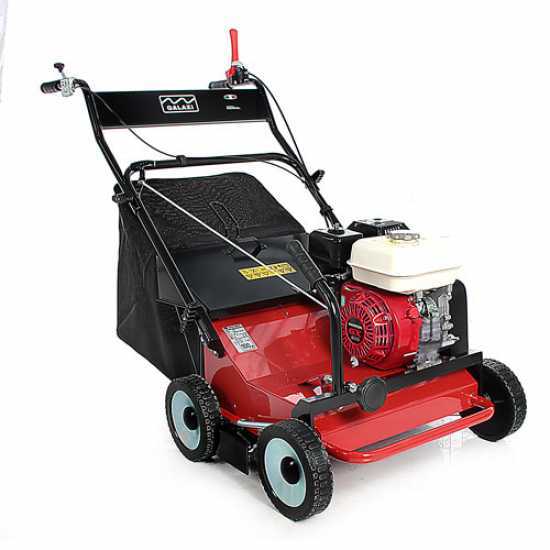

Marina Systems S500 - Heavy-duty Petrol Lawn Scarifier with Swinging Blades - Honda GX 200 Engine

Questions & Answers (2)
ID: K501815

EAN: 9999237533690

MPN: S50PHRGX0

7,6/10
After-sales assistance & Spare parts
Marina Systems S500 - Heavy-duty Petrol Lawn Scarifier with Swinging Blades - Honda GX 200 Engine
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Body material
Enamelled steel
Working width
45 cm
Rotor with blades
Heavy-duty, movable
Wheel Type
Galvanised metal
Motor type
4-stroke
Motor brand
Honda
Cubic capacity
196 cm³
Nominal power
6.5 HP
Motor Model
GX200
Max. recommended area
3500 m²
Manufacturing country
Italy
Product Features
Model:
S500H
Body material:
Enamelled steel
Type:
2/4-stroke engine
Operating mode:
Spark ignition
Self-propelling:
Hand-pushed
Grass collection system:
Standard equipment
Collection bag capacity:
110 L
Max. recommended area :
3500 m²
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Motor/blade drive:
Drive belt
Manufacturing country:
Japan
Cutting data
Working width:
45 cm
Body material:
Steel
Rotor type:
Rotor with moving blades
Rotor with blades:
Heavy-duty, movable
No. of blades:
51
Blade type:
48 flottanti - 3 fisse
Cutting adjustment :
Centralised
Cutting width:
45 cm
Equipment
Collection bag:
Standard equipment
Rear grass discharge deflector:
Yes
Motor safety brake:
Yes
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
21 cm
Wheels mounted on ball bearings:
Yes
Wheel Type:
Galvanised metal
Steel front bumper:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
130x70x115 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
80x70x60 cm
Gross weight (packaging included) :
50 Kg
Assembly time:
15 minutes
Prompt Delivery
13 items in stock
Free Shipping
Estimated delivery: 14/10/2024 - 16/10/2024
€ 1.198,45
VAT Included

You're viewing:
Customers also viewed:
Description

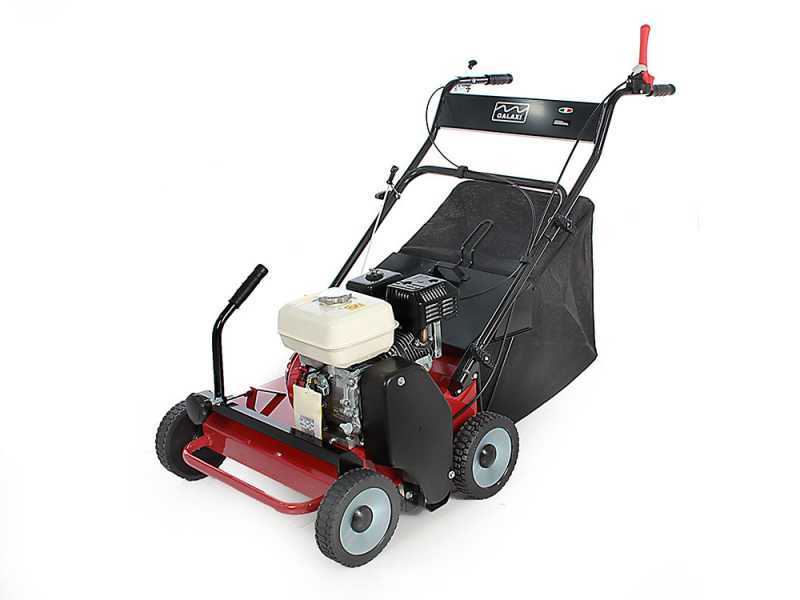

Ma.ri.na. Systems S500H lawn scarifier

A heavy-duty lawn scarifier is the ideal tool for removing the felt layer left on the lawn along with other debris to allow it regenerating autonomously.

The MA.RI.NA. Systems Lawn scarifiers allow optimal oxygenation and nutrition of the turf, cutting into the soil and collecting all the debris on the ground.

In particular, MA.RI.NA. Systems S line 500 petrol lawn scarifiers, thanks to the steel rotating blades, the sturdy housing and to the powerful and reliable Honda GX200 engine are ideal for the most demanding professional and hobbyist Operators.

Why use a lawn scarifier:

  • Over time, turfs tend to create a layer of felt that prevent the oxygenation of the soil with the consequent suffering of the lawn.
  • It is advisable to use the lawn scarifier to remove the felt layer and create grooves on the ground that will facilitate contact with air, fertilisation and lawn reinforcement.

WARNING:

Aeration must be performed STRICTLY with the garden previously and abundantly watered.

* The right time for this operation is Spring, after the first mowing and depending on the area and climate (generally around March/April). For a perfect lawn care, it is highly recommended to repeat the operation in Autumn as well, thus removing the harder moss.

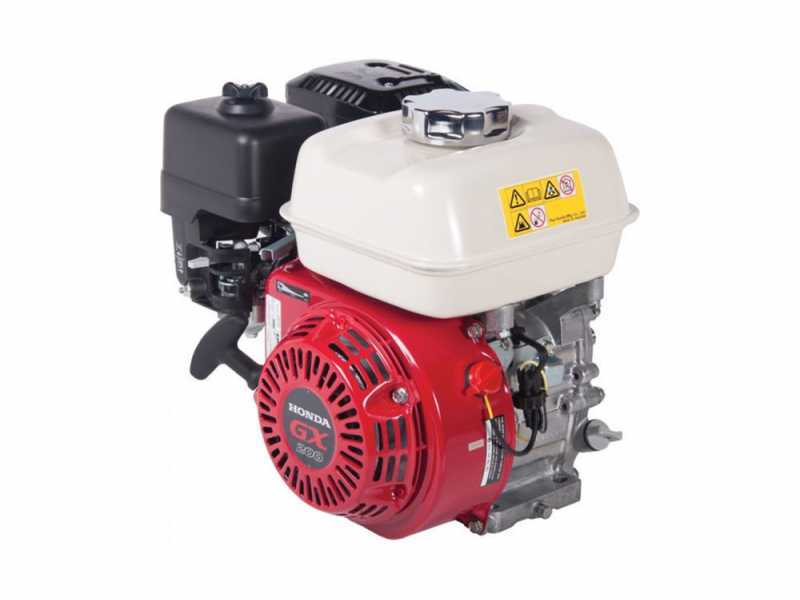

Honda GX200 engine

The 196 cc engine is lightweight and high performing, suitable for operations requiring high power.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: cast Iron
Cubic capacity: 196 cc
Compression ratio: 8.5: 1
Max. rpm: 3600 rpm
Fuel tank capacity: 3.6 L
Consumption: 1.7 L/h 3600 rpm
Dry weight: 15.1 Kg
Noise level: 100 dB
Nominal power: 6.5 Hp

4-stroke petrol engine of the latest generation with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, tilted cylinder of 25 ° forced air cooling, cast iron cylinder.


Focus of the air filter.
Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.


The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

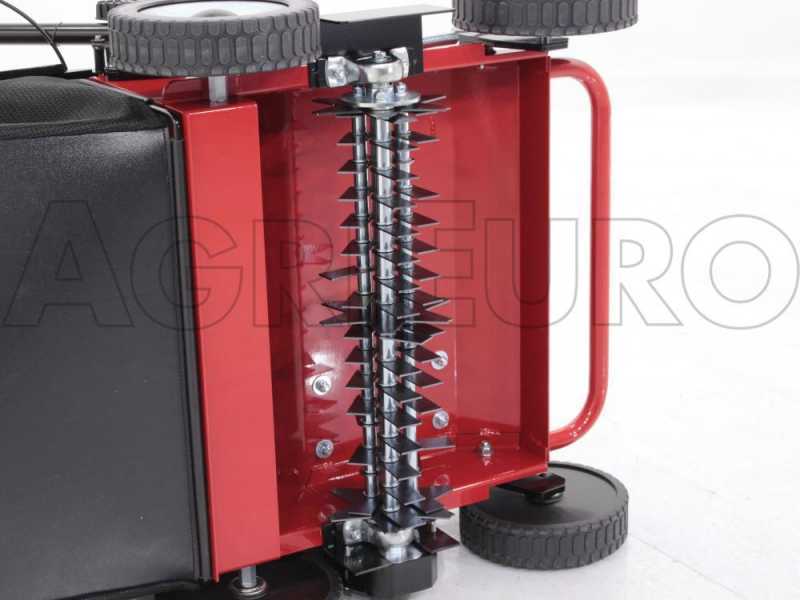

Free-swinging blades system

The heavy-duty scarifying rotor is fitted with 48 moving blades and 3 fixed star-shaped blades:

- 48 FREE-SWINGING BLADES: assembled on three different supports. The free-swinging blades (rotating) are made of hardened steel.

- 3 FIXED STAR-SHAPED BLADES: made of hardened steel.

The engine/rotor drive is belt-driven.

The housing and connection of the scarifying rotor to the frame is by means large, heavy-duty steel ball bearings.

working depths, from 0 to 15 mm

Main features

The housing is made of sheet steel and features great sturdiness.

Equipped with large, sturdy rubber wheels, mounted on 2 ball bearings.

Double operating mode: it can be used with the supplied bag to collect residues and debris or without it, using the deflector to crush residues on the ground.

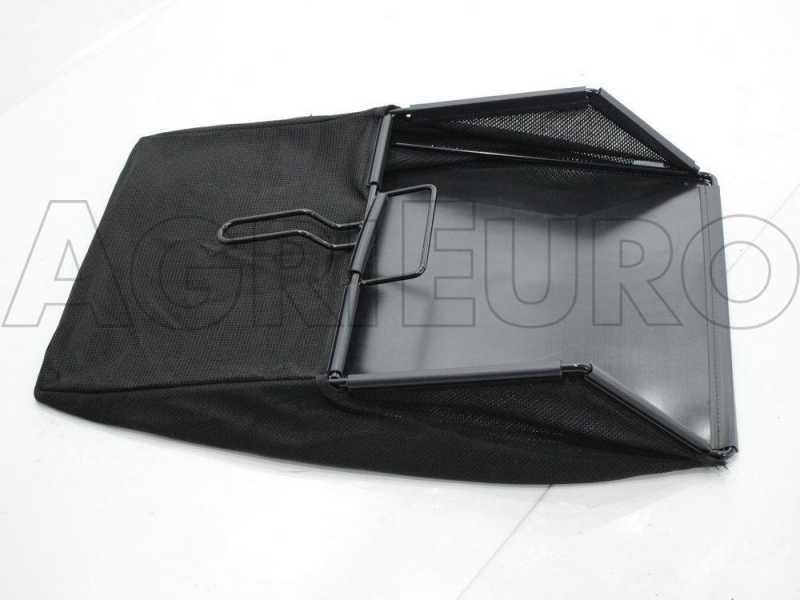

110 L standard supplied collection bag.

The deflector of this model is made of sturdy metal.

Equipped with heavy-duty front bumper.

Lawn scarifier overall weight: 49 Kg

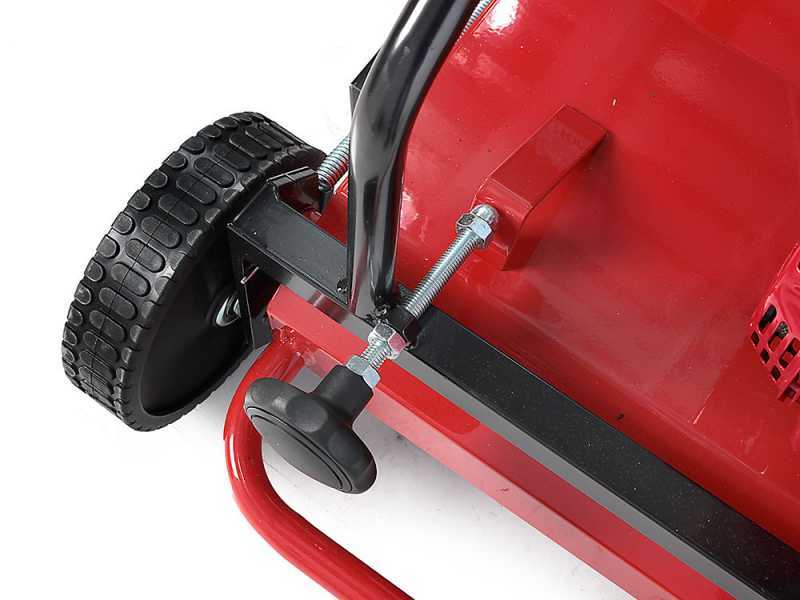

Controls and adjustments

Aerator blades engagement by means a control lever on the handlebar.

Aerator blades lowering via mechanical control lever placed in the front part of the lawn scarifier.

Working depth adjustable by means threaded crank.

Accident prevention with motor braking system activated by means of the safety knob on the handlebar.

Adjustable blade rotation speed via throttle knob.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free items included

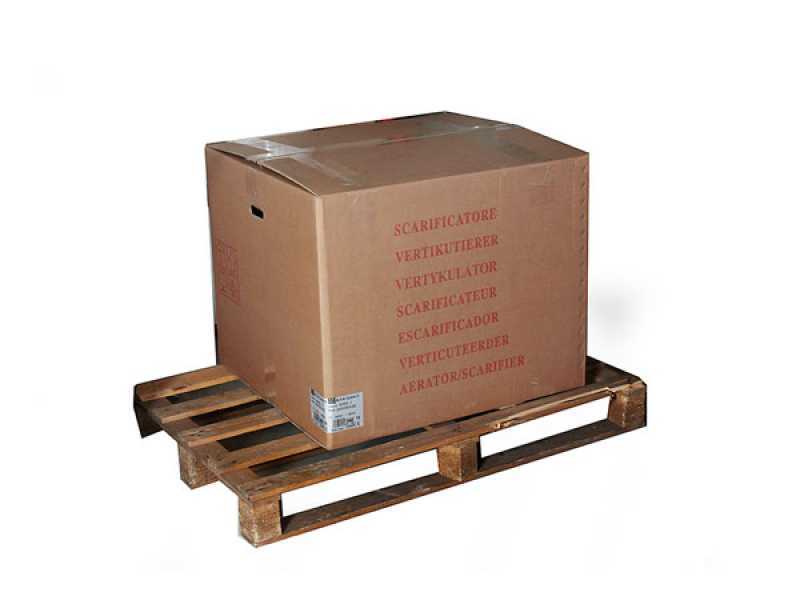

The machine is shipped in its original packaging.

Instructions manual included in the packaging.

Collection bag included.
