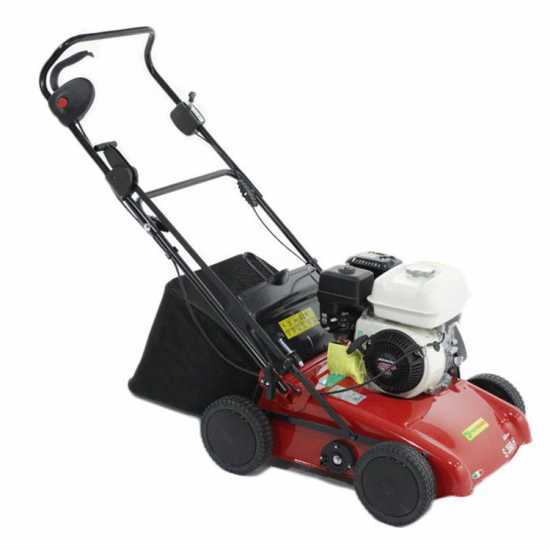

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine

Semi-Pro
Questions & Answers (2)
ID: K4258

EAN: 8032727751745

MPN: S39PO2GR0

Marina Systems
Catalog Marina Systems
7,6/10
After-sales assistance & Spare parts
45Pictures
4Customer pics
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
+200 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Body material
Enamelled steel
Working width
38 cm
Rotor with blades
Yes
Motor type
4-stroke
Motor brand
Honda
Cubic capacity
163 cm³
Nominal power
4.8 HP
Motor Model
GP 160
Max. recommended area
1500 m²
Manufacturing country
Italy
Product Features
Model:
S 390 H
Body material:
Enamelled steel
Type:
2/4-stroke engine
Operating mode:
Spark ignition
Self-propelling:
Hand-pushed
Grass collection system:
Standard equipment
Collection bag capacity:
45 L
Max. recommended area :
1500 m²
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GP 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
3.1 L
Motor/blade drive:
Drive belt
Manufacturing country:
Japan
Cutting data
Working width:
38 cm
Body material:
Enamelled steel
Rotor type:
Blade rotor
Rotor with blades:
Yes
No. of blades:
16
Blade type:
Fixed - double
Cutting adjustment :
Centralised
Cutting width:
38 cm
Equipment
Collection bag:
Standard equipment
Rear grass discharge deflector:
Yes
Recoil start system (with rope):
Yes
Wheels mounted on ball bearings:
Yes
Wheel Type:
Plastic wheels on ball bearings
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Net weight:
35 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
65x81x58 cm
Gross weight (packaging included) :
32 Kg
Assembly time:
15 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 13/12/2024 - 18/12/2024
Free returns (up to 30 days after receipt) *
€ 707,53
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

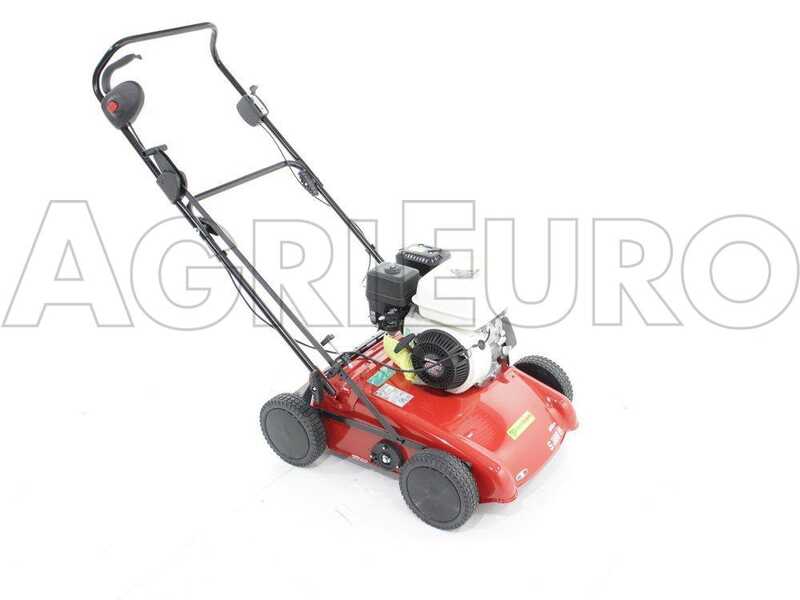

Ma.ri.na. Systems S390H lawn scarifier

A heavy-duty lawn scarifier is the ideal tool for removing the felt layer left on the lawn along with other debris to allow it regenerating autonomously.

In particular, S390H petrol lawn scarifiers, thanks to the 16 steel double blades, the sturdy housing and to the powerful and reliable Honda engine are ideal for the most demanding professional and hobbyist Operators.

WARNING:

Aeration must be performed STRICTLY with the garden previously and abundantly watered.

* The right time for this operation is Spring, after the first mowing and depending on the area and climate (generally around March/April). For a perfect lawn care, it is highly recommended to repeat the operation in Autumn as well, thus removing the harder moss.

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine

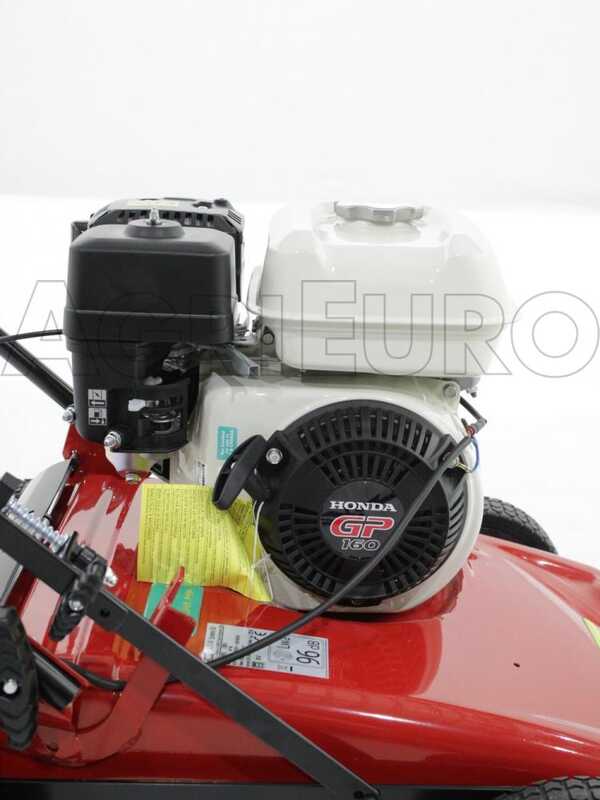

Honda GP 160 engine

The 160 cc Honda GP 160 engine is light and high performing, suitable for operations requiring great power.

Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: cast Iron
Cubic capacity: 163 cc
Compression ratio: 8.5: 1
Max. rpm: 3600 rpm
Fuel tank capacity: 3.1 L
Consumption: 1.4 L/h 3600 rpm
Dry weight: 15.1 Kg

4-stroke petrol engine of the latest generation with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, 25 ° tilted cylinder, forced air cooling, cast iron cylinder

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine

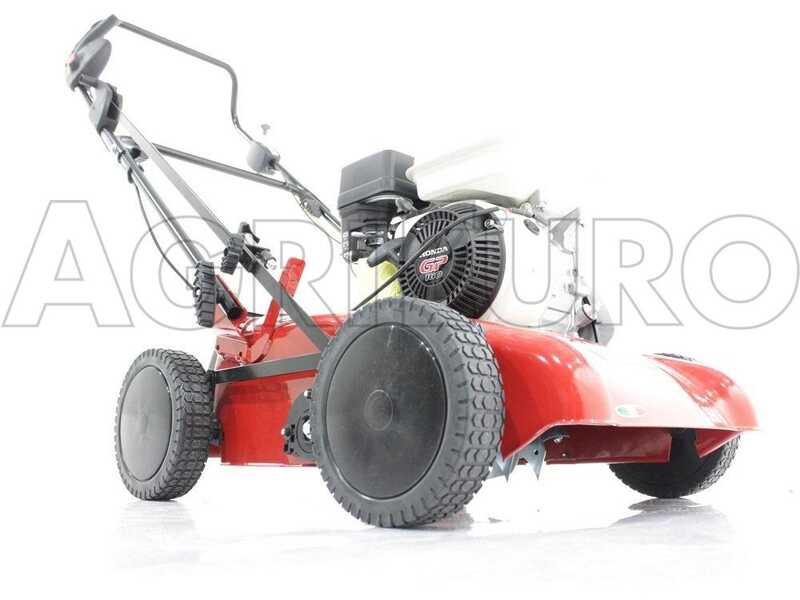

Main features

This lawn scarifier consists of a heavy-duty rotor fitted with 16 hardened steel double blades that can penetrate the soil and aerate it. Real working width: 38 cm

Focus on the 16 double blades structure.

The blades are mounted on heavy-duty bearings that connect them to the frame.

The housing is made of sheet steel and features great sturdiness.

Equipped with large, sturdy rubber wheels, mounted on 2 ball bearings.

Double operating mode: it can be used with the supplied bag to collect residues and debris or without it, using the deflector to crush residues on the ground.

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine

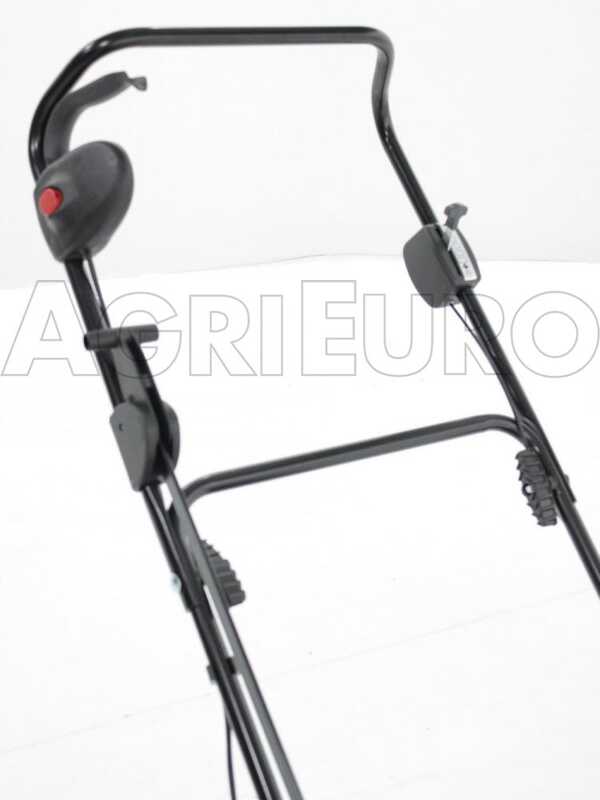

Controls and adjustments

Scarifying blades engagement by means of a control lever on the handlebar.

Centralised working depth adjustable by means of threaded crank that simultaneously adjusts all the 4 wheels. High position - Low position

Accident prevention with motor braking system electrically activated by means of the safety switch on the handlebar.

Adjustable blade rotation speed via throttle knob.

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine

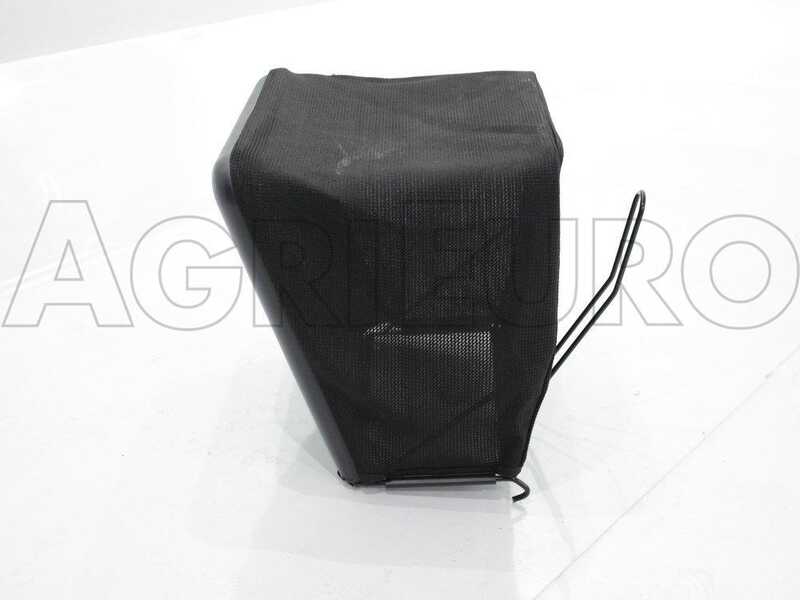

Free items included

The machine is shipped in its original packaging.

Instructions manual included in the packaging.

Collection bag included.

Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine Marina Systems S390H - Heavy-Duty Lawn Scarifier with Fixed Blades - Honda GP 160 Engine
