Marina Systems Pivot 53SH PRO lawn mower with HONDA GXV 160 engine

Questions & Answers (2)
ID: K608655

EAN: 8032727757310

MPN: P51VH3GX03

7,6/10
After-sales assistance & Spare parts
Marina Systems Pivot 53SH PRO lawn mower with HONDA GXV 160 engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Grass collector
Side discharge
Mulching cutting system
Standard equipment
Rear discharge
Body material
Enamelled steel
Motor brand
Honda
Motor Model
GXV 160
Cubic capacity
160 cm³
Nominal power
5 HP
Max. recommended area
2500 m²
Cutting width
53 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
3 levers
Speed variator
Yes
High rear wheels
Yes
Wheel Type
Steel
Manufacturing country
Italy
Product Features
Model:
Pivot 53SH PRO
Body material:
Enamelled steel
Body thickness:
1.8 mm
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
55 cm
Grass collection system:
Standard equipment
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Collection bag capacity:
70 L
Max. recommended area :
2500 m²
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GXV 160
Motor type:
4-stroke
Cubic capacity:
160 cm³
No. of cylinders:
1
Nominal power:
5 HP
Rated power (HP):
4.3 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
1 L
Noise level:
98 dB(A)
Motor/blade drive:
Direct
Manufacturing country:
USA
Transmission data
Gear shifting system:
Single speed
Speed variator:
Yes
Throttle lever:
Yes
Gearbox:
Steel gears
No. of forward speeds:
1
Wheel drive:
Rear-wheel
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
53 cm
No. of blades:
1
Finned-shape blade:
Yes
Blade type:
Multifunction
Cutting adjustment :
3 levers
Max. cutting height:
65 mm
Min. cutting height:
20 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
52 cm
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
235 mm
Front wheels size:
180 mm
High rear wheels:
Yes
Wheels mounted on ball bearings:
Yes
Wheel Type:
Steel
Steel front bumper:
No
Rubber-coated soft grip:
No
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine maintenance kit:
No
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

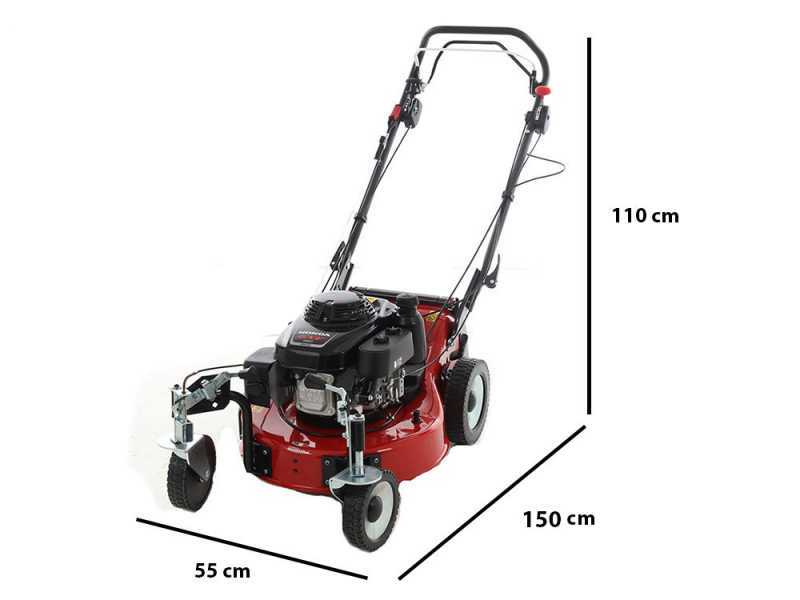

Product dimensions in cm (L x W x H):
150x55x110 cm
Net weight:
49 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
104x62x49
Gross weight (packaging included) :
52 Kg
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
€ 1.468,67
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

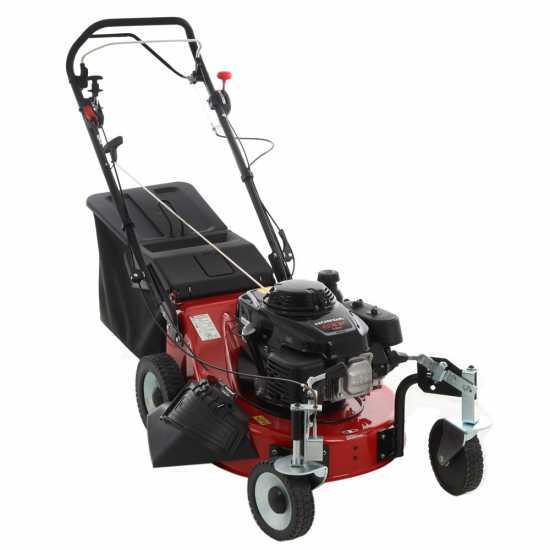

Marina Systems Pivot 53 SH PRO Lawn mower

The Marina Systems Pivot 53 SH PRO is a heavy-duty self-propelled petrol lawn mower equipped with enamelled steel housing.

Thanks to the original HONDA petrol engine, this lawn mower is ideal for professional mowing operations on large parks and gardens, ensuring high performance.

First-class technical components, heavy-duty parts and product care in every detail make this lawn mower the best on the market.

The front pivoting wheels make this cutting tool very easy to manoeuvre.

It is designed for professional customers such as nursery and ecological operators and gardeners of public and private gardens.

This petrol lawn mower is provided with a powerful and high cubic capacity HONDA petrol engine, by one of the best known manufacturers of 4-stroke engines.


The heavy-duty self-propelled system on the rear wheels allows the Operator to mow the lawn without any effort.

Traction drive with speed variator from 2 Km/h to 3.2 Km/h.

The Marina Systems Pivot 53 SH PRO is equipped with throttle lever, speed variator and pivoting wheel locking lever.

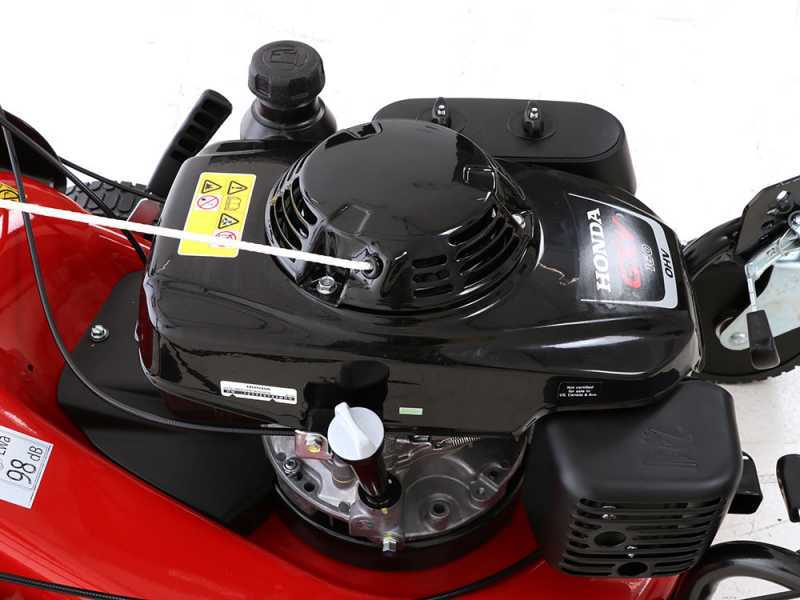

Honda GXV 160 engine

The Honda GXV 160 OHV engine is a lightweight high-performance engine, suitable for work where high power is required, thanks to the high 160 cc.


Features:

Engine type: 4-Stroke - OHV - single cylinder
Cylinder type: aluminium
Cubic capacity: 160 cc
Fuel tank capacity: 1.8 L

Easy recoil start

Focus on the air filter


WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Speed Variator

The machine is equipped with a speed variator.

A great advantage compared with the other only self-propelled lawn mowers.

Thanks to the handy dash-mounted lever, the speed variator allows you to adjust the forwarding speed and use the minimum traction in non-rectilinear paths or in curves and to carry out a bit slower manoeuvres.

It also allows using the lawn mower at its max. working speed even when the grass is regularly cut, not too high or not too thick. It is also possible to use it at max. operating speed even on regularly cut and not too high or thick grass and to operate faster on even lawn without many obstacles.

Very appreciated by professionals who are faced with different situations or for those who have a particularly rough garden with obstacles.

Traction drive with speed variator from 2 Km/h to 3.2 Km/h.

WARNING! The speed variator must be activated only while the machine is moving, in order to avoid malfunctions and/or damages.

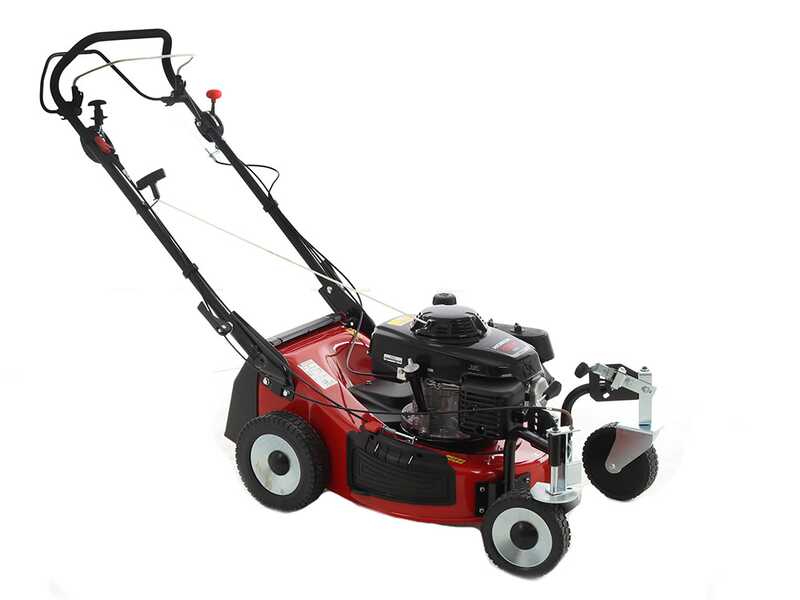

Pivoting front wheels, extreme manoeuvrability

The front pivoting wheels are the great advantage of this machine.

The configuration of the pivoting wheels allows the machine to easily move and to turn in every direction without any effort.

Extremely easy steering!

The pivoting wheels, the speed variator and throttle lever make this lawn mower one of the best on the market today.

This mower is ideal for soils with many obstacles, such as lawns with trees or flowerbeds. The lightness of the steer and the wide manoeuvrability enable you to have a precise cut with the minimal effort.

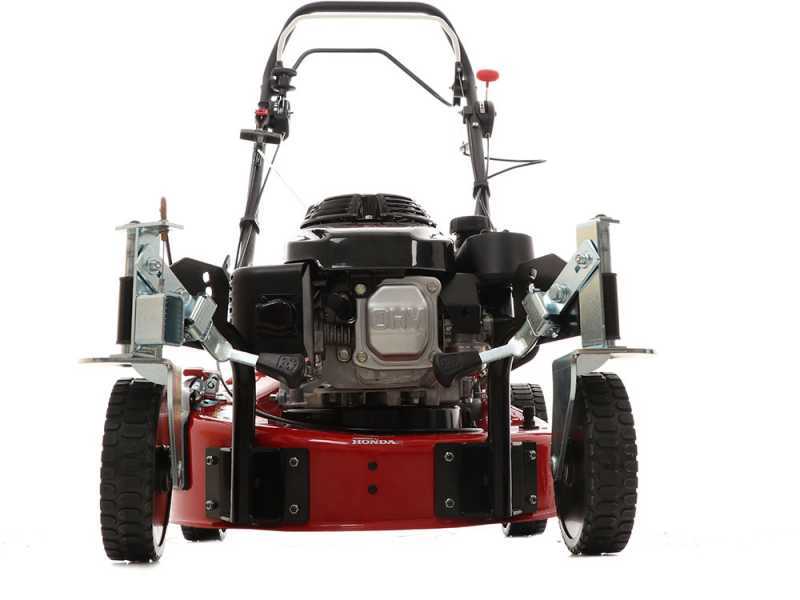

Front and rear cutting height adjustment

The Pivot Marina Systems lawn mower is equipped with 5 cutting height adjustments, from 20 mm to 65 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply use the proper lever on the rear wheel and the levers on the front wheels to lift the machine up to the desired height thanks to the internal spring system.

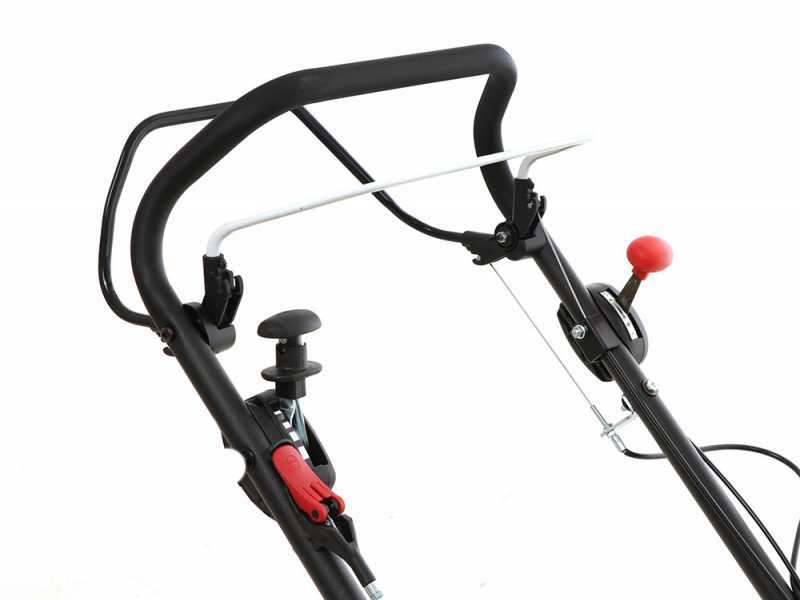

Handle and controls

The handlebar is connected to the machine frame and it is rubber covered for the maximum comfort while mowing.

All the controls are placed on the handlebar.

Cutting height levers

Operating lever

Blade safety brake lever

Throttle lever

Recoil start

Speed variator

Wheel locking system to activate the rotation locking mechanism.

Cutting height adjustment lever

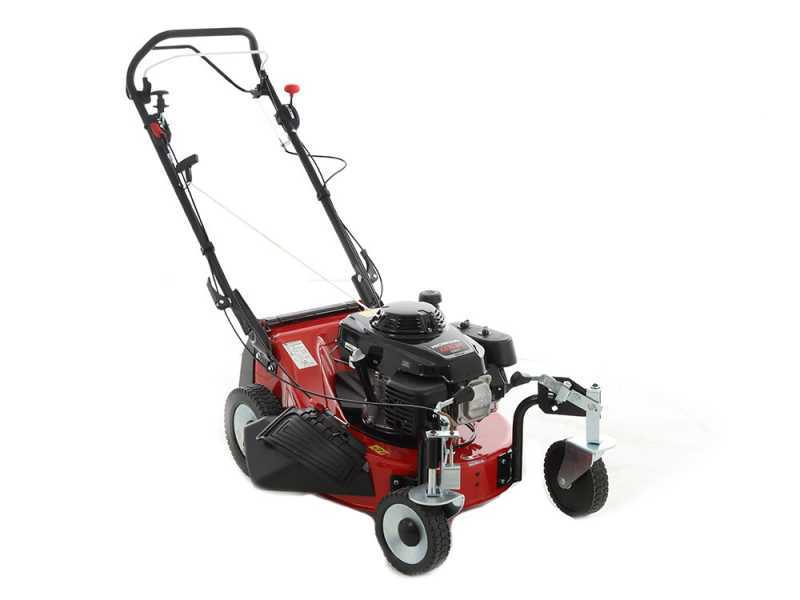

4 cutting systems

SIDE DISCHARGE SYSTEM

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side exhaust deflector). Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black carter on the housing side and enter the side deflector supplied with a simple gesture.

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector and discharging the grass clippings directly from the back of the lawn mower.

GRASS COLLECTION SYSTEM
The lawn mower is equipped with a large 70 L grass collector, easy to remove and empty.

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

Converting the machine for the mulching cutting system requires only a few minutes, as you'll only have to enter the mulching plug supplied.

WHAT IS MULCHING: this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

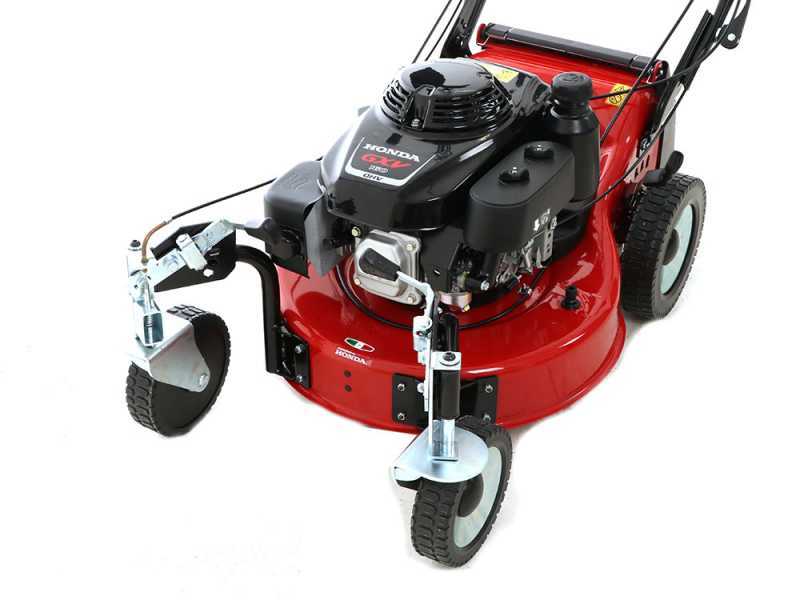

Blade and enamelled steel housing

The steel housing guarantees high sturdiness to this lawn mower as steel is difficult to deform and impact resistant.

Quick washing joint, which allows cleaning the housing quickly.

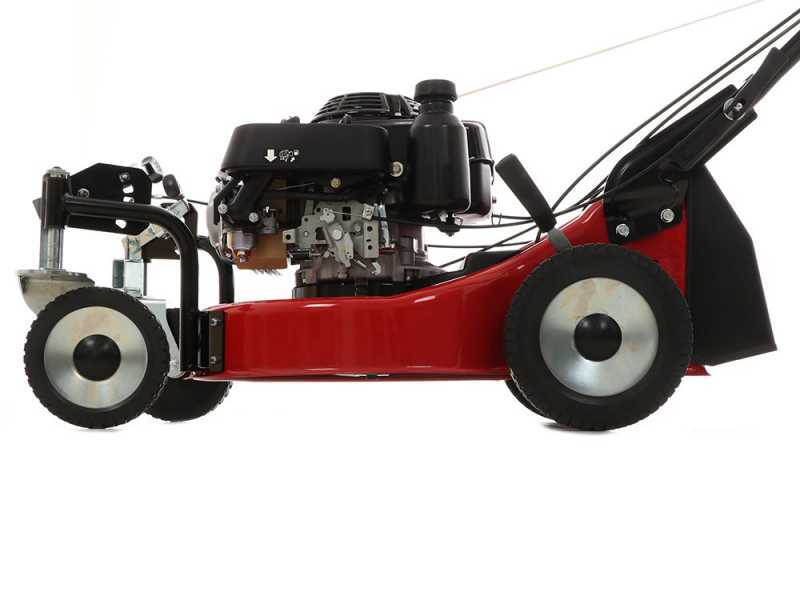

Rear-wheel drive and steel wheels

Heavy-duty self propelling system with aluminium gearbox featuring bronze gears.

Reliability and durability are also guaranteed.

High professional range, with wide pattern thread covered by a high thickness rubber.

Galvanised metal wheels.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Black & Decker GTC1845L20-QW Battery-powered Hedge Trimmer with 45 cm Blade

The Black & Decker GTC1845L20-QW battery-powered hedge trimmer is a powerful and handy tool with a wide range of benefits.

The great innovation of these lithium-ion battery-powered trimmers is the E-DRIVE technology, simply press the button to cut through even the toughest branches without damaging the blade.

With its 45 cm length and 18 mm blade pitch, this robust, sharp and durable blade is ideal for small hedges.

Equipped with an ergonomic handle, it is comfortable and easy to use during operation.

The lithium technology battery, has a slower self-discharge rate, being always ready to use. Powerful 18 V battery.

Comfortable and safe in use thanks to the dual start switch to prevent accidental starting.

No risk of cutting the cable and no harmful emissions.

Free items included

The lawn mower is shipped in its original packaging

70 L grass collector

Side discharge

Mulching plug

Instructions manual
