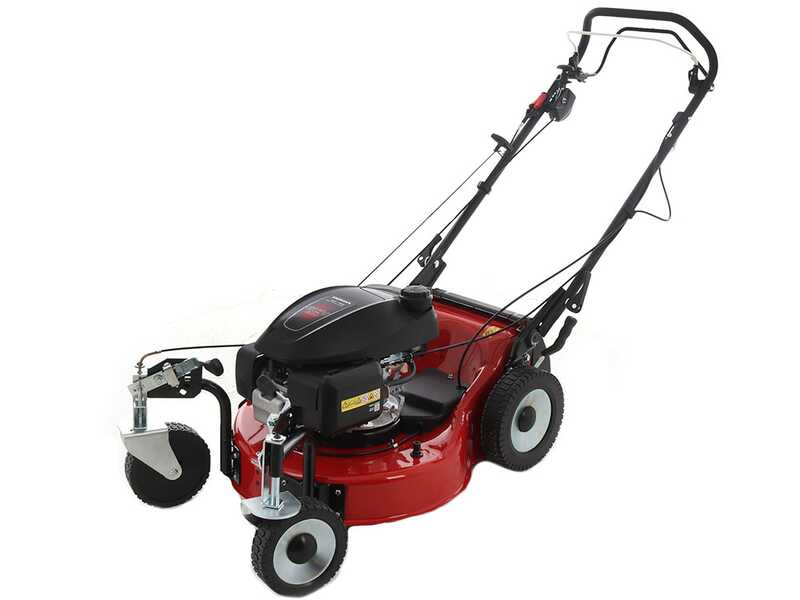

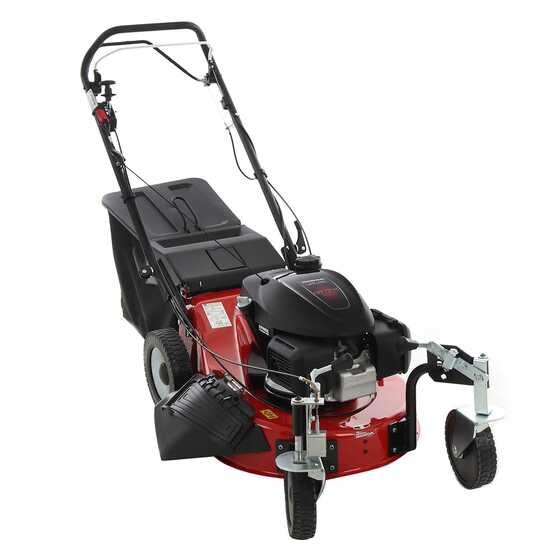

Marina Systems Pivot 53SH Lawn Mower - HONDA GCVX 200 Engine

The Marina Systems Pivot 53 SH is a heavy-duty self-propelled petrol lawn mower equipped with enamelled steel housing.

Thanks to the original HONDA petrol engine, this lawn mower is suitable for professional mowing operations on large parks and gardens, ensuring high performance.

Its heavy-duty components make this machine the highest-performing petrol lawn mower on the market.

The front pivoting wheels make this cutting tool very easy to manoeuvre.

It is designed for professional customers such as nursery and ecological operators and gardeners of public and private gardens.

This petrol lawn mower is provided with a powerful and high cubic capacity HONDA petrol engine.

The heavy-duty self-propelled system on the rear wheels allows the Operator to mow the lawn without any effort.

The speed variation system allows greater manoeuvrability.

The Honda GCVX 200engine guarantees high performances and it is suitable for works that require high reliability and long lasting in time, thanks to its remarkable 210 cc.

Features:

The Honda GCVX 200 is designed for ensuring reliability and high performance and it is renowned to be the ideal engine for this type of agricultural machineries.

Focus on the air filter.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

The front pivoting wheels are the great advantage of this machine.

The configuration of the pivoting wheels allows the machine to move easily and to turn in every direction without any effort.

Extremely easy steering!.

The pivoting wheels and speed variator make this lawn mower one of the best on the market today.

This mower is ideal for soils with many obstacles, such as lawns with trees or flowerbeds. The lightness of the steer and the wide manoeuvrability enable you to have a precise cut with the minimal effort.

The Pivot Marina Systems lawn mower is equipped with 5 cutting height adjustments, from 20 mm to 65 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply use the proper lever on the rear wheel and the levers on the front wheels to lift the machine up to the desired height thanks to the internal spring system.

The handlebar is connected to the machine frame and it is rubber covered for the maximum comfort while mowing.

Cutting height levers for the front pivoting wheels.

Operating lever

Blade safety brake lever

Recoil start

Speed variator

Wheel locking system to activate the rotation locking mechanism.

Cutting height adjustment lever

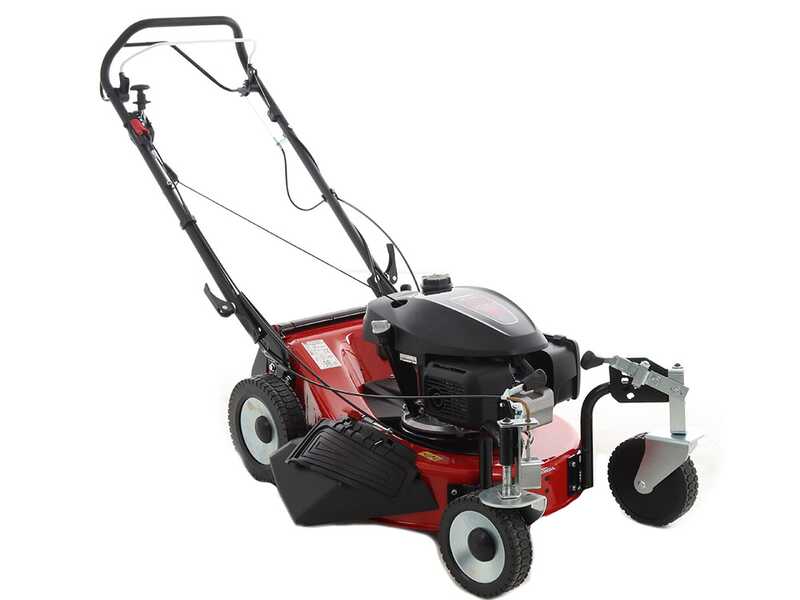

SIDE DISCHARGE SYSTEM
This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side exhaust deflector). Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black carter on the housing side and enter the side deflector supplied with a simple gesture.

REAR DISCHARGE SYSTEM
This system allows mowing grass without using the grass collector and discharging the grass clippings directly from the back of the lawn mower.

GRASS COLLECTION SYSTEM
The lawn mower is equipped with a large 70 L grass collector, easy to remove and empty.

MULCHING CUTTING SYSTEM
This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

To convert the machine for the mulching cut, mount the mulching plug supplied (a simple operation that requires a few minutes) to obtain the machine is ready to perform the mulching.

WHAT IS MULCHING: this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

The steel housing guarantees high sturdiness to this lawn mower as steel is difficult to deform and impact resistant.

Quick washing joint, which allows cleaning the housing quickly.

Equipped with a sturdy heavy-duty cast aluminium wheel drive with hardened steel gears in an oil bath.

Reliability and durability are also guaranteed.

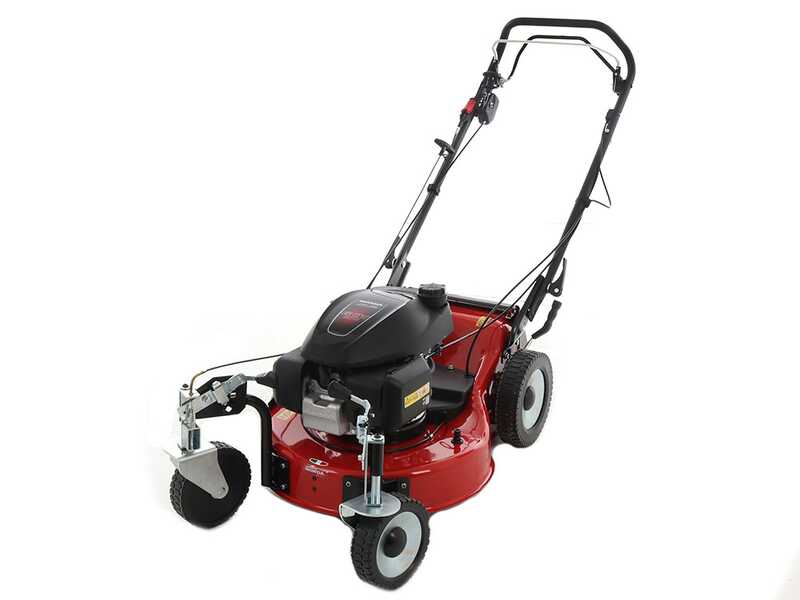

High professional range, with wide pattern thread covered by a high thickness rubber.

Galvanised metal wheels.

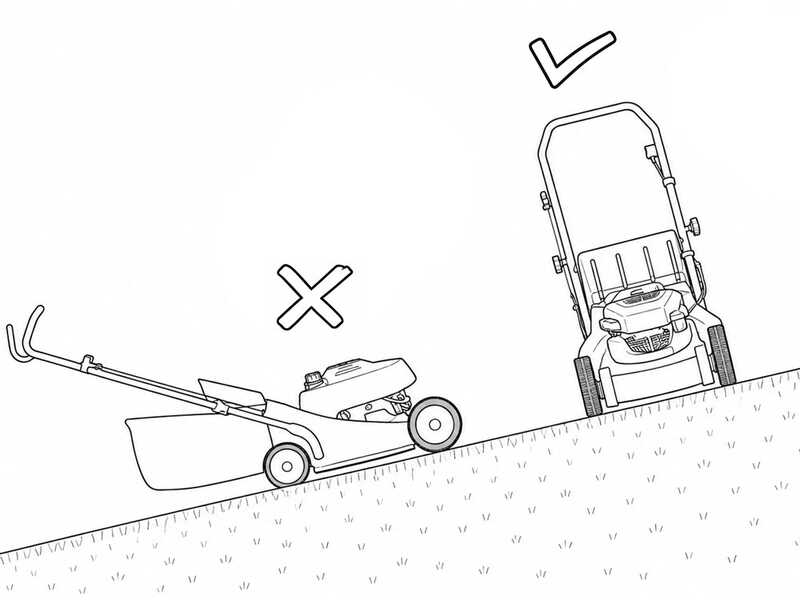

The lawn mower is designed and intended exclusively for cutting grass in garden areas (and not on other types of terrain). The surface must be level, free from irregularities, stones, or other solid objects, and covered with maintained lawn grass (therefore, not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most lawn mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Brush Cutters.

Furthermore, grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, which reduces cutting efficiency, increases the risk of clogging inside the deck, and subjects the engine to excessive strain.
