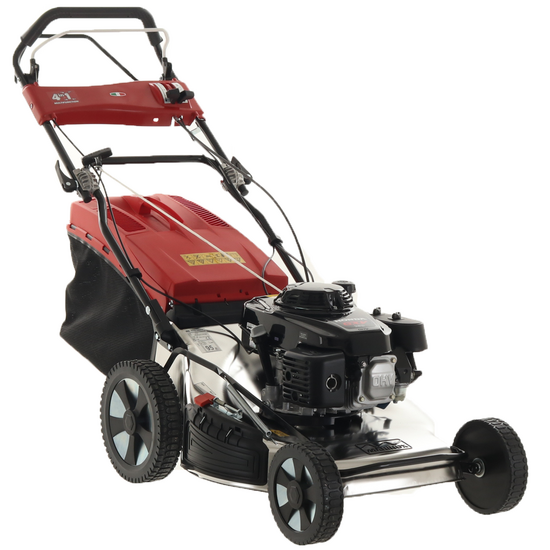

Marina Systems MX57SH3V stainless steel deck professional lawn mower with Honda GXV160 engine

Questions & Answers (7)
ID: K4066

EAN: 8032727752179

MPN: R57CH303YP

Marina Systems MX57SH3V stainless steel deck professional lawn mower with Honda GXV160 engine
+200 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Grass collector
Side discharge
Mulching cutting system
Standard equipment
Rear discharge
Body material
Stainless steel
Motor type
4-stroke
Motor brand
Honda
Motor Model
GXV 160
Cubic capacity
163 cm³
Nominal power
6 HP
Max. recommended area
2700 m²
Cutting width
57 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
1 lever
Gear shifting system
Mechanical gearbox
Gears
3
Speed variator
Yes
Wheel Type
Heavy-duty steel frame
Manufacturing country
Italy
Product Features
Model:
MX 57 SH 3V
Body material:
Stainless steel
Body thickness:
2 mm
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
59 cm
Grass collection system:
Standard equipment
Fixed front tires:
Yes
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Collection bag capacity:
85 L
Max. recommended area :
2700 m²
Recoil start:
Yes
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GXV 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
6 HP
Rated power (HP):
4.29 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Noise level:
95 dB(A)
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Mechanical gearbox
Speed variator:
Yes
Throttle lever:
Yes
Gearbox:
Steel gears
No. of forward speeds:
3
Gears:
3
Wheel drive:
Rear-wheel
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Stainless steel
Cutting width:
57 cm
Blade type:
Multifunction
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
80 mm
Min. cutting height:
20 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
57 cm
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Yes
Primer pump :
No
Recoil start system (with rope):
Yes
Rear wheels size:
280 mm
Front wheels size:
190 mm
Wheels mounted on ball bearings:
Yes
Wheel Type:
Heavy-duty steel frame
Steel front bumper:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine oil bottle for free:
2
Heavy-duty 4-blades swinging disc:
On request (extra-pay accessory)
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
135x62x118 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
59x103x58 cm
Assembly time:
30 minutes
Prompt Delivery
12 items in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
€ 1.204,43
VAT Included

You're viewing:
Customers also viewed:
Description

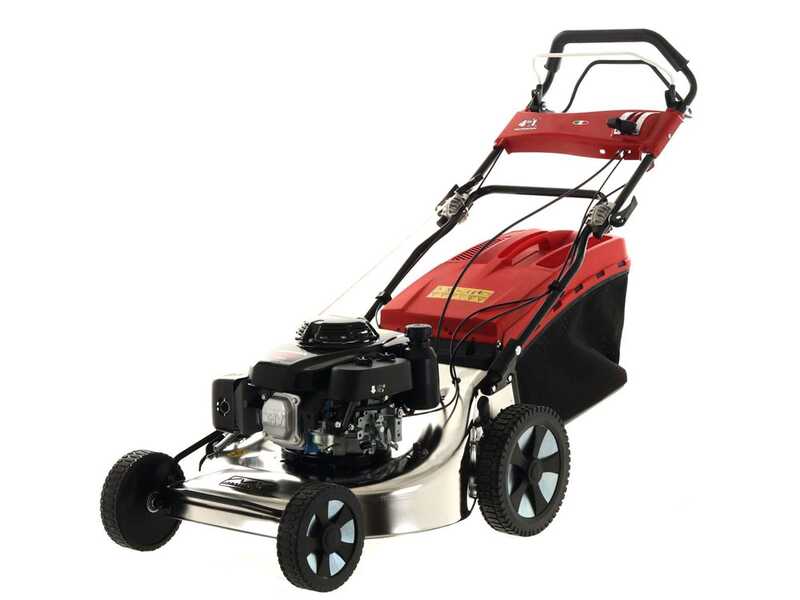

Ma.Ri.Na. Systems lawn mower

Ma.Ri.Na. Systems MX 57 SH 3V
has been thought for the most hard to please users asking for a high performance reliable machine.

Equipped with a deck fully made of stainless steel and Honda GXV 160 engine, this lawn mower from Ma.Ri.Na. Systems is very powerful and versatile. This model has rear wheels drive and 3 speeds gear.

57 cm cutting width and 5 different heights going from 20 to 80 mm, adjustable by means of a centralized lever.

High wheels system: 190-280 mm high stainless steel wheels with ball bearings, ideal on rough terrrains of medium width.

Traction drive with speed variator from 2 km/h to 3.2 km/h

Cutting systems:

  • Collection
  • Mulching
  • Rear discharge
  • Side discarge

This lawn mower is recommended for up to 3000 sq.m surfaces and it is equipped with a roomy collector of 85 L capacity.

Honda GXV 160 engine

The Honda GXV 160is a high performance, highly professional, last generation engine, with OHV technology.


Features:

Engine's Type
4 Stroke - single cylinder-OHC
Cylinder's Type
Aluminium
Displacement
163 cm³
Compression ratio
9.0: 1
Max revolutions
3600 rpm
Torque value
9.6 Nm / 0.98 kgfm / 2500 rpm
Tank capacity
1.8 L
Consumption
1.1 L/h at 3000 rpm
Dry weight
15.1 kg




GXV Series (highly professional) has been developed for heavy jobs in the





The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using.

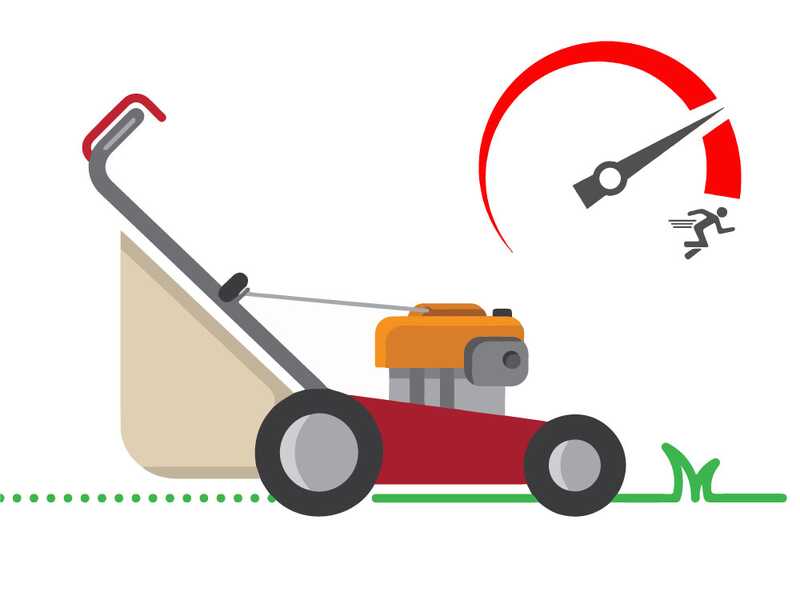

Speed Variator

The machine is equipped with a speed variator.

A great advantage compared with the other only self-propelled lawn mowers.

Thanks to the handy dash-mounted lever, the speed variator allows: To adjust the forwarding speed and use the minimum traction in non-rectilinear paths or in curves; To carry out a bit slower maneuvers.

To easily leverage the maximum speed in case of regularly cut, not very high or not too consistent grass. To carry out a straight cutting in absence of particular obstacles, speeding the work.

Very appreciated by professionals who are faced with different situations or for those who have a particularly rough garden with obstacles or complex areas.

WARNING! The speed regulator must be activated only while the machine is moving, in order to avoid malfunctions and/or damages.

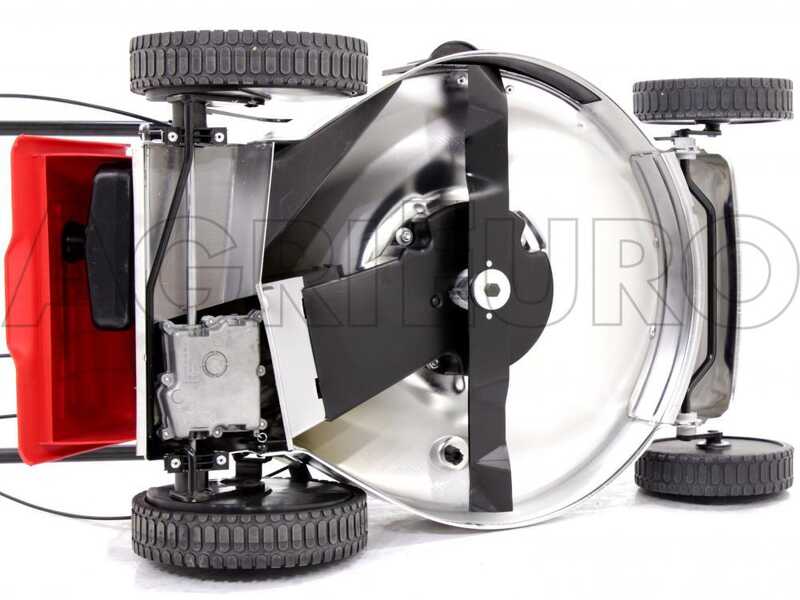

Steel blade and stainless steel deck

The stainless steel deck can be considered eternal

THE OTHER DECKS ON MARKET:

- enamel painted steel deck: generally sturdy it can get rusty during times due to the grass humidity.

- aluminium deck: it rarely get rusty but is more delicate than steel, especially stainless steel, as it can be deformed by hits or even get broken.

- ABS deck: (Thermoplastic) they don't get rust but they are the most delicate. Often used on the electric lawn mowers, many Companies also use them for the spark ignition ones. They have a lower level of reliability.

Stainless steel deck's thickness makes it very resistant and very hard to be deformed by hits.

Thanks to the washing hose connection it is possible to quickly wash the deck.

Focus on the front steel bumper.

Focus on the 57 cm blade: professional blade provided with 2 wings at the endge that generate a higher air flow than the traditional blades that get better all the cutting functions.

The blade is of universal kind, suitable for the 4 functions of the lawnmower.

Focus on the deck thickness: 2 mm. This make it crushproof.

Rear traction and high wheels system

Rear wheels traction.
Equipped with sturdy belt drive trasmission and gearbox.

It allows the operator the no effort grass cutting by optimizing the machine traction. 3 speeds available: they can be easily selected on the handle.

The high wheels system make it very easy to handle. Wheels are assembled with ball bearings that lengthen their life.

Rear wheels diameter: 190 mm

Front wheels diameter:280 mm

Focus on the steel wheels

Focus on the middle belt transmission inside the black protection shield.

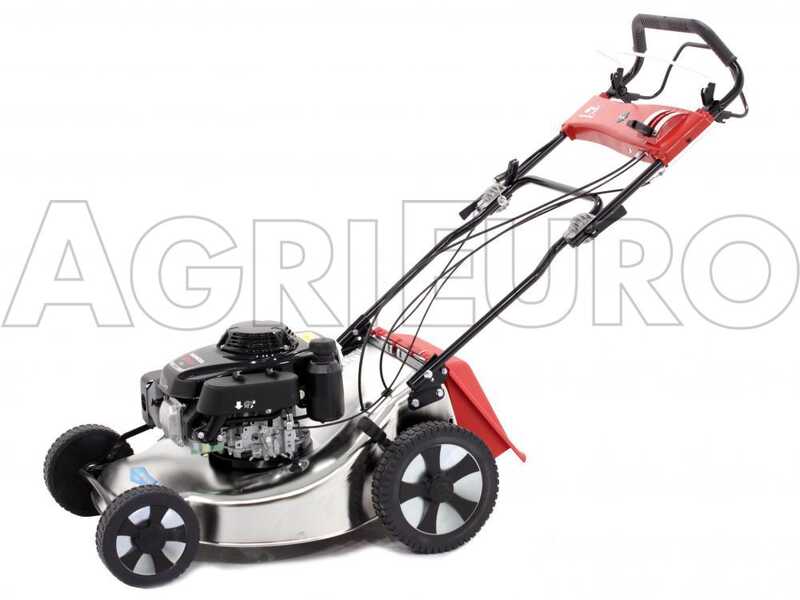

Centralized cutting height adjustment

Five cutting heights adjustmenbts are available for Ma.Ri.Na. Systems MX 57 SH 3V
lawn mower.

Their range is from 20 mm to 80 mm maximum.

The centralized adjustment is incredibly quick and intuitive.

It is enough to pull the proper handle, and lift the machine until the desired height is reached - from 20 mm minimum up to 80 mm maximum.

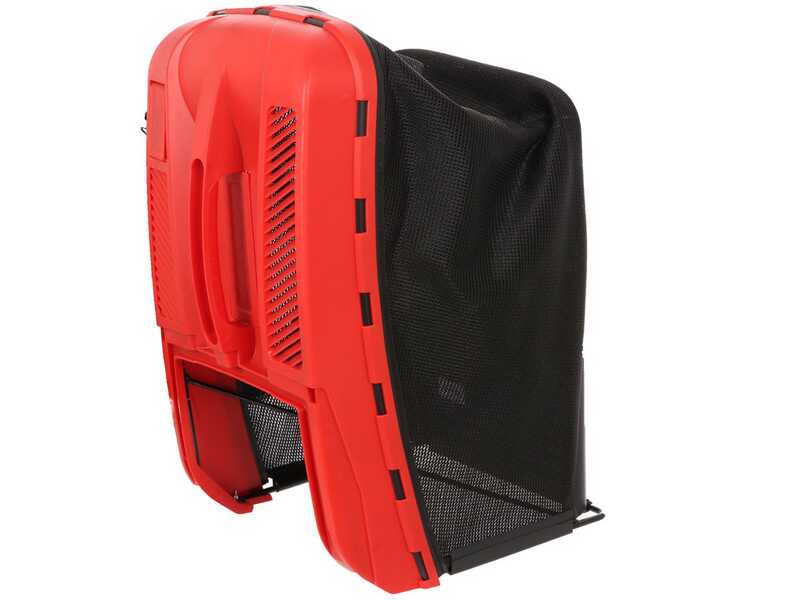

Cutting systems: grass collector

BAG COLLECTION CUTTING SYSTEM:

The lawn mower is equipped with roomy 85 L capacity sack made of canvas and plastic , easily removable and easy to empty.

The lower part of the bag is made of plastic and this gives the lawnmower sturdiness as the canvas is protected from breakage de to the contact with the ground.

There is a useful handle located in the upper part of the bag that helps the emptying operations.

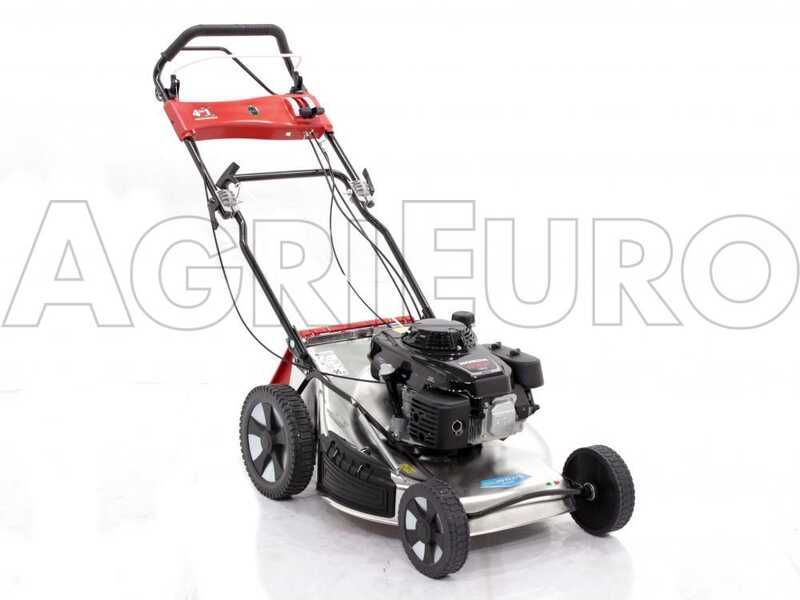

Cutting systems: rear discharge

REAR DISCHARGE SYSTEM:

Allows the grass cutting without using the bag but expelling the grass from the rear side of the lawn mower.


It is enough to pull off the bag and the rear discharge system will be immediately operating.

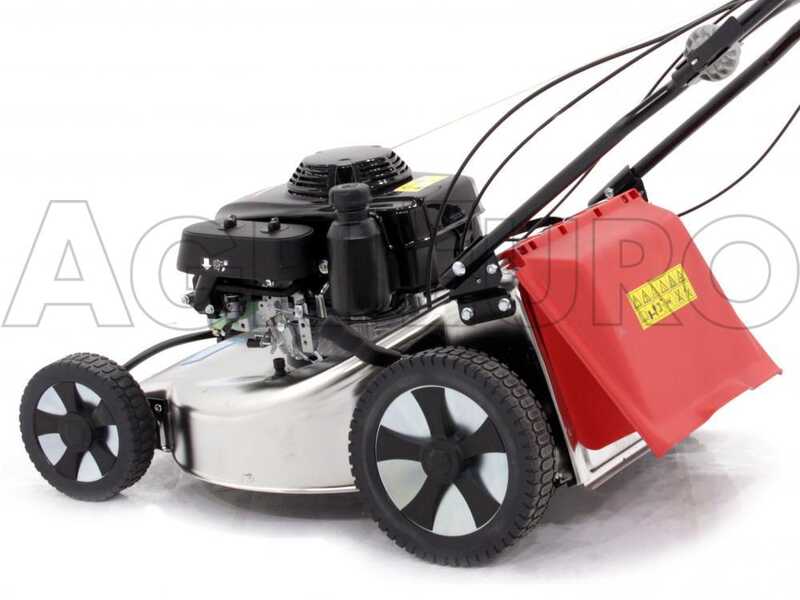

Cutting systems: mulching

MULCHING CUT INTEGRATED SYSTEM:
Useful to mow without collecting grass as it is finely crushed before falling over the lawn.

Immediate conversion: it is enough to pull out the collecting bag, insert the mulching plug provided with the standard equipment and lowering the rear deflector to activate the mulching mode.

WHAT IS MULCHING ?

This mowing system crushes the already cut grass leaving it on the lawn, it will be so finely crushed that it will not be almost invisible.

In this way the residue disposal will be avoided saving time and labor, in addition, while decomposing itself, will become in part a nutritive substance for the lawn and in part water (grass is 80% water) granting a biological cycle perfectly balanced We must anyway say that, to keep lawn in perfect conditions, it must be watered anyway while grass should be cut often.

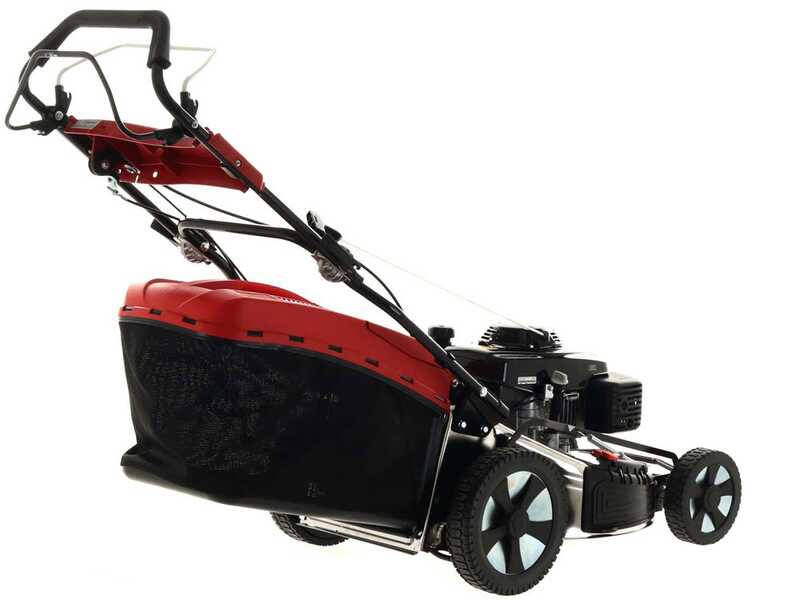

Cutting systems: side discharge

SIDE DISCHARGE SYSTEM:

For the grass cutting without collecting it. Very useful for grass taller than normal as per the high expelling capacity of the side deflector.

By leaving the mulching plug in order to close the rear discharge it is enough to lift up the side black shield from the deck and then insert the side deflector provided with the standard equipment.

Controls and adjustments

Professional aluminium handlebar with micrometric height adjustment system.

It is rubber covered for the best comfort.

Intuitive and easy controls located on the handlebar.

Blade engagement lever (front part of the handlebar)

Self-propulsion engagement lever (rear part of the handle)

Blade speed engagement lever

Settings:

Cutting height adjustment

Handlebar adjustment - The handlebar is equipped with a micrometric device for the handle height adjustment operated by means of two side quick levers (open and close).

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Standard equipment

The lawn mower is provided in its original package

85 litres collector

Instruction Manual included on packaging

Mulching Plug

Side deflector
