Marina Systems HR 54 SH VV Self-Propelled Lawn Mower - 4-in-1 - Honda GCVx 170 Engine

Add a question
ID: K608637

EAN: 8032727757532

MPN: HR 54 SH VV

7,6/10
After-sales assistance & Spare parts
Marina Systems HR 54 SH VV Self-Propelled Lawn Mower - 4-in-1 - Honda GCVx 170 Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Engine first maintenance kitEngine first maintenance kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Grass collector
Side discharge
Mulching cutting system
Standard equipment
Rear discharge
Body material
Enamelled steel
Motor brand
Honda
Motor Model
GCVX 170
Cubic capacity
166 cm³
Nominal power
5.5 HP
Max. recommended area
2200 m²
Cutting width
52 cm
Self-propelling
Rear-wheel drive
Cutting adjustment
1 lever
High rear wheels
Yes
Manufacturing country
Italy
Product Features
Model:
HR 54 SH VV
Body material:
Enamelled steel
Body thickness:
1.8 mm
Operating mode:
Spark ignition
Self-propelling:
Rear-wheel drive
Housing width:
55 cm
Grass collection system:
Standard equipment
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Collection bag capacity:
70 L
Max. recommended area :
2200 m²
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GCVX 170
Motor type:
4-stroke
Cubic capacity:
166 cm³
No. of cylinders:
1
Nominal power:
5.5 HP
Rated power (HP):
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Noise level:
94 dB(A)
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Single speed
Throttle lever:
Yes
Gearbox:
Wheel drive:
Self-propelled
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
52 cm
No. of blades:
1
Blade type:
Multifunction
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
65 mm
Min. cutting height:
20 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
52 cm
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Yes
Primer pump :
No
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
280 mm
Front wheels size:
200 mm
High rear wheels:
Yes
Wheels mounted on ball bearings:
Yes
Wheel Type:
Plastic wheels on ball bearings
Steel front bumper:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine maintenance kit:
For free
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
155x73x108 cm
Net weight:
38 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
98x58.5x48 cm
Gross weight (packaging included) :
40 Kg
Assembly time:
15 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 24/02/2025 - 26/02/2025
Suggested price:
€ 1.038,87
€ 818,24
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

Marina Systems HR 54 SH VV Self-Propelled Lawn Mower

The Ma.Ri.Na. Systems HR 54 SH VV 4-in-1 is a petrol professional lawn mower, created to meet the needs of the most-demanding customers who desire a high-efficiency and reliability tool. The structure consists of an all-steel casing with a special 1.8 mm thick hammered-effect paint, reinforced at the front by a sturdy front iron bull-bar.

The mower has a large 70L collection bag and a cutting width of 52 cm, which can be adjusted in height through a central lever in 5 different positions, varying from 20 to 65 mm. The high-wheel system with double sealed bearings allows professional cutting even on uneven lawns. They are mounted on ball bearings for ensuring to the lawn mower the maximum ease of movement.

The HR 54 SH VV Ma.Ri.Na Systems cutting system 4-in-1. enables to choose between four different operating modes: grass collection with 70L bag, mulching, rear discharge and side discharge. The powerful 166cc Honda GCVX 170 engine with 5.5HP guarantees high performances and reliability.

The machine's professional traction is guaranteed by its aluminium housing and bronze gears, making it a high-end product. The 200-280mm high-wheel drive ensures excellent manoeuvrability on uneven terrain.

The lawn mower is equipped with a safety system that blocks the engine in case of emergency, guaranteeing the user maximum protection. Finally, the machine is easy to clean and place thanks to the handy washing connection and the bendable handle, which allows space-saving when not in use.

In brief, the HR 54 SH VV 4-in-1 Ma.Ri.Na. Systems high quality lawn mower, created to meet the needs of the most demanding consumers who are looking for reliability, high-performance and versatility. Thanks to its advanced technical features, the machine guarantees professional and precise lawn cutting in a practical and safe way.

Honda GCVx170 Engine

The Honda GCVx170 OHV is a lightweight and high-performing engine, suitable for jobs requiring high power, guaranteed by the 166 cc. The high power sets this engine type on top of the Honda GCVx Series.


Features: Values
Engine type: 4-Stroke, single cylinder
Cylinder type: Aluminium
Cubic capacity: 166 cc
Fuel: Petrol
Starting: Recoil start


Easy recoil start
thanks to the automatic priming fuel system.


WARNING:

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.


Nominal Power: 5.5 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.42 HP (at 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

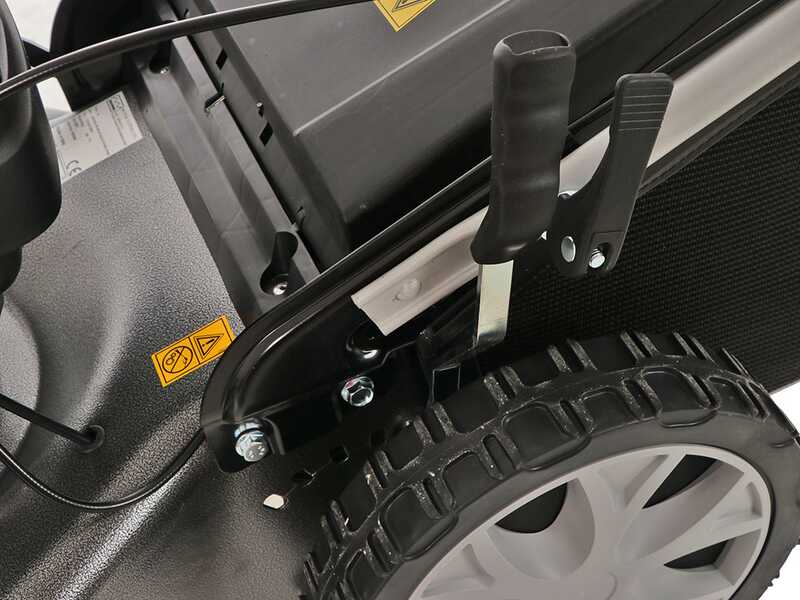

Precise centralised cutting height adjustment

Centralised cutting height adjustment system by means a lever placed near the rear wheel.

It allows adjusting the cutting height easily and quickly,

There are 5 heights, adjustable from 20 to 65mm

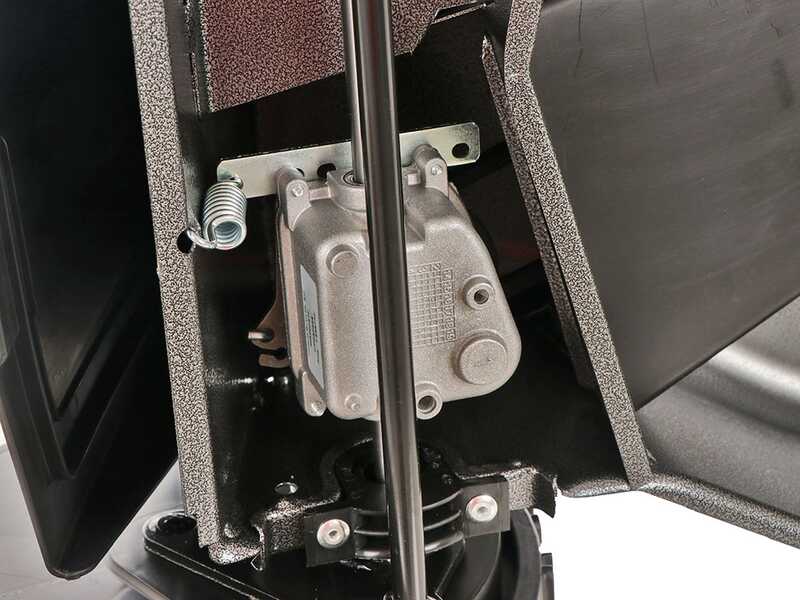

Rear-wheel drive and high-wheel system

Rear-wheel drive (Self-propelled).

Equipped with a sturdy belt drive with gearbox for both front and rear wheels.

It allows the Operator to mow the grass effortlessly, optimising the machine traction and forward efficiency.

200-280 mm large wheels system featuring double sealed bearings, which do not fear humidity and allow a professional cut even on not perfectly levelled lawns. They are mounted on ball bearings for ensuring to the lawn mower the maximum ease of movement.

The high-wheel system make them highly long-lasting and guarantees an incredible manoeuvrability.

The lawn mower can be operated by means the black lever on the handlebar.

Steel blade and enamelled steel housing

1.8 mm steel housing with hammered effect, extremely sturdy and reinforced for high structural durability.

Quick washing joint, which allows cleaning the housing quickly.

Iron front bumper that further protects the already sturdy housing.

Focus on the 52 cm steel blade: Heavy-duty "finned" blade equipped with special extended wings at both ends that creates a much more powerful air flow than standard blades. This increases the grass collection, mulching and other cutting systems results.

Highly thick housing: 1.8 mm This makes it highly impact resistant and hardly deformable.

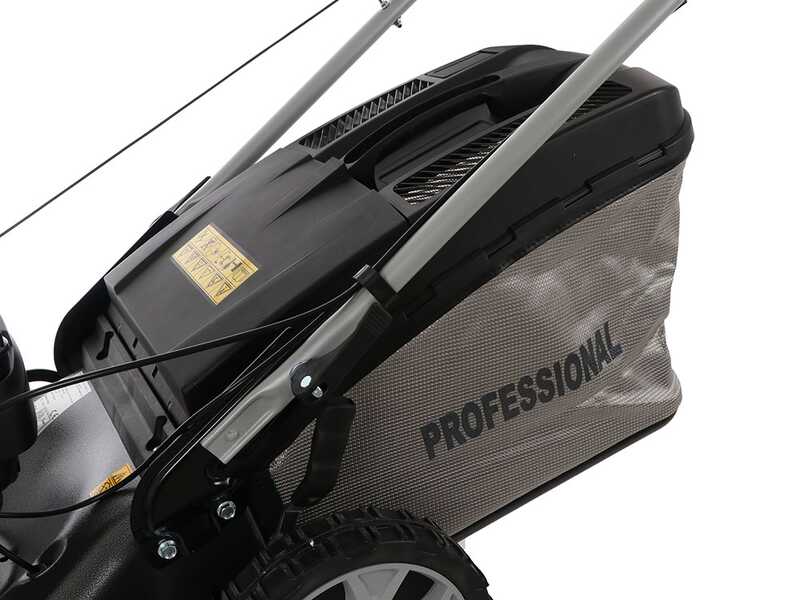

Cutting systems: grass collection

GRASS COLLECTION SYSTEM:

The lawn mower is equipped with a 70 L canvas grass collector, very easy to remove and empty.

The lower part is made of rigid plastic, which gives strength and sturdiness, avoiding the canvas to tear if in contact with the lawn.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

Grass collector full level indicator.

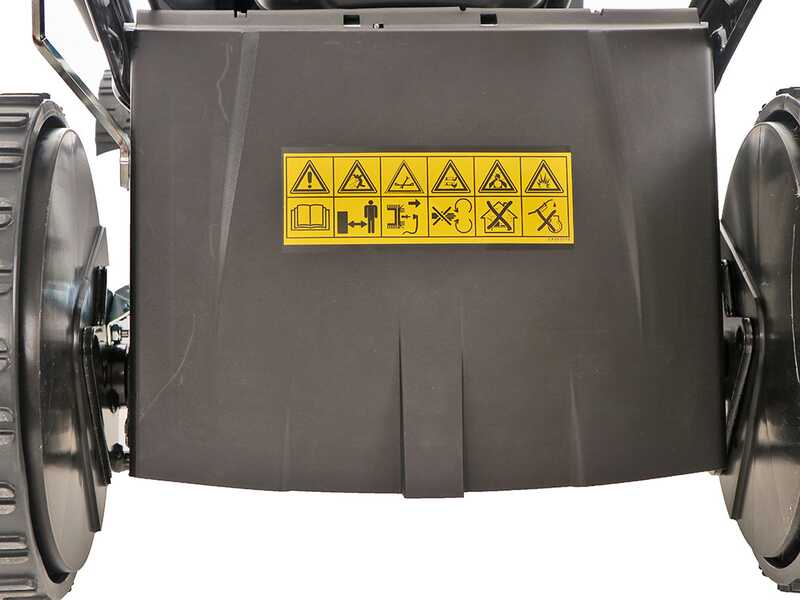

Cutting systems: rear discharge

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and close the black casing of the side deflector the rear discharge will automatically operate.

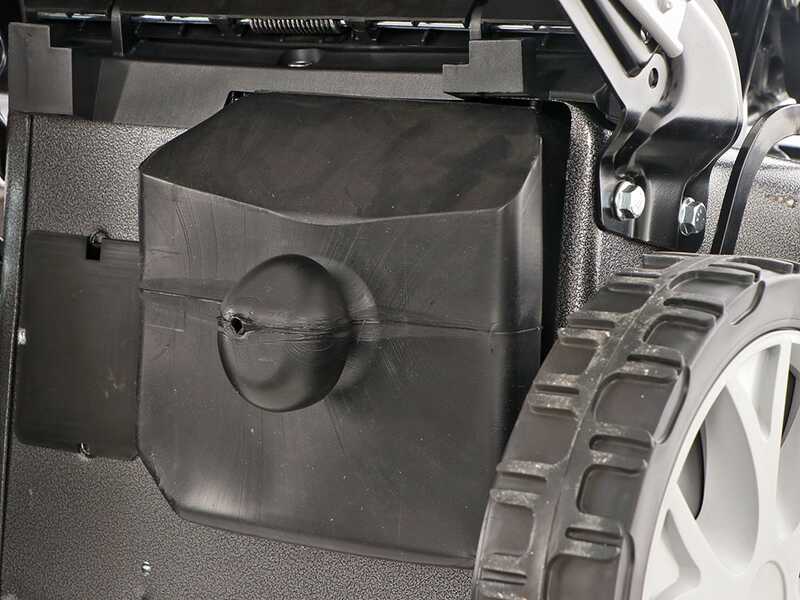

Cutting systems: mulching

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

How to convert the lawn mower for the mulching cutting system:

  • Open the grass collector
  • Enter the mulching plug supplied
  • Lower the rear deflector to operate the mulching cutting system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:
This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

Cutting systems: side discharge

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

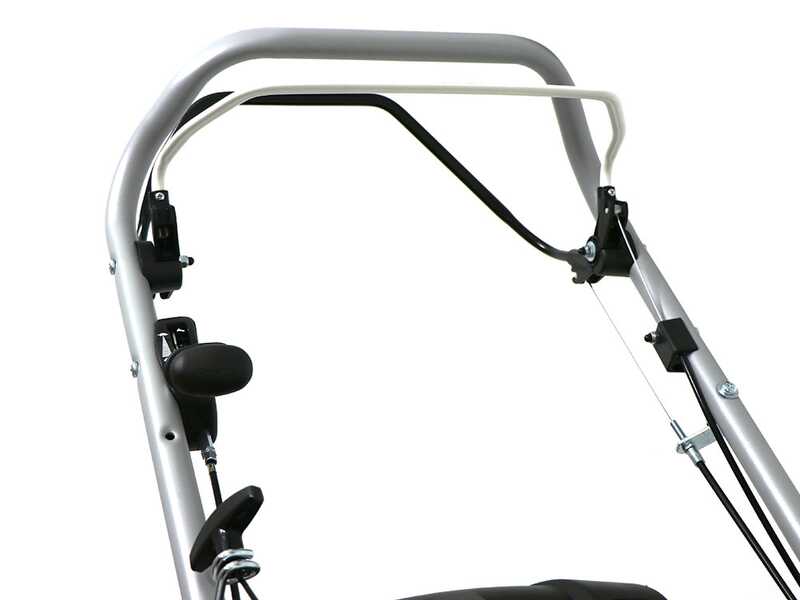

Controls and adjustments

Heavy-duty ergonomic aluminium handlebar. Adjustment system on two different heights.

Easy and user-friendly controls placed on the handlebar.

Blade engagement lever (white lever in front of the handlebar)

The rear lever operates rear wheel drive.

Engine speed variator

Adjustments available:

Cutting height adjustment lever.

Focus on the joint for quick and easy washing of the cutting deck

Focus on the full bag warning system

Focus on the front Bull Bar

Free items & Standard equipment

1° GIFT: MAINTENANCE KIT

The maintenance kit includes:

  • Professional spark plug for engines.
  • Multi-tool joint wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Engine air filter.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel oil draining and refilling.

2° GIFT: Safety kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 600 ml oil bottles

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Black&Decker GKC 1825L20-QW Electric Chainsaw

The Black & Decker 18V lithium battery is an ergonomically designed chainsaw with excellent balance and dual handle for maximum comfort during use.

It's low weight of only 3.1 kg makes this machine extremely manoeuvrable and easy to use, it has an effective cutting capacity of up to 25 cm and can cut up to 220 branches of 3.5 cm diameter per single charge.

Equipped with a 18V Li-Ion battery with a capacity of 2.0 Ah, so it is always ready for use and has a longer runtime.

Automatic tensioning system to apply and adjust the chain more precisely and safely, lubrication via the pump on the oil cap is quick and easy, with no oil spillage. Chain type with anti-kickback.

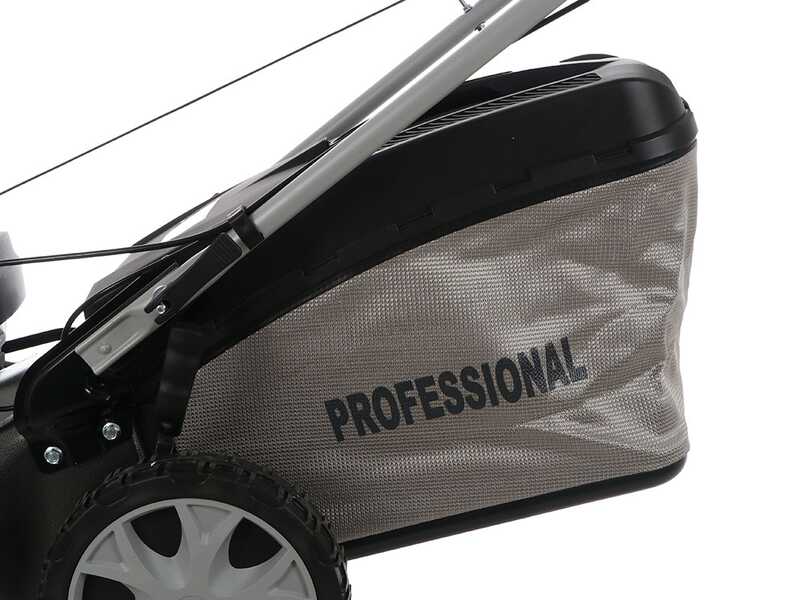

Free items included

The lawn mower is shipped in its original packaging.

70 L grass collector

Instructions manual included in the package

Mulching plug

Side discharge
