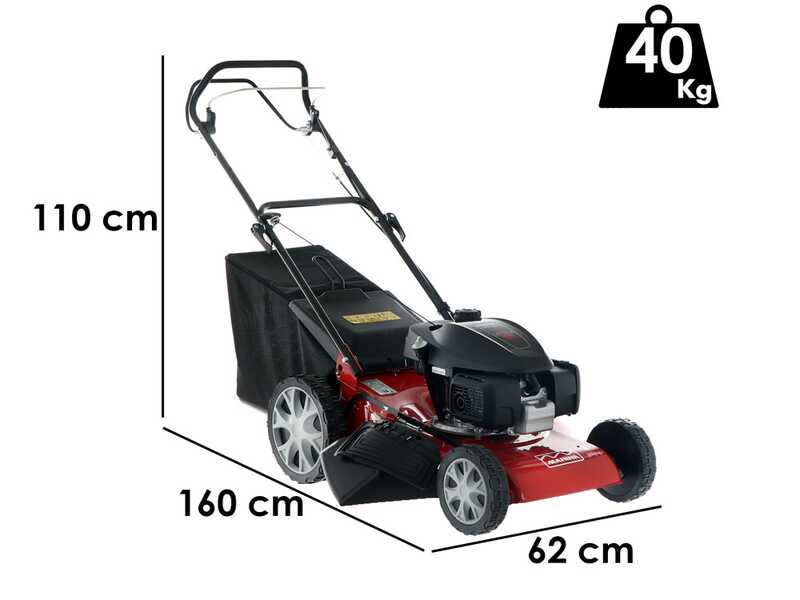

Marina Systems GALAXI GX 52 SH Lawn Mower - Honda GCVx 200 Engine - 52 cm Blade - 4 in 1

The Ma.Ri.Na.Systems GALAXI GX 52 SH GCVx 200 heavy-duty petrol lawn mower is a machine developed for the most demanding professional users.

The machine is equipped with 2 blades, one specifically designed for mulching (already mounted) and one for grass collection included in the packaging.

The housing is made of enamelled steel and it is extremely weather resistant.

4 in 1 cutting systems:

• Grass collection system (with proper blade already supplied)
• Mulching (with proper blade already assembled)
• Rear discharge
• Side discharge

The machine is powered by the Honda GCVx 200 engine, featuring high reliability and power.

Equipped with large 70 L grass collector.

This lawn mower is equipped with a 52 cm cutting width and can be also adjusted by means a centralised lever in 5 different positions, from 30 mm to 80 mm.

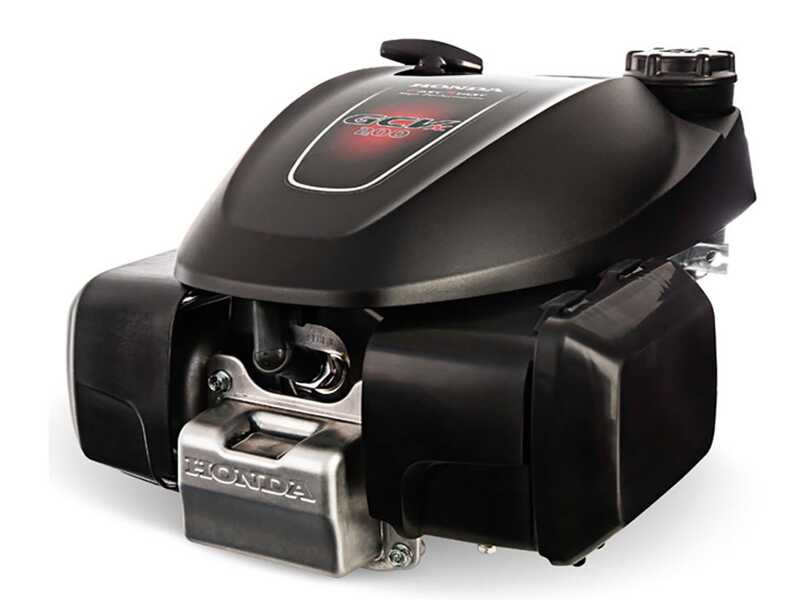

The Honda GCVx200 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 201 cc.

Fuel tank capacity: 0.91 L

Engine oil tank capacity: 0.4 L

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.6 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

Most lawn mowers equipped with several cutting systems, such as grass collection and mulching, are fitted with a multifunction blade that performs reasonably well but is unable to achieve optimum cutting results in either mowing system.

This lawn mower is equipped with 2 heavy-duty blades specific for the following cutting systems:

• 1 heavy-duty blade
• 1 blade specific for mulching

This ensures always the highest cutting results whatever cutting system used.

• The lawn mower will come with a heavy-duty finned blade that allows collecting a high amount of grass clippings into the grass collector and ensures the best results also for the side discharge cutting system. Thanks to this blade it will be possible to cut even a little wet, high or thick grass.

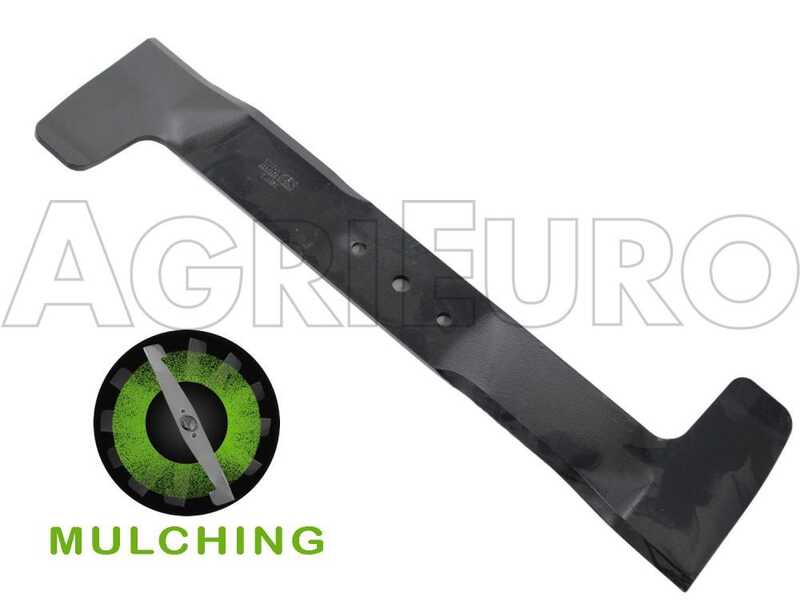

• The specific mulching blade supplied ensures highest performance for this type of cutting system, at the same level of the lawn mowers specifically designed for the mulching cutting system.

Centralised cutting height adjustment system by means a lever placed near the rear wheel.

It allows adjusting the cutting height easily and quickly, from 30 mm to 80 mm.

Rear-wheel drive (Self-propelled).

Equipped with a sturdy belt drive with gearbox.

It allows the Operator to mow the grass effortlessly, optimising the machine traction and forward efficiency.

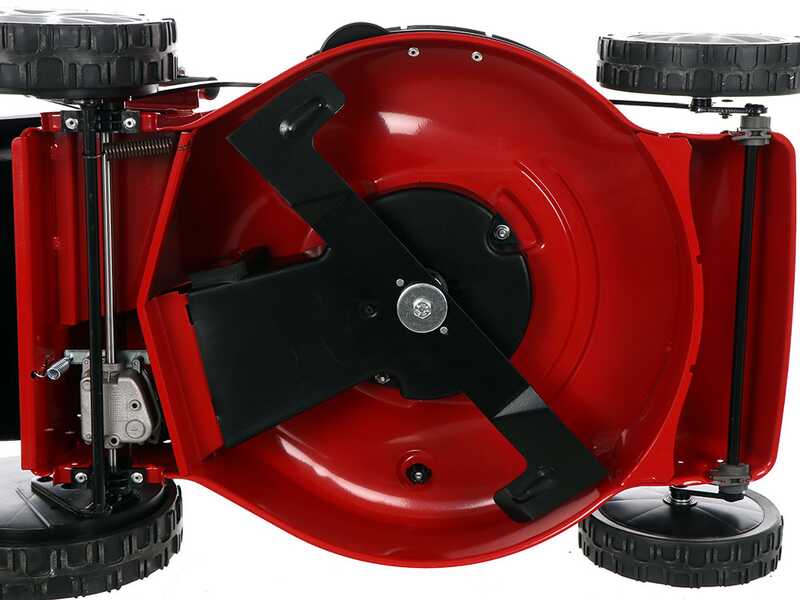

Four 200-280 mm large wheels featuring double sealed bearings, which are moist resistant and allow a professional cut even on not perfectly levelled lawns. They are mounted on ball bearings for ensuring to the lawn mower the maximum ease of movement.

The high-wheel system make them highly long-lasting and guarantees an incredible manoeuvrability.

Rear wheels diameter: 200 mm

Front wheels diameter: 280 mm

Focus on the intermediate drive belt (engine/drive) perfectly closed and protected by the proper black cover.

Extremely sturdy, reinforced enamelled steel housing for a long service life.

Quick washing joint, which allows cleaning the housing quickly.

Steel front bumper that further protects the already sturdy housing.

Focus on the 52 cm steel blade: Heavy-duty "finned" blade equipped with special extended wings at both ends that creates a much more powerful air flow than standard blades. This increases the grass collection, mulching and other cutting systems results.

Highly thick housing: 1.8 mm This makes it highly impact resistant and hardly deformable.

GRASS COLLECTION SYSTEM:

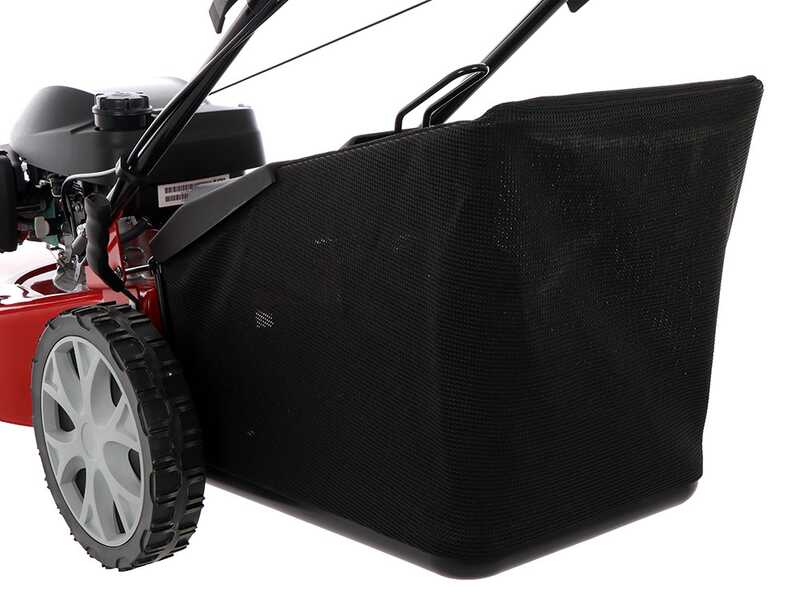

The lawn mower is equipped with a 70 L canvas grass collector, very easy to remove and empty.

The lower part is made of rigid plastic, which gives strength and sturdiness, avoiding the canvas to tear if in contact with the lawn.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

The specific mulching blade supplied ensures highest performance for this type of cutting system, at the same level of the lawn mowers specifically designed for the mulching cutting system.

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

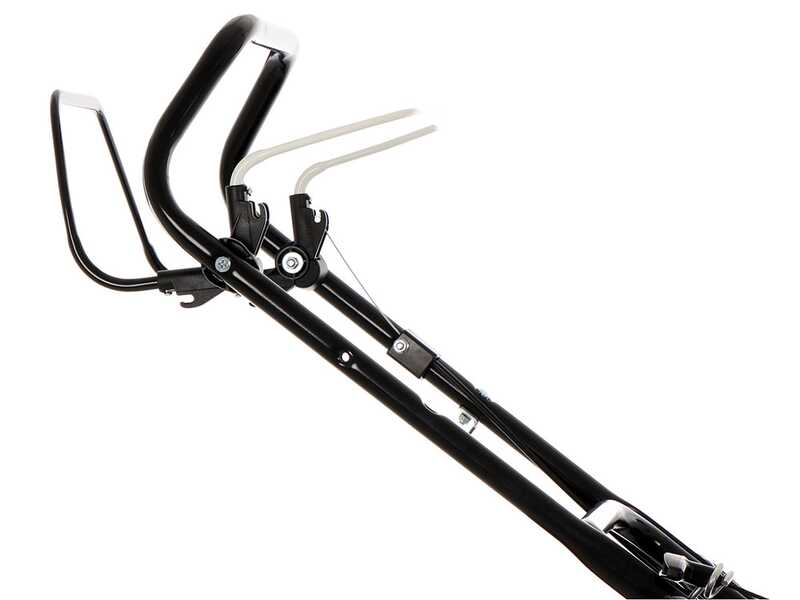

Heavy-duty ergonomic aluminium handlebar with soft grip. Micrometric cutting height adjustment system.

Coated handlebar for optimal working comfort.

Easy and user-friendly controls placed on the handlebar.

Blade engagement lever (in front of the handlebar)

Adjustments available:

Cutting height adjustment lever.

Handlebar tilt adjustment:

The handlebar is provided with plastic micrometric device for adjusting the handlebar height.

By means two quick side levers (open and close), it allows adjusting the handlebar height or folding it quickly.

Possibility to fold the handlebar for storage.
