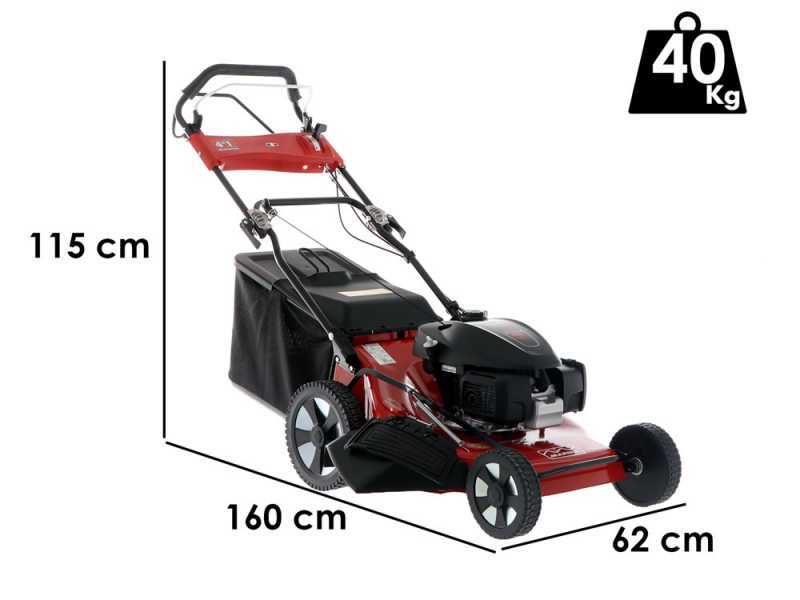

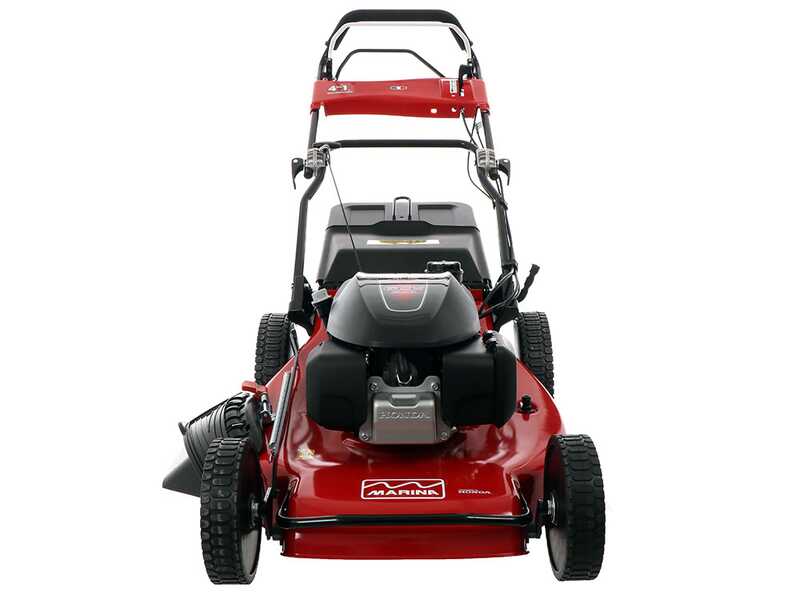

Marina Systems AGRI 57 SH 3V ZHW Self-propelled Lawn Mower - 3 Gears - Honda GCVx 200 Engine

The Marina Systems AGRI 57 is a self-propelled lawn mower designed for professional users who need to mow large areas comfortably, quickly and easily.

This is possible thanks to the 3-speed gearbox and the wide cutting width.

Furthermore, the machine is equipped with a 6.5 Hp HONDA GCVx 200 engine, which guarantees power and reliability.

The machine is equipped with rear-wheel drive and the 3-speed gearbox allows you to select the forward speed from 2 km/h to 3.2 km/h.

The gearbox is the heavy-dutiest, most durable and sturdiest system for varying the machine's forward speed.

The lawn mower is provided with a centralised cutting height adjustment system by means of a lever in 5 different positions, from 20 mm to 80 mm.

This lawn mower is equipped with a high-wheel system with steel wheels. The wheels, with a diameter of 190 -280 mm, are mounted on ball bearings and they are perfect for medium-sized uneven areas.

Cutting Systems:

• Grass collection system
• Mulching
• Rear discharge
• Side discharge

This lawn mower is suitable for surfaces up to 2600 s.q. m. and provided with a large 75 L grass collector.

The lawn mower is equipped with a heavy-duty gearbox with 3 gears: the knob allows adjusting the forward speed with extreme precision and ease.

• The heavy-duty oil-bath gearbox system ensures the highest quality and reliability.

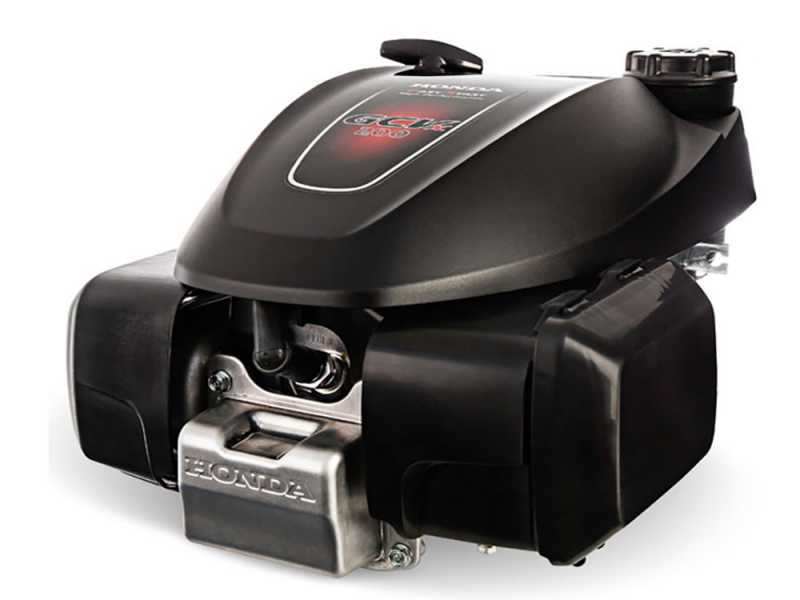

The Honda GCVx200 engine guarantees high performances and it is suitable for works that require high reliability and durability, thanks to its remarkable 201 cc.

Fuel tank capacity: 0.91 L

Engine oil tank capacity: 0.4 L

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.6 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

Focus on the spark plug

Most lawn mowers equipped with several cutting systems, such as grass collection and mulching, are fitted with a multifunction blade that performs reasonably well but is unable to achieve optimum cutting results in either mowing system.

This lawn mower is equipped with 2 heavy-duty blades specific for the following cutting systems:

• 1 heavy-duty blade
• 1 blade specific for mulching

This ensures always the highest cutting results whatever cutting system used.

• The lawn mower will come with a heavy-duty finned blade that allows collecting a high amount of grass clippings into the grass collector and ensures the best results also for the side discharge cutting system. Thanks to this blade it will be possible to cut even a little wet, high or thick grass.

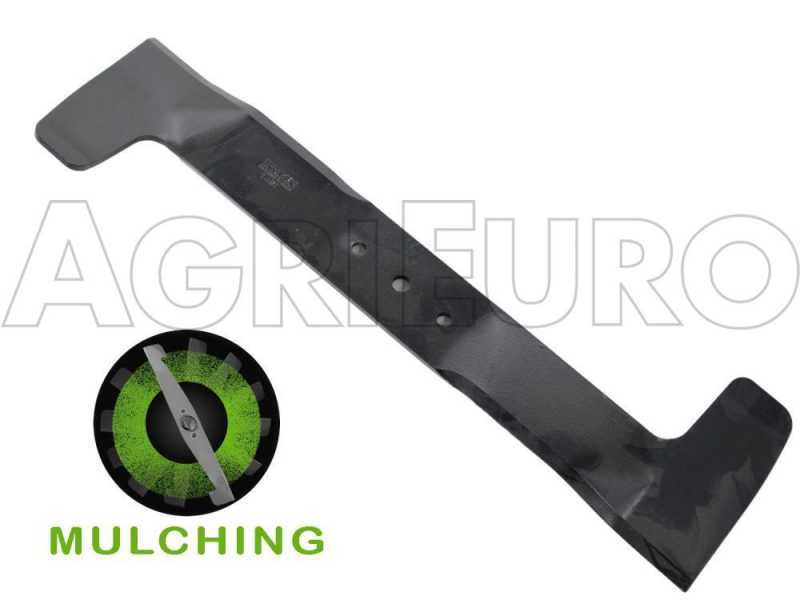

• The specific mulching blade supplied ensures highest performance for this type of cutting system, at the same level of the lawn mowers specifically designed for the mulching cutting system.

The housing is sturdy and impact-resistant.

Its coating makes it highly rust-resistant.

Quick washing joint, which allows cleaning the housing quickly.

Steel front bumper that further protects the already sturdy housing.

Focus on the steel blade: Heavy-duty "finned" blade equipped with special extended wings at both ends that creates a much more powerful air flow than standard blades. This increases the grass collection, mulching and other cutting systems results.

Focus on the high thickness of the housing This makes it highly impact resistant and hardly deformable.

Rear-wheel drive (Self-propelled).
Equipped with a sturdy belt drive with gearbox which allows the Operator to mow the lawn without any effort, optimising the traction of the machine and the feed efficiency. The convenient speed selector on the handlebar allows to select one of the 3 gears available.

The high-wheel system mounted on ball bearings guarantees an incredible manoeuvrability. The wheels are mounted on sturdy ball bearings which make them greatly long-lasting.

Rear wheels diameter: 190 mm

Front wheels diameter: 280 mm

Focus on the steel wheels

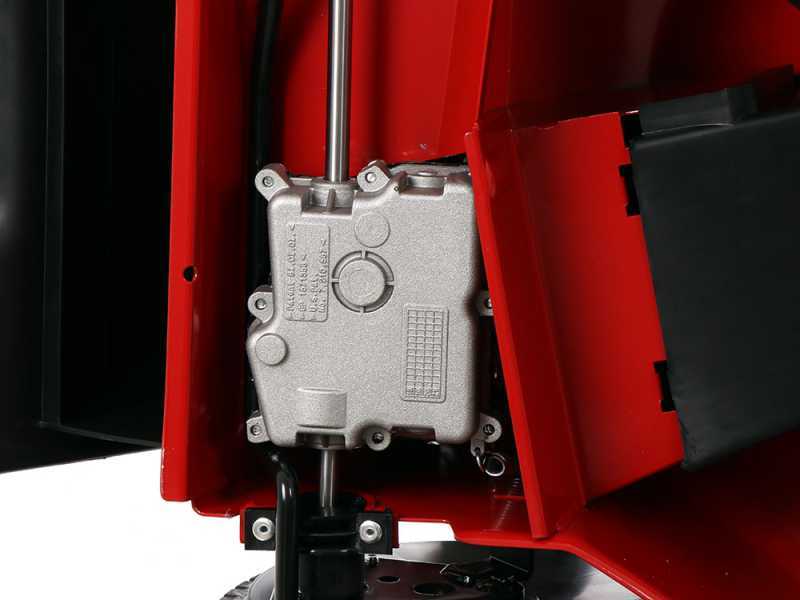

Focus on the gearbox perfectly closed and protected.

The Ma.Ri.Na. lawn mower is equipped with 5 cutting height adjustments, from 20 mm to 80 mm.

The centralised cutting height adjustment is incredibly fast and intuitive.

Simply operate the proper lever to raise or lower the machine according to your needs.

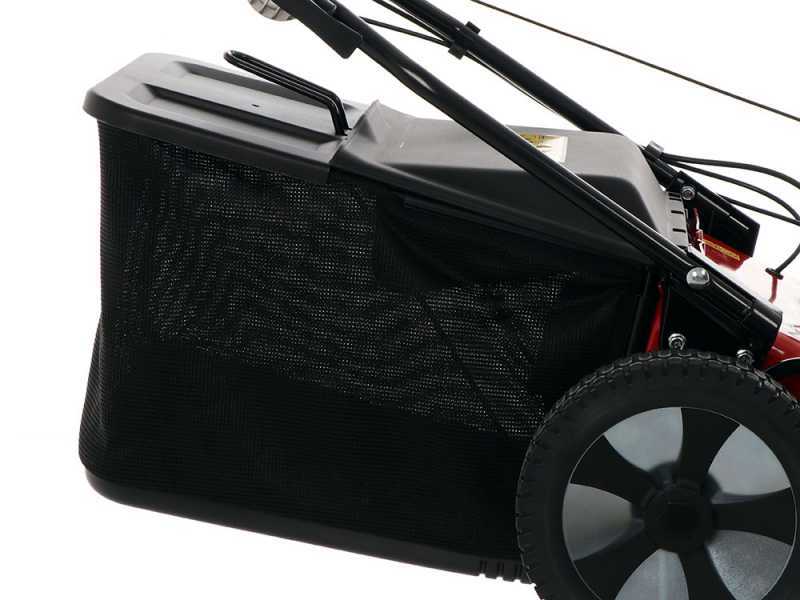

GRASS COLLECTION SYSTEM:

The lawn mower is equipped with a 85 L hybrid grass collector, very easy to remove and empty.

The lower part is made of plastic, which gives strength and sturdiness, avoiding the canvas to tear if in contact with the lawn. The collector is also reinforced with plastic even in its upper part.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

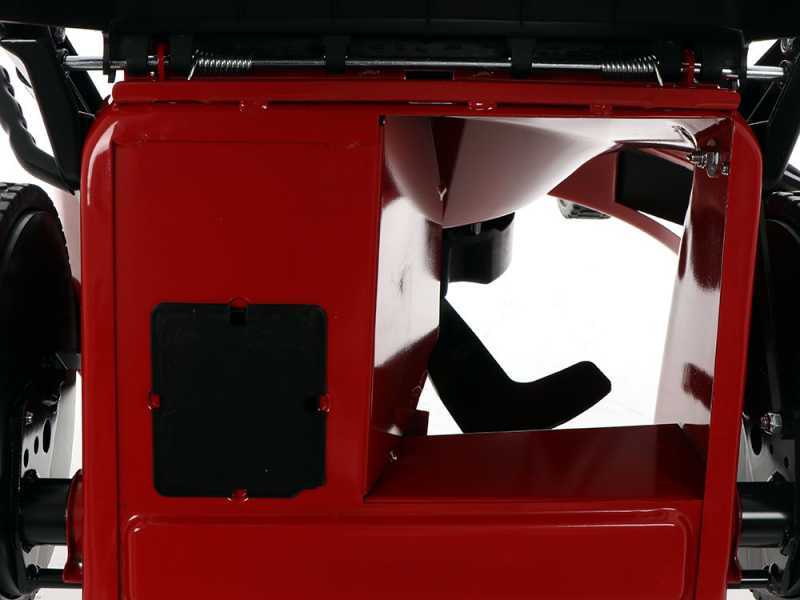

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

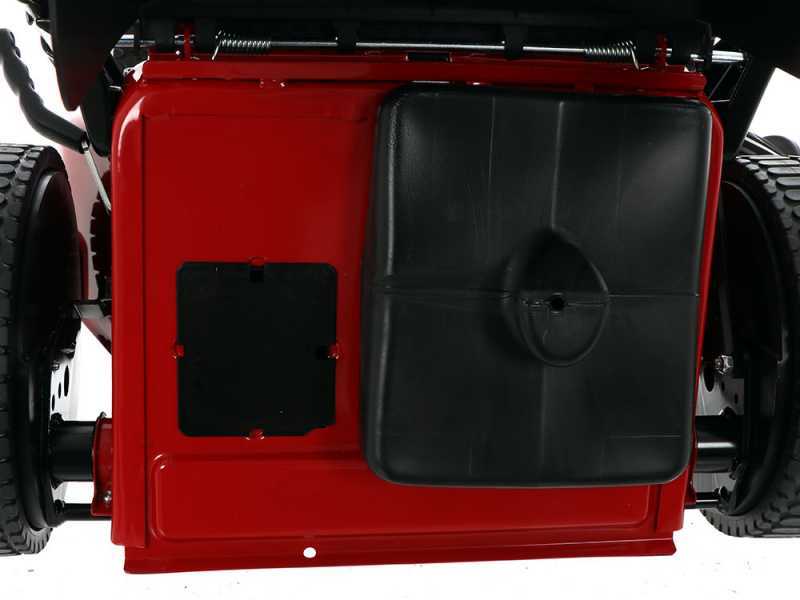

Immediate conversion: you will just need to pull out the grass collector, enter the standard-supplied mulching plug, and lower the rear deflector in order to engage the mulching system.

MAIN SPECIFICATIONS OF THE MULCHING CUTTING SYSTEM:

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

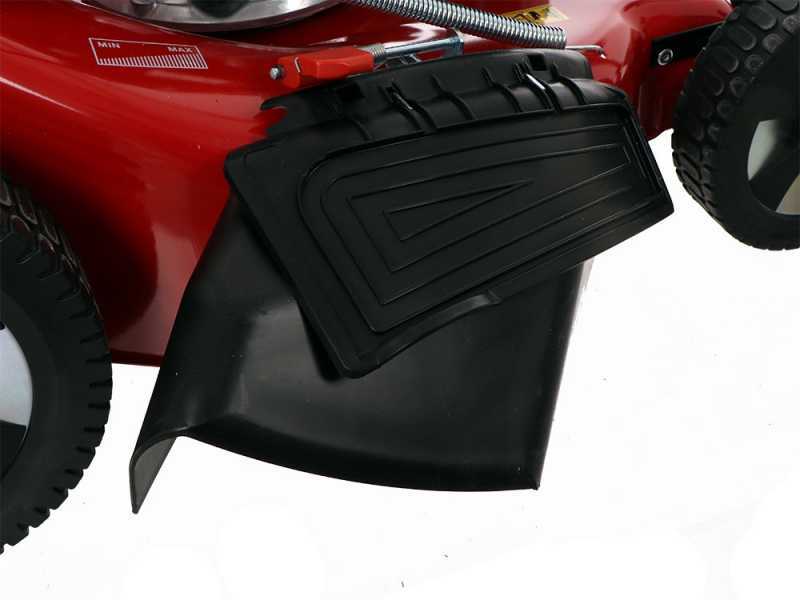

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

Heavy-duty aluminium handlebar with micrometric height adjustment device.

Coated handlebar for great user comfort.

Easy and user-friendly controls placed on the handlebar.

Blade engagement lever (in front of the handlebar)

Self-propelled engagement lever (behind the handlebar)

Speed selector: 3 forward speed levels

Adjustments available:

Cutting height adjustment:

Handlebar tilt adjustment:

The handlebar is equipped with micrometric height adjustment device by means two quick side levers (open and close), for adjusting the handlebar height or folding it.

The lawn mower is equipped with a heavy-duty gearbox with 3 gears: the knob allows adjusting the forward speed with extreme precision and ease.

• The heavy-duty oil-bath gearbox system ensures the highest quality and reliability.
