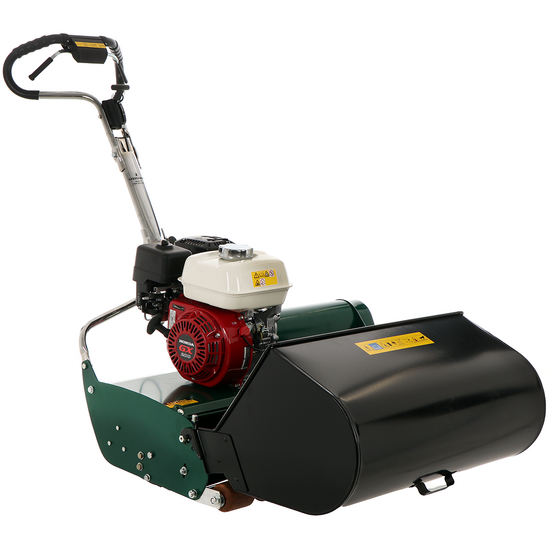

Marina Systems 660H Cylinder Lawn Mower - Metal Roller - 6 Blades Cylinder

The Marina Systems 660H cylinder lawn mower is designed to satisfy the needs of professional users, ensuring excellent results and leaving a smooth and level mown terrain.

The front roller features some wood parts that allow the cutting tool to mow the lawn gently, ensuring professional finish results and making really easy to stripe your lawn.

The cutting height of this machine can be freely adjusted from 7 mm to 30 mm thanks to a knob on the side of the front roller.

The metal roller doesn’t damage the lawn and efficiently unloads the power of the 5.0 Hp HONDA GX200 engine to the ground.

The lawn mower is equipped with a special cutting system. This consist of a cylinder blade and counter blade that cleanly cut the grass without “tearing off” it like a standard lawn mower would do, making it suitable for more delicate lawns.

This cylinder mower is recommended for flat and fairly even terrains, like football pitches or golf courses.

The gearbox is simple and sturdy, consisting of a chain, sprocket and pinion, and it transmits the drive extremely efficiently, requiring no special maintenance.

The cylinder is equipped with 6 highly sharp blades that cut the grass thanks to a hardened steel counter-blade at the base of the machine. It features a 66 cm cutting width and is provided with a safety blade brake as standard.

The 80 L enamelled steel grass collector allows you a long working autonomy as you won’t have to empty it too often.

Recommended for use on areas up to 3000 s.q. m.

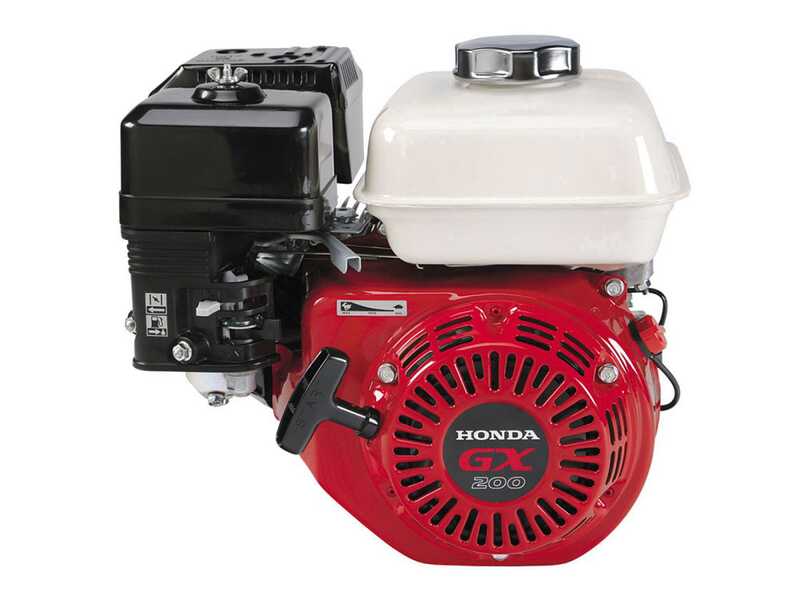

The Honda GX 200 engine is powerful and heavy-duty, with the latest generation technology in OHV valve head.

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the manual or in the technical data of the engine manufacturer.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

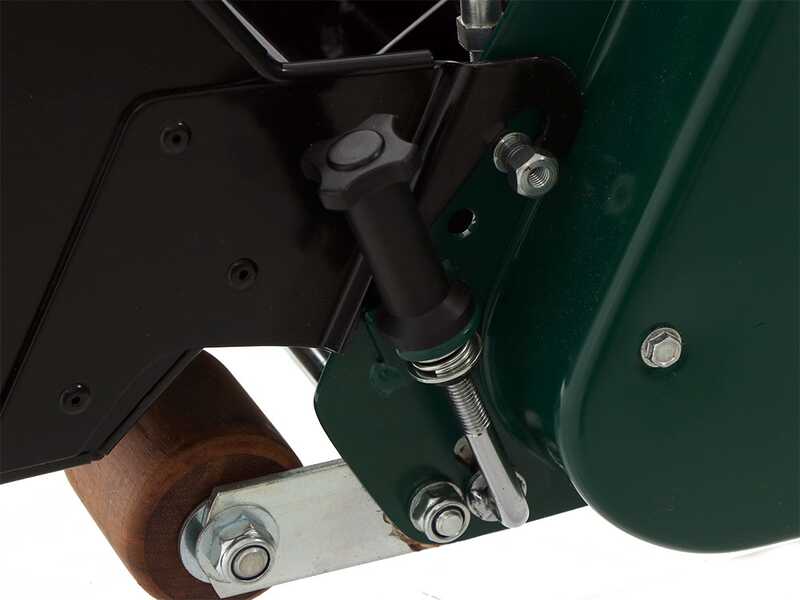

Centralised cutting height adjustment system by means a knob placed near the front roller.

It allows adjusting the cutting height to millimetre raising or lowering the front roller from 7 mm to 30 mm.

Transmission is operated through a large metal roller, divided into several parts to facilitate machine rotation by means of an internal differential.

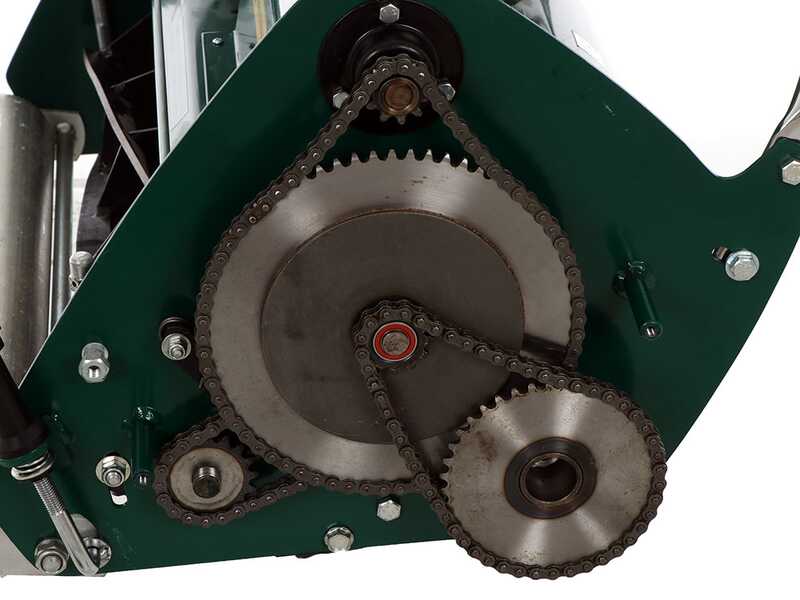

Equipped with a chain drive with sprockets and gears. A simple and sturdy system that is virtually maintenance-free.

The roller does not damage the lawn.

The roller allows you to achieve a striped effect on the lawn, typical of sports fields and ornamental surfaces, significantly improving the aesthetic appearance of the turf. During cutting, the rear roller bends the grass in opposite directions. This creates a natural optical effect: grass bent towards the observer appears darker, while grass bent in the opposite direction appears lighter.

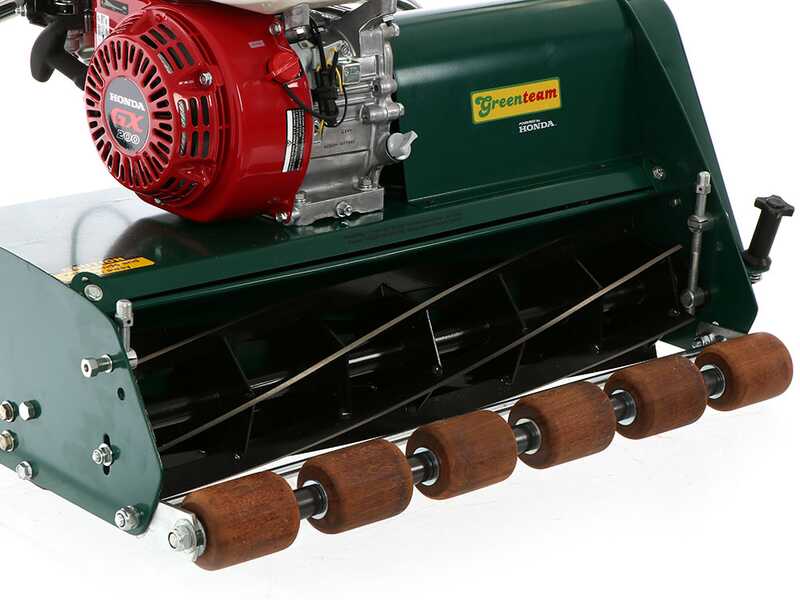

The special feature of this machine is the steel cutting cylinder, which ensures optimal cutting results that other standard lawn mowers can’t achieve.

The cylinder consists of 6 blades which, while rotating, counteract each other with a counter blade that cuts the grass cleanly.

The multiple front roller makes it possible to stripe the lawn, as for example on football pitches.

The front roller also allows to adjust the cutting height.

The enamelled steel housing is 3 mm thick, reinforced and extremely sturdy.

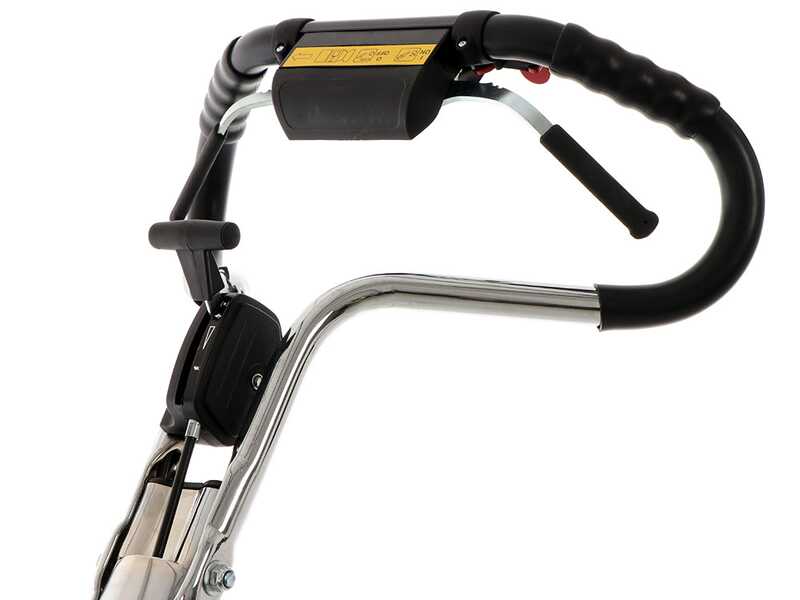

Heavy-duty ergonomic handlebar.

Easy and user-friendly controls placed on the handlebar.

Blade engagement lever

Rear-wheel traction engagement lever

The handlebar can be easily folded by means a lever.

Adjustments available:

Cutting height adjustment lever.

The handlebar is extremely easy to disassemble for storage.

The lawn mower is designed and intended exclusively for cutting grass in garden areas (and not on other types of terrain). The surface must be level, free from irregularities, stones, or other solid objects, and covered with maintained lawn grass (therefore, not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most lawn mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Brush Cutters.

Furthermore, grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, which reduces cutting efficiency, increases the risk of clogging inside the deck, and subjects the engine to excessive strain.
