Marina Systems 4 MAXI 52 SH - Trailed petrol lawn mower - 4-in-1 - Honda GCVx 200 engine

Questions & Answers (12)
ID: K608852

EAN: 8032727751875

MPN: W52SO7GX13S

7,6/10
After-sales assistance & Spare parts
Marina Systems 4 MAXI 52 SH - Trailed petrol lawn mower - 4-in-1 - Honda GCVx 200 engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Engine first maintenance kitEngine first maintenance kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Grass collector
Side discharge
Mulching cutting system
Standard equipment
Rear discharge
Body material
Enamelled steel
Motor brand
Honda
Motor Model
GCVX 200
Cubic capacity
201 cm³
Nominal power
6.5 HP
Max. recommended area
2400 m²
Cutting width
52 cm
Cutting adjustment
1 lever
4-wheel drive
Wheel Type
Galvanised metal
Manufacturing country
Italy
Product Features
Model:
4 MAXI 52 SH
Body material:
Enamelled steel
Body thickness:
1.8 mm
Operating mode:
Spark ignition
Self-propelling:
Trailed 4x4
Housing width:
55 cm
Grass collection system:
Standard equipment
Side discharge cutting system:
Standard equipment
Mulching cutting system:
Standard equipment
Cut with rear discharge:
Standard equipment
Cutting system:
4 in 1 - Collection + Rear discharge + Side discharge + Mulching
Collection bag capacity:
70 L
Max. recommended area :
2400 m²
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GCVX 200
Motor type:
4-stroke
Cubic capacity:
201 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
5.6 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
0.9 L
Oil tank capacity:
0.4 L
Noise level:
94 dB(A)
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Single speed
Gearbox:
Wheel drive:
4WD / 2WD
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Steel
Cutting width:
52 cm
Blade type:
Multifunction
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
80 mm
Min. cutting height:
25 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
52 cm
Equipment
Collection bag:
Standard equipment
Grass discharge side deflector:
Yes
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
235 mm
Front wheels size:
235 mm
Wheels mounted on ball bearings:
Yes
Wheel Type:
Galvanised metal
Steel front bumper:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine maintenance kit:
For free
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics

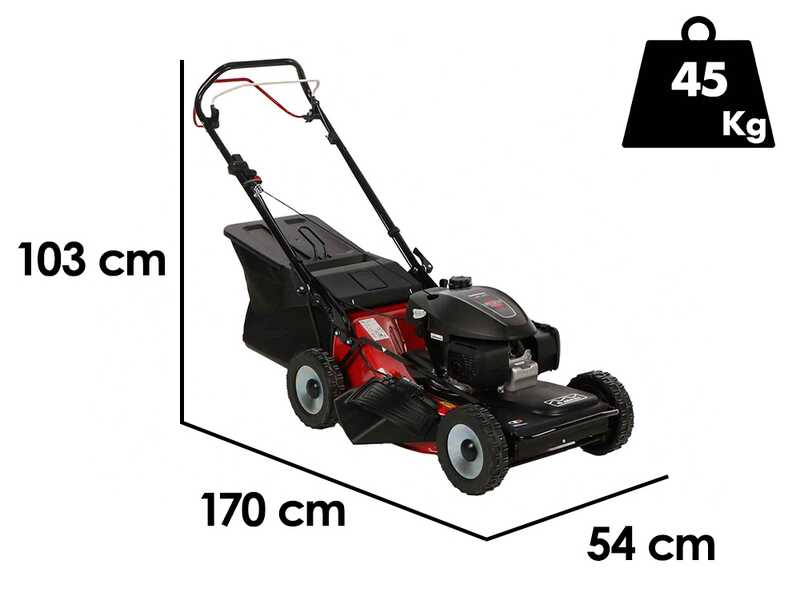

Product dimensions in cm (L x W x H):
170x55x103 cm
Net weight:
45 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
104x62x48 cm
Gross weight (packaging included) :
51 Kg
Assembly time:
30 minutes
Prompt Delivery
11 items in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 1.149,29
€ 1.086,00
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

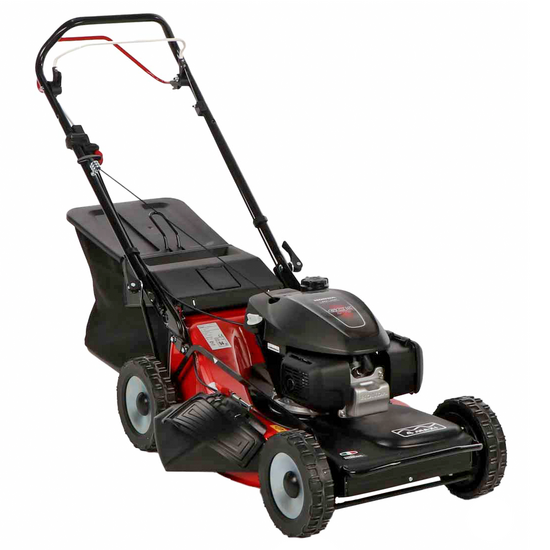

Lawn mower Marina Systems 4-MAXI 52 SH - 4 in 1

The Marina Systems 4-MAXI 52 SH professional lawn mower is the ideal choice for discerning consumers looking for a high-performance and reliable tool.

This model is equipped with the Honda GCVx 200 engine, known for its power and reliability, ensuring high performance even in the most demanding conditions.

The structure of the mower is robust and hard-wearing, made of an all-steel enamelled body and reinforced at the front by an iron bull-bar, thus ensuring greater durability and protection against impact.

Versatility of the 4-in-1 Cutting System:

  • Collection: Efficient collection system with a large 70 litre bag, perfect for long-lasting, uninterrupted work.
  • Mulching: Already equipped with a special blade, it enables precise finishing and nourishment of the lawn through fine shredding of the grass.
  • Rear discharge, Ideal for fast work on large surfaces.
  • Side discharge: Perfect for larger lawns or to prevent grass accumulation in one place.

The mower offers a wide cutting width of 52 cm, easily adjustable via a central lever, with 5 different positions ranging from 25 to 80 mm, thus adapting to different cutting requirements.

The galvanised metal wheels, equipped with double sealed bearings, guarantee a long service life and are not affected by moisture.

This makes them particularly suitable for use on uneven lawns, while still maintaining a professional cut. In addition, ball bearings further facilitate the handling of the mower, making the cutting operation easier and less tiring.

The Marina Systems 4-MAXI 52 SH lawn mower is the ideal choice for those looking for power, reliability and versatility in one machine. With the Honda GCVx 200 engine, robust construction and a 4-in-1 cutting system, this professional mower offers excellent performance on any type of lawn, guaranteeing impeccable results every time.

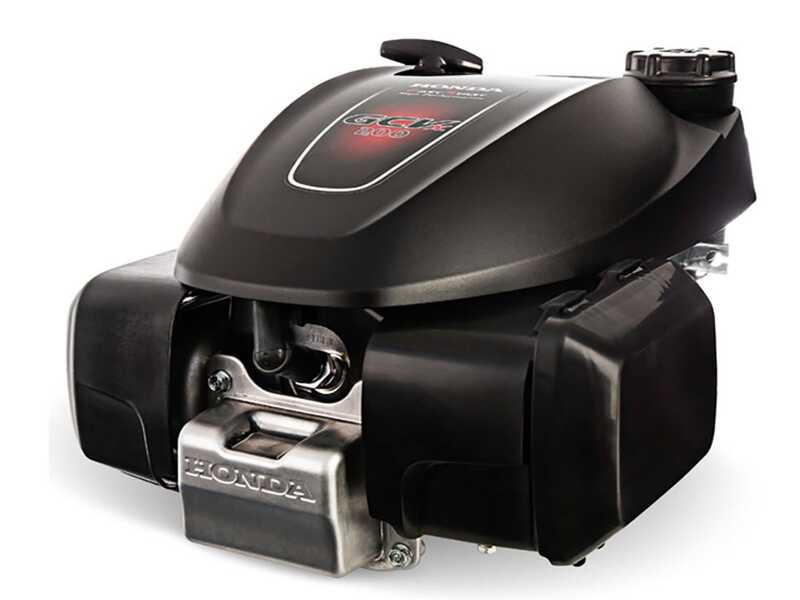

Honda GCVx200 engine

The Honda GCVx200 engine guarantees high performances, and it is suitable for works that require high reliability and durability, thanks to its remarkable 201 cc.

Fuel tank capacity: 0.91 L

Engine oil tank capacity: 0.4 L

Features: Values
Engine type: 4-Stroke, single cylinder
Cylinder type: Aluminium
Cubic capacity: 201 cm³
Power supply: Petrol
Starting: recoil starting
Recommended working area: 2400m².
Max. rpm: 3600 rpm

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.6 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This figure may vary for the same engine model, depending on the speed the manufacturer decided to have the engine applied.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

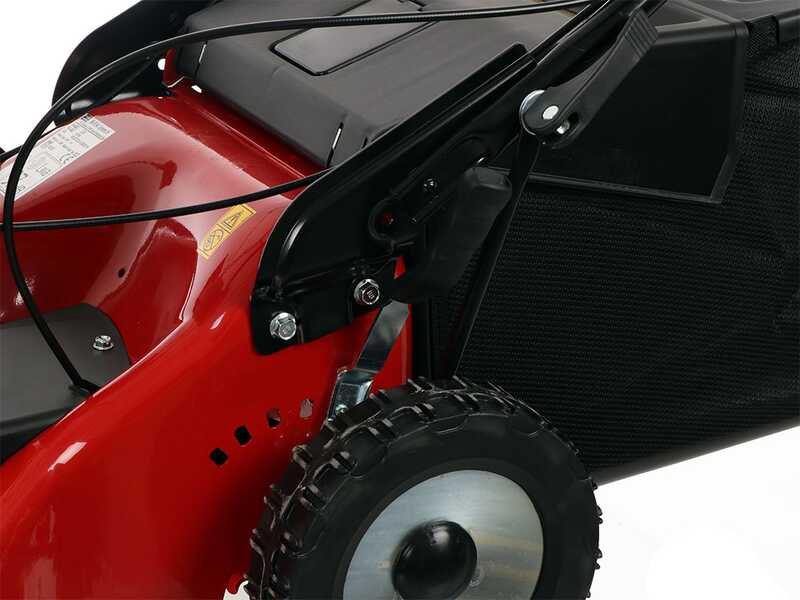

Centralised and precise cutting adjustment

Centralised cutting height adjustment system by means of a lever placed near the rear wheel.

It allows adjusting the cutting height easily and quickly,

from 25 mm to 80 mm.

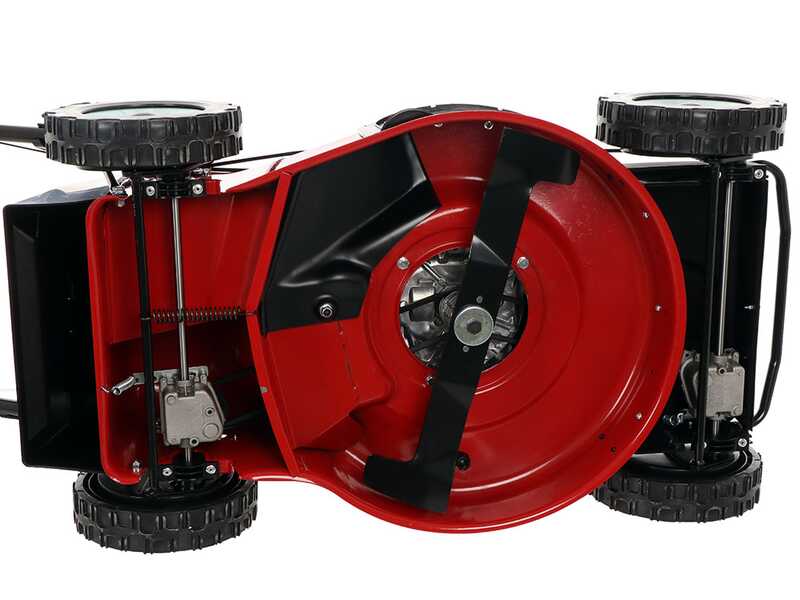

Independent four-wheel drive and steel wheels

The mower is equipped with a robust belt drive with gearbox for both front and rear wheels.

It allows the Operator to mow the grass effortlessly, optimising the machine traction and forward efficiency even on slopes of up to 25%.

The wheels are rubberised for a perfect grip on the lawn to be cut.

Detail of the wheels made of galvanised steel.

The 4-MAXI 52 SH lawn mower is equipped with an advanced 4x4 drive system, which allows it to travel with 2 or 4-wheel drive, thus offering unprecedented flexibility and adaptability to different ground conditions.

Simply move the selector on the handlebar upwards to switch from 2 to 4-wheel drive.

Steel blade and enamelled steel body

Extremely sturdy, reinforced enamelled steel housing for a long service life.

Quick washing joint, which allows cleaning the housing quickly.

Iron front bumper that further protects the already sturdy housing.

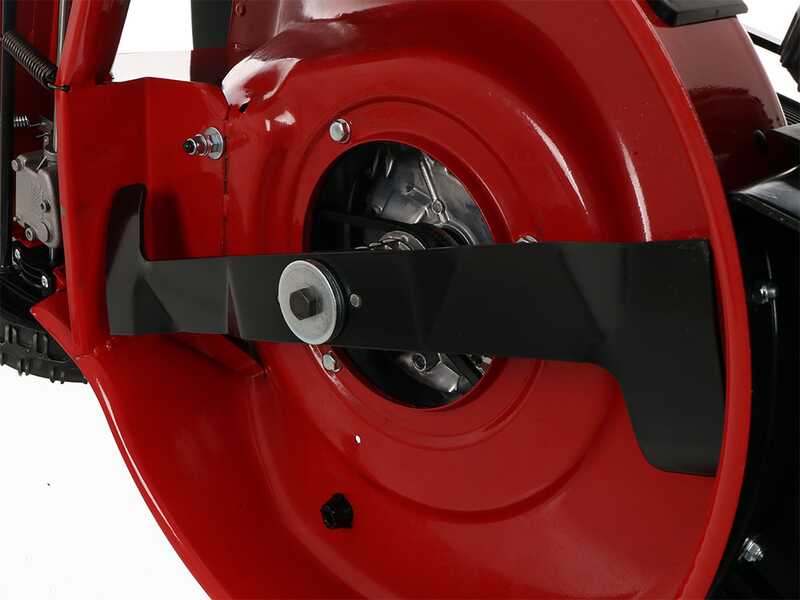

Detail of the 52 cm steel blade: professional ‘finned’ blade with special extended wings at both ends that generate a much more powerful air flow than traditional blades, improving both the basket collection function and the mulching system and all other systems.

Highly thick housing: 1.8 mm. This makes it highly impact resistant and hardly deformable.

Cutting systems: grass collection

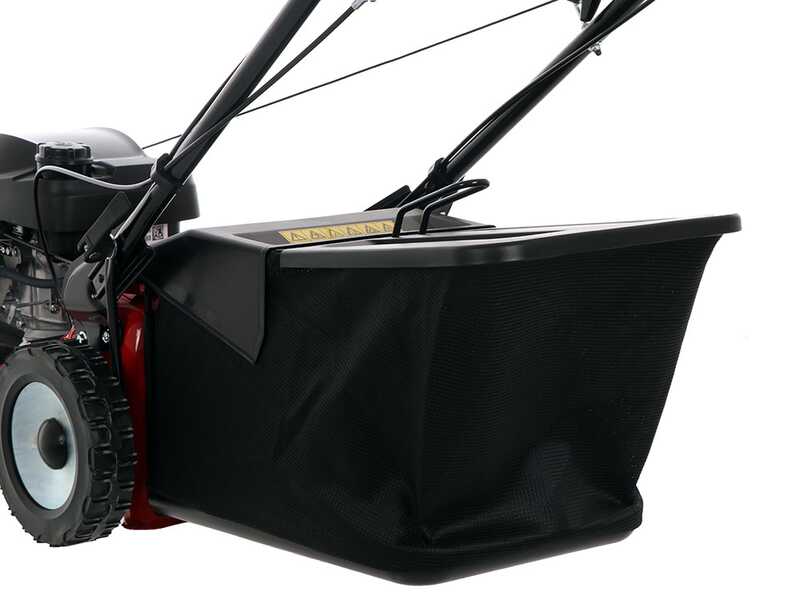

GRASS COLLECTION SYSTEM:

The lawn mower is equipped with a 70 L canvas grass collector, very easy to remove and empty.

The lower part is made of rigid plastic, which gives strength and sturdiness, avoiding the canvas to tear if in contact with the lawn.

Convenient handle placed on the upper part of the grass collector to make it easy to remove and empty when full.

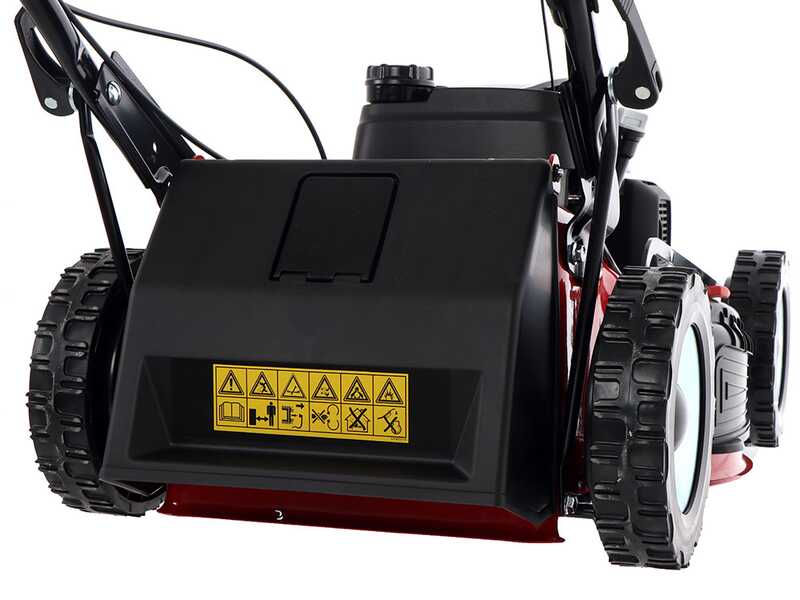

Cutting systems: rear discharge

REAR DISCHARGE SYSTEM:

This system allows mowing grass without using the grass collector, discharging the grass clippings directly from the back of the lawn mower.

Simply remove the grass collector and the rear discharge will automatically operate.

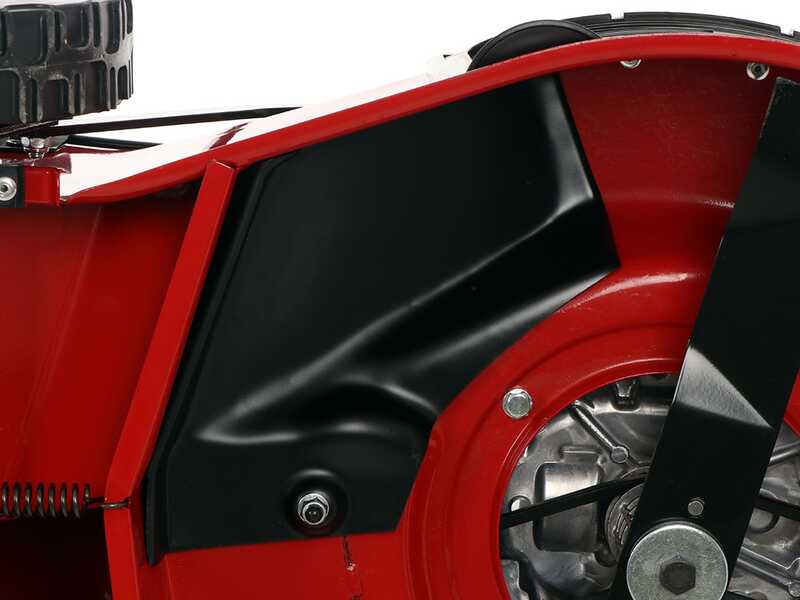

Cutting systems: mulching

MULCHING CUTTING SYSTEM:

This system allows cutting grass without catching it inside the collector, and crushing the clippings into a fine powder before dropping them on the lawn.

The specific mulching blade supplied ensures highest performance for this type of cutting system, at the same level of the lawn mowers specifically designed for the mulching cutting system.

How to convert the lawn mower for the mulching cutting system:

  • Position the lawn mower to have access to the cutting deck.
  • Unscrew the proper bolt
  • Enter the mulching deflector
  • Screw the bolt

WHAT MULCHING CUTTING IS: A cutting system that allows the grass clippings to be shredded and then released onto the lawn, pulverised to such an extent that it looks as if it has been harvested. This eliminates the problem of its disposal (reducing any effort and time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week.

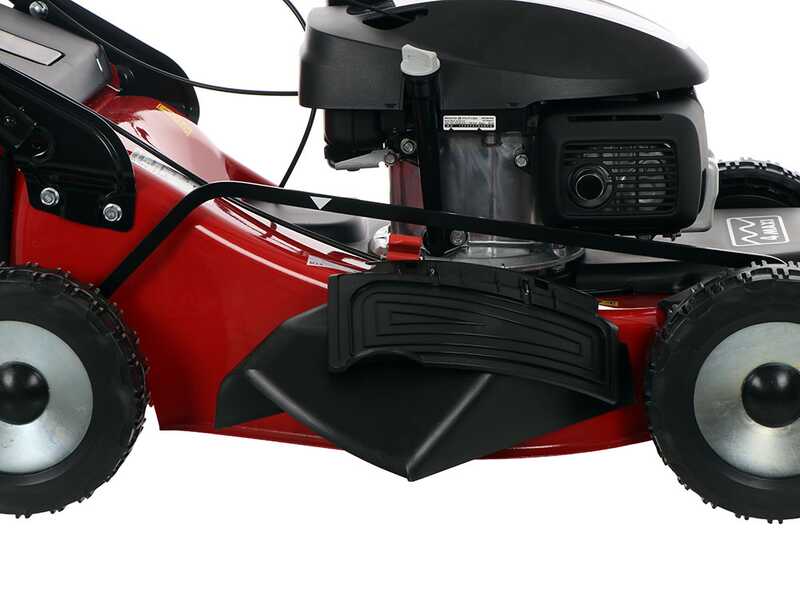

Cutting systems: side discharge

SIDE DISCHARGE SYSTEM:

This system allows mowing grass without collecting the clippings inside the grass collector (it is also possible to collect grass a bit higher than normal, due to the high disposal capacity of the side discharge deflector).

Leaving the mulching plug entered, in order not to occlude the rear discharge of the grass, simply lift the black cover on the housing side and enter the side deflector supplied with a simple gesture.

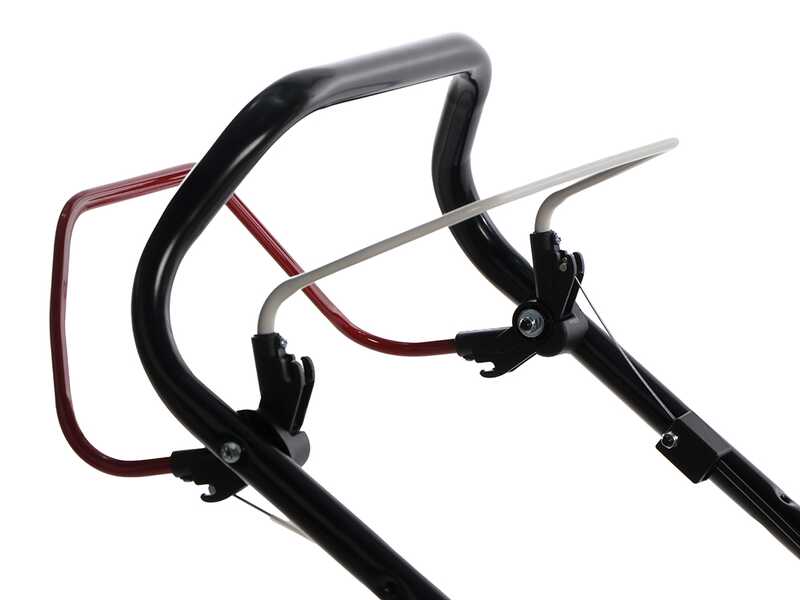

Controls and adjustments

The ergonomic handlebar is designed for maximum user comfort.

Simple and intuitive handlebar controls.

Blade engagement lever (white lever in front of the handlebar)

Self-propulsion trigger lever (black lever behind the handlebar)

Cutting height adjustment lever

Traction selector

Free items & Standard equipment

1° GIFT: MAINTENANCE KIT

The maintenance kit includes:

  • Professional spark plug for engines.
  • Multi-tool joint wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Engine air filter.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel oil draining and refilling.

2° GIFT: Safety kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 600 ml oil bottles

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

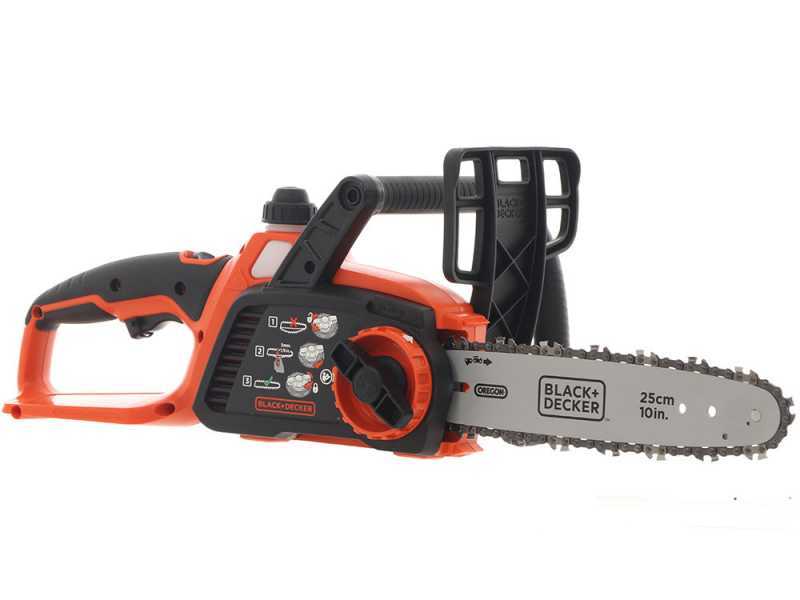

Black&Decker GKC 1825L20-QW Electric Chainsaw

The Black & Decker 18V lithium battery is an ergonomically designed chainsaw with excellent balance and dual handle for maximum comfort during use.

It's low weight of only 3.1 kg makes this machine extremely manoeuvrable and easy to use, it has an effective cutting capacity of up to 25 cm and can cut up to 220 branches of 3.5 cm diameter per single charge.

Equipped with a 18V Li-Ion battery with a capacity of 2.0 Ah, so it is always ready for use and has a longer runtime.

Automatic tensioning system to apply and adjust the chain more precisely and safely, lubrication via the pump on the oil cap is quick and easy, with no oil spillage. Chain type with anti-kickback.

Free items included

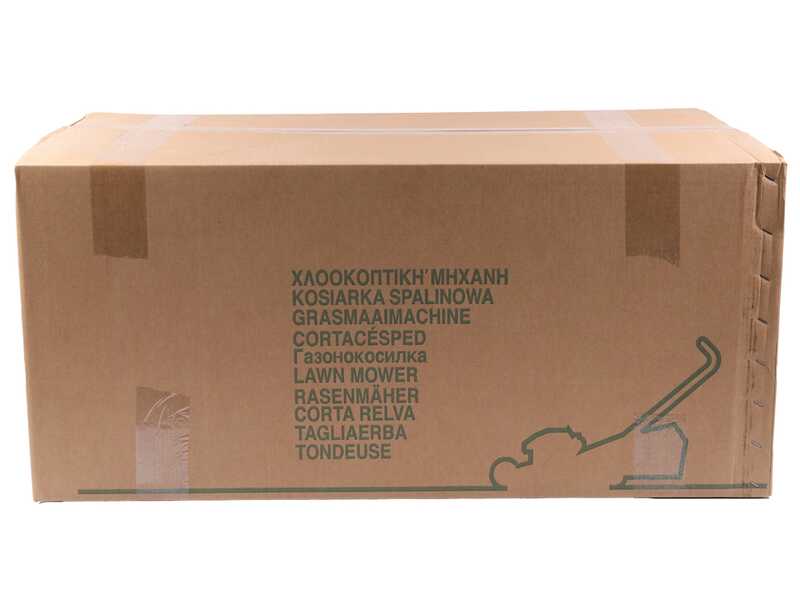

The lawn mower is shipped in its original packaging.

70 L grass collector

Instructions manual included in the package

Mulching plug

Side discharge
