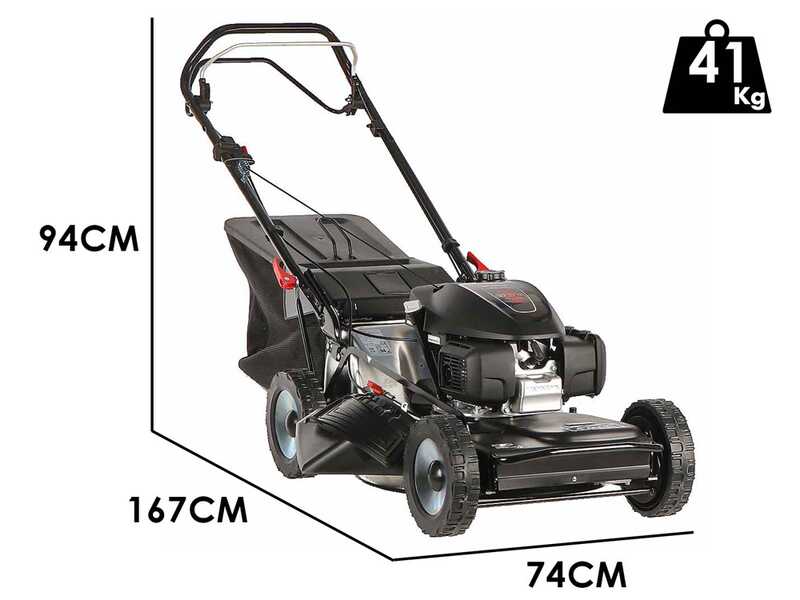

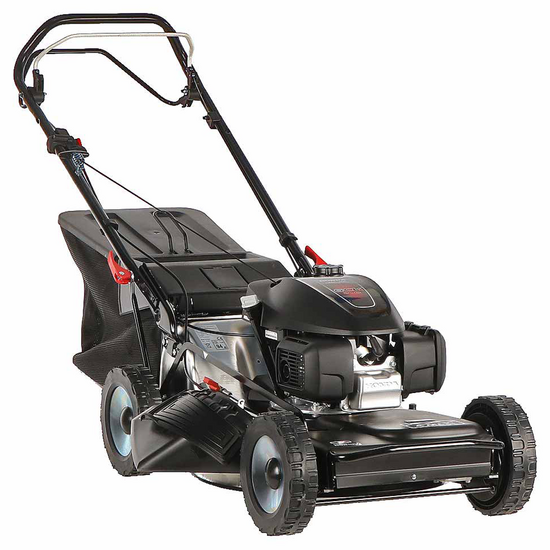

Marina Systems 4-MAXI 52 SH - 4-in-1 - Self-propelled Petrol Lawnmower 4x4 - Honda GCVX 200 Engine

The Marina Systems 4-MAXI 52 SH Petrol Lawnmower is a robust and versatile machine, ideal for those with large gardens and various types of terrain. This model is equipped with a Honda GCVx 200 engine with 201cc, providing a nominal power of 6.5 hp, ensuring excellent cutting capacity even on difficult terrains.

The 1.8 mm stainless steel deck gives the machine long-lasting durability and resistance to weather conditions, maintaining a solid and reliable structure over time.

Another distinctive feature of the Marina Systems 4-MAXI 52 SH Lawnmower is the 4WD all-wheel drive system, allowing easy selection between 2WD and 4WD, adapting the machine to different types of terrain.

The all-wheel drive provides better grip and manoeuvrability even on uneven or hilly terrains, making this model suitable for work on more challenging surfaces.

The 4in1 cutting system offers various collection options, including collection, mulching, rear discharge, and side discharge, ensuring optimal management of cutting residues.

The 52 cm cutting width is ideal for covering large areas quickly, while the 70-litre collection bag allows for collecting a good amount of grass without having to stop continuously to empty it. The ergonomic and adjustable handle, combined with the galvanised metal wheels, makes the lawnmower comfortable to use and easy to manoeuvre, even for long working sessions.

Main Features:

• Honda GCVx 200 Engine 201cc: nominal power of 6.5 hp, for high and durable performance.

• 1.8 mm Stainless Steel Deck: rust-resistant and weatherproof, for long-lasting durability.

• 4WD Drive with 2WD/4WD Selector: to adapt to different types of terrain and improve manoeuvrability.

• 4in1 Cutting System: offers various cutting residue management modes.

• Centralised Cutting Adjustment: with the option to choose 5 different positions, from a minimum of 25mm to a maximum of 80mm.

Honda GCVx200 engine, designed for high performance, suitable for tasks requiring high reliability and durability over time thanks to its significant 201cc displacement

Nominal Power: 6.5 HP
The more correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all major engine manufacturers.

* This data is still more widespread and advertised in major commercial sales channels, although it is an increased figure compared to the actual power.

Actual Power: 5.63 HP (at a rotation speed of 3600 rpm)
Corresponds to the real power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

WARNING!

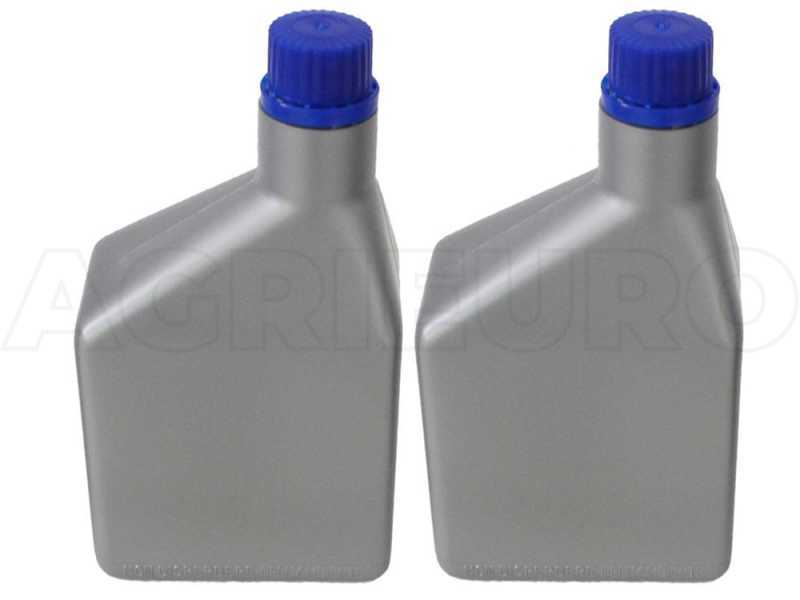

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

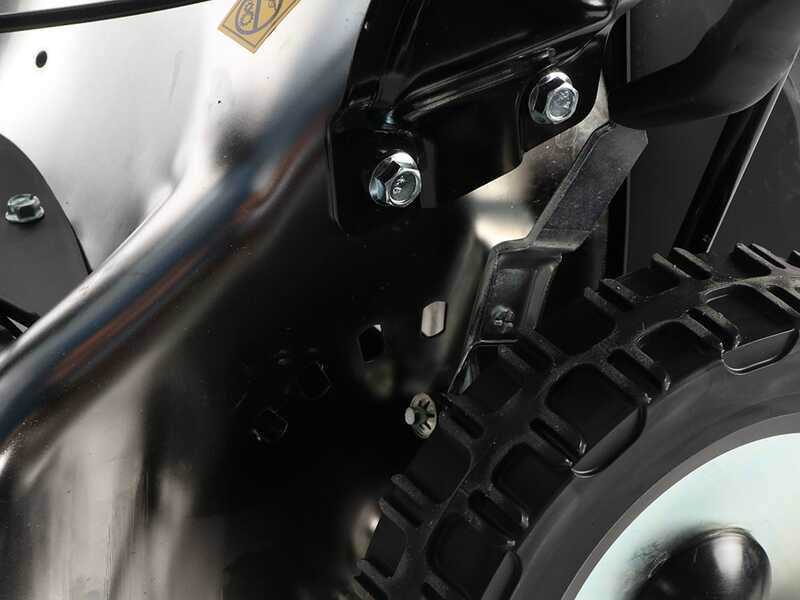

Centralised cutting height adjustment system via a lever located next to the rear wheel

Allows for quick and easy variation of the cutting height.

There are 5 heights adjustable from 25 mm to 80 mm

The 4-MAXI 52 SH lawn mower is equipped with an advanced 4x4 drive system, allowing you to select between two or four-wheel drive with a single lever, offering unprecedented flexibility and adaptability to different terrain conditions.

Simply move the selector upwards to switch from 2 to 4-wheel drive, adapting the machine to different types of terrain

The wheels are galvanised steel.

The transmission is belt-driven

Marina Systems 4-MAXI 52 SH lawn mower with an extremely robust and reinforced STAINLESS STEEL deck for high structural durability.

Quick connector for the water hose for fast deck cleaning.

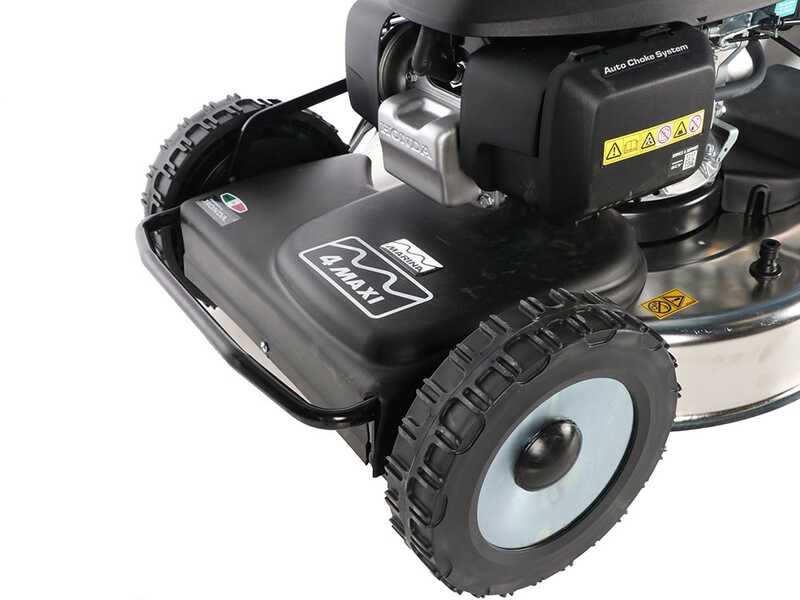

Front bumper that further protects the already robust deck.

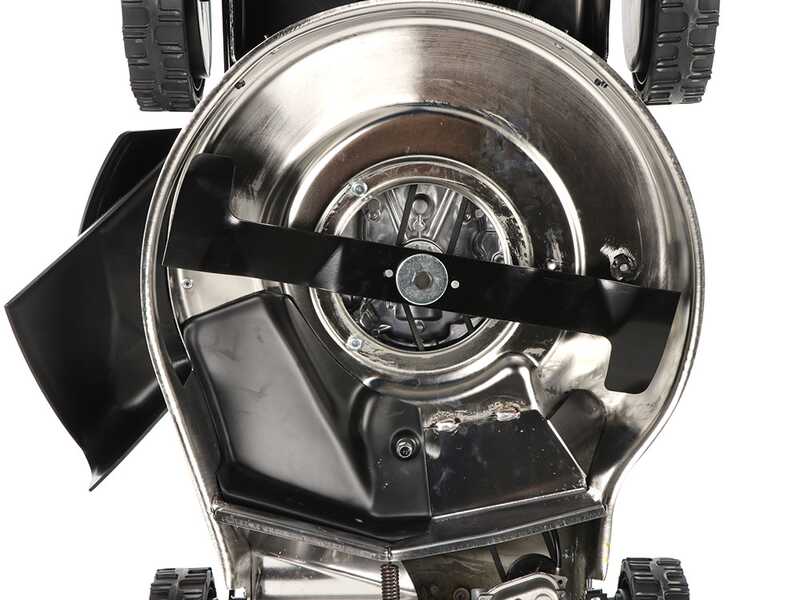

Detail of the 52 cm steel blade: professional "winged" blade with special extended wings at both ends that generate a much more powerful airflow than traditional blades, improving both the basket collection function and the mulching system and all other systems.

Very thick deck: 1.8mm. This makes it very resistant and minimally deformable to impacts.

BAG COLLECTION CUTTING SYSTEM:

The lawnmower is equipped with a large 70-litre fabric bag, very easy to remove and empty.

The basket is made of rigid plastic in its lower part, which gives robustness and solidity, preventing the fabric from tearing if in contact with the ground

Practical handle located at the top of the basket to facilitate the operation of removing and emptying the basket when full.

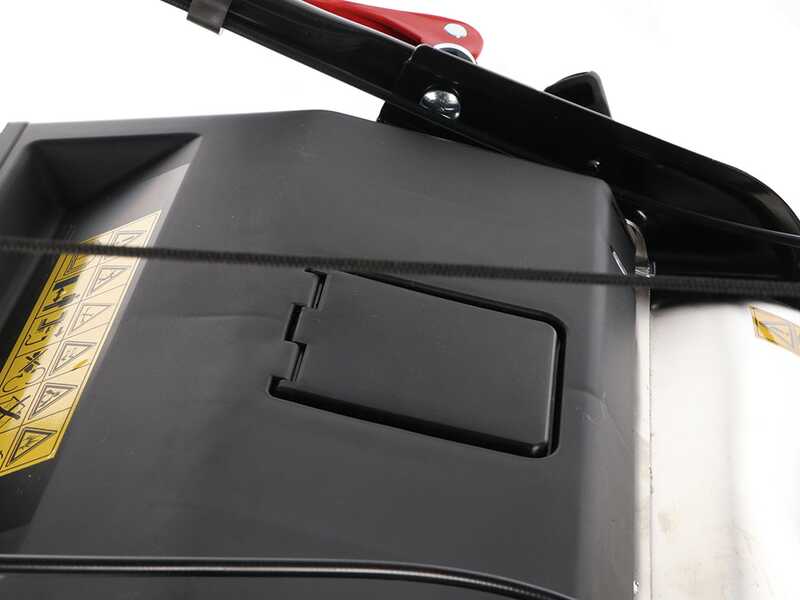

Detail of the full bag warning system

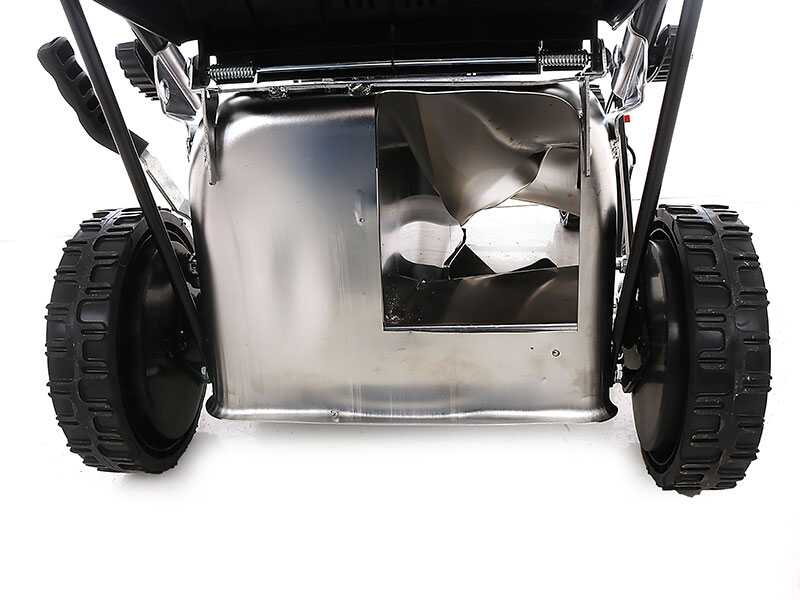

REAR DISCHARGE SYSTEM:

allows cutting grass without using the collection bag, depositing it directly at the rear of the lawnmower.

Simply remove the collection basket and the rear discharge system will automatically function.

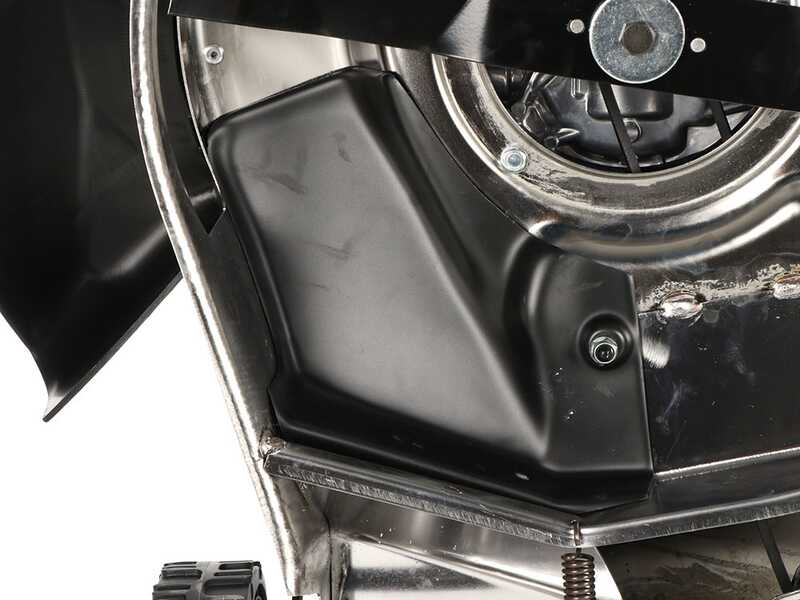

MULCHING CUTTING SYSTEM:

for cutting grass without collecting it, finely pulverising it before depositing it on the ground.

Conversion to the mulching system:

• simply install the supplied mulching plug
• lower the rear deflector to enable the mulching system.

WHAT IS MULCHING CUTTING:
a cutting system that allows the chopped grass to be subsequently released onto the lawn, pulverised to the point that it almost appears to have been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and furthermore, as it decomposes, it will subsequently transform into a nutrient for the lawn itself and into water (grass is made up of 80% water) thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be watered, and the grass cut at least once a week.

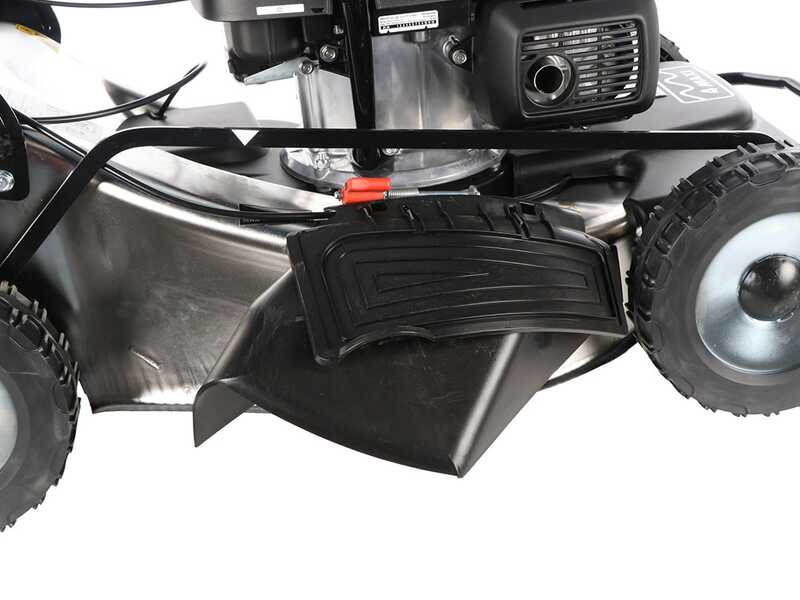

SIDE DISCHARGE SYSTEM:

for cutting grass without collecting it (even slightly taller grass than usual, given the high disposal capacity of the side discharge deflector)

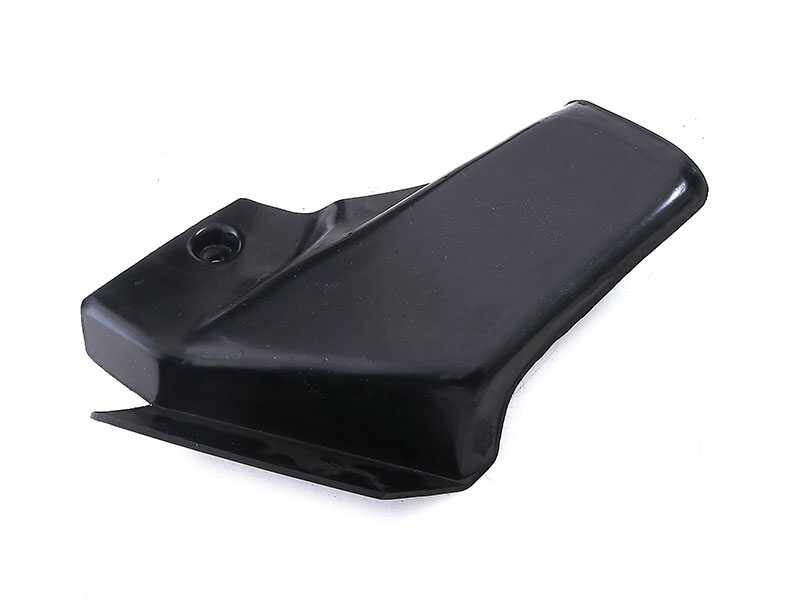

Leaving the mulching plug inserted, so that it blocks the grass discharge at the rear, simply lift the black side cover on the deck and insert the side deflector supplied with a simple gesture.

Professional ergonomic handle. Height adjustment system.

Controls located on the handlebar are simple and intuitive.

Blade activation lever (white lever in front of the handlebar)

The rear lever activates the drive.

Drive selector lever: allows selecting two-wheel or four-wheel drive

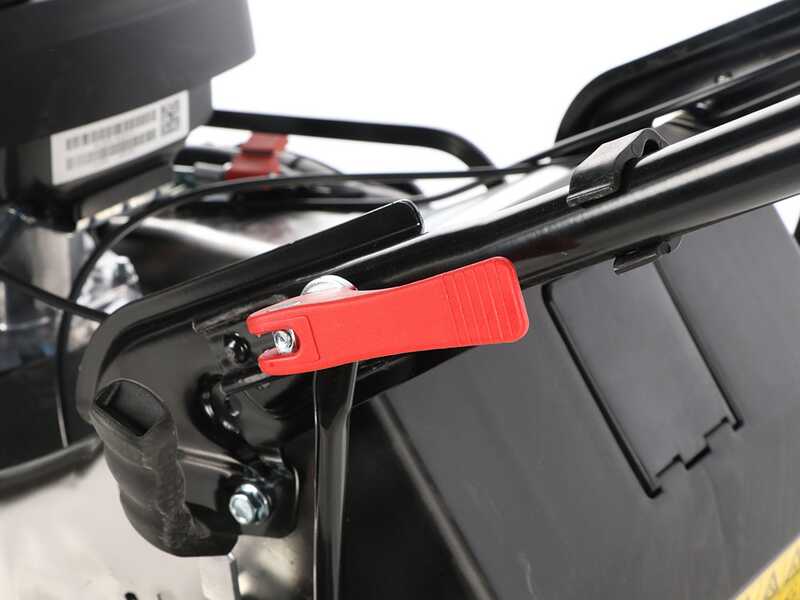

Available adjustments for the lawnmower:

Height adjustment lever cutting height.

Handlebar tilt adjustment:

The handlebar is equipped with a device for adjusting the handle height.

Allows, through two quick side levers (open and close), a quick height adjustment or closure.

Possibility to fold the handlebar for storage periods.

The lawn mower is designed and intended exclusively for cutting grass in garden areas (and not on other types of terrain). The surface must be level, free from irregularities, stones, or other solid objects, and covered with maintained lawn grass (therefore, not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most lawn mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Brush Cutters.

Furthermore, grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, which reduces cutting efficiency, increases the risk of clogging inside the deck, and subjects the engine to excessive strain.
