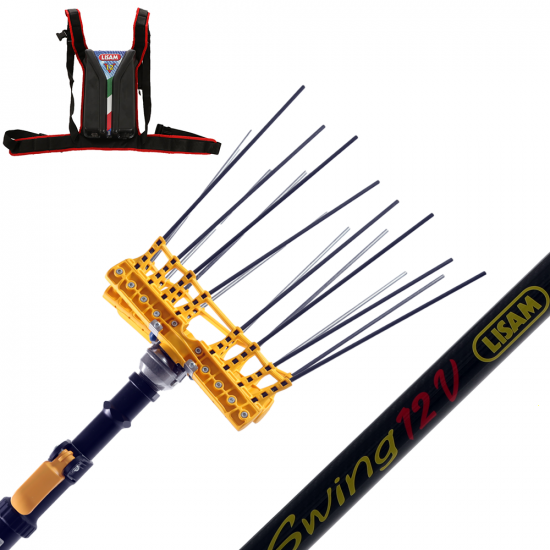

Name: Lisam Swing - Electric Battery-powered Olive Harvester - Telescopic Pole - 12V 56Ah Battery
Brand: Lisam
SKU: K608914
Price: 1866.07 EUR
Availability: InStock
Rating: 4.83 (6 reviews)

Description

Lisam Swing Olive Shaker

The Lisam Swing battery-powered olive harvester is a product that allows for practical and effortless olive harvesting.

Swing is the latest creation from Lisam: a highly professional electric olive harvester to facilitate and speed up olive harvesting.

This model is ideal if you are looking for a professional product that will fully meet your work needs and requirements.

The olive harvester is equipped with rakes with carbon fibre prongs, which are very durable and easily replaceable in case of breakage.

Included in the package is a 12V and 56Ah backpack battery that allows the machine to be used without having to connect it to a car-type battery, thus making work much easier and faster.

The Swing model features a unique characteristic, namely: when raking through the branches of olive trees, the two rows of rakes perform an elliptical rotation, i.e. they move back and forth alternately.

The pole material is also carbon fibre, which makes it very sturdy and light.

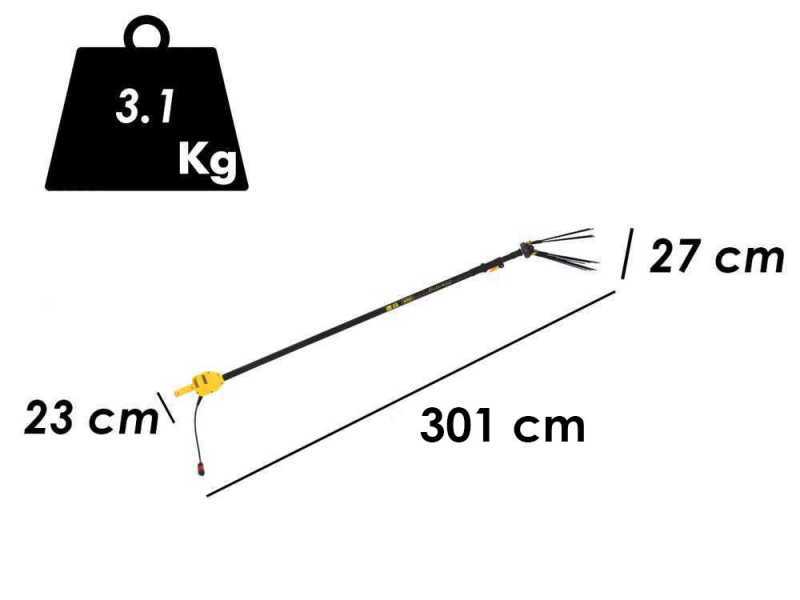

This model comes together with a 15 m of cable and its telescopic pole, which is also very light, that can be extended from 220 cm to 300 cm.

With an overall weight of only 3100 g, the Lisam Swing is extremely manoeuvrable.

Lisam Swing - Electric Battery-powered Olive Harvester - Telescopic Pole - 12V 56Ah Battery

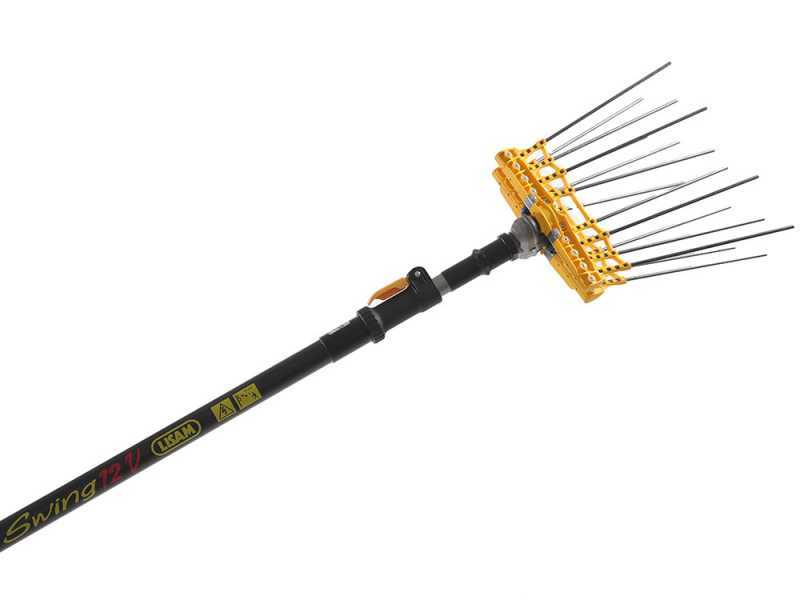

Main Features

High penetration capacity in plant foliage: immediate function thanks to the minimal thickness and large distance of the prongs.

Unique open shape and non-perpendicular to the pole support compared to classic rectangular shaped harvesters.

Made in Italy electric motor
220/300 cm telescopic carbon pole

Technical specifications:	SWING	8C	SNACKE	OLIVECO	OLIWATT2	SWING 36 Volt	THOR	THOR 36 Volt
Supply voltage:	12Vdc	12Vdc	12Vdc	12Vdc	12Vdc	36Vdc	12Vdc	36Vdc
Average consumption at 12V:	9A	3.5A	3A	3A	8A	4A (at 36V)	8A	2.9A (at 36V)
Motor peak power:	325W	230W	280W	280W	325W	540W	360W	540W
12V Beat Frequency:	1300	1300	1100	1150	1300	1300 (at 36V)	1300	1300 (at 36V)
Recommended Battery:	75A/h	75A/h	75A/h	75A/h	75A/h	80A/h	75A/h	80A/h
IP Rating:	3–0	3–0	3–0	3–0	3–0	3–0	3–0	3–0

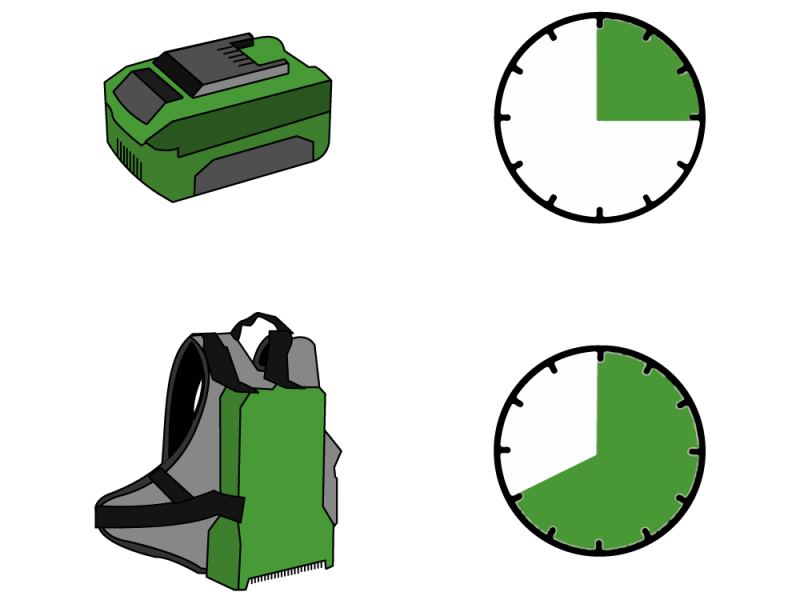

about the autonomy of lithium batteries

When using a harvester, the choice of battery depends on the practical needs of the user. The main differences between a base-mounted battery and a backpack battery concern freedom of movement and autonomy. The base-mounted battery is more manoeuvrable and lighter, but offers reduced autonomy. In contrast, the backpack provides longer working sessions, although it can be bulkier in tight spaces.

Base-mounted lithium-ion batteries offer greater freedom of movement. The lack of cumbersome cables improves agility when working between trees, making the harvester easier to manoeuvre. They are generally lighter than the backpak once, reducing operator fatigue, and make it easier to transport the device. In addition, handling is more intuitive, not requiring additional equipment such as a backpack. On the downside, however, they have a very limited autonomy and often cannot do a full day's work on their own.

On the other hand, lithium backpack batteries, while adding a certain amount of bulk, allow for greater energy capacity, extending the operational life of the harvester without the need for frequent recharging or battery changes. Their higher capacity allows long working sessions without interruption. In addition, shifting the weight of the battery to the back reduces the direct load on the arm and body, better balancing the overall weight of the equipment.

However, backpack batteries can be less ergonomic and uncomfortable in tight spaces or during quick movements between trees, and the presence of the cable can be an obstacle or obstruction during operation. Finally, the constant carrying of the backpack may cause more fatigue in the long run than an integrated solution in the product base.

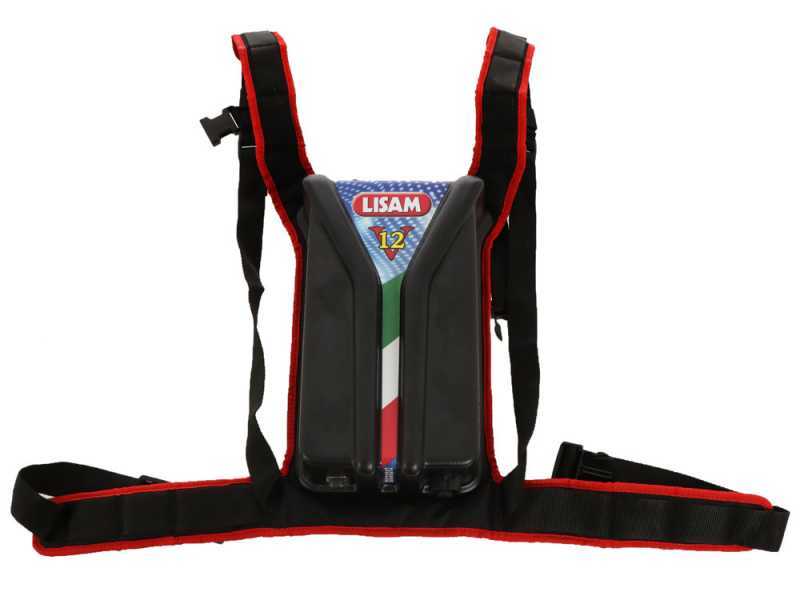

12V 56Ah Backpack Battery

The new, powerful lithium-ion battery is designed to be worn comfortably with a practical backpack included, which ensures even weight distribution. This innovative solution prevents user fatigue, facilitating the transport and use of the battery, even for extended periods.

The battery is supplied in a practical case containing a connection cable and a battery charger.

The battery weighs 3.9 Kg.

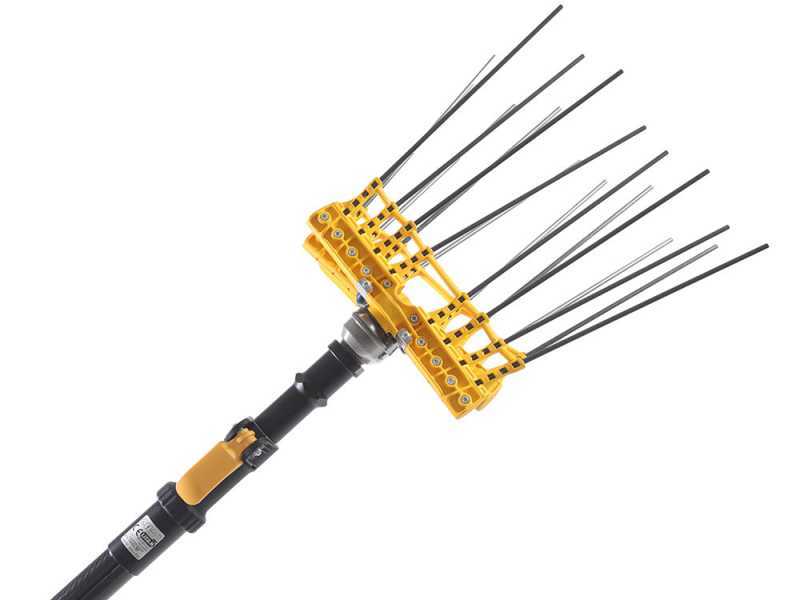

Head and Prong Motion Mechanics

The Lisam Swing olive harvester is fitted with 8+8 quick-change carbon harvesting prongs on the head.

The rakes therefore carry a total of 8 easily replaceable carbon fibre prongs, the entire propulsion and transmission unit is hermetically sealed, with no possibility of external agents penetrating inside. This ensures continuity of operation and an almost non-existent maintenance. The prongs are over 32 cm to enter deep into the plant

Technical details of the head:

Working width: 22 cm
Hourly production: 80/120 kg/hour.
Shakes per minute: 1300.

Harvester Body

The body, which houses the Made in Italy electric motor, is made of resin and nylon, ensuring strength and lightness.

There is a steel plate between the prong housing and the motor to ensure greater sturdiness. The 12 V motor ensures 1300 rpm and an absorption of 2.5 amp/h.

For the power supply, a battery of at least 50 A is enough.

Detail of the power switch.

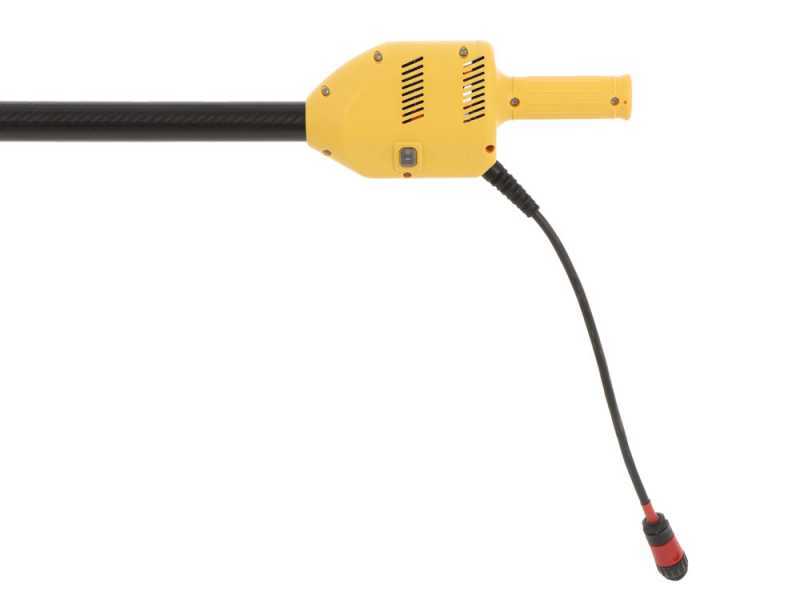

Motor at the Bottom of the Pole

The engine at the end of the pole gives exceptional balance to this olive harvester model, which translates into less fatigue during use.
99% of the olive harvesters on the market today still mount engines at the head: a simpler and cheaper solution that makes the harvester extremely unbalanced in weight and very tiring to use.

It should not be forgotten that most of the time the harvester is gripped at the bottom of the pole, and if the weight is concentrated all over it, it becomes very heavy to handle and certainly impossible to use for a whole day.

When choosing an olive harvester, it is a mistake to consider only the total weight when assessing user comfort

The user comfort is given not by the total weight but from balancing weights, and then by mounting the engine at the bottom of the pole

Very powerful 325 Watt engine

It generates, despite the considerable size of rakes, up to 1300 rpm.

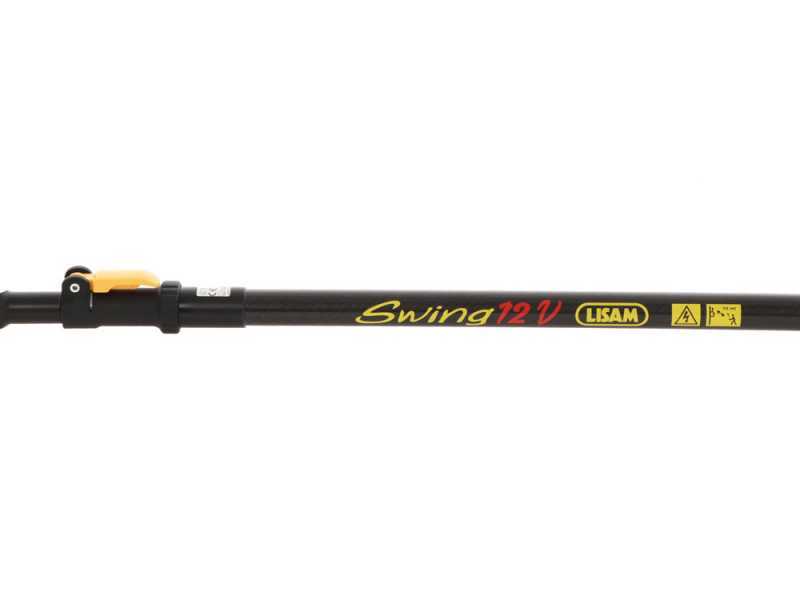

Pole

The carbon extension pole can be extended from 220 cm to 300 cm. The extension can be performed using the quick-release hook and loop system.

At the bottom of the pole is the connector for attaching the harvester to the standard-supplied extension cable or backpack battery.

Free items & Standard equipment

COMPLIMENTARY: ear protection muffs, goggles, headscarf, gloves + grease spray

COMPLIMENTARY:

Protective earmuffs to work with maximum comfort
The ear protection as to be the one recommended for all working conditions. Indeed, the earmuffs provided on the standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

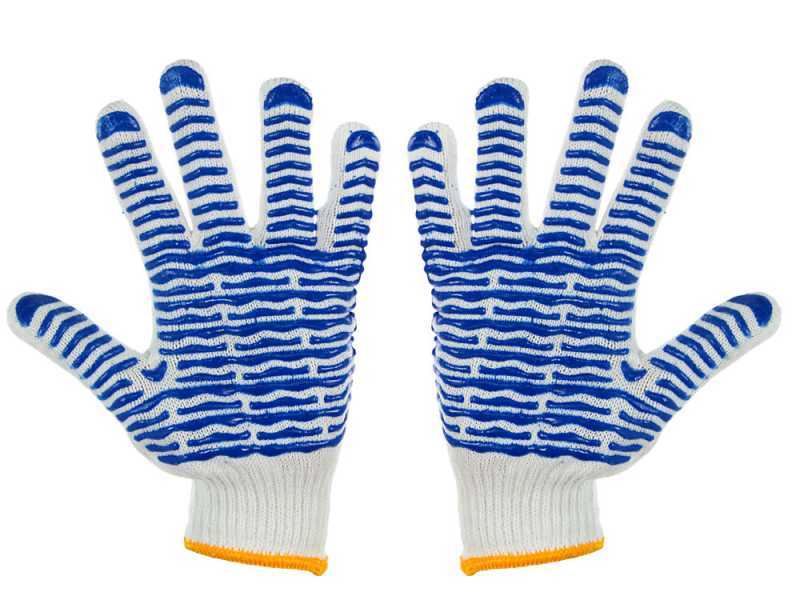

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

Multipurpose lithium grease spray, 400 ml, to lubricate the internal transmission gears of the olive harvester Universal lithium grease suitable for any type of lubrication both on kinematic devices and on rotating ones.

Standard Equipment

The machine is shipped in its packaging along with:

Professional cable with terminals for battery connection
2 spare prongs
12V 56Ah backpack battery
Instruction manual
