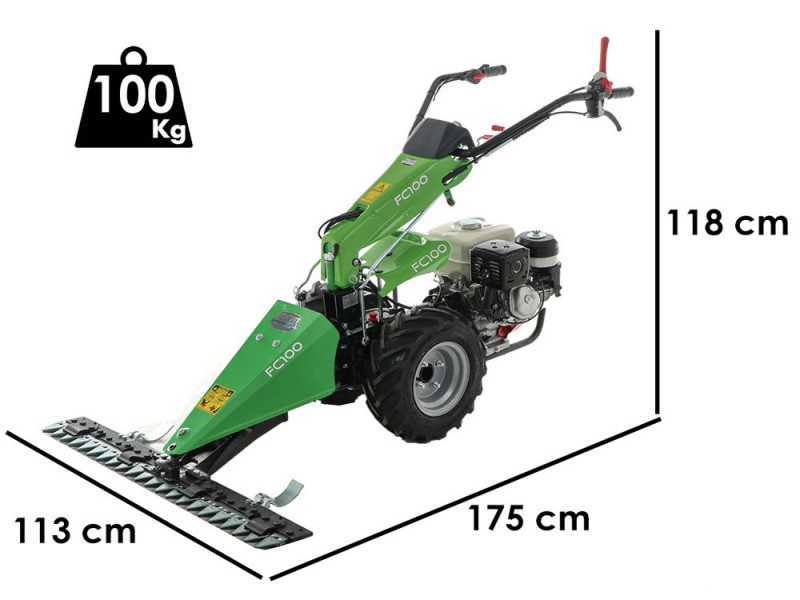

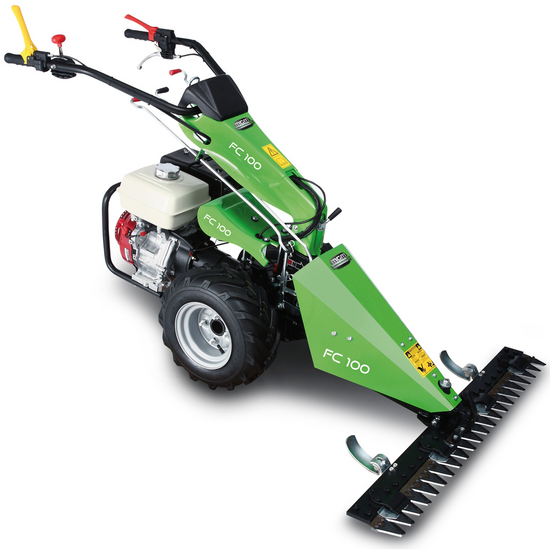

Lampacrescia MGM FC 100 - Multifunctional motor mower - Honda GX270

Lampacrescia MGM FC 100 self-propelled scythe mower is equipped with powerful 270cc 4-stroke Honda GX270 petrol engine, with a 8.4 HP nominal power.

This self-propelled, petrol scythe mower can work on all kinds of surfaces, even those with a little slope and not perfectly flat.

The gearbox has 6 speeds (3 forward and 3 reverse) with a reverser that can be easily operated from the lever just below the handlebars. Furthermore, it is equipped with two large tractor wheels 16x6.50- 8, mounted on a rigid axe with adjustable hubs.

It is perfect for mowing uncultivated and wild grass, even very tall one, or grass to be recovered and used for livestock feed. In fact, the scythe mower special feature is to preserve, after cutting, the complete integrity of the cut grass, making a single cut of it near the root.

By doing this, it preserves the integrity and the possibility to collect it for feeding farm animals.

The 110 cm cutter bar (supplied as standard in the insertion price) is connected to the machine by means of a quick hitch, allowing the operator to easily remove it and, thanks also to the reversible handlebars, connect any other compatible attachment to it, making the two wheel tractor a versatile and practical tool for a variety of uses. Furthermore, the bar is provided with two practical slides that allow the operator to quickly adjust the cutting height.

This reversible scythe mower allows using several different attachments for various applications.

Here below some examples of the accessories that can be fitted to the scythe mower:

• Power sweeper brush unit
• Iron cage wheels
• Furrower
• Adjustable tiller
• Snow plough
• Snowplough cutter
• Knife-typed cut mower
• Three-toothed harrow

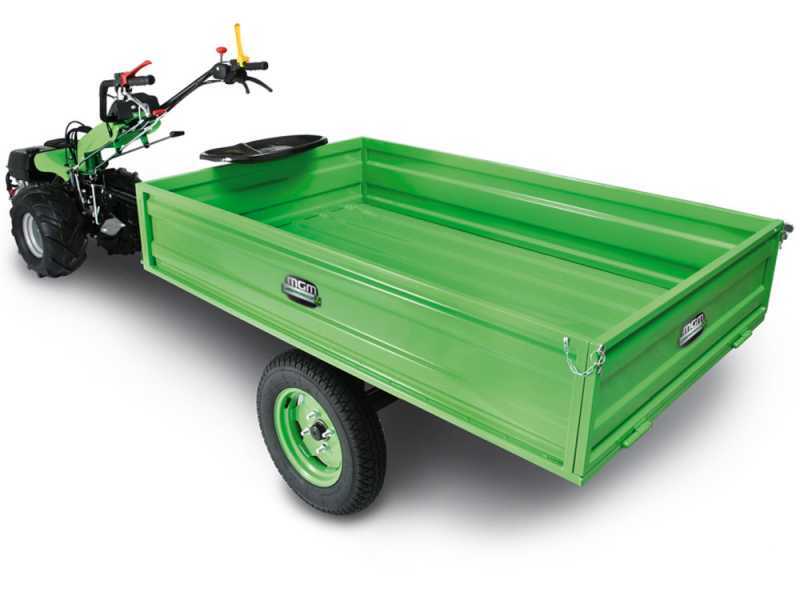

• Wheelbarrow
• Potato digger
• Rough cut mower
• Plough
• Two furrow ploughs

WARNING: THE PICTURES ARE PURELY INDICATIVE.
THE ACCESSORIES THAT CAN BE PURCHASED SEPARATELY FOR THIS PRODUCT MAY DIFFER IN SHAPE AND COLOUR FROM THE IMAGES SHOWN ON THE DESCRIPTION OF THE UNIT.
THE IMAGES OF THE ACCESSORY PRODUCT IN THE "ACCESSORIES" TAB ARE AUTHENTIC.

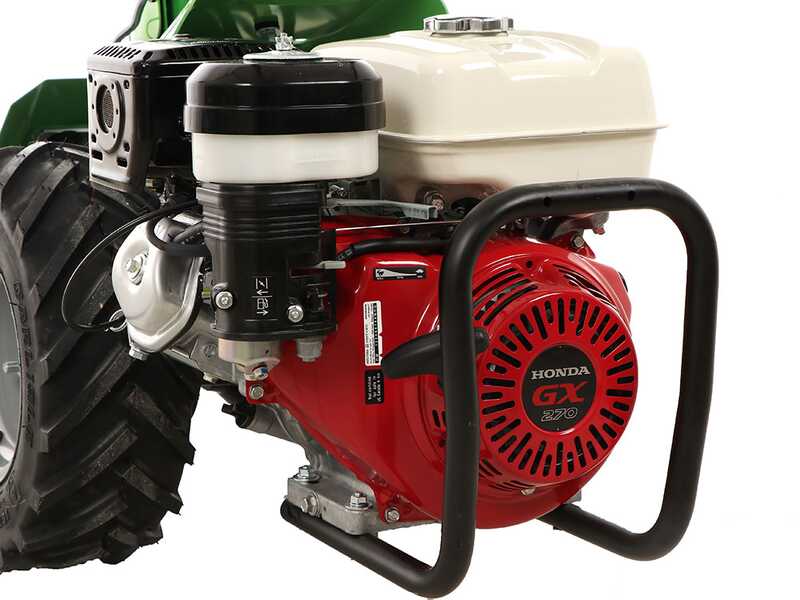

The machine is fitted with a 270cc Honda GX 270 engine.

Features:

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV” and automatic decompressor starting system.

Focus on the air filter.

Fuel tank.

WARNING!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal Power: 8.4 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

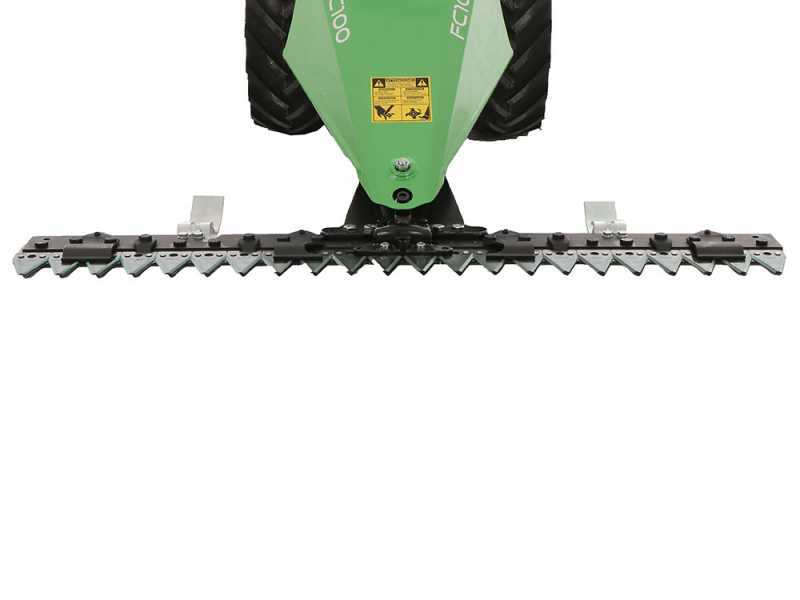

Sickle bar cutting width: 110 cm

The cutter bar of this scythe mower is of the tilting type. In fact, it rotates around its own axis of connection to the machine body. The bar is attached to the machine's PTO through a quick hitch and is equipped with an oil-bath transmission.

This allows it to work on all types of soil, even quite uneven ones, as it is better able to adapt to its roughness.

Mulching cutting system: the bar is made up of a lower and an upper blade, which moves by oscillating motion in contact with the lower blade, which is static and acts as a counter-blade. This type of sickle bar is renowned as mulching due to the particular clear cut that it carried out, consistency and grass height, obtained thanks to the shape of the blades.The sickle bar is provided with upper blade guides.

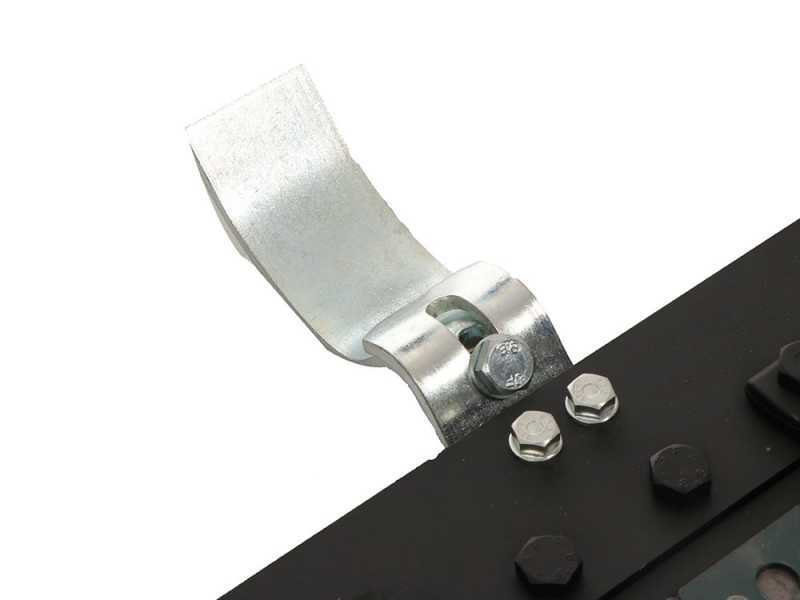

Focus on the slides for the cutting adjustment.

Front casing for grass protection.

Equipped with blade guard

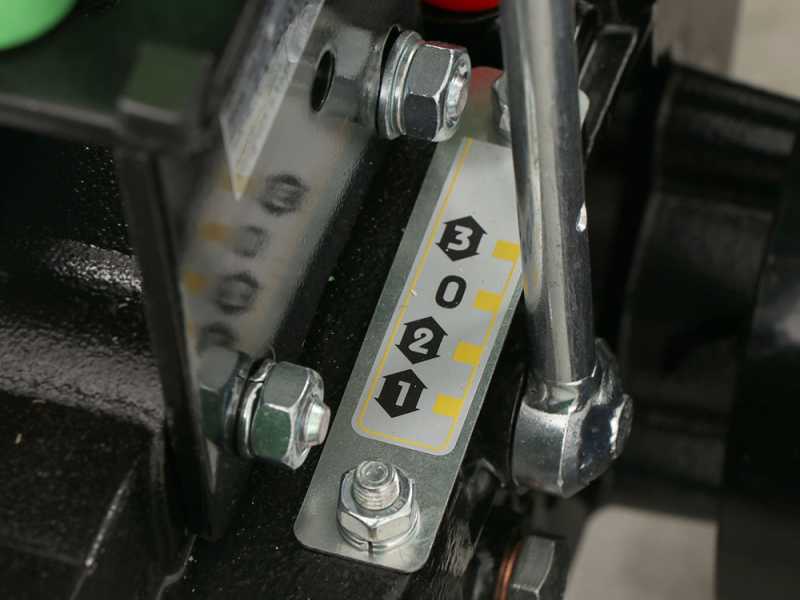

The machine is equipped with 6-gear shifting system divided into:
- 3 forward gear
- 3 reverse gear

The speed gears are selectable by means of the specific lever located under the handlebars on the left.

The other black lever on the right, under the handlebars, is used to engage the PTO

. Central gearbox with oil-bath gears. Very sturdy and reliable.

Easy and user-friendly controls placed on the handlebar.

Focus on the steering handles (handlebars) where all the main controls are placed.

Lever unit with clutch

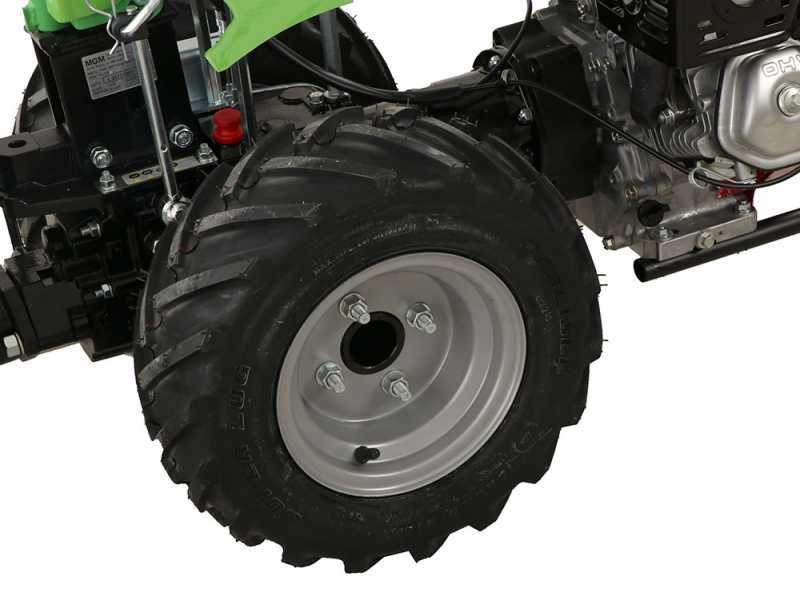

Tractor wheels 16x6.50-8

Focus on the handlebar height adjustment (7 different heights, 1-2-3-4)

Reversible handlebars can also be adjusted laterally through a special lever (1-2-3)

Throttle lever

Focus on the engine protection
