Description

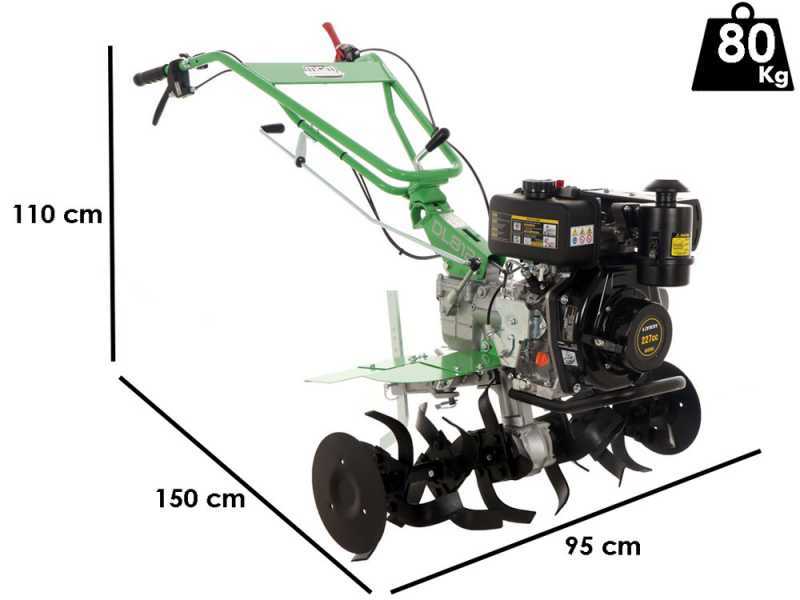

AgriEuro Premium-Line AGRI 102 Garden Tiller - Honda GX 200

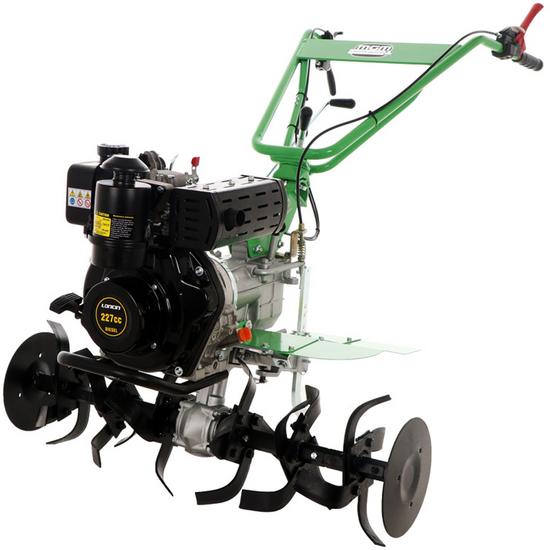

Lampacrescia MGM DL812 garden tiller is an efficient agricultural machine designed to meet the need of cultivators and professional gardeners.

This powerful and adaptable machine is provided with a 227cc Loncin diesel engine, which guarantees excellent performance and reliability over time.

The 95 cm cutter, with a big working width, allows to till the soil easily and quickly, making this garden tiller suitable for ploughing, sowing soil preparation and maintenance of vegetable gardens and gardens of different sizes.

The dry multi-disc clutch ensures smooth power transmission and a long-lasting durability, minimising maintenance requirements.

The height and laterally adjustable handlebars allow the working position to be customised according to the operator's needs, ensuring comfort and safety during use.

The 2+1 gearbox offers two forward speeds and a reverse speed, allowing easy manoeuvrability and quick reverse when needed.

Main features:

Loncin 227cc diesel engine
95 cm Cutter
Dry multi-disc clutch
Mechanical gear transmission in oil bath.
Height and laterally adjustable handlebars
2+1 gear (two forward and one reverse gear)

Lampacrescia MGM DL812 - 5 HP Petrol Garden Tiller - Loncin Engine

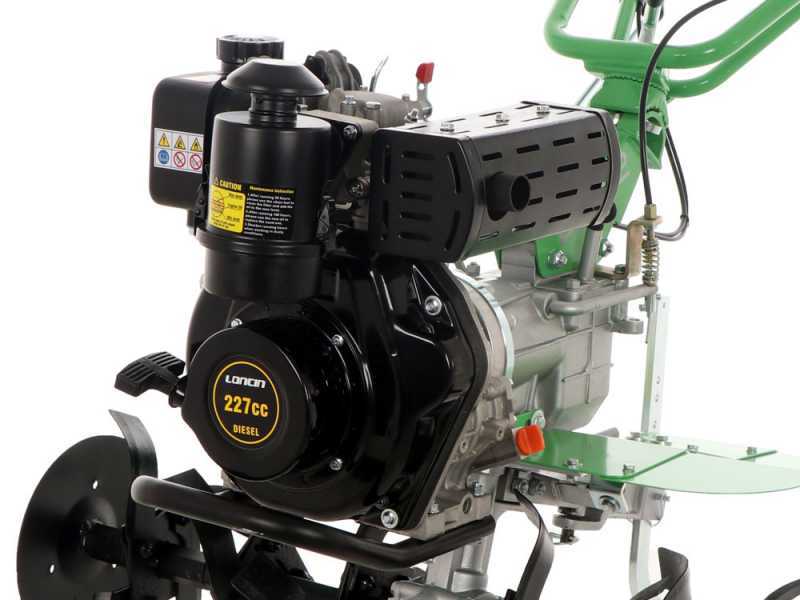

Loncin 227cc diesel engine

Powerful Loncin 227 cc diesel engine.

Features:

Cylinder type:

Aluminium

Cubic capacity:

227 cm³

Power

4.9 at 3600 rpm

Max. rpm:

3600 rpm

The engine is equipped with a sturdy metal bumper, designed to protect it from possible impacts.

Focus on the air filter

WARNING!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.7 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Gearbox and upper transmission

The standard-supplied gearbox that comes together with this garden tiller stands out to be an excellent 2+1 gearbox

.Gearbox main specifications:

Overall size and sturdiness, also visibly noticeable.
Upper gear tempering
Accuracy gear shifting engagement
Accuracy in the gear manufacturing

Equipped with 2 forward gears and 1 reverse gear that can be operated by means of the lever in the controls.

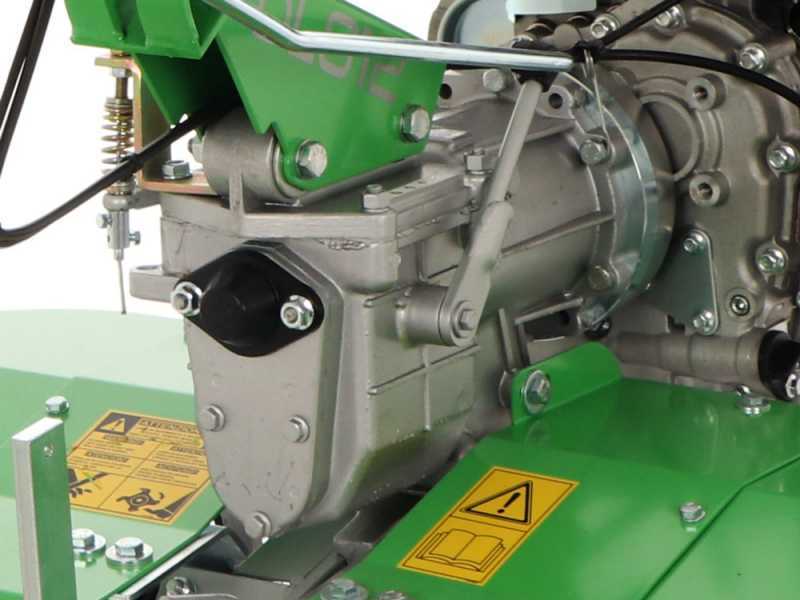

No. 2 x PTO

The power take-offs are easily accessible, located directly at the rear of the machine. Simply remove the protective cover to have them immediately available.

Standardised power take-off
(always rotating, even when the gearbox is in neutral, useful for powering additional equipment that can be connected to the power take-off)

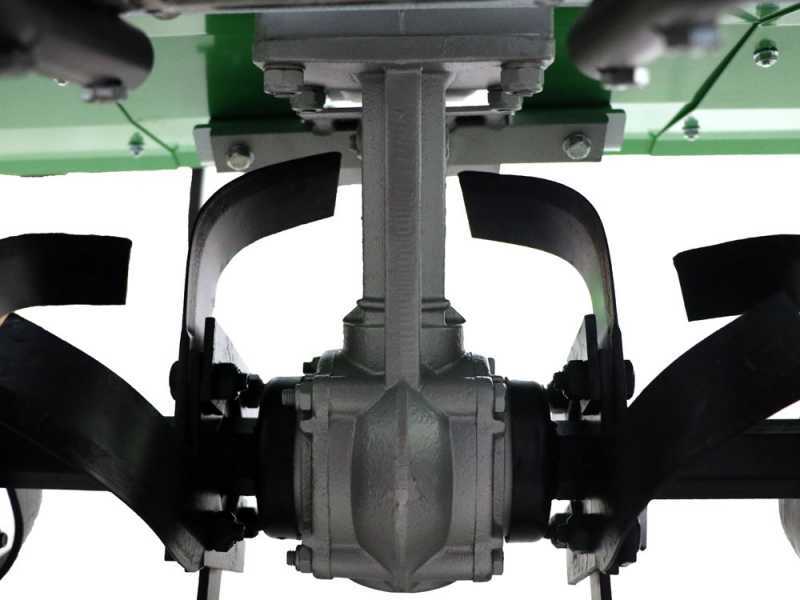

Transmission in oil bath

The transmission is one of the sturdiest on the market.

Made with a pinion and gear in an oil bath.

WARNING!

Warning: Check the gearbox oil level before starting the machine.

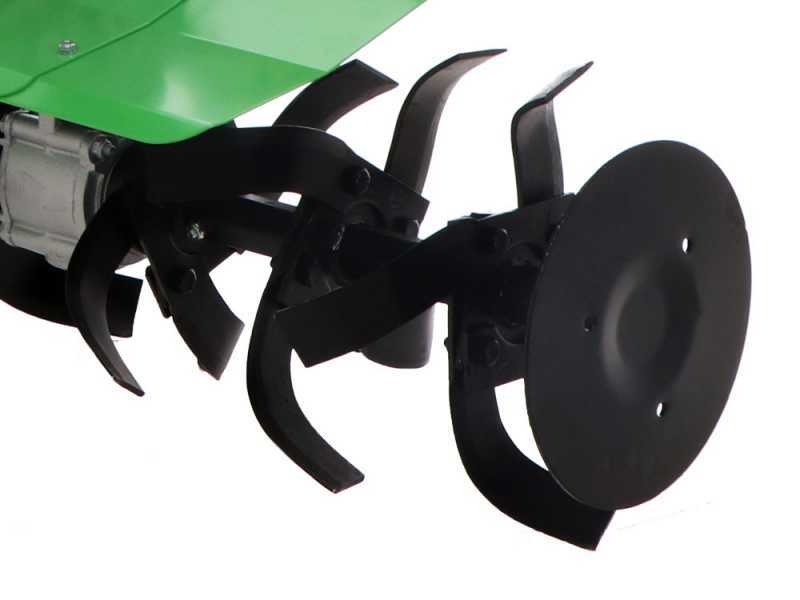

Adjustable tine from 95 cm to 65 cm

Sturdy tiller mounted on an hexagonal-shaped central shaft, and provided with six elements with 4 steel hoes each.

Tiller effecting working width: 95 cm

Hexagonal tiller hoe shaft diameter 27 mm.

The tiller on this diesel rotary tiller is adjustable. Simply remove the 2 outermost elements in one easy operation and reinsert the outer protective discsin order to obtain a reduced working width of about 65 cm.

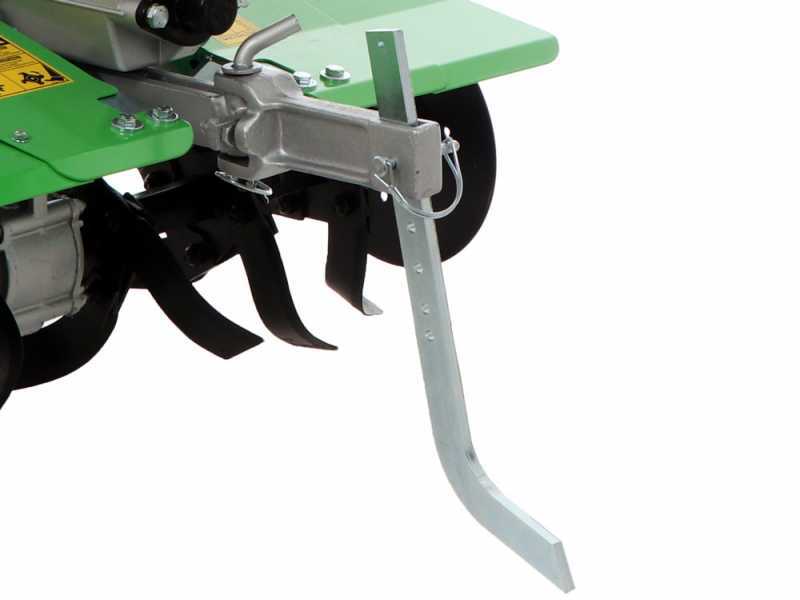

Adjustable spur

Rear spur adjustable in height and can be positioned in rotating or fixed configuration.

In the pictures, it is mounted in the standard position.

For instance, it can be mounted in the reverse position (with the bend turned to the front), to tackle harder or rough terrain.

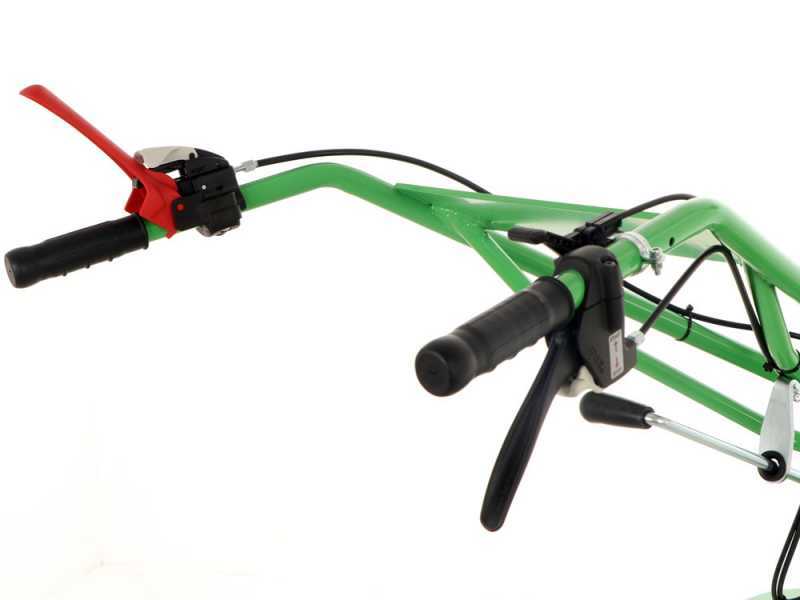

Adjustable steering handles and controls

The handlebars are height and side adjustable thanks to the double regulator made of cast steel.

Controls:

Focus on the red lever: clutch control
Throttle lever
STOP swith.
Black right-hand lever below to engage reverse gear.

The machine is provided with an anti-vibration system at the bottom of the stems

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
