Description

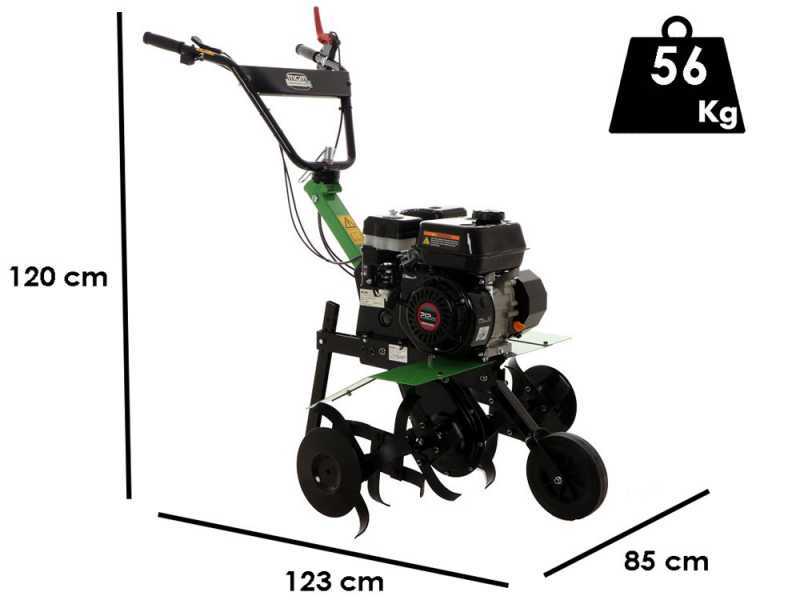

Lampacrescia DL525 Garden Tiller

Lampacrescia DL525 garden triller is a reliable and efficient machine, a perfect tool for tillage in the agricultural field.

The Loncin engine guarantees adequate power to work on very hard ground, while the 85 cm milling cutter allows working on large areas in a short time.

The garden tiller is equipped with a speed variator, which allows you to select the most suitable speed for the type of soil to be tilled. Thanks to this feature, the Lampacrescia DL525 is able to adjust to any requirement and guarantee high performance in all conditions.

Its sturdy and robust construction, combined with its great handling, make the Lampacrescia DL525 an easy-to-use garden tiller even for those with little tillage experience. In addition, its maintenance is quick and easy, guaranteeing excellent durability.

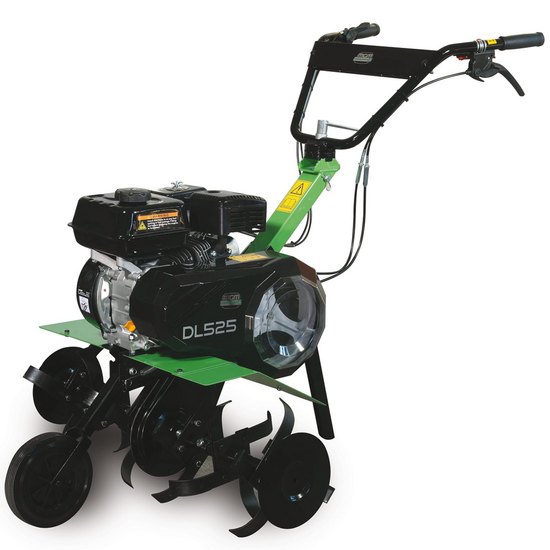

Lampacrescia MGM DL525 - 7 HP Petrol Garden Tiiller - Loncin Engine

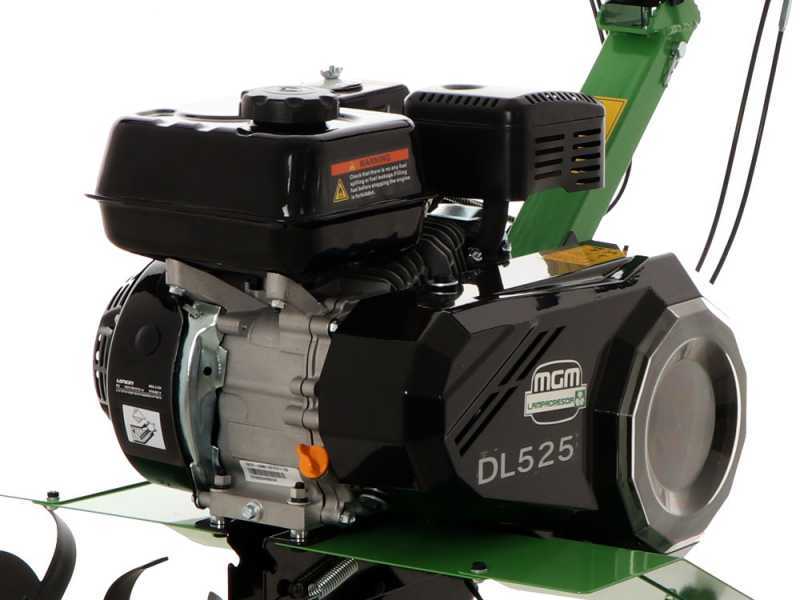

Loncin 212cc engine

The 212 cc Loncin engine is lightweight and high performing, suitable for operations requiring great power, thanks to its cubic capacity of 212 cc.

Features:

Engine type: 4-Stroke - OHC - single cylinder
Cubic capacity: 212 cc

Easy recoil start thanks to automatic fuel priming.

Today, the vast majority of agricultural and gardening equipment on the market is equipped with unbranded (or misbranded) engines made in China.

WARNING

The engine is PROVIDED WITH OIL.
CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE
. Please, read carefully the instruction manual before starting it up.

Nominal power: 7 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.9 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

Gearbox, steering handles and controls

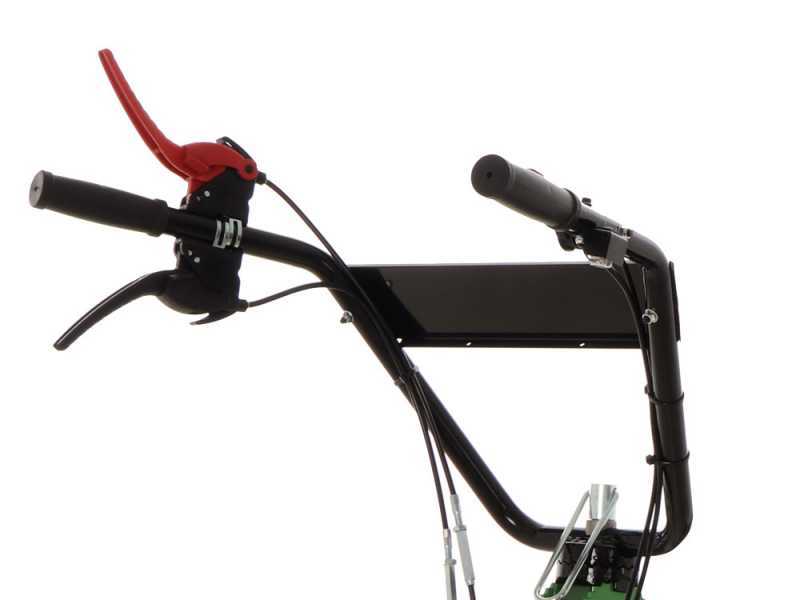

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Red lever: reverse gear lever

Black lever: clutch lever that operates the tiller motion and feed.

Focus on the throttle lever.

Height-adjustable handlebars thanks to the appropriate control system.

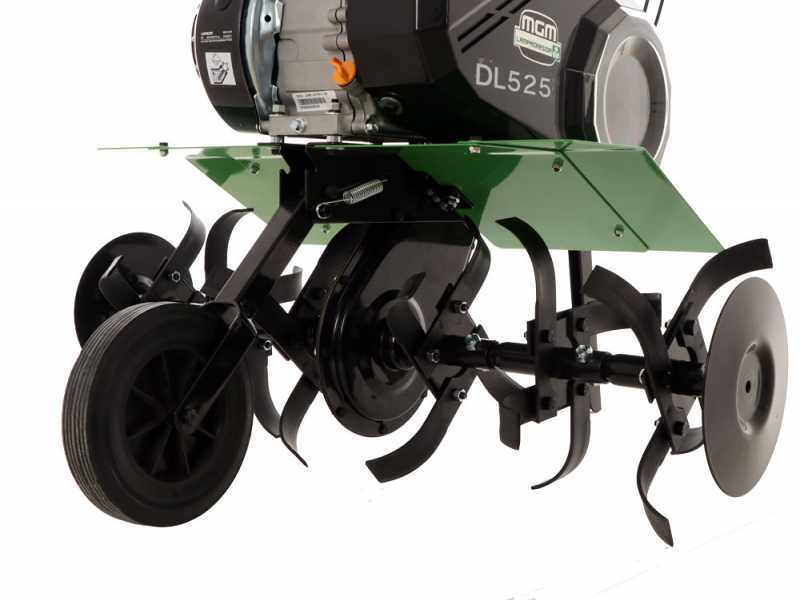

Tine and transmission

Tiller: 85 cm, with 6 rows of hoes + side protection discs.
Easily adjustable to 60 cm with a short operation.

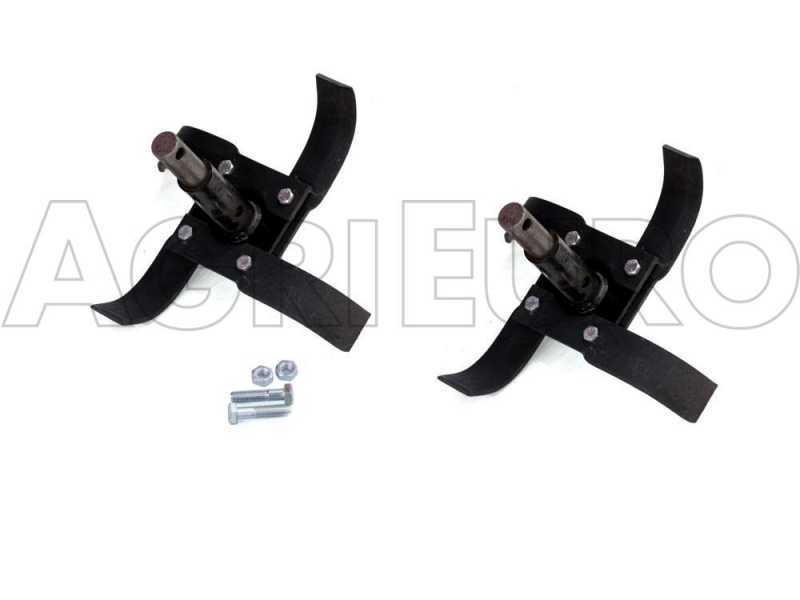

Converting from one width of cutter to another is a matter of seconds, simply inserting or removing the outermost element and storing the protective disc.

The side protections are fixed by the specific cotter pins having a quick-fit and thanks to the element consisting of a bolt and a nut.

Sturdy front transmission by chain.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.
