Lampacrescia MGM Castoro DF - Diesel Two-wheel Tractor - Loncin D350F - 7.5HP

Lampacrescia MGM Castoro DF is a high-quality two-wheel tractor, built to operate efficiently on soil. Provided with a sturdy Loncin 349cc diesel engine, this machine guarantees excellent power and high efficiency in consumption.

It is featured with a 6-speed gearbox: 3 forward and 3 reverse gears and rigid axle with reverse shuttle, allow an easy management of the machine and a remarkable versatility in any context.

The 180° reversible, height and laterally adjustable handlebars ensure a comfortable and safe ride, also on uneven terrain.

The multiple 4-disc dry clutch ensures effective traction and outstanding ground grip, even in difficult situations.

The 65cm cutter, adjustable to 40cm, allows to work with precision and speed.

the gearbox assembly is made of robust ductile cast iron

In conclusion, the Lampacrescia MGM Castoro DF is an efficient agricultural machine, ideal for working large areas of land quickly and effectively. It offers an excellent power and traction management but also a high comfort ad security standard for the user.

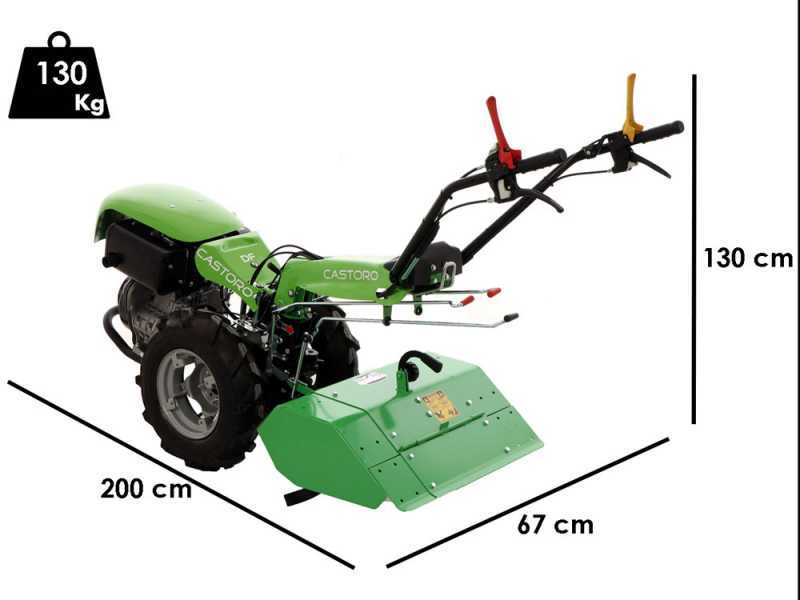

Weight: 130 kg

The machine is supplied semi-assembled The cutter, wheels and a few other parts still need to be assembled.

Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) the oil is already in the filter
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

The reversible feature allows this two-wheel tractor to be used with different functions.

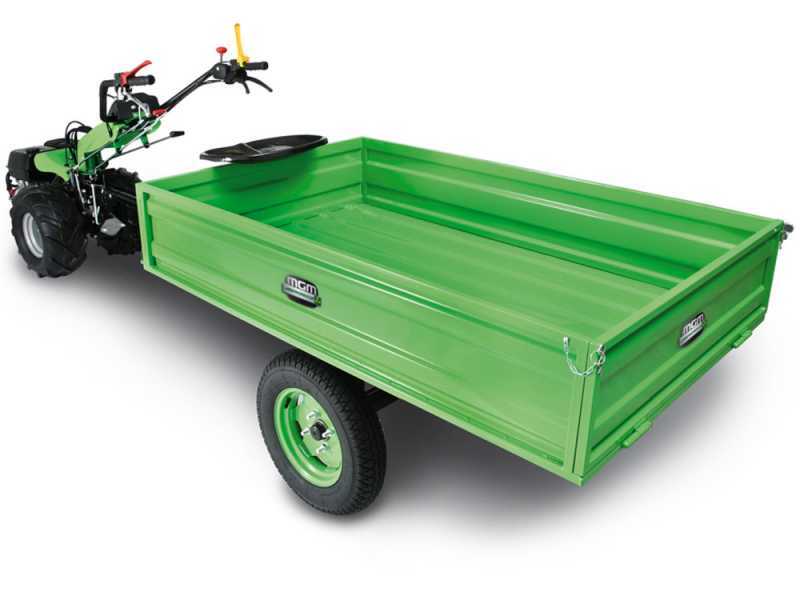

Here are some examples of the accessories that can be fitted to the machine:

• Power sweeper brush unit
• Iron cage wheels
• Furrower
• Quick hitch cutter
• Snow plough
• Snowplough cutter
• Knife-typed cut mower
• Three-toothed harrow
• Wheelbarrow
• Potato digger
• Rough cut mower
• Plough
• Two furrow ploughs
• Sickle bar

WARNING: THE PICTURES ARE PURELY INDICATIVE.
THE ACCESSORIES THAT CAN BE PURCHASED SEPARATELY FOR THIS PRODUCT MAY DIFFER IN SHAPE AND COLOUR FROM THE IMAGES SHOWN ON THE DESCRIPTION OF THE UNIT.
THE IMAGES OF THE ACCESSORY PRODUCT IN THE "ACCESSORIES" TAB ARE AUTHENTIC.

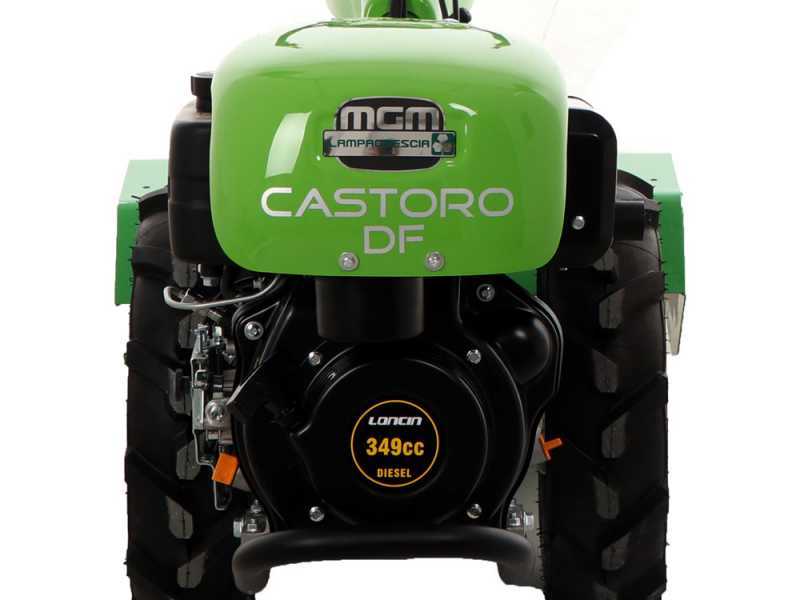

Powerful Loncin 349cc diesel engine.

Features:

The engine is equipped with a sturdy metal bumper, designed to protect it from possible impacts.

Focus on the air filter

WARNING!

These machines are tested by the producer before being shipped. Gearbox oil already at level
Please carefully read the instructions manual before starting the unit.

Nominal Power: 7.0 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6.5 HP

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

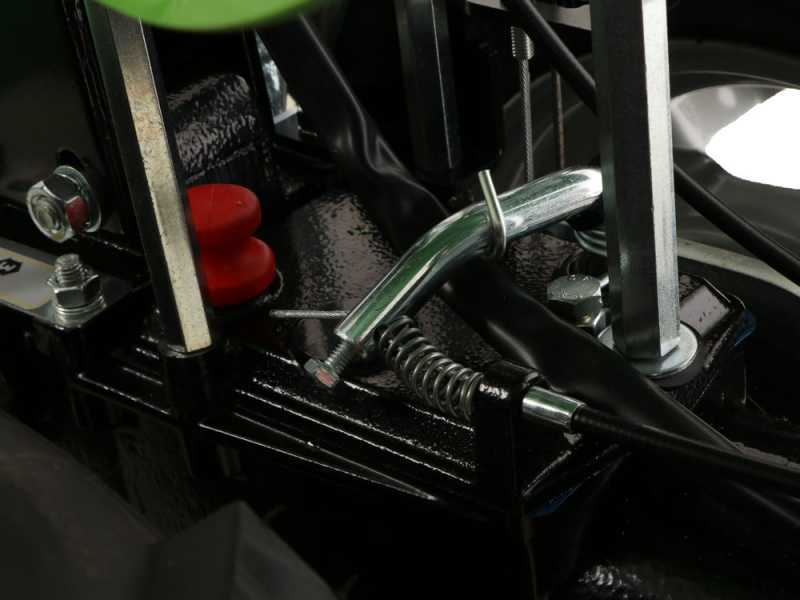

This two-wheel tractor is fitted with some of the best transmissions and gearboxes in oil bath on the market. Exceptional durability.

Specifically, this two-wheel tractor mounts the largest (in terms of size) and sturdiest transmission on the two-wheel tractors market today, made of robust ductile cast iron.

Suitable for heavy-duty, continuous work and intended for professionals in the sector looking for the best in sturdiness and reliability.

The internal mechanical components are oversized, entirely made with gears in oil bath for outstanding robustness and long service life.

6 speed gears: 3 forward + 3 reverse gears with reverser

The motor cultivator has a total of 3 gears: 3 forward gears in milling position (i.e. with tiller attachment fitted, or plough, furrower, and so on). 3 forward gears + 3 RM (with inverter) with machine reverse for frontal equipment (with sickle bar attachment, rough cut mower, snow blowers, etc.)

Therefore, the high speed number allow the Operator to use both hind equipment that frontal equipment with the proper operating speed and with extreme versatility.

Gear shift lever control

Multi-plate dry clutch with 4 plates, equipped with manual control on the steering handles.

Warning: Gearbox oil already at level.

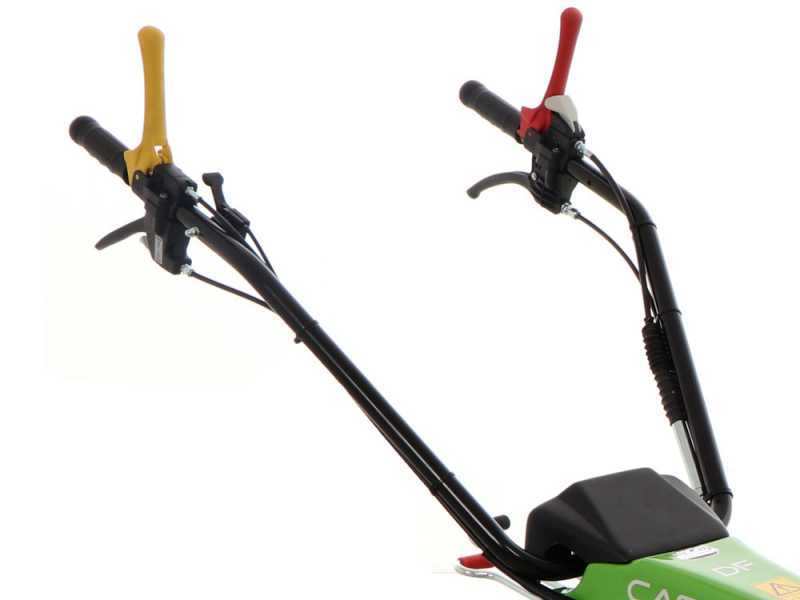

The steering handles are cushioned and 180° reversible.

Height-adjustable:

different height positions which can be set by means of a lever located between the steering handles.

Focus on the height-adjustment system.

Side-adjustment system:

The steering handles can be set in three positions sideways, thanks to the locking lever. This allows the Operator to easily move the machine forward on firm ground.

One of the most peculiar aspect is that they are mounted on a sturdy anti-vibration system which dampens the vibrations generated by the engine and the transmission in operation, increasing working comfort especially when operating the machine for several hours.
Few two-wheel tractors on the market today are equipped with an anti-vibration system.

Soft rubber-coated handles

The reversible steering handles allow several other accessories to be attached (sickle bar, rough cut mower, etc.)

This two-wheel tractor comes with a number of controls which make it extremely versatile and rich in functionality.

Hold-to-run dual clutch controls

• Re lever: safety lever that, when released, immediately stops the motion of the tillers and the machine forwarding speed.
• Black lever:is the clutch control, for temporarily stopping the machine. (It must be used with the red lever down)
• Yellow lever: Locking and unlocking differential system

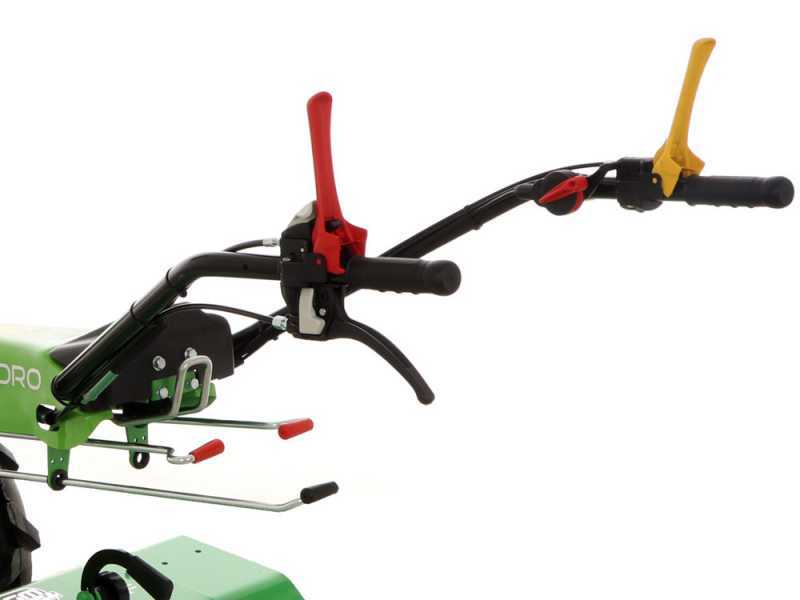

The gear lever is located to the right of the operator (lever with red knob on the bottom right). PTO engagement is activated and deactivated by the lever on the left (lever with the black knob).

The lever on the left with the red knob is the reverser.

Focus on the throttle lever and the on/off switch.

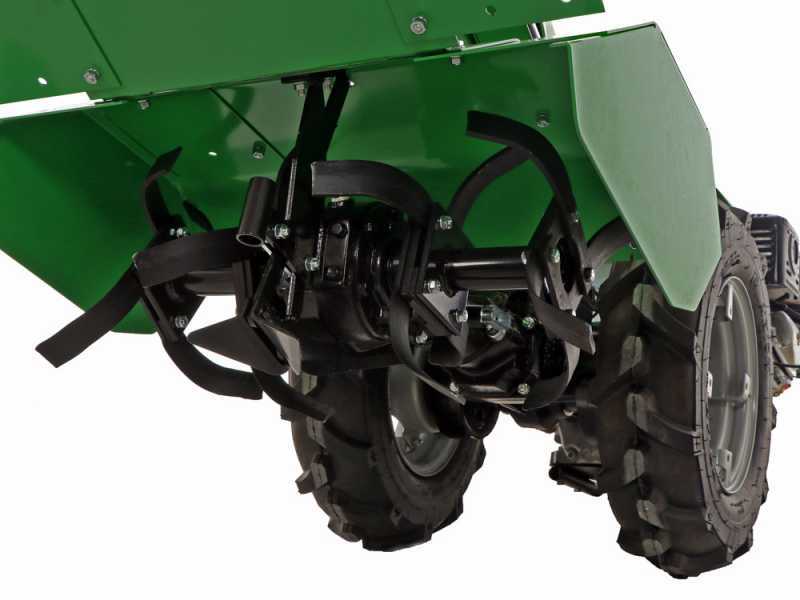

The tiller features a quick hitch which allows the implement to be quickly removed to replace it with another attachment or simply to speed up storage of the machine.

Tiller: 65 cm adjustable with quick hitch (can be narrowed to a minimum of 40 cm)

Focus on the independent 1-speed (943 rpm) PTO with quick tool coupling.

Working depth adjustment.

Hoe tillers are equipped with a special system for adjusting the working depth. The adjustment is made by means of the specific lever placed over the tiller.

Safety system:
- No reverse gear engagement when the operator is working with the cutter engaged. Turn off (by means of the appropriate lever) the cutter engagement and then engage reverse gear.
- stop drive when the handles are released in accordance with Machinery Directive 2006/42/EC

DIFFERENTIAL gear mechanism supplied as standard, with locking device on the steering handles.

This mechanical system for distributing the engine torque gives the two-wheel tractor truly extraordinary manoeuvrability, allowing very simple and light steering.

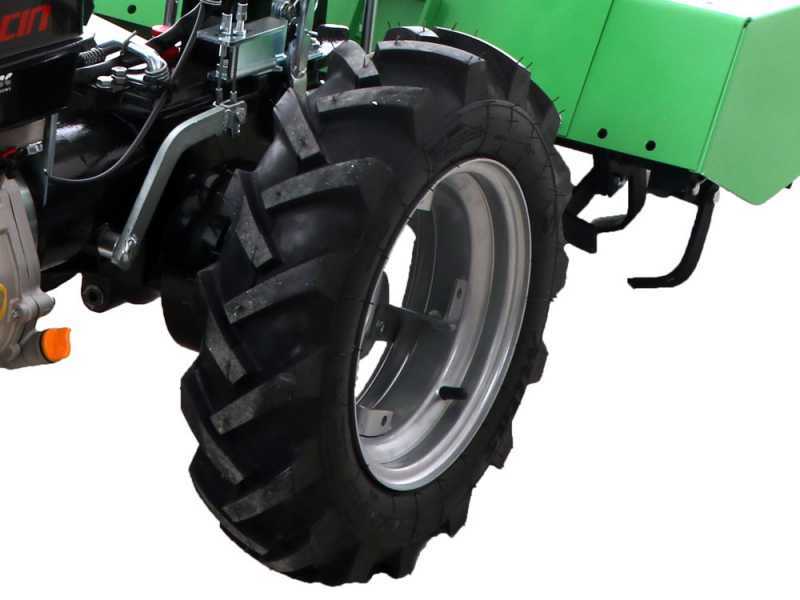

The two-wheel tractor mounts large pneumatic wheels with adjustable rim that allow the track width to be widened as required, ensuring a safe and uniform movement.

Large sculpted wheels, Tractor model 5.00 -10 size.

Rigid wheel axle with grass protection caps.
