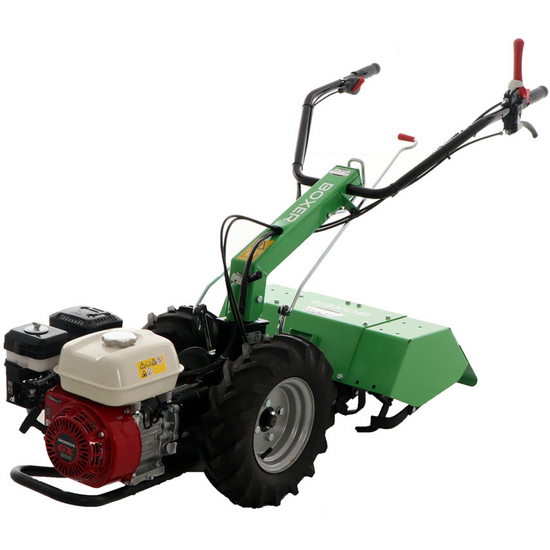

Lampacrescia MGM Boxer Light - Petrol Two-wheel Tractor - Honda GX200 - 7HP

Lampacrescia MGM Boxer Light is a high-quality two-wheel tractor, built to operate efficiently on soil. It is equipped with the powerful and reliable Honda GX200 engine and is the perfect choice for garden lovers and farmers who ask for a premium and versatile tilling tool.

The independent PTO with 1-speed ensures a great power transmission while the multiple 4-disc dry clutch guarantees greater resistance and long-lasting durability.

Damping handlebars, reversible 180° in height and laterally, allow the motor cultivator to be customised to suit your ergonomic needs, ensuring a comfortable operating experience and reducing operator fatigue.

The 4-speed gearbox, 2 forward and a 2 reverse gears and rigid axis, provides a wide range of options in order to find the right speed-power combination for any kind of work.

Furthermore, the sturdy ductile cast iron gearbox and high-grip wheels make the Lampacrescia MGM Boxer Light extremely stable and easy to manoeuvre on rough, sloping or extremely hard soil.

Thanks to the 60 cm cutter, easily adjustable to 40 cm through quick-connect coupling, the two wheel tractor allows to adapt to different type of soil and need.

Easy maintenance and high-quality of the employed materials ensure long-lasting durability and efficient functioning of the machine overtime.

In conclusion, the Lampacrescia MGM Boxer Light two wheel tractor with Honda GX200 engine is a reliable, powerful and versatile machine, able to meet the most variable needs in the agriculture and gardening field.

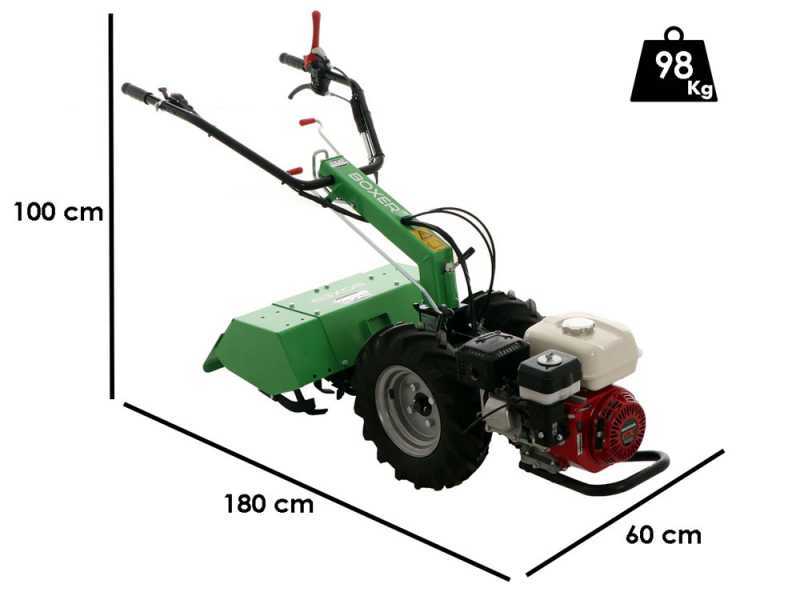

Weight: 98 kg

The machine is supplied semi-assembled The cutter, wheels and a few other parts still need to be assembled.

Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) the oil is already in the filter
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

The gearbox features 7 gears: 4 forward + 3 reverse gears with reverser, allowing both rear and front-mounted implements to be used at the appropriate operating speed.

The gearbox is lever-operated; the steering handles are height- and side-adjustable.

Multi-plate dry clutch with 4 plates.

Weight: 150 Kg

The two-wheel tractor is supplied half assembled and with full engine oil. The tiller, wheels and a few other parts still need to be assembled.

The assembly is quite simple and is clearly explained in the instructions manual.

Warning: these machines are tested by the producer before being shipped. Therefore, the engine is already filled with oil at level and with a minimum amount of fuel in the tank. Gearbox oil already at level.

Remember that it is always a good idea to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

The reversible feature allows this two-wheel tractor to be used with different functions.

Here are some examples of the accessories that can be fitted to the machine:

• Power sweeper brush unit
• Iron cage wheels

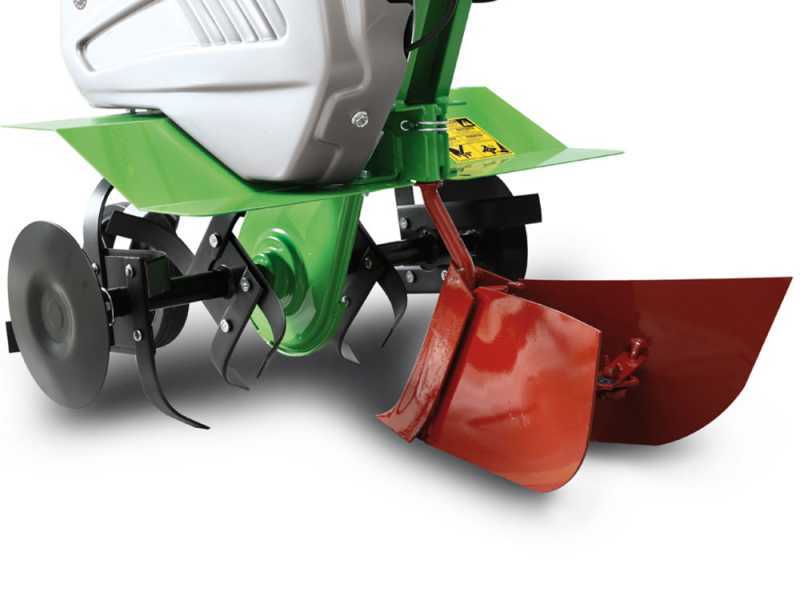

• Furrower
• Quick hitch cutter
• Snow plough
• Three-toothed harrow
• Potato digger
• Rough cut mower
• Plough
• Sickle bar

WARNING: THE PICTURES ARE PURELY INDICATIVE.
THE ACCESSORIES THAT CAN BE PURCHASED SEPARATELY FOR THIS PRODUCT MAY DIFFER IN SHAPE AND COLOUR FROM THE IMAGES SHOWN ON THE DESCRIPTION OF THE UNIT.
THE IMAGES OF THE ACCESSORY PRODUCT IN THE "ACCESSORIES" TAB ARE AUTHENTIC.

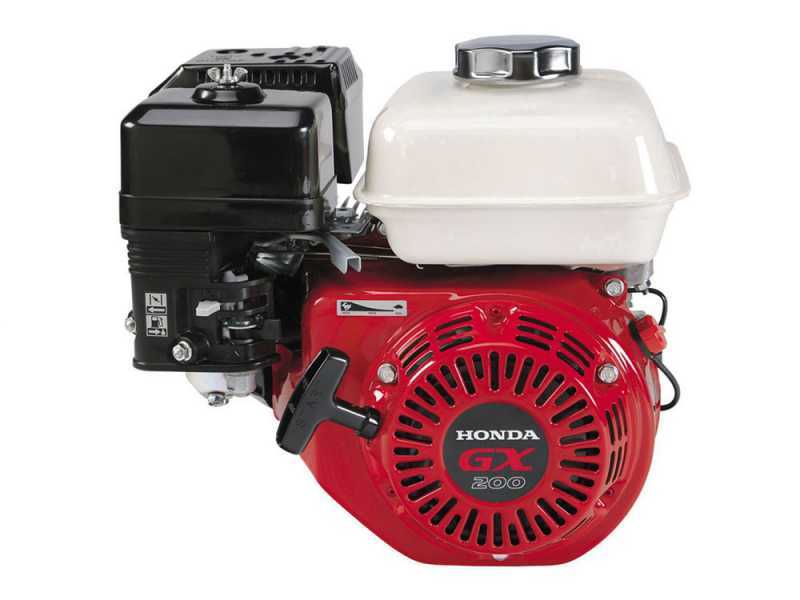

Honda GX 200 engine is a
highly-duty, powerful and state-of-the-art engine, with a overhead valve technology (OHV).

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Nominal Power: 7.1 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

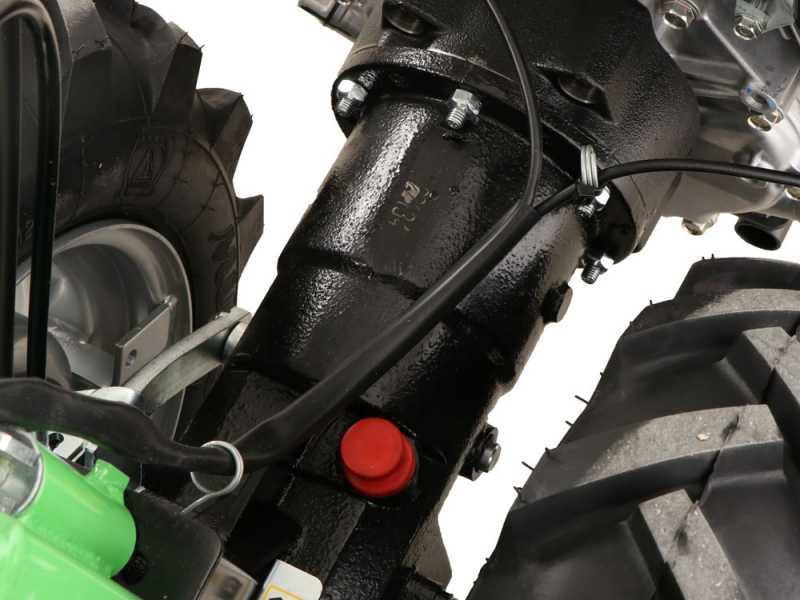

This two-wheel tractor is fitted with some of the best transmissions and gearboxes in oil bath on the market. Exceptional durability.

Specifically, this two-wheel tractor mounts the largest (in terms of size) and sturdiest transmission on the two-wheel tractors market today, made of robust ductile cast iron.

Suitable for heavy-duty, continuous work and intended for professionals in the sector looking for the best in sturdiness and reliability.

The internal mechanical components are oversized, entirely made with gears in oil bath for outstanding robustness and long service life.

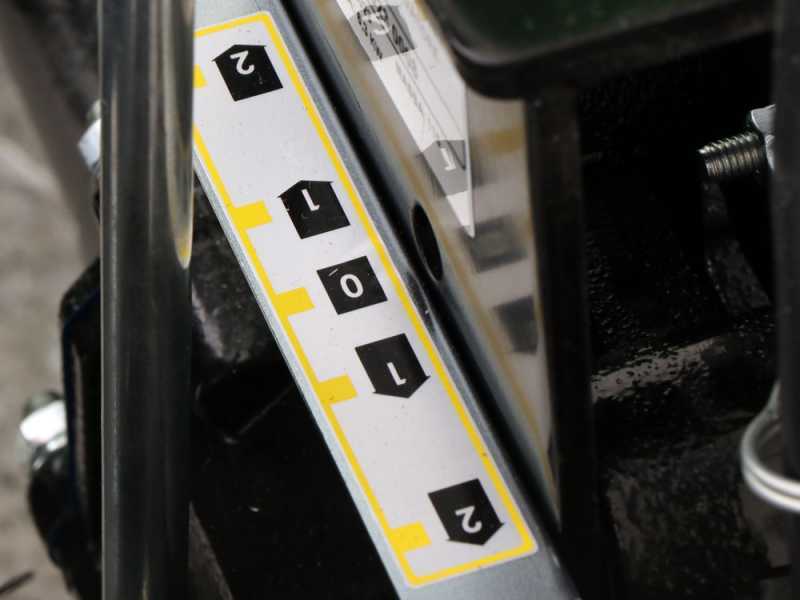

4 gears: 2 forward + 2 reverse gears.

The two-wheels tractor features a total of 2 gears: 2 forward gears in milling position (i.e. with tiller attachment fitted, or plough, furrow machine, and so on). 2 forward gears + 2 RM
Therefore, the good number of speeds allow the use of both rear and front equipment with the appropriate operating speed and with extreme versatility.

Gear shift lever control

Multi-plate dry clutch with 4 plates, equipped with manual control on the steering handles.

Warning: Gearbox oil already at level.

The steering handles are cushioned and 180° reversible.

Height-adjustable:

different height positions which can be set by means of a lever located between the steering handles.

Focus on the height-adjustment system.

Side-adjustment system:

The steering handles can be set in three positions sideways, thanks to the locking lever. This allows the Operator to easily move the machine forward on firm ground.

One of the most peculiar aspect is that they are mounted on a sturdy anti-vibration system which dampens the vibrations generated by the engine and the transmission in operation, increasing working comfort especially when operating the machine for several hours.
Few two-wheel tractors on the market today are equipped with an anti-vibration system.

Soft rubber-coated handles

The reversible steering handles allow several other accessories to be attached (sickle bar, rough cut mower, etc.)

This two-wheel tractor comes with a number of controls which make it extremely versatile and rich in functionality.

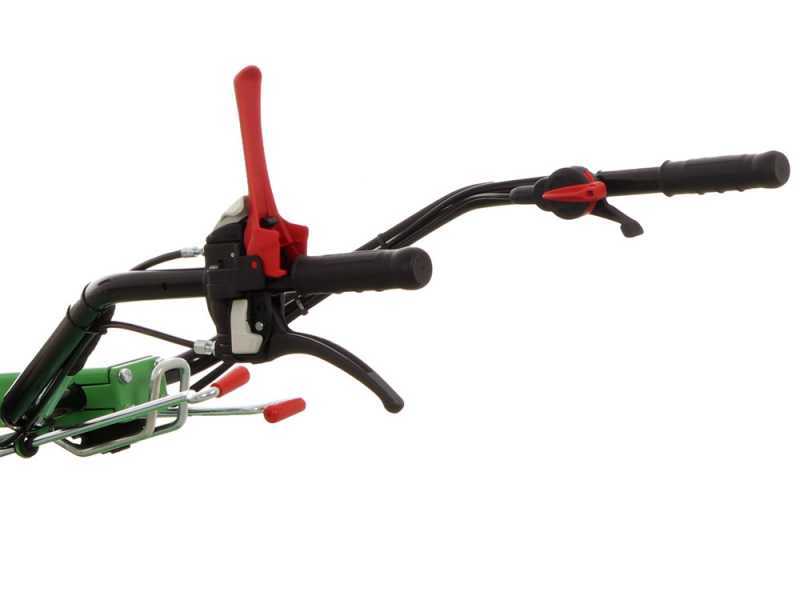

Hold-to-run dual clutch controls

• Red lever: safety lever that, when released, immediately stops the motion of the tillers and the machine forwarding speed.
• Black lever is the clutch control, for temporarily stopping the machine. (It must be used with the red lever down)

The gear lever is located to the right of the operator (lever with red knob on the bottom right). PTO engagement is activated and deactivated by the lever on the left (red knob).

Focus on the throttle lever and the on/off switch.

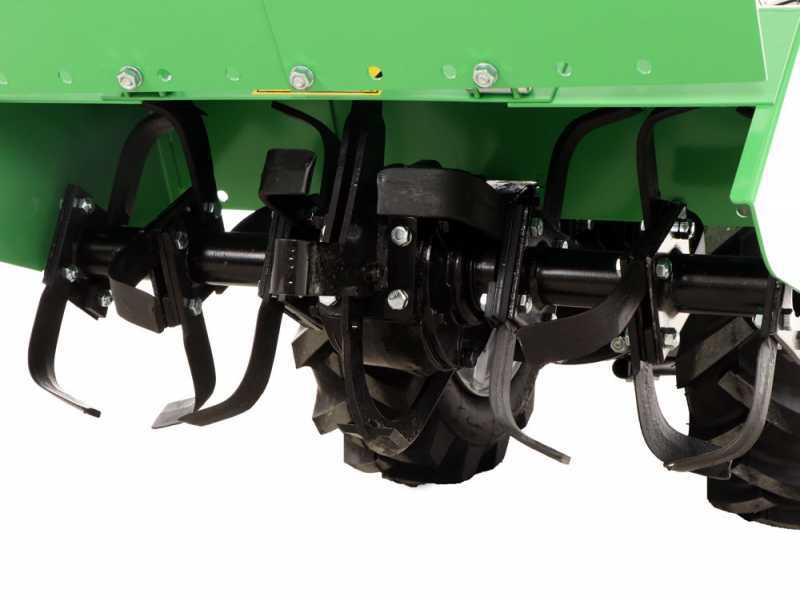

The cutter features a quick hitch which allows the implement to be quickly removed to replace it with another attachment or simply to speed up storage of the machine.

Tiller: 60 cm adjustable with quick hitch (can be narrowed to a minimum of 40 cm)

Focus on the independent 1-speed (943 rpm) PTO with quick tool coupling.

Safety system:
- No reverse gear engagement when the operator is working with the cutter engaged. Turn off (by means of the appropriate lever) the cutter engagement and then engage reverse gear.
- stop drive when the handles are released in accordance with Machinery Directive 2006/42/EC

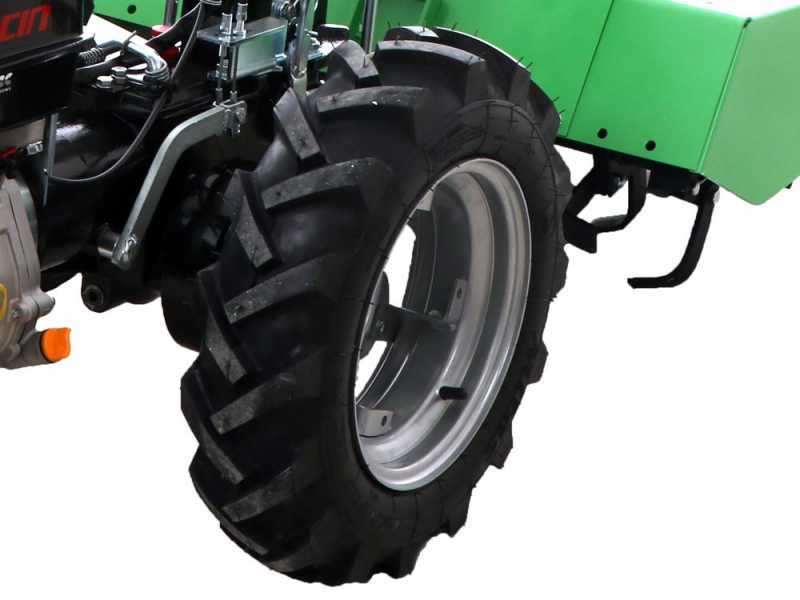

The two-wheel tractor mounts large pneumatic wheels with adjustable rim that allow the track width to be widened as required, ensuring a safe and uniform movement.

Large sculpted wheels, Tractor model 4.00 -8 size.

Rigid wheel axle with grass protection caps.
