Koshin STV-50X Petrol Water Pump for semi-dirty water with 50 mm fittings

Questions & Answers (6)
ID: K500309

EAN: 8025518312768

MPN: 880980

Koshin STV-50X Petrol Water Pump for semi-dirty water with 50 mm fittings
+200 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Koshin
Motor Model
K180
Cubic capacity
180 cm³
Nominal power
4.1 HP
Power supply
Petrol
For dirty waters
Yes
Material
Cast iron
Fittings diameter
50 mm
Max. head lift
26 m
Max. suction height
8 m
Engine speed
3600 RPM
Manufacturing country
Japan
Product Features
Model:
STV-50X
Power supply:
Petrol
Starting mode:
Recoil
For dirty waters:
Yes
Silicon carbide mechanical seals:
Yes
Manufacturing country:
Japan
Motor data
Motor brand:
Koshin
Motor Model:
K180
Cubic capacity:
180 cm³
No. of cylinders:
1
Nominal power:
4.1 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Manufacturing country:
Japan
Pump data
Pump brand:
Koshin
Pump type:
Self-priming
Material:
Cast iron
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Max. debris diameter:
8 mm
Flow rate:
580 L/min
Max. head lift:
26 m
Max. suction height:
8 m
Manufacturing country:
Japan
Pair of fittings with ring nut:
Yes
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
54×38×46 cm
Net weight:
29 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
56×40×48 cm
Gross weight (packaging included) :
35 Kg
Assembly time:
Assembled
Prompt Delivery
17 items in stock
Free Shipping
Estimated delivery: 19/04/2024 - 23/04/2024
Suggested price:
€ 484,77
€ 413,90
VAT Included

You're viewing:
Customers also viewed:
Description

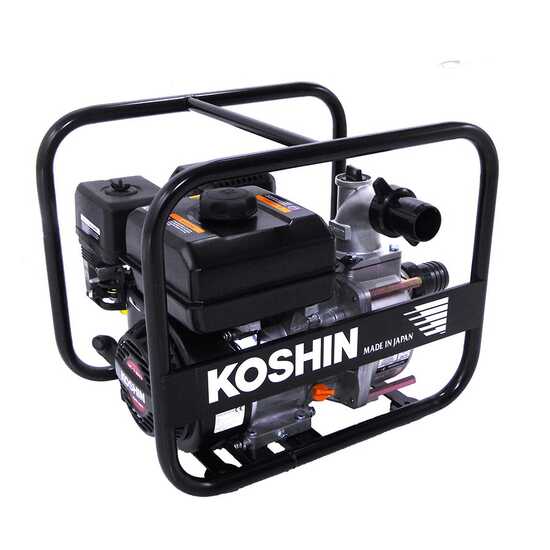

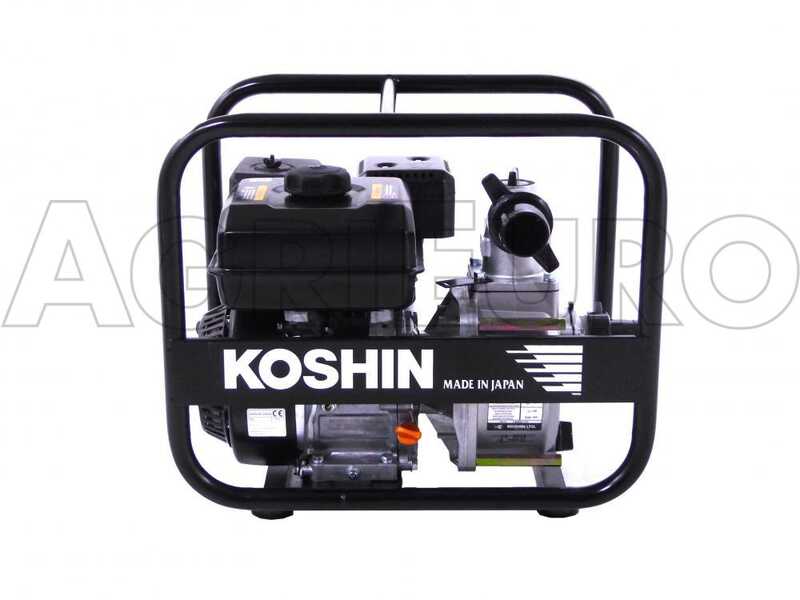

Koshin STV-50X Water Pump

Koshin STV-50X water pump for semi-dirty waters is a heavy-duty machine to drain dirty waters, which stands among standard petrol pumps for the large dimensions and exceptional volume of its pump unit.

This pump allows it to handle liquids that may also contain solids, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like. It is also equipped with a special metal filter, resistant to shocks and wear due to debris that semi-dirty waters contain.

The new STV line has unique technical features:
- silicon carbide mechanical seals, much more resistant to abrasion
- impeller and spiral body in spheroidal graphite iron, material which guarantees a much greater resistance, providing the machines with a much longer life even working with muddy waters.

Its high flow rate of a good 580 L per minute, due to its 50 mm fittings and the powerful 4.1 Hp engine, allows draining large quantities of dirty water very quickly.

It is also equipped with a sturdy wraparound frame consisting of a high-strength tubular, which protects it from unwanted shocks.

The pump is self-priming, and you can start it by simply topping up the water through the dedicated cap in the pump body.

Koshin water pump is also equipped with oil level safety device.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example, from a cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

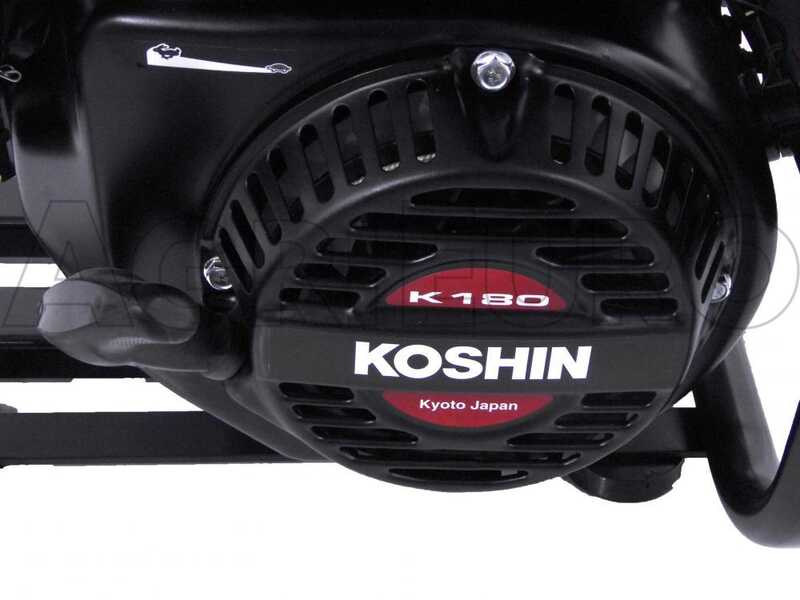

Engine Technical Features

Engine features:

Model: K180
Type: 4-stroke, single cylinder, forced-cooling,
OHV
Cubic capacity: 180 cc
Power: 4.1 Hp
Fuel: petrol
Tank: 3.6 L

The engine features recoil start system and metal tank with fuel shut-off valve.

Focus on the engine adjustment controls that include the air control and the regulation of the engine throttle.

Focus on the oil tank plug

Water Pump Technical Features

The pump mounted on the STV-50X is made of cast aluminium alloy, which makes it lightweight and robust at the same time. Its exceptional volume allows it to also operate with liquids which may contain solid parts, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like.. It is also equipped with a special metal filter, resistant to shocks and wear due to debris that semi-dirty waters contain.

Pump features:

Suction: 50 mm - 2 inches
Discharge: 50 mm - 2 inches
Maximum suction height: 8 m
Max. flow rate: 580 L/min
Max. head lift: 26 m

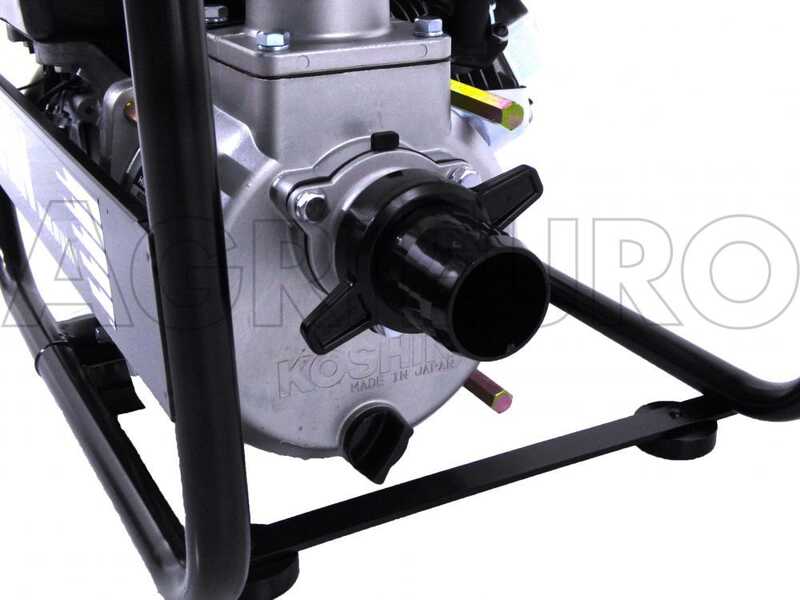

Focus on the 50mm - 2 inches suction and discharge fittings

Focus on the pump filling cap

Focus on the pump emptying cap

Focus on the quick lockings, which allow for quicker maintenance and cleaning operations inside the pump

Focus on the steel suction filter which allows the passage of debris with a maximum diameter of 8 mm.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

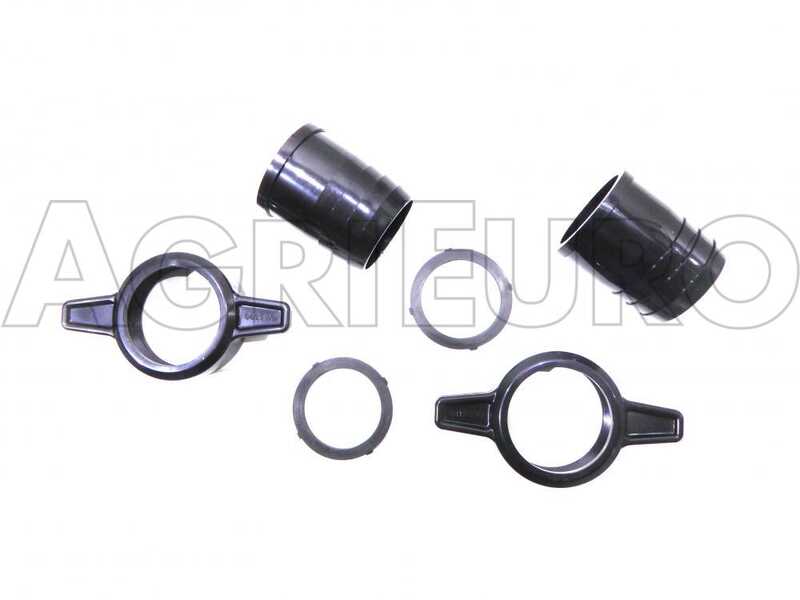

The water pump is shipped in its original packaging, equipped with tools for assembly and maintenance, two 50 mm fittings, 3 metal clamps and metal suction filter, specific for dirty water

Instructions manual included.
