Koshin SEH-50X - Self-priming petrol motor pump - Honda GX 120

Questions & Answers (9)
ID: K607621

EAN: 8025518027969

7,6/10
After-sales assistance & Spare parts
Koshin SEH-50X - Self-priming petrol motor pump - Honda GX 120
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Honda
Motor Model
GX 120
Cubic capacity
120 cm³
Nominal power
3.5 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Fittings diameter
50 mm
Max. head lift
30 m
Max. suction height
8 m
Engine speed
3300 RPM
Manufacturing country
Japan
Product Features
Model:
SEH-50X
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Manufacturing country:
Japan
Motor data
Motor brand:
Honda
Motor Model:
GX 120
Cubic capacity:
120 cm³
No. of cylinders:
1
Nominal power:
3.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Manufacturing country:
Japan
Pump data
Pump brand:
Koshin
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3300 RPM
Fittings diameter:
50 mm
Flow rate:
600 L/min
Max. head lift:
30 m
Max. suction height:
8 m
Manufacturing country:
Japan
Pair of fittings with ring nut:
Yes
Equipment
Recoil start system (with rope):
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

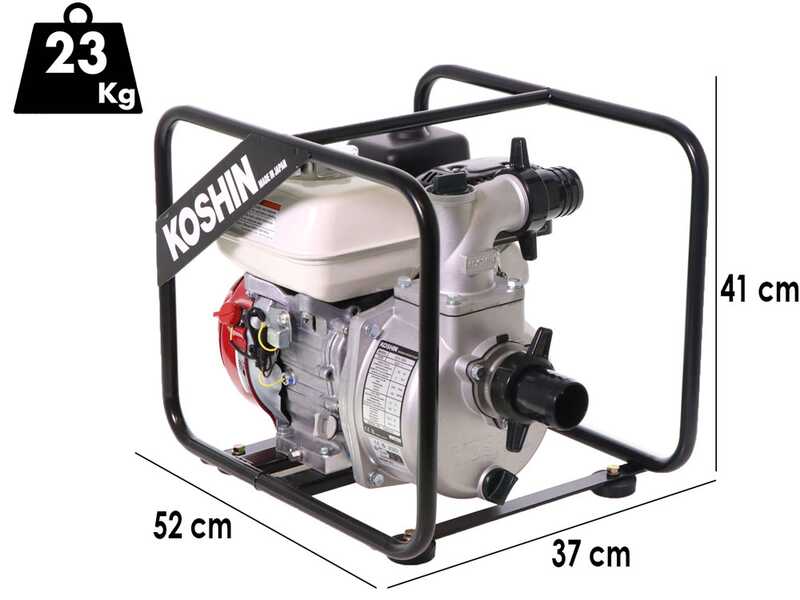

Product dimensions in cm (L x W x H):
52x37x41 cm
Net weight:
23 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
49x43x40 cm
Gross weight (packaging included) :
25 Kg
Assembly time:
Assembled
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 524,51
VAT Included
You're viewing:
Customers also viewed:
Description

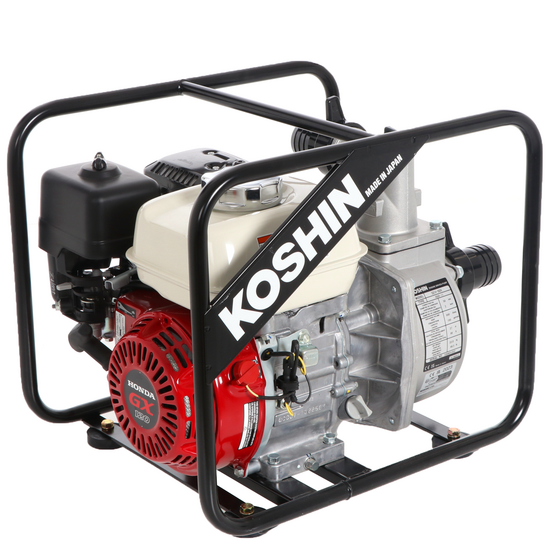

Koshin SEH-50X Petrol-driven Irrigation Motor Pump

The KOSHIN SEH-50X motor pump is designed to meet a wide range of needs, both domestic and communal. It can be used for purposes such as watering the garden, pumping water from wells, filling tanks, supplying water to homes and even for fire-fighting.

  • Quality Japanese engine: This model is equipped with a reliable Japanese Honda four-stroke engine, which delivers a power of 2.9 hp. This high quality motor guarantees consistent and reliable performance over time.

  • High Pump Capacity: The KOSHIN SEH-50X motor pump is capable of pumping up to 600 litres of liquid per minute, making it ideal for situations where large volumes of water need to be moved quickly and efficiently.

  • Simple Start: Starting this pump is extremely easy and intuitive. Simply fill the pump body with water to start it up, which makes it accessible even to inexperienced users.

  • Excellent durability: Robustness is a strength of this motor pump. Its housing is made of aluminium alloy, a material known for its resistance to corrosion, temperature variations and deformation. This contributes significantly to prolonging the life of the device, making it suitable for long-term use.

  • Structural Reliability: The KOSHIN SEH-50X motor pump is equipped with a special metal frame that protects the internal mechanism from damage and helps ensure structural stability. This design ensures that the pump remains in perfect condition even under intensive use.

ATTENTION:

  • Oilless engine, remember to refill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump.

These water pumps are suitable for transferring water (for example, from one cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with sprinklers of different typologies or various types of real irrigation systems (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head, pressure, pipe diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Technical characteristics of the HONDA GX 120 engine

Engine specifications:

Model: GX120

Type: 4-stroke, single-cylinder, air-cooled, OHV with overhead valves

Cylinder capacity: 120cc

Power: 2.9 Hp

Fuel: petrol

The engine has a recoil starter and a metal tank with a fuel tap.

Engine control commands encompass air adjustment and engine throttle adjustment.

Filter detail.

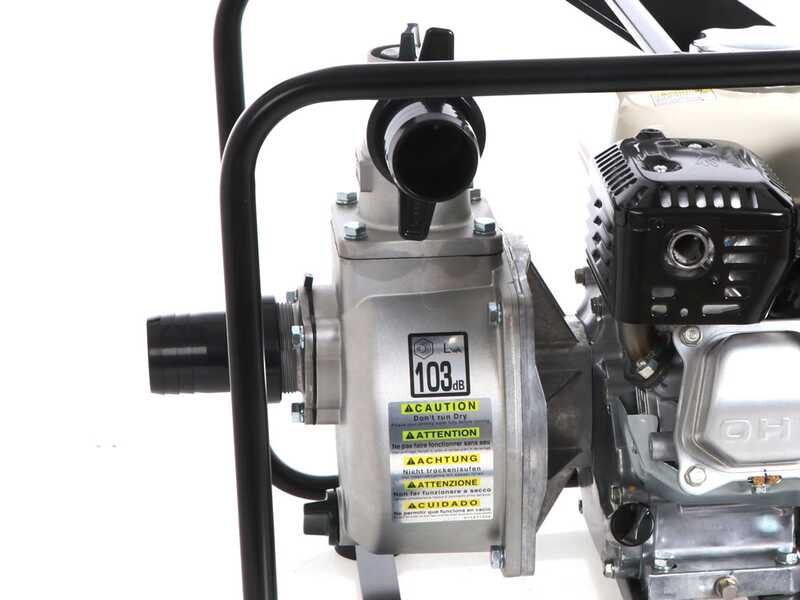

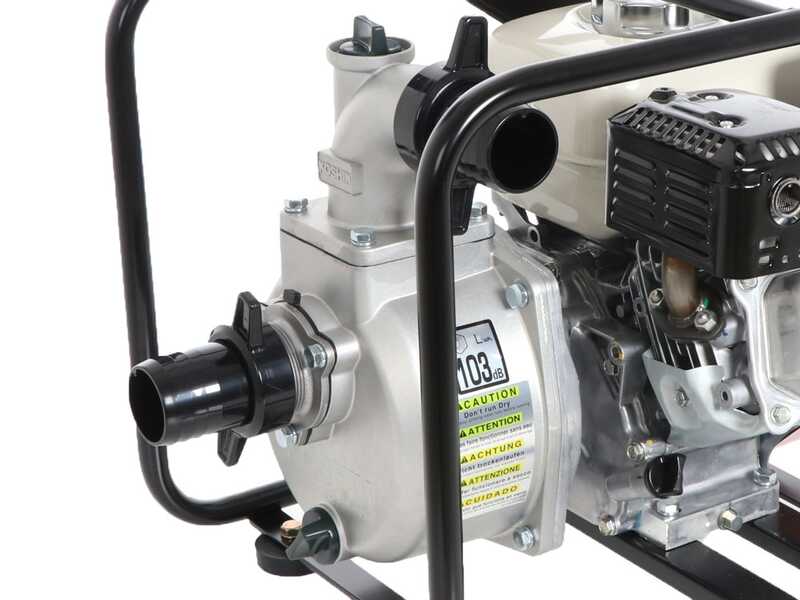

Pump specifications

The pump is made of aluminium, which makes the unit both lightweight and sturdy.

Pump features:

Suction: Approx. 50mm

Delivery: Approx. 50mm

Maximum suction height: 8 metres

Maximum flow rate: 600 l/min

Maximum head: 30 metres

50 mm diameter suction and delivery connections

Detail of the pump filling and emptying the pump

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Equipment

The water pump is shipped in its original packaging

The package includes:

  • Suction filter:
  • Plastic pipe connection
  • Anti-vibration feet
  • Plastic cable ties
  • Instructions manual
