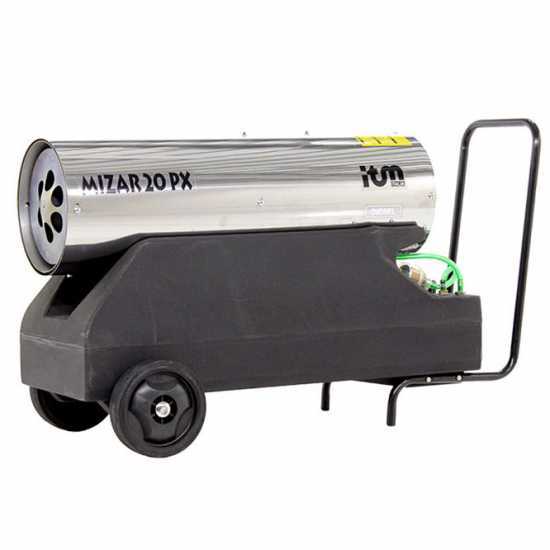

ITM MIZAR 20PX INOX Diesel Hot Air Generator - Direct combustion

Questions & Answers (1)
ID: 100678

EAN: 9993089410406

MPN: 5100513

7,9/10
After-sales assistance & Spare parts
ITM MIZAR 20PX INOX Diesel Hot Air Generator - Direct combustion
Power supply
Diesel-powered
Max. heat output
20 kW
Body material
Stainless steel
Starting mode
Electric
Post-ventilation thermostat
Yes
Standard trolley
Yes
Manufacturing country
Italy
Product Features
Model:
MIZAR 20PX INOX
Power supply:
Diesel-powered
Body material:
Stainless steel
Type:
Direct
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
20 kW
Nominal heat output:
20 kW
Heat output kW:
20 KW
Power Btu/h:
68.000 approx.
Power Kcal/h:
17.000 approx.
Air flow:
500 m3/h
Absorption:
0.9 A
Tank capacity:
20 L
Thermostat:
Optional
Fuel consumption:
1.65 kg/h
Starting mode:
Electric
Recommended for open spaces:
Yes
Recommended for ventilated areas:
Yes
Manufacturing country:
Italy
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Post-ventilation thermostat:
Yes
Electronic flame sensor with photocell:
Yes
Stainless steel combustion chamber:
Yes
Standard trolley:
Yes
Free gifts/extra features
Fuel filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
24 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
80 x 32 x 53 cm
Gross weight (packaging included) :
26.3 Kg
Assembly time:
5 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
Suggested price:
€ 533,44
€ 474,76
VAT Included

You're viewing:
Customers also viewed:
Description

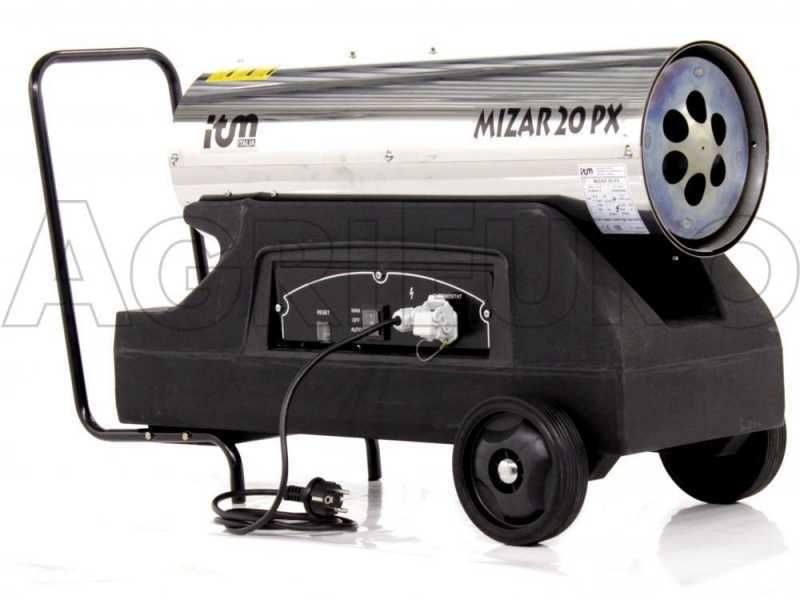

ITM MIZAR 20 PX INOX Hot Air Generator

The ITM MIZAR 20 PX INOX is a portable direct heat hot air generator powered by diesel engine. Both the combustion chamber and the housing are made of stainless steel, which ensures great durability, corrosion resistance and high sturdiness avoiding to get rusty, while the external body is made of painted steel finish that tends to rust when exposed to moisture.

This ITM MIZAR 20 PX INOX hot air generator is equipped with a flame control card with photocell and it provides possible connection to an optional room thermostat. It is able to produce high volumes of instant heat thanks to the 20 kW thermal power and to the 500 m3/h air flow.

We are focusing on a portable and versatile machine, which is known to be extremely easy and lightweight to transport thanks to the wheels and to the comfortable handle it consists of.

Thus, it just requires an easy and quick maintenance allowing to heat up different areas.

ITM MIZAR 20 PX INOX Hot Air Generator is a made-in-Italy product.

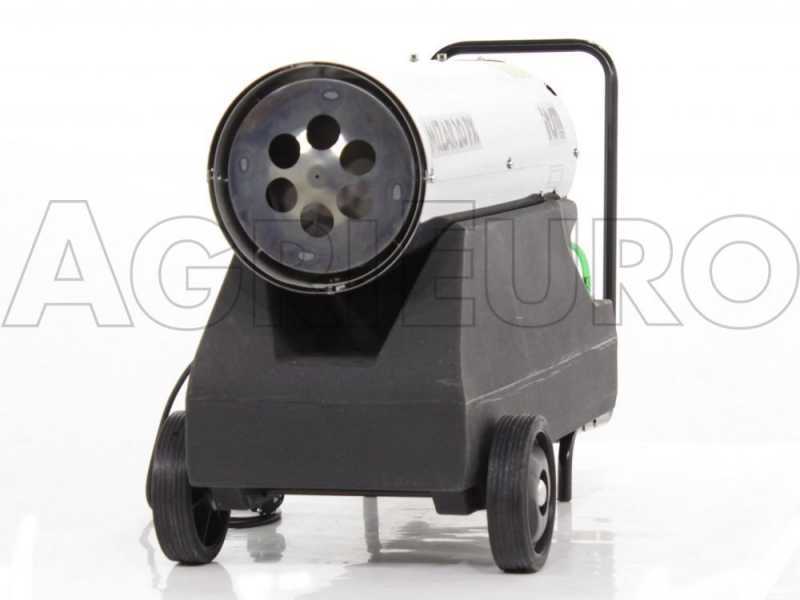

How to select the ideal hot air generator

Important features that the operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up.

  • Dimensions of the area that has to be heated up[V].
  • The ideal temperature [ΔT] that has to be reached.
  • Room thermal insulation [K].

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

Example:

V = 4 mt width, 12 mt length, 3 mt height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal/h, which has to be compared with the data written on the machine label, which highlights this gad heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

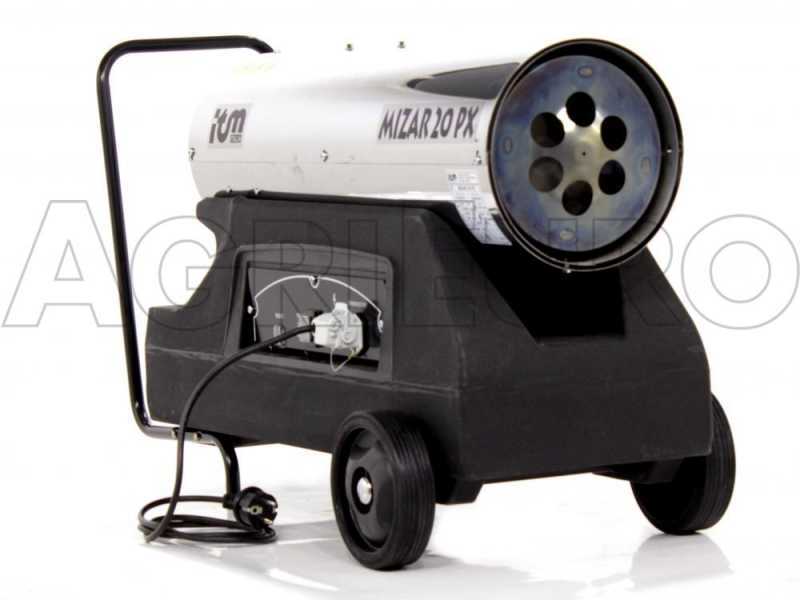

Technical features and additional details

Heat rating:
19.8 kW 67.242 Btu/h 17.063 Kcal/h

Air flow: 500 m3/h

Fuel consumptions: 1.66 kg/h

Fuel tank capacity: 20 lt

Power: 220-240/50 V/Hz

Electric power requirements: 0.9 A

Thermostat: optional

Autonomy: 10 h

Electric power consumptions: 0.20 kW

Protection: IP44

Focus on the diesel filter.

Focus on the blower fan.

Focus on the transport wheels.

Focus on the control panel.

Free items & Standard equipment

Free gifts / Extra features

The hot air generator is sent to you in its original packaging.

Instructions and maintenance manual provided on standard equipment.
