Inverter Electrode Welding Machine in direct current BullMach BM-WM 160N - 160A - with MMA Kit

Inverter Electrode Welding Machine in direct current BullMach BM-WM 160N - 160A - with MMA Kit
Special offer
type
Inverter MMA
MMA usable electrodes
40°C service
60 %
Welding current range (A)
20 - 160
Liquid crystals display
Yes
FREE:
Pack of 160 Soges Electrodes 2.0 mm Included!
Pack of 50 Soges ELctrodes 2.5 mm Included!
GeoTech Welding gloves provided on standard equipment!
FREE:
Pack of 160 Soges Electrodes 2.0 mm Included!
Pack of 50 Soges ELctrodes 2.5 mm Included!
GeoTech Welding gloves provided on standard equipment!
€ 145,46
-20 %
€ 116,37
VAT Included
Prompt Delivery
195 items in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K602998

EAN: 8054141542723

MPN: 107466

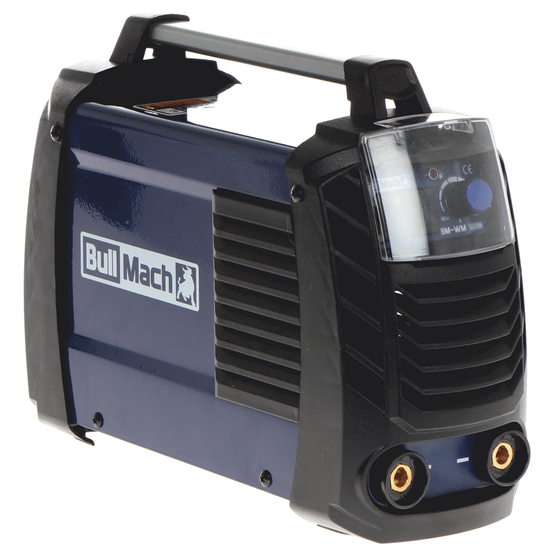

BullMach BM-WM 160N welding equipment

The Inverter technology of the BullMach BM-WM 160N welder allows the Operator to use this welding machine with ease and high safely, thanks to its absorption stability. Exceptional welder for any hobbyist. The exclusive requirement of a standard domestic plug (230V) and handle make it one of the most versatile and user-friendly welders on the market.

In addition to the high technical performance, this product is also characterized by a modern and sophisticated design. Extremely helpful voltage regulator and digital display.

The BullMach BM-WM 160N welder guarantees high stability of the welding current in case of variations in the power voltage.
Hot Start and Arc Force: improved performance of arc welding and welding seam.
Anti-Stick: system that eliminates the problem of the electrode sticking.

The BullMach BM-WM 160N welding machine requires electrodes with a diameter of 2.5 - 4.0 mm and guarantees a high duty or service cycle at 60% 160 A (this data is tested at 40° in compliance with current legislation). The technical specification of the duty cycle rated at 60% makes this welder a truly high-performance unit.
Usable electrodes: rutile, basic, stainless steel, cast iron, and many others.

The BullMach BM-WM 160N welder represents a great option, being renowned for the high compactness, lightness and versatility.

The BullMach BM-WM 160N is an excellent, compact and powerful welder. Full of options and functionalities, this welding equipment represents a valid alternative for anyone who needs to get high performance with a great value for money. Exceptional welder for any demanding hobbyist.

Thanks to the Hot Start and Arc Force mode, this welder model offers higher-quality arc welding and welding seam. By contrast, thanks to the Anti-Stick system, the welding machine prevents the possible inconvenience of the electrode sticking.

Technical features

Certified quality

Power supply: 230 Volts

Maximum power absorption: 5.3 KW

Usable electrodes 2.5 - 4.0 Ø mm

Usable electrodes: rutile, basic, stainless steel, cast iron

No-load voltage 60 Volts

Power: 20 - 160 A

Service cycle at 40°: 60% at 160A

Functions:

anti-stick

Hot start

Arc force

According to standard CEI EN 60974-1, the technical tests on the welding machine are carried out at a room temperature of 40°C, and when the power supply is at controlled temperature, after working for a certain time.

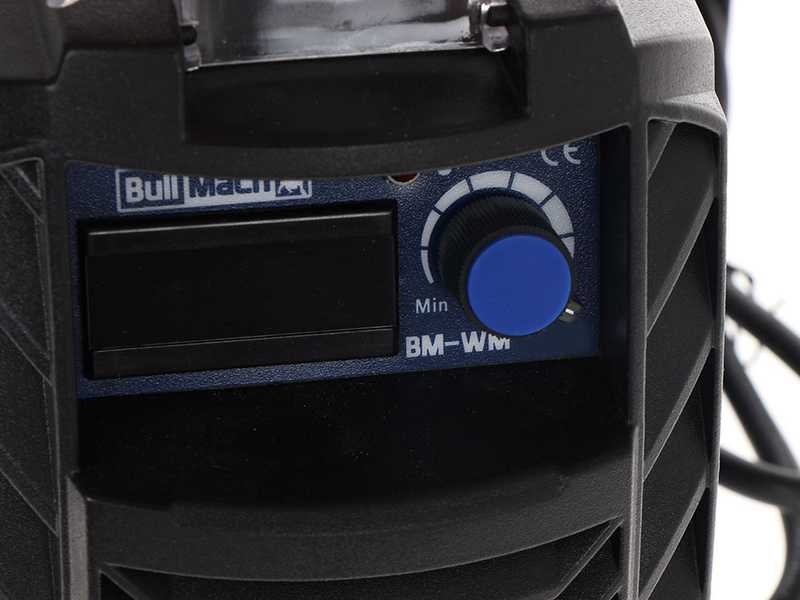

Digital display to show the working voltage

Power switch

Carrying handle

Voltage regulator: to set the optimal welding level according to the electrode used. A suitable voltage corresponds to each electrode size.

Plastic door to protect the screen

Product Features
Model:
BM-WM 160N
type:
Inverter MMA
Power:
electric, single-phase
MMA usable electrodes:
Open circuit voltage:
60 Volt
Installation power 220V:
5.3 KW
Max. required generator power:
7.95 KW
40°C service:
60 %
Duty Cycle 40°C:
60%@160A
Welding current range (A):
20 - 160
Motogenerator +/-30%:
no
Aluminium welding (optional):
No
Synergy function:
No
Manufacturing Country:
China
Equipment
Liquid crystals display:
Yes
Free gifts/extra features
Welding equipment:
With standard supplied accessories
Instructions manual:
yes
Dimensions and logistics

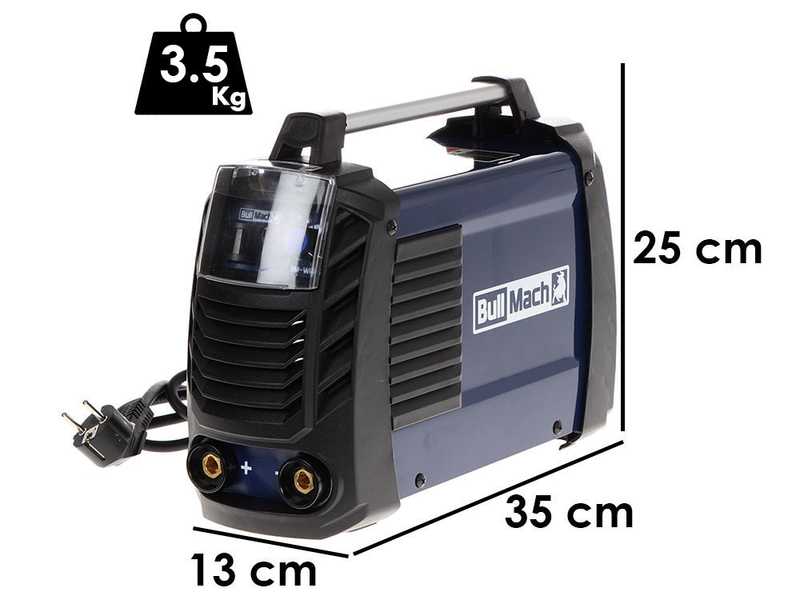

Product dimensions cm (LxWxH):
35x13x25 cm
Net weight:
3.5 Kg
Packaging:
Original packaging
Packaging dimensions cm (LxWxH):
43x24x31 cm
Gross weight (packaging incuded) :
4.9 Kg
Assembly time:
5 minutes

COMPLIMENTARY: 160 2.0 SOGES Electrodes + 50 2.5 SOGES Electrodes + Welding Gloves

Included in the price:

No. 210 SOGES ELECTRODES:

- Package of 160 SOGES rutile electrodes 2.0 mm

- Package of 50SOGES rutile electrodes 2.5mm

The best electrodes available on the market for quality and reliability, MADE IN ITALY.
SOGES is renowned as the best ITALIAN manufacturer of welding accessories.

GeoTech welding gloves which guarantee maximum comfort and maximum safety during welding operations.

Free items provided on standard equipment

The product is shipped in its original packaging along with the instructions manual.

Wide range of accessories provided on standard equipment:

Power cable with 2 m Schuko socket

Earth clamp with 1.4 m power cable

Electrode holder with 1.6 m cable

Brush/Hammer for debris removal
