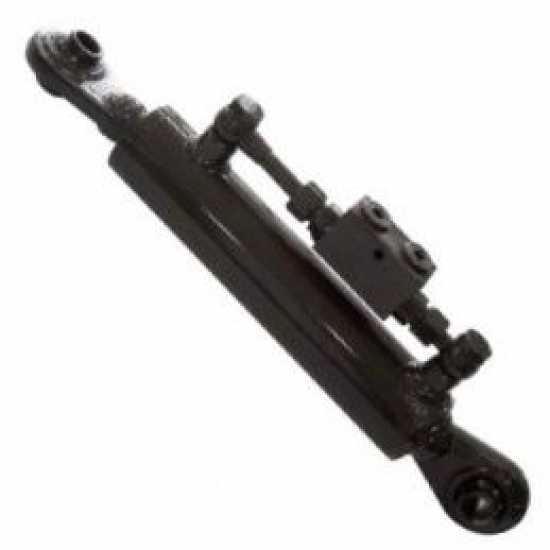

Hydraulic three-point hitch tractors
with hole diameter: 25 mm
Distance between the two holes with fully closed piston: 550 mm
This is therefore a three-point linkage with category 2 couplings
Generally to be used on tractors with a three-point hitch with a diameter of 25 mm
This is the fixed side of the piston, which must be applied from the tractor side.
Piston outer diameter: 70 mm

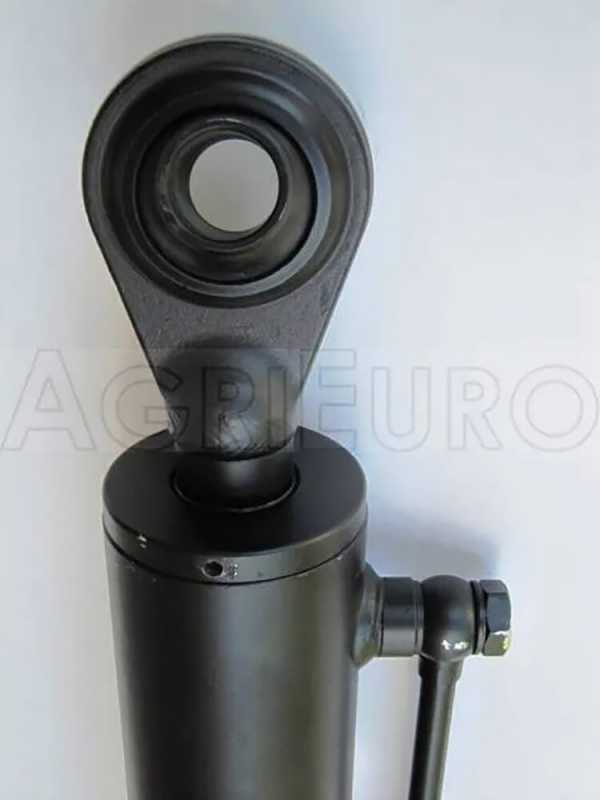

This is the side where the piston is pulled out (to be applied from the side of the tractor equipment).
Piston rod diameter: 35 mm
STROKE: 250 mm
Distance between the two holes of the kneecaps with the piston fully open: 800 mm
Detail of the blocking valve with which this hydraulic piston is equipped.
When the piston has been extended to the desired length, as soon as you leave the hydraulic controls of the tractor with which you operate it, this valve locks it, giving it a particularly high resistance to stress and traction.
