Hydraulic 3-point Hitch for Farm Tractor cm 60/90, 35 mm Piston Rod

Questions & Answers (3)
ID: 12472

EAN: 9993089179624

9,1/10
After-sales assistance & Spare parts
Hydraulic 3-point Hitch for Farm Tractor cm 60/90, 35 mm Piston Rod
Manufacturing country
Italy
Piston stroke
30 cm
Product Features
Type:
2° category
Operating mode:
Hydraulic
Link ball holes diameter:
25 mm
Min. length (hole centre distance):
600 mm
Piston stroke:
30 cm
Max. length (hole centre distance):
900 mm
Manufacturing country:
Italy
Pump data
Hydraulic cylinder outer diameter:
70 mm
Piston diameter:
35 mm
Manufacturing country:
Italy
Equipment
Locking valve:
Yes
Prompt Delivery
6 items in stock
Suggested price:
€ 266,43
€ 220,39
VAT Included
Description

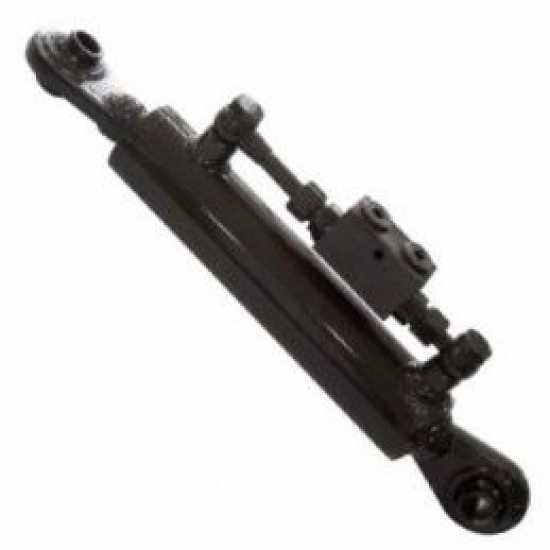

Hydraulic 3-point hitch

Hydraulic 3-point hitch for farm tractors with 25 mm rod ball joint hole diameter.

Axle spacing between the two ball joint holes when closed: 600 mm

3-point hitch with 2° category linkage

To use on tractors provided with a 25 mm diameter 3-point hitch

This is the fixed piston side, to be connected to the tractor side.

Outer piston diameter: 70 mm

This is the stroke side of the piston (to be connected on side of the machinery linked to the tractor)

Piston rod diameter: 35 mm

STROKE: 300 mm

Axle spacing between the two ball joint holes when opened: 900 mm

Focus on the hydraulic piston lock out valve

When piston is extended at the desired length and tractor controls are released, this valve blocks the piston giving it a high resistance to the particularly high traction.
