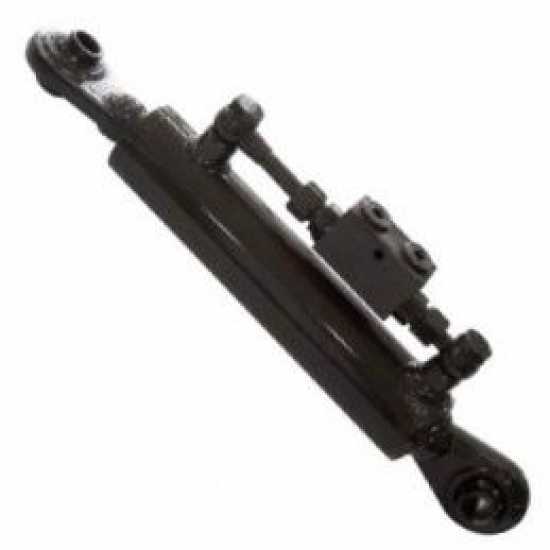

Hydraulic 3-point hitch for farm tractors with 19 mm rod ball joint hole diameter.
Axle spacing between the two ball joint holes when closed: 470 mm
3-point hitch with 1° category linkage
To use on tractors provided with a 19 mm diameter 3-point hitch
This is the fixed piston side, to be connected to the tractor side.
Outer piston diameter: 60 mm
This is the stroke side of the piston (to be connected on side of the machinery linked to the tractor)
Piston rod diameter: 30 mm
Hole thickness: 45 mm
STROKE: 200 mm
Axle spacing between the two ball joint holes when opened: 670 mm
Focus on the hydraulic cylinder lock out valve
When piston is extended at the desired length and tractor controls are released, this valve blocks the piston giving it a high resistance to the particularly high traction.
