Horizontal 20 Tons Log Splitter with 3-point Linkage

Questions & Answers (4)
ID: 103495

EAN: 9999237538473

9,0/10
After-sales assistance & Spare parts
Horizontal 20 Tons Log Splitter with 3-point Linkage
+40 sold
Technical data
Max. trunk diameter
70 cm
Piston stroke
100 cm
Max. pressure
250 bar
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model
20T
Type
Horizontal
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Piston stroke
100 cm
Adjustable piston stroke (for short logs)
Yes
Worktop log cutting
No
Ground splitting system
No
Manufacturing country
Italy
Motor data
Manufacturing country
Italy
Pump data
Pump type
Hydraulic
Max. pressure
250 bar
Oil tank
Yes
Hydraulic cylinder outer diameter
110 mm
Piston diameter
60 mm
Manufacturing country
Italy
Cutting data
Max. trunk length
115 cm
Max. trunk diameter
70 cm
Equipment
Frame
Standard
Pump
Standard
Vertical log splitter safety lever
No
Retaining side supports
Yes
Trunk lifting system
No
Retractable piston for transport
Yes
Tractor three-point hitch
Yes
Replaceable wedge guides
Yes
Cartridge oil filter
Yes
Pressure gauge on pump
Yes
Free gifts/extra features
Splitting wedge
Yes
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
280x130x110 cm
Net weight
450 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
210 x 130 x 120 cm
Weight including packaging
460 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 16/09/2025 - 18/09/2025
Suggested price:
€ 3.828,26
€ 3.608,43
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

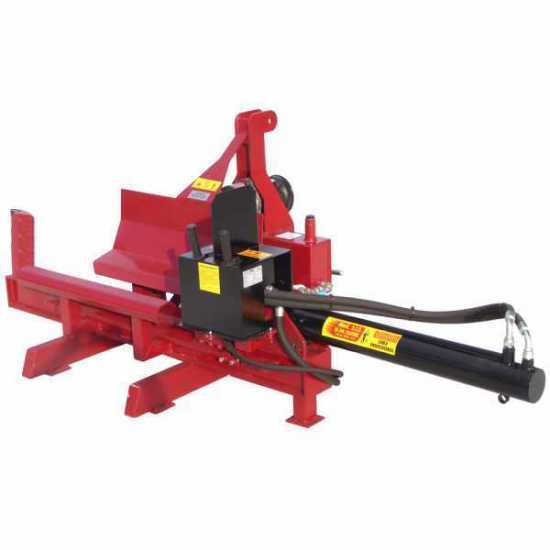

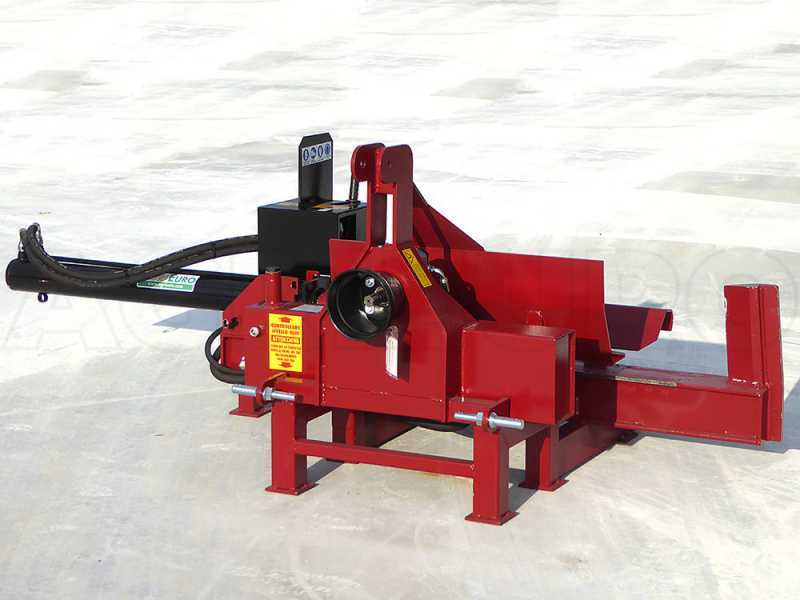

Horizontal 20 tons log splitter with 3-point linkage

This log splitter is a SEMI PROFESSIONAL machine in terms of power, performance, sturdiness and weight.

The HORIZONTAL - 20 T log splitter meets the needs of small and medium producers of firewood for domestic use, designed for those looking for a very powerful yet user friendly machine.

It is esigned for all those looking for a very powerful but user-friendly machine.

HIGLY POWERFUL, thanks to its 20 tons splitting force (making it one of the most powerful of its category on the market) and fast: it features 3 seconds forward stroke and 6 seconds return stroke

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the cutting plate without any effort, given the low height of the support leg)

LINEAR DESIGN: unbeatable in terms of reliability and durability;

Equipped with adjustable end-of-stroke system, that allows adjusting the cylinder lift and speed up splitting operations in case of short logs.

Product 100% Made in Italy.


WARNING:
The machine is NOT provided with four-way wedge

The machine is NO longer equipped with 2-way couplings to fit both category 1 and 2

Main features

LARGE-SIZED PISTON: 110 mm outer diameter (60 mm bore). This is another feature that proves the great sturdiness and high power of this log splitter (20 tons).

Sturdy sliding push plate made of highly-thick steel, mounted on sturdy steel guides.

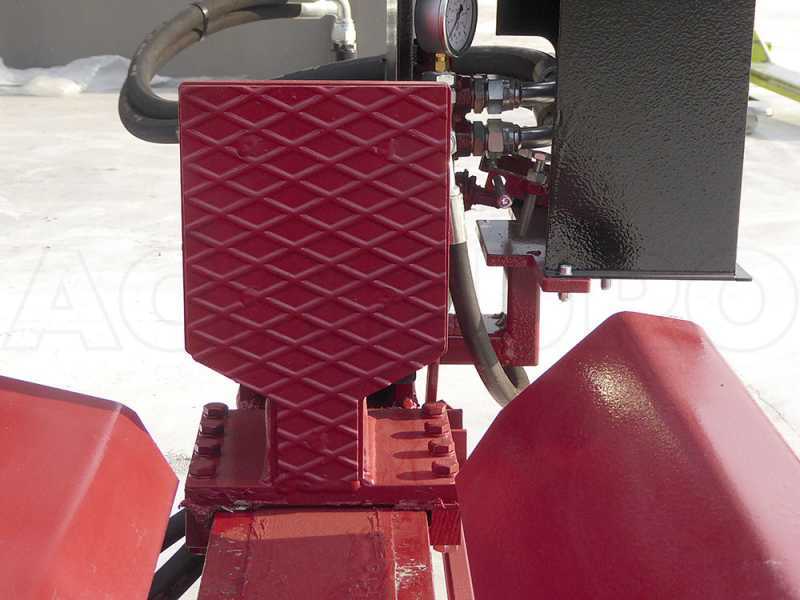

Focus on the push plate

LARGE HYDRAULIC PUMP:

ADVANTAGES:
- It enables the machine to reach its high splitting power (20 T)
- It gives the piston high operating speed

The log splitter is equipped with double speed mode: the forward speed allows the machine to reach the highest operating speed guaranteed by the standards, and the splitting speed, which is slower but allows the machine to reach 20 tons of splitting force.

The machine is also equipped with adjustable end-of-stroke system that allows adjusting the piston lift when splitting short logs to speed up splitting operations.

Replaceable cartridge oil filter

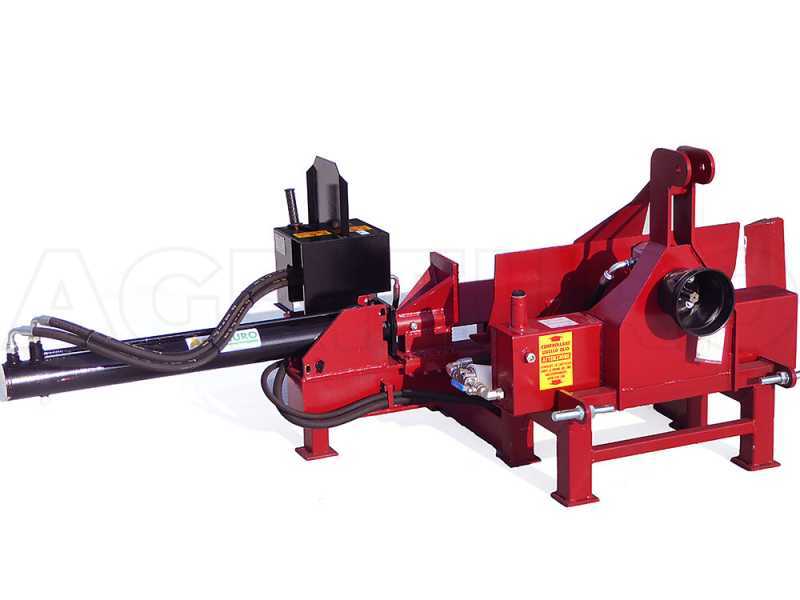

Other features

Large hydraulic oil tank mounted into the frame of the machine

BLADE WEDGE: it allows you to split even the hardest, most twisted and knobby logs;

STURDY FRAME: entirely made of heavy-duty steel. Large support leg;

Equipped with three-point linkage and PTO unit for universal joint connection to the tractor (universal joint not included);

Single-lever hydraulic distributor for piston operation;

Equipped with side support for logs with extremely large diameters;

Split length: 115 cm

Size:
Width: 280 cm
Depth: 130 cm
Height: 120 cm

WEIGHT: 450 kg

Possibility to retract the piston inside the machine, thanks to the proper lock and release pin, to reduce its size during storage. The machine is equipped with a closable 1 m piston for easy transport.

The log splitter is shipped already assembled and ready for use. Just release te piston to start operating the unit.
