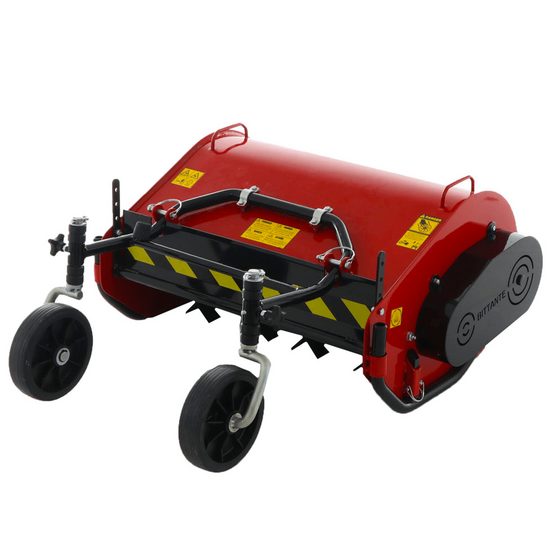

Heavy-duty series flail mower 70 cm for GINKO 710 two-wheel tractors with any kind of engine.
GENERAL DEFINITION OF FLAIL MOWER WITH KNIVES ROTOR: It can destroy HUGE QUANTITIES of any type of weed, of any diameter, height and size (even 1.5 m high!!), shredding it finely, thanks to its 28 'Y'-shaped blades. In addition to grass, it can also grind brush wood and brambles (up to 3 cm) in any condition, even in fairly inaccessible places (even on slopes, as long as they are not exaggerated). Most often it is purchased to cut weeds in orchards, vineyards, olive groves (especially by those who practice 'grassing'), or by nurserymen, institutions, or green operators who use it to clear uncultivated areas. By way of comparison, let's say that it offers NO HARD WORK and an average hourly output equal to 8–9 times that of a normal brush cutter, leaving a much cleaner and more homogeneous result, and the grass shredded more finely.
Suitable for shredding shrubs, brushwood, grass, shoots, in fruit and vegetable plantations, in vineyards, nurseries, in the maintenance of lawns, parks, gardens. This flail mower is indestructible and reliable in any working condition. The perfectly balanced rotor and the “Y” shaped knives, the biggest in its category, allow it to be used in the most difficult conditions, even with stones, stumps and other foreign objects on the ground (always using normal caution).
Frontal assembly
Dual ground adaptation system provided on standard equipment:
- Quick coupling
- Pair of front pivoting wheels
- Pair of side skids
Undoubtedly the sturdiest on the market thanks to the following components:
- Hardened steel frame, absolutely the sturdiest and thickest
- The sturdiest and heaviest tool holding rotor - larger and sturdier Y-shaped knives
- The largest knives supports

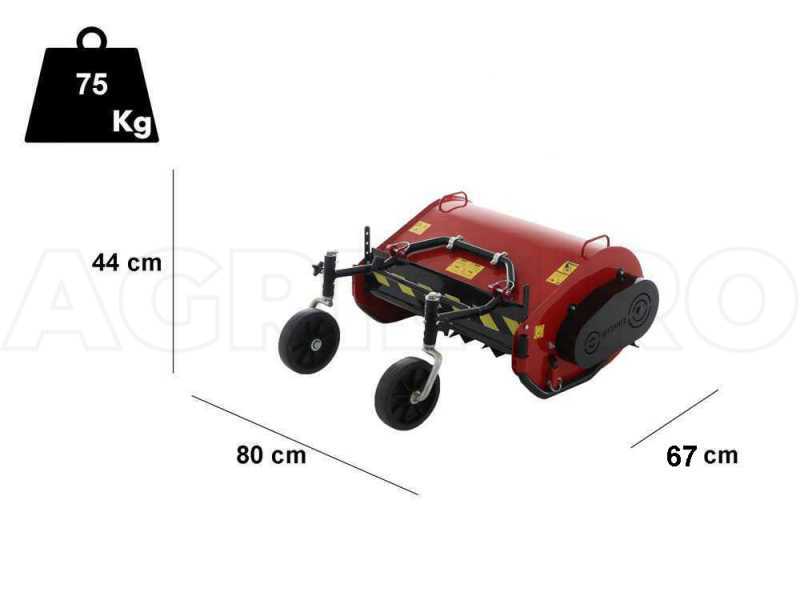

- Total weight: 75 kg
TECHNICAL SPECIFICATIONS:
Main transmission with bevel gears;
Special drag free wheel fitted on standard equipment;
The knives are made of forged steel, thus sturdier than the ones made of printed steel;
Special sleeve on the transmission that allows tilting, guaranteeing perfect ground adaptation during work;
Side transmission with 2 long-life notched belts equipped with spring tensioner;
Front bulkhead designed to be raised according to the flow of the material to be shredded;
In compliance with the CE rules on safety matter;
Balanced rotor according to GR - G16 ISO 1940/1973 (E) standards;
Forged clubs and knives for greater strength.
