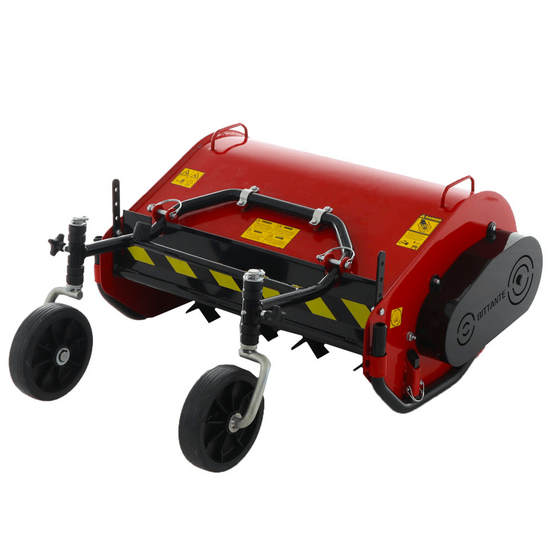

Heavy-duty shredder series cm 60 suitable for GINKO/Lampacrescia motor cultivators - MGM
GENERAL DEFINITION OF FLAIL MOWER WITH KNIVES ROTOR: It is capable of destroying HUGE QUANTITIES of any wild plants, featuring any diameter, height and size (even 1.5 m height!), thinly crushing them, thanks to its 28 “Y” shaped blades. Beside grass, it can crush weeds and brambles (up to 3 cm) in any condition (even on uneven terrains and slight slopes.) Most of the time it is purchased to cut weeds in orchards, vineyards, olive groves (especially by those who practice 'grassing'), or by nurserymen, institutions, or green operators who use it to clear uncultivated areas. By way of comparison, let's say that it offers NO HARD WORK and an average hourly output equal to 8–9 times that of a normal brush cutter, leaving a much cleaner and more homogeneous result, and the grass shredded more finely.
Suitable for shredding shrubs, brushwood, grass, shoots, in fruit and vegetable cultivation, vineyards, nurseries, maintenance of lawns, parks, gardens. This shredder is indestructubile and reliable in all working conditions. The perfectly balanced rotor and the largest and strongest 'Y' blades in its class allow it to be used in the toughest conditions, even in the presence of stones, stumps and other foreign objects (always using normal caution).
Front assembly
Double ground adaptation system as standard:
- Pair of front swivelling wheels
- Pair of side skids
Undoubtedly the sturdiest on the market thanks to the following components:
- Hardened steel frame, absolutely the sturdiest and thickest
- The sturdiest and heaviest tool holding rotor - the largest and sturdiest “Y” blades
- The largest blade supports

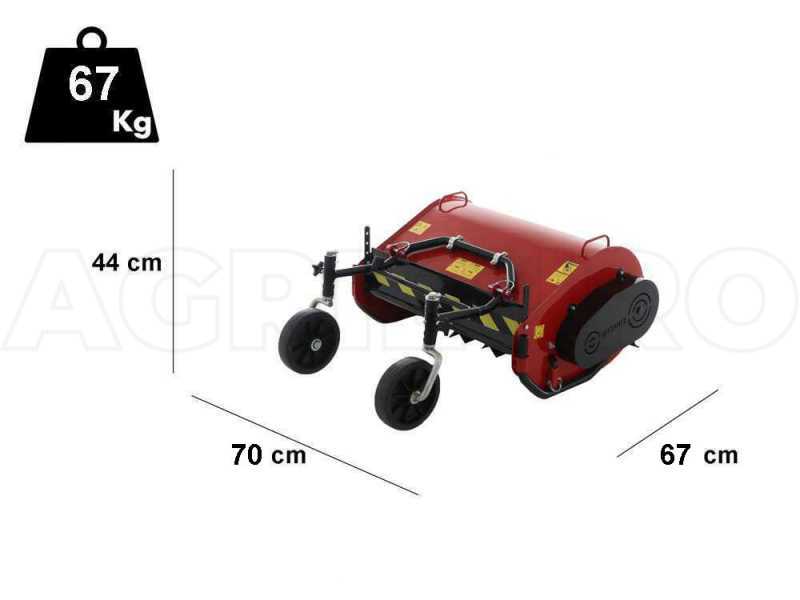

- Total weight: 67 Kg
TECHNICAL FEATURES:
Bevel gear main transmission
Special anti-dragging free wheel as standard
Special sleeve located on the transmission that allows tilting, ensuring perfect ground adaptation during work.
Side transmission with 2 long-life toothed belts with spring tensioner
Front bulkhead designed so that it can be raised according to the flow of product to be processed
Equipped with all the special protections that make it strictly CE compliant
Balanced rotor according to GR - G16 ISO 1940/1973 (E) standard
Pivoting front support wheels, quickly height-adjustable, for adjusting the cutting height.
Wheels with retractable support frame.
Ground adaptation of the implement is ensured by special side skids, robust and height-adjustable
Standard tool: movable universal Y-blades
Optional tool: full series moulded-on mallet
Exceptionally robust rotor made of hardened steel, with 28 large Y-shaped knives
The blades are forged, which is why they are much stronger than printed ones.
They give this machine unrivalled efficiency on all types of work (grass but also brushwood, brambles, pruning, up to 3 cm in diameter)
Min. power required: Rated 10 Hp
