Heavy-duty RO 88 Power Harrow - 88 cm working width - 10 blades - light size - Counterclockwise PTO (left-hand rotation)

Questions & Answers (5)
ID: 113068

MPN: RL88SX

9,1/10
After-sales assistance & Spare parts
Heavy-duty RO 88 Power Harrow - 88 cm working width - 10 blades - light size - Counterclockwise PTO (left-hand rotation)
+20 sold
Available versions
Technical data
Sturdiness/Series
Ultra-light
Tractor power
15 to 25 HP
Working width
88 cm
Cardan shaft
With safety bolt
Cast iron gearbox
Yes
Manufacturing country
Italy
Product Features
Model
RO 88
Tractor power
15 to 25 HP
Sturdiness/Series
Ultra-light
Max. power
25 HP
Cardan shaft rotation
Manufacturing country
Italy
Transmission data
Cast iron gearbox
Yes
Cutting data
Working width
88 cm
Blade type
Reversible knives
No. of rotors
5
Rotor blades
2
N° of chopper blades
10
Equipment
Three-point-hitch
1° category
Rear roller
Cage roller
Free gifts/extra features
Side skids
Yes
Cardan shaft
With safety bolt
Instructions manual
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H)
109x120x78 cm
Net weight
106 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
109x120x88 cm
Weight including packaging
127 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
30 minutes
10 - 12 days from purchase
Free Shipping
€ 2.659,26
Vat included
You're viewing:
Customers also viewed:
Description

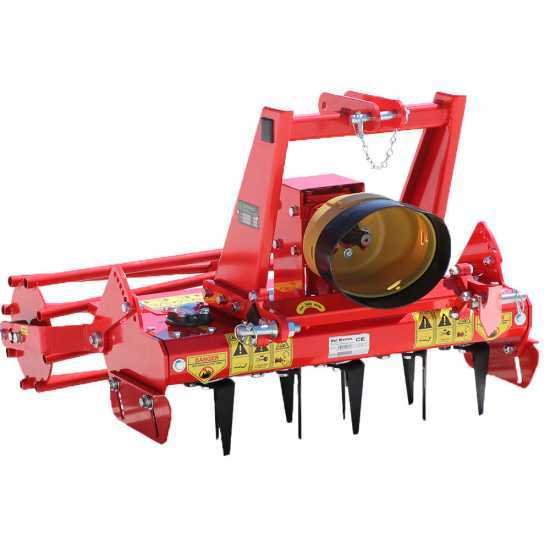

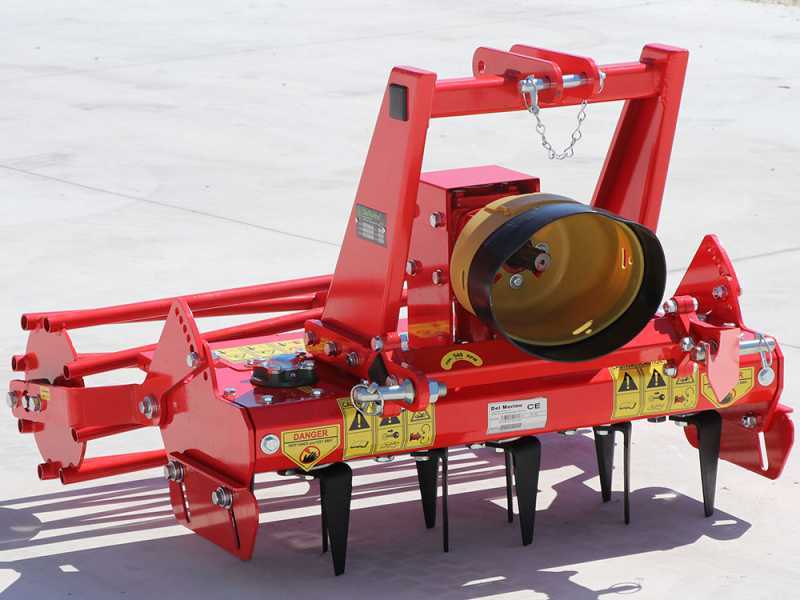

RO 88 Rolling Harrow

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).



LIGHT series


Useful working width: 88 cm. Suitable for tractors from 12-25 HP


The RO88 rolling harrow is a sturdy and professional tool for soil refining.

Used to prepare the seed bed thanks to the knives with rotary and vertical movement with respect to the ground. They make the ground porous and extremely permeable.

Moreover, thanks to the blades action, this tool is able at uprooting the turf instead of cutting it, thus impeding its growth for a prolonged period of time.

The well sealed transmission unit, the sturdy cast iron reducer and the rotors with a round body prevent the machine from frequently blocking and enable to work even on hard or stony grounds.


WARNING!

Warning: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.




Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.

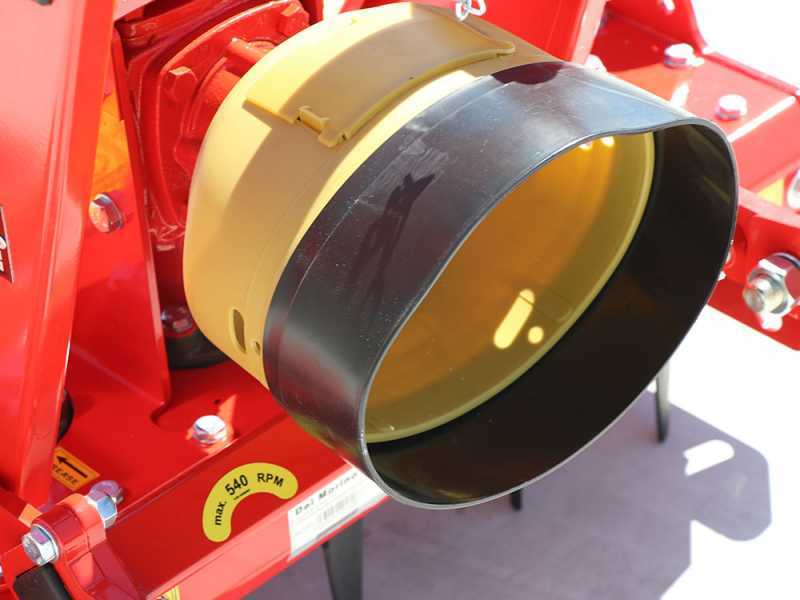

Technical features

Harrow technical features:

  • Outer dimension: 109 cm
  • Real working width: 88 cm
  • Weight: 106 kg
  • Indicated demand: 20 - 30 HP
  • Working height: 16 cm
  • No. of knives per rotor: 2
  • Number of knives: 10
  • Numer of rotors: 5

Knives and transmission

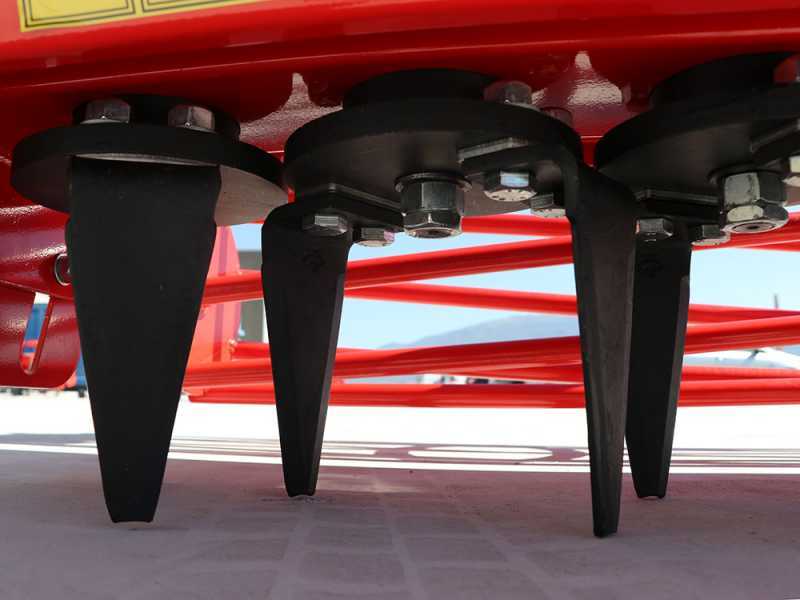

Steel knives:

  • no. 5 discs

  • 2 hoes each (10 in total)

Reversible double-edged knives:

Given the opposite rotor movement, it is possible to switch them on the still sharpened side of the blade among the various rotors. They are universal and can therefore be used both clock and counterclockwise.

Focus on the single greasing point of each rotor, each one with its own bearing.

Gearbox with cast iron reducer.

Transmission with gears in oil bath.

Hydraulic side shift and 3 points hitch

The harrow is equipped with manual adjustment for the roller.

Focus on the adjusting screws.

The cage roller slightly compacts the just tilled soil by the blades by making it airy on more levels.

The swivelling side carters enable a uniform soil tilling by preventing the clumps from moving beyond the working surface but adapting to the imperfections of the area.

Support for the cardan joint for long storages.

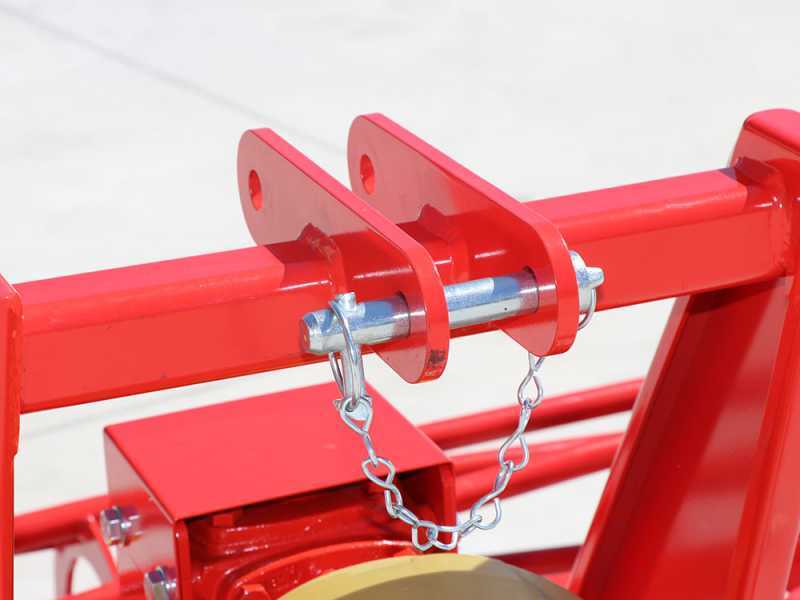

3-point hitch, first category.

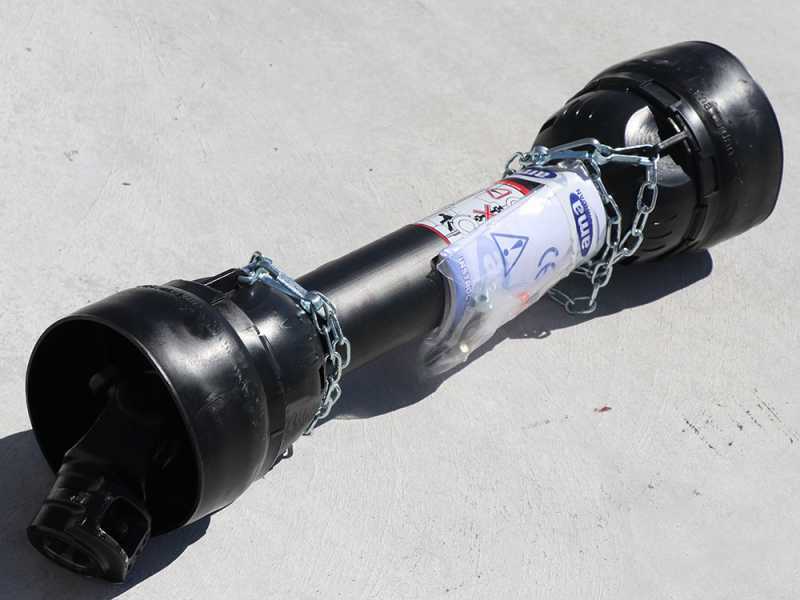

Standard cardan

Standard cardan for the connection to the tractor provided on standard equipment.

Equipped with shear pin safety in case of excessive effort of the harrow.

Free items & Standard equipment

Free Gifts & Standard Equipment

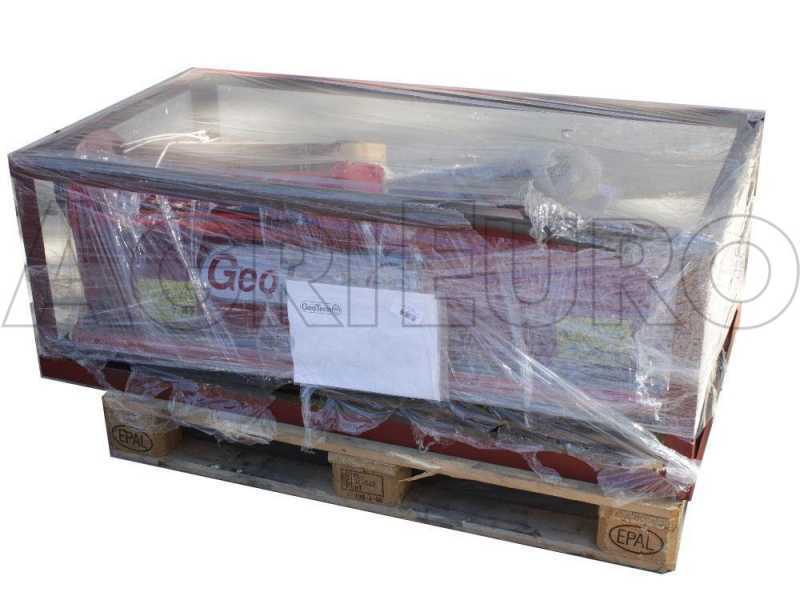

The harrow is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
