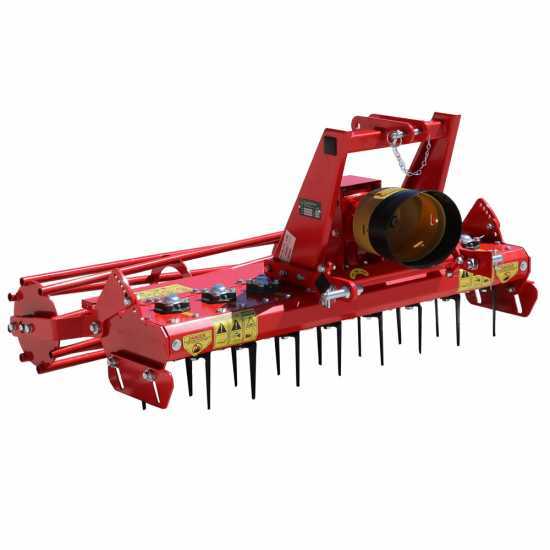

Heavy-duty RO 136 Power Harrow - 136 cm working width - 16 blades - light size

Add a question
ID: 104615

EAN: 8033424491217

Heavy-duty RO 136 Power Harrow - 136 cm working width - 16 blades - light size
Sturdiness/Series
Light
Tractor power
15 to 25 HP
Working width
136 cm
Cardan shaft
With safety bolt
Cast iron gearbox
Yes
Manufacturing country
Italy
Product Features
Model:
RO 136
Tractor power:
15 to 25 HP
Sturdiness/Series:
Light
Max. power:
25 HP
Manufacturing country:
Italy
Transmission data
Cast iron gearbox:
Yes
Cutting data
Working width:
136 cm
Blade type:
Reversible knives
No. of rotors:
8
Rotor blades:
2
N° of chopper blades:
16
Equipment
Three-point-hitch:
1° category
Rear roller:
Cage roller
Free gifts/extra features
Side skids:
Yes
Cardan shaft:
With safety bolt
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
157x120x78 cm
Net weight:
170 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
157x120x88 cm
Gross weight (packaging included) :
190 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
Suggested price:
€ 3.345,92
€ 3.011,33
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

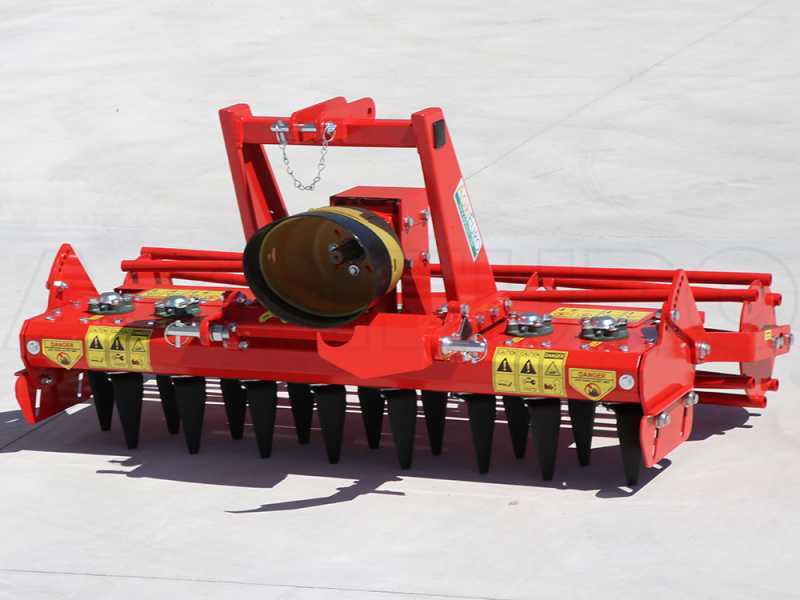

RO 104 rolling harrow

LIGHT series


Useful working width: 136 cm. Suitable for tractors from 12-25 HP


The RO136 rolling harrow is a sturdy and professional tool for soil refining.

Used to prepare the seed bed thanks to the knives with rotary and vertical movement with respect to the ground. They make the ground porous and extremely permeable.

Moreover, thanks to the blades action, this tool is able at uprooting the turf instead of cutting it, thus impeding its growth for a prolonged period of time.

The well sealed transmission unit, the sturdy cast iron reducer and the rotors with a round body prevent the machine from frequently blocking and enable to work even on hard or stony grounds.


WARNING!

Warning: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

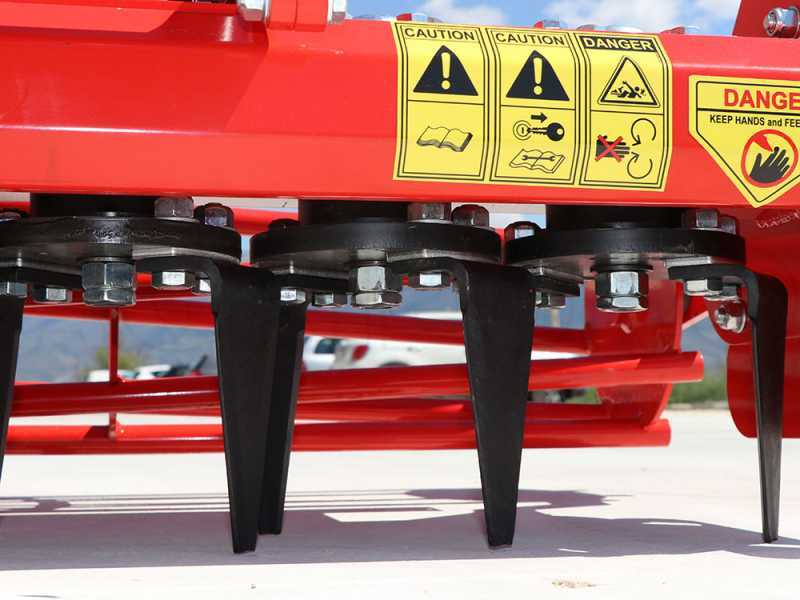

Technical features

Harrow technical features:

  • Outer dimension: 157 cm
  • Real working width: 136 cm
  • Weight: 190 kg
  • Indicated demand: 35 - 45 HP
  • Working height: 16 cm
  • No. of knives per rotor: 2
  • Number of knives: 16
  • Number of rotors: 8

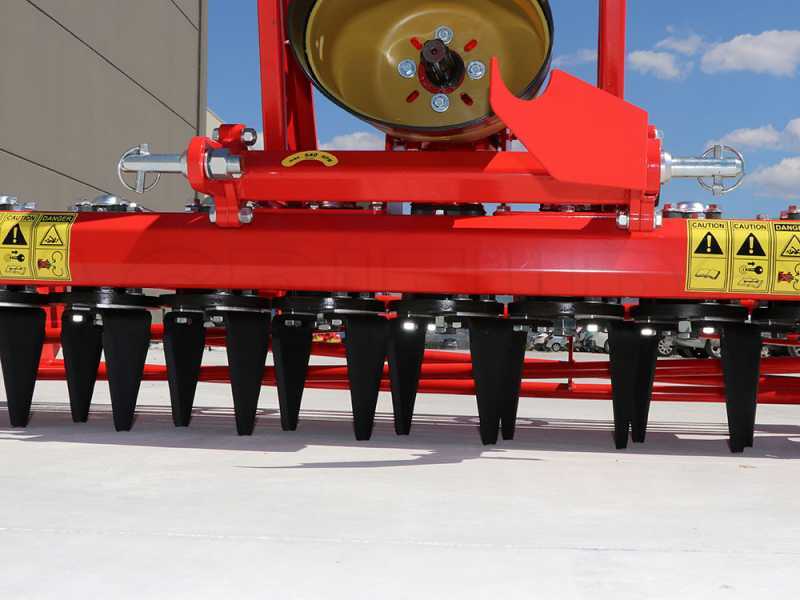

Knives and transmission

Steel knives:

  • no. 8 discs

  • 2 hoes each (16 in total)

Reversible double-edged knives:

Given the opposite rotor movement, it is possible to switch them on the still sharpened side of the blade among the various rotors. They are universal and can therefore be used both clock and counterclockwise.

Focus on the single greasing point of each rotor, each one with its own bearing.

Gearbox with cast iron reducer.

Transmission with gears in oil bath.

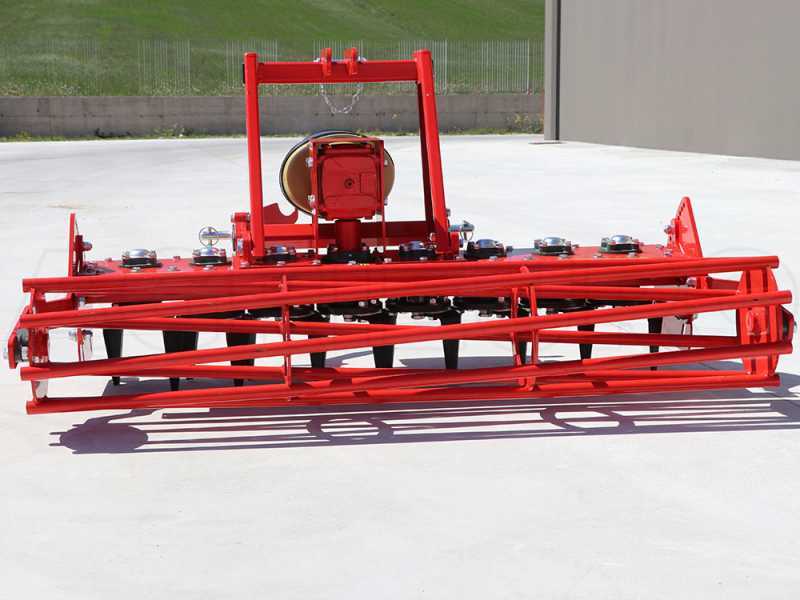

Hydraulic side shift and 3 points hitch

The harrow is equipped with manual adjustment for the roller.

Focus on the adjusting screws.

The cage roller slightly compacts the just tilled soil by the blades by making it airy on more levels.

The swivelling side carters enable a uniform soil tilling by preventing the clumps from moving beyond the working surface but adapting to the imperfections of the area.

Support for the cardan joint for long storages.

3-point hitch, first category.

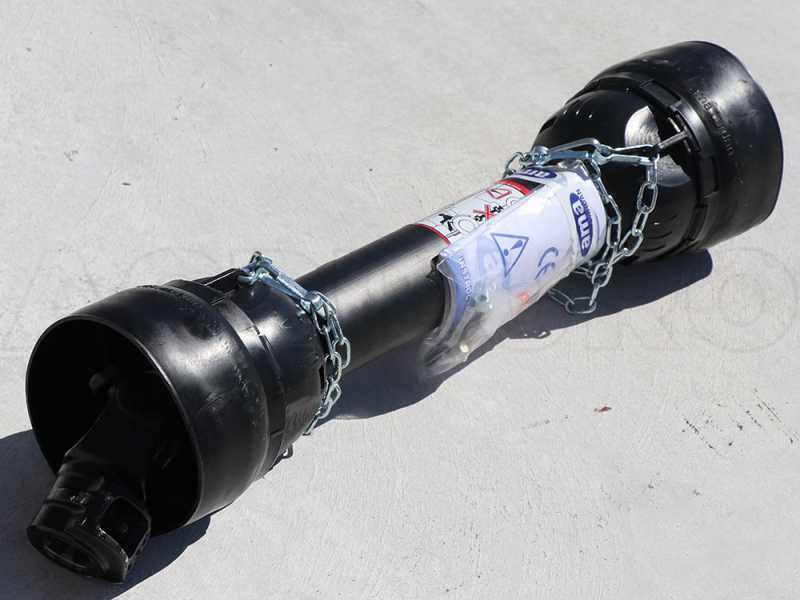

Standard cardan

Standard cardan for the connection to the tractor provided on standard equipment.

Equipped with shear pin safety in case of excessive effort of the harrow.

Free items & Standard equipment

Free Gifts & Standard Equipment

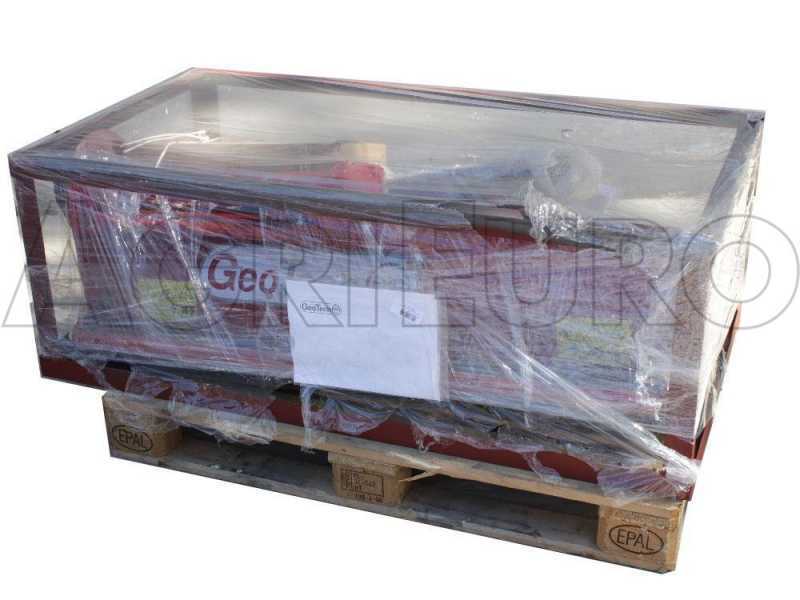

The harrow is shipped on pallet. Only the three point hitch and few other particulars need to be assembled.

Cardan shaft included on package.

Assembly and Instructions Manual.
