Grifo DMCI.18 - Stainless Steel Electric Grape Crusher-Destemmer - with Included Guards

Questions & Answers (3)
ID: K608457

EAN: 8015301011510

MPN: DMCI.24

8,3/10
After-sales assistance & Spare parts
Grifo DMCI.18 - Stainless Steel Electric Grape Crusher-Destemmer - with Included Guards
Certifications
CE domestic
Max. hourly output
1500 Kg/h
Motor type
Induction
Nominal power
1 HP
Hopper opening size
50 x 90 cm
Stainless steel sieve
Yes
Manufacturing country
Italy
Product Features
Model:
DMCI.18
Type:
Grape crusher-destemmer
Certifications:
CE domestic
Body material:
Stainless steel
Configuration:
With support frame
Operating mode:
Electric 230 V
Hopper opening size:
50 x 90 cm
Max. hourly output:
1500 Kg/h
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Chain + Belts
Equipment
CE-compliant safety switch:
CE-compliant
Pair of rollers:
Yes
Stainless steel sieve:
Yes
Centrifugal grate:
No
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x57x59cm
Net weight:
54 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
122x61x65cm
Gross weight (packaging included) :
55 Kg
Assembly time:
Assembled
Prompt Delivery
18 items in stock
Free Shipping
Estimated delivery: 24/02/2025 - 26/02/2025
€ 1.035,19
Vat included

You're viewing:
Customers also viewed:
Description

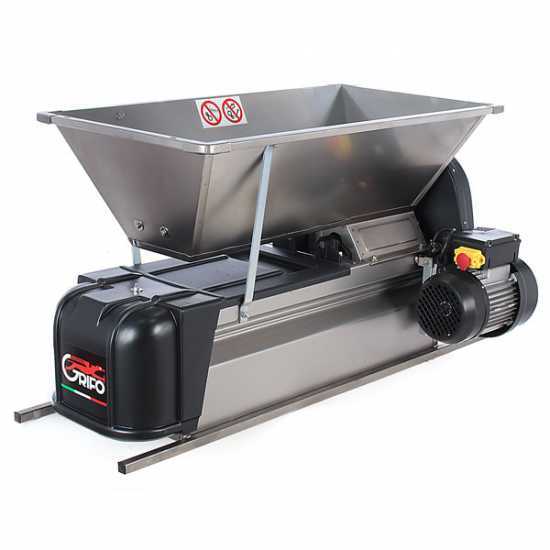

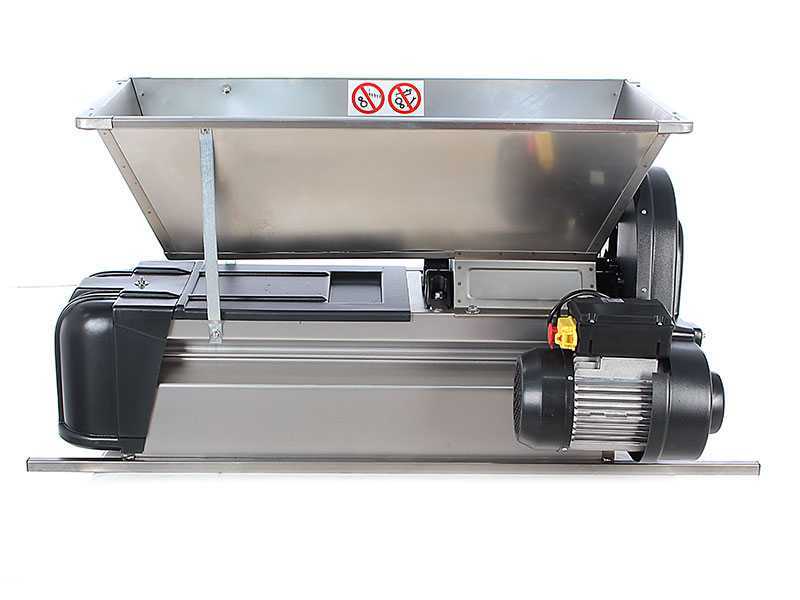

Electric Grape Crusher-Destemmer with Supporting Frame

The Grifo DMCI.18 crusher is equipped with a 1 HP motor, making it easy to use.

It is a large machine with excellent output. The size of the stainless steel hopper facilitates the dropping operations of the crates of grapes inside the crusher.

It features a simple, classic design, a carefully crafted frame built with techniques that make it practical and easy to operate.

Entirely made in Italy.


The output is approximately 1500 kg/hour.

Upper Hopper and Rollers

90 x 50 cm stainless steel hopper

This width makes it user-friendly, facilitating the operations of tipping grapes inside it.

The crusher is equipped with a pair of counter-rotating pre-processing rollers.

They carry out an initial processing of the grape berries, performing an ‘initial crushing’ action that generates small cracks that facilitate the outflow of the initial must.
Special supports allow the rollers to be adjusted by a few millimetres.

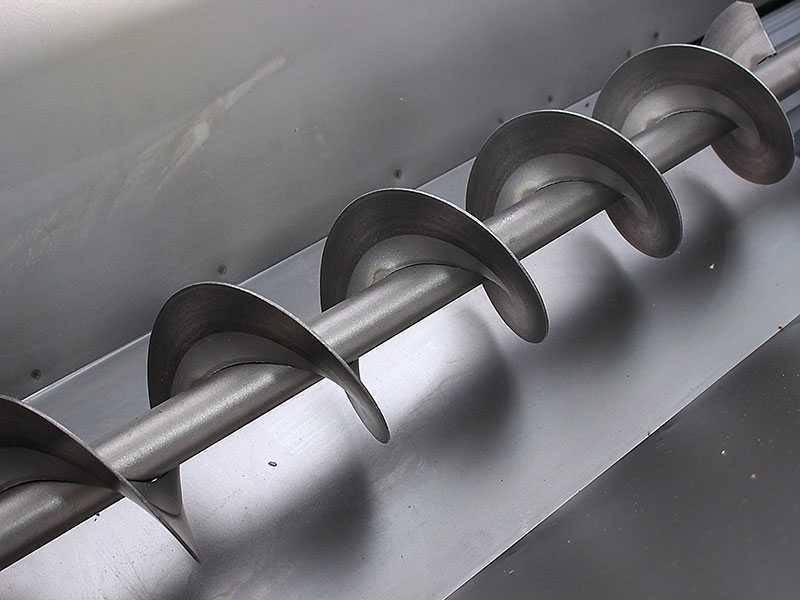

Detail of the stainless steel grape drive auger inside the processing machine.

Many electric grape crusher- destemmers are not equipped with an auger and instead have just a hopper with a simple funnel shape for channelling the bunches, making them much less efficient in feeding the rollers and thus in the overall smooth running of the machine.

1 HP Motor and Side Chain and Belt Drive

Side protecting carter made of plastic.

The belt drive offers the advantage of a slight friction effect in the event of a clogging in the machine itself.

It conveys the rotary motion from the motor to:

- the upper auger
- the upper rollers
- the intermediate rotor

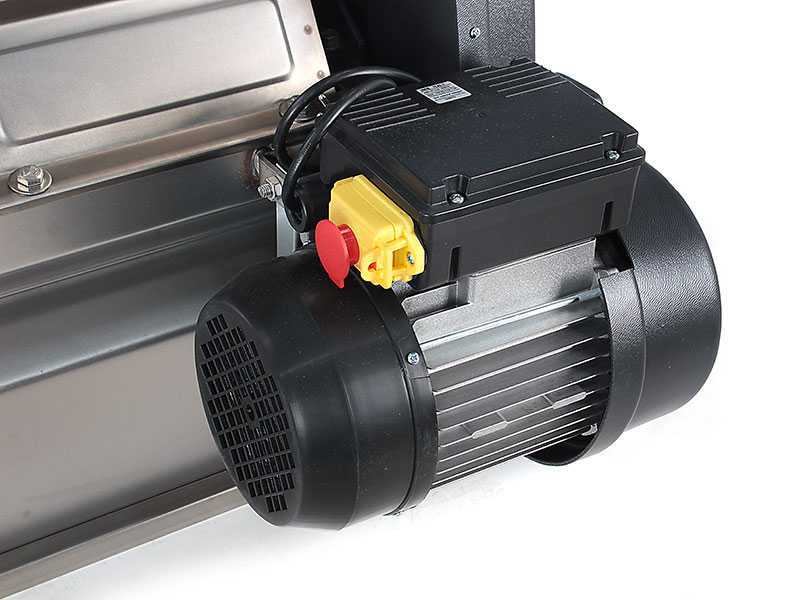

Powerful 1 HP electric induction motor, which drives all the various mechanisms, from the shaker to the rollers, to the gears for crushing the grapes.

Equipped with a red emergency STOP button, complying with CE safety regulations.

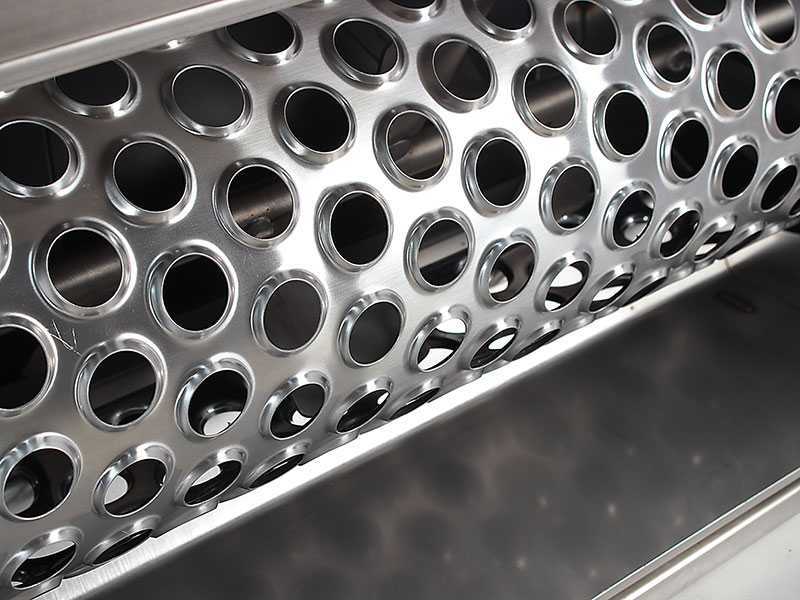

Stainless Steel Sieve

The sieve can be easily removed for cleaning operations, thanks to the guides that also serve as protection for the sieve itself.

Detail of the rotor with enamelled steel paddles that carries out the destemming process (by pressing the grapes onto the sieve).

The frame is equipped with two guides on which the sieve is fixed and on which it slides when pulled out.

Above this is a removable plastic platform that is usually detached for cleaning and maintenance, and which closes the sieve at the top, ensuring that all the grapes that enter are perfectly processed, remaining well concentrated inside and consequently pushed towards it via the rotating vane rotor.

Free items & Standard equipment

Standard Equipment

The product is shipped in its original packaging, already assembled.
