Grifo DMC.18 - Enamelled Steel Electric Grape Crusher / Destemmer

Questions & Answers (9)
ID: K608860

EAN: 8015301011503

MPN: DMC.18

8,3/10
After-sales assistance & Spare parts
Grifo DMC.18 - Enamelled Steel Electric Grape Crusher / Destemmer
Special offer
Certifications
CE domestic
Max. hourly output
1500 Kg/h
Motor type
Induction
Nominal power
1 HP
Hopper opening size
50 x 90 cm
Stainless steel sieve
Yes
Transmission protective cover
Plastic
Manufacturing country
Italy
Product Features
Model:
DMC.18
Type:
Grape crusher-destemmer
Certifications:
CE domestic
Body material:
acciaio smaltato
Configuration:
With support frame
Operating mode:
Electric 230 V
Hopper opening size:
50 x 90 cm
Max. hourly output:
1500 Kg/h
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
1 HP
Power supply:
220 V electric
Manufacturing country:
Italy
Transmission data
Transmission type:
Chain + Belts
Transmission protective cover:
Plastic
Equipment
CE-compliant safety switch:
CE-compliant
Pair of rollers:
Yes
Stainless steel sieve:
Yes
Centrifugal grate:
No
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x57x59cm
Net weight:
54 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
122x61x65cm
Gross weight (packaging included) :
55 Kg
Assembly time:
Assembled
Prompt Delivery
50 items in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
Lowest price:
€ 660,70
-4 %
€ 633,19
Vat included
You're viewing:
Customers also viewed:
Description

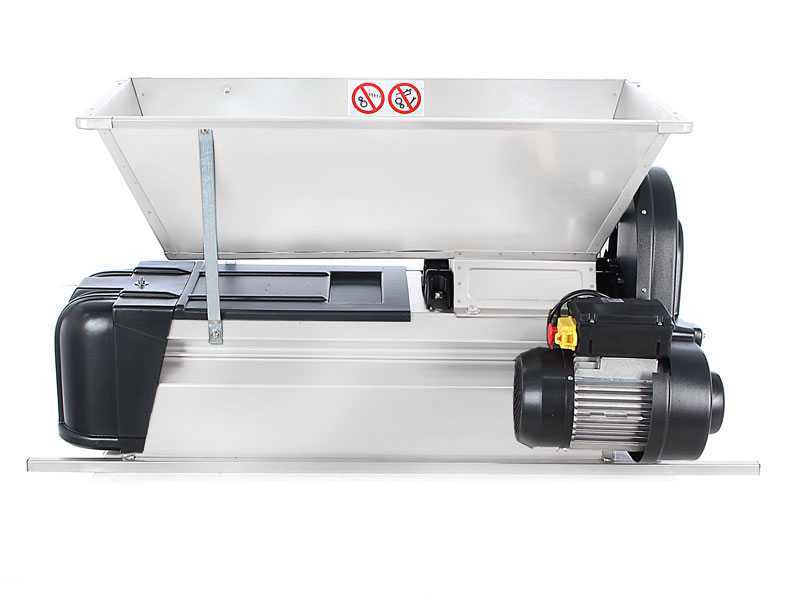

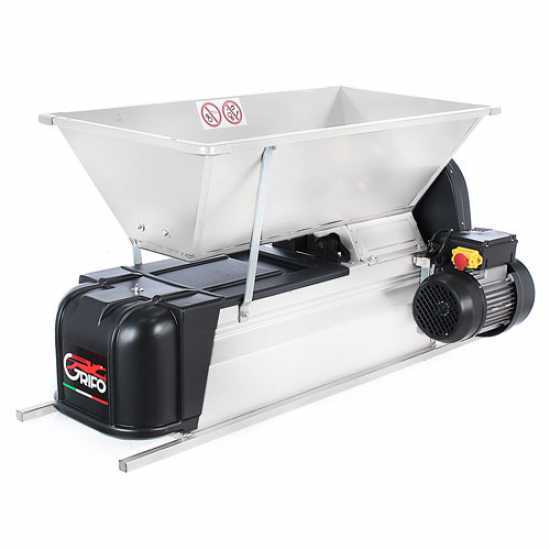

Electric Grape Crusher - Destemmer with Supporting Frame

The Grifo DMC.18 grape crusher - destemmer mounts a 1 Hp motor which makes it efficient and easy to use.

It is a large-sized machine characterised by an excellent output capacity. The large dimensions of the loading hopper, entirely made of enamelled steel, facilitate the dropping of the crates of grapes inside the machine.

It features a simple and classic design, accurately detailed structure built with specific techniques that make it user-friendly and easy to use.

100% Made in Italy


The output capacity is approx. 1500 Kg/h.

Upper loading hopper and rollers

90 x 50 cm white enamelled steel loading hopper

These features greatly facilitate the operation of dropping the grapes into the machine.

This grape crusher is fitted with two counter-rotating nylon rollers.

They carry out a “first pressing” of the grapes by slightly crushing them and allowing the extraction of the first pomace.
Special supports allow to adjust the rollers by a few millimeters.

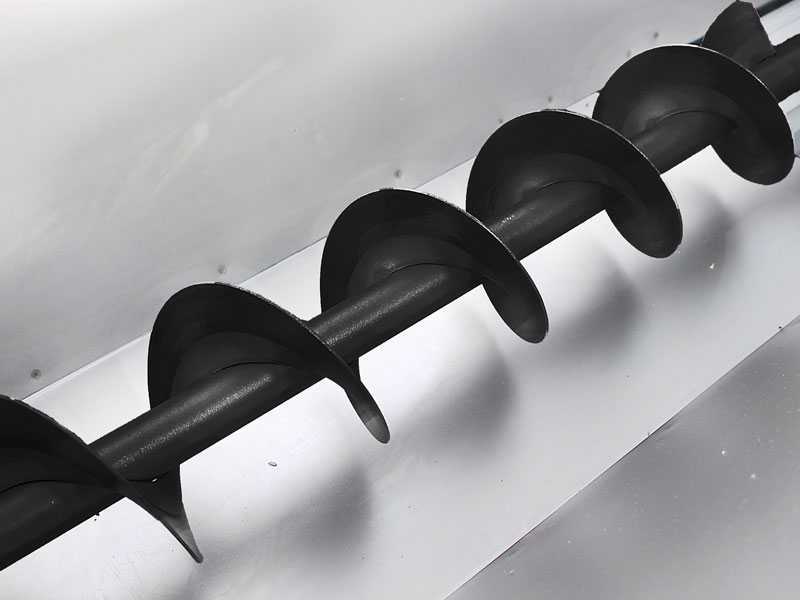

Focus on the auger screw located inside the crusher that drags the grapes towards the rollers for processing.

Many electric grape crushers - destemmers on the market are not equipped with an auger and simply features a funnel-shaped hopper for conveying the bunches, which is much less efficient in feeding the rollers and therefore in the overall smooth running of the machine.

1 Hp electric motor and side transmission with belt and chain

Side transmission protective case guard

The belt drive acts as a clutch, in the event of a jam in the machine itself.

The rotary motion is transmitted by the motor to:

- the upper auger
- the upper rollers
- the intermediate rotor

Powerful 1 Hp induction electric motor, which enables all the various mechanical components, such as the gear for the agitator and the roller gears, to be operated.

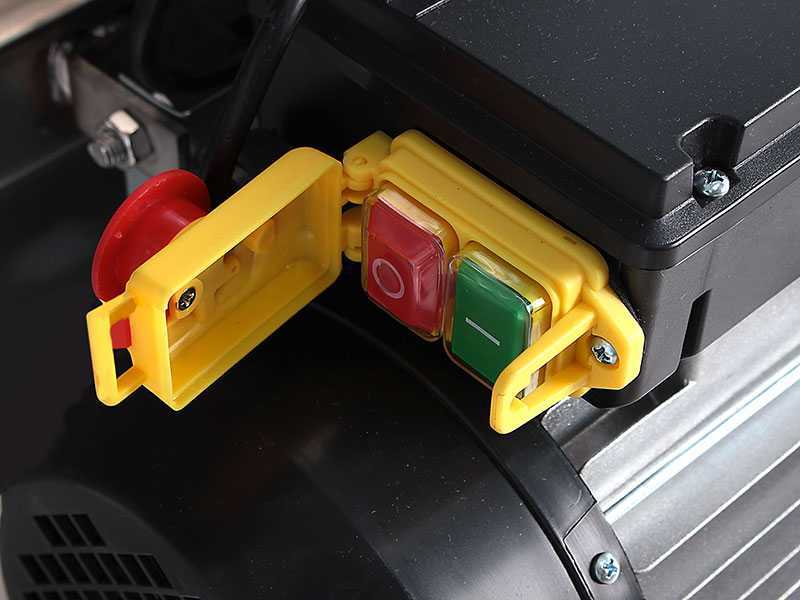

Equipped with a red STOP emergency button, compliant with CE safety regulations

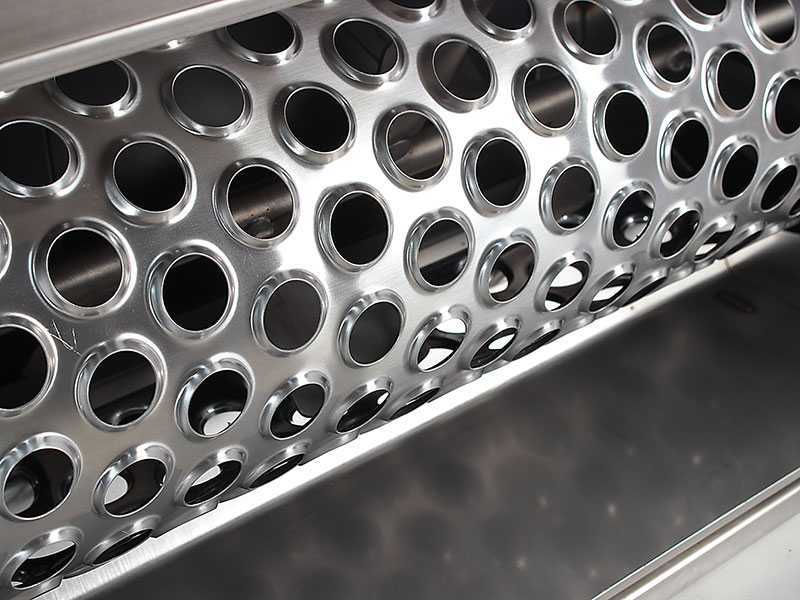

Stainless steel grate

The grate can be removed with extreme ease for cleaning operations, thanks to the guides that also act as protection for the grate itself.

Focus on the rotor with paddles in enamelled steel that carries out the destemming process (by pressing the grapes on the grate).

The frame features two guides to which the grate is fixed and on which it slides when it is removed.

Above it is a removable plastic grate cover which is usually detached for cleaning and maintenance operations, and which closes the grate at the top so that all the bunches of grapes fed through the loading hopper remain well grouped inside the crusher, and are then pushed towards the grate by the rotating rotor with paddles to be perfectly processed.

Free items & Standard equipment

Standard equipment

The grape crusher is shipped in its original packaging.
