Grifo DMAI.18 - Stainless Steel Manual Grape Crusher - Destemmer

Questions & Answers (1)
ID: 103150

EAN: 8015301011053

MPN: DMAI.18

8,3/10
After-sales assistance & Spare parts
Grifo DMAI.18 - Stainless Steel Manual Grape Crusher - Destemmer
Max. hourly output
1000 Kg/h
Motor type
Hand-operated
Hopper opening size
87 x 50 cm
Stainless steel sieve
Yes
Manufacturing country
Italy
Product Features
Model:
DMAI.18
Type:
Grape crusher-destemmer
Body material:
acciaio INOX
Configuration:
With support frame
Operating mode:
Hand-operated
Hopper opening size:
87 x 50 cm
Max. hourly output:
1000 Kg/h
Manufacturing country:
Italy
Motor data
Motor type:
Hand-operated
Manufacturing country:
Italy
Transmission data
Transmission type:
Gear
Equipment
CE-compliant safety switch:
CE-compliant
Pair of rollers:
Yes
Stainless steel sieve:
Yes
Centrifugal grate:
No
Dimensions and logistics
Product dimensions in cm (L x W x H):
120x50x64cm
Net weight:
39 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
122x61x65cm
Gross weight (packaging included) :
40 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 24/07/2024 - 26/07/2024
€ 649,71
VAT Included
You're viewing:
Customers also viewed:
Description

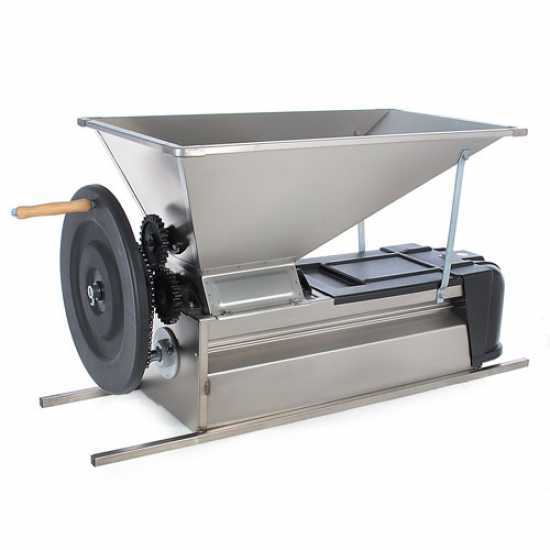

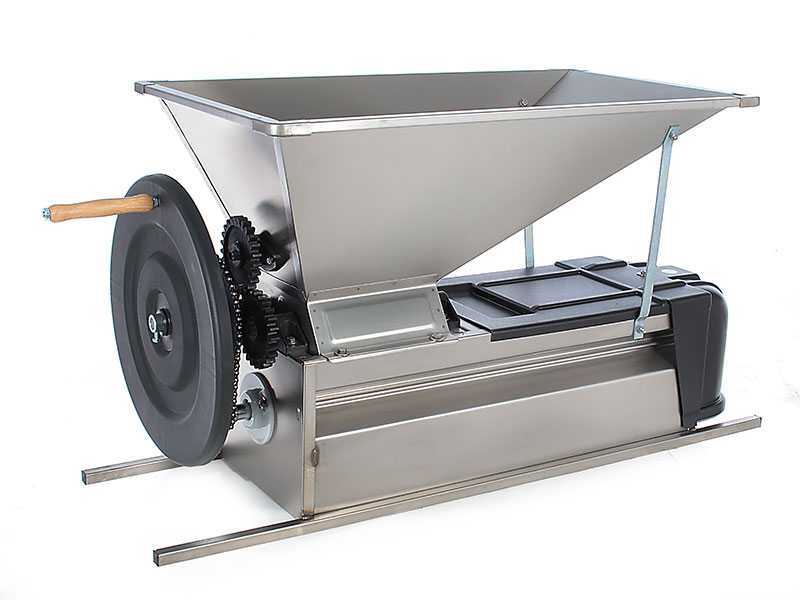

Manual Grape Crusher - Destemmer with Supporting Frame

The Grifo DMAI.18 grape crusher - destemmer is a large-sized machine with excellent output capacity. The large dimensions of the STAINLESS STEEL loading hopper facilitate the dropping of the crates of grapes inside the machine.

It features a simple and classic design, accurately detailed structure built with specific techniques that make it user-friendly and easy to use.

The long service life of this grape crusher - destemmer is guaranteed by the easy maintenance, as all the rotating components work on ball bearings or bushings.

Equipped with a lower STAINLESS STEEL grate.

For better food products processing, the rollers and gears are made entirely of nylon and guarantee sturdiness and long service life.

87 x 50 cm loading hopper

The hourly output is 1000 Kg/h.

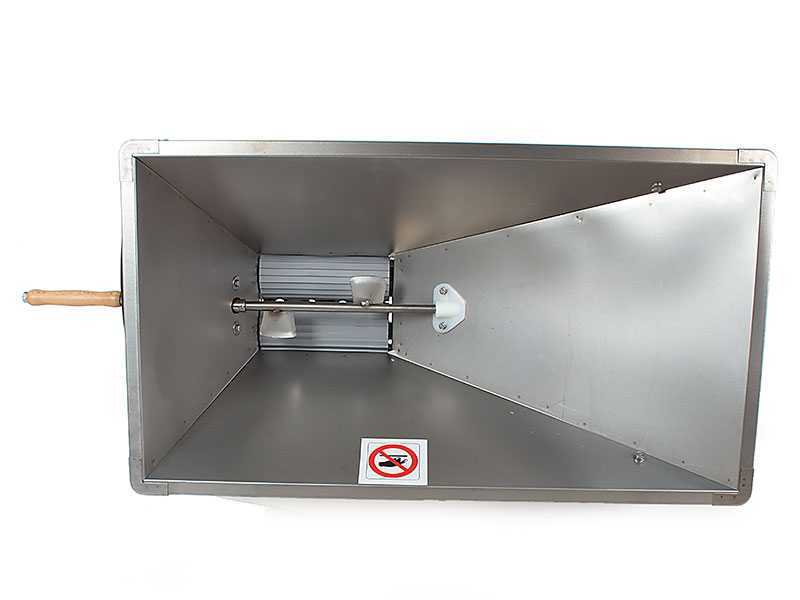

Upper loading hopper

87 x 50 loading hopper

The large dimensions the loading hopper allows to make an easy use of the crusher, facilitating the dropping of the crates of grapes inside the machine.

This grape crusher is equipped with two counter-rotating nylon rollers.

They carry out a “first pressing” of the grapes by slightly crushing them and allowing the extraction of the first pomace.

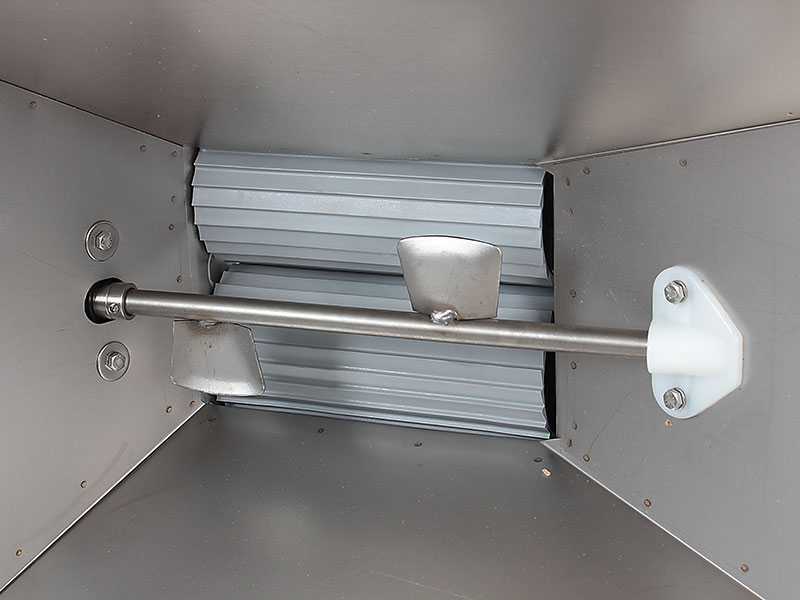

Stainless steel grate and rollers

This grape crusher - destemmer is one of the few machines equipped with two counter-rotating rollers in nylon.

They carry out a “first pressing” of the grapes by slightly crushing them and allowing the extraction of the first pomace.

The grate can be removed with extreme ease for cleaning operations, thanks to the guides that also act as protection for the grate itself.

Focus on the rotor with steel paddles which carries out the destemming process (by pressing the grapes on the grate).

The frame features two guides to which the grate is fixed and on which it slides when it is removed.

Above this is a removable grate cover made of enamelled steel, which is usually detached for cleaning and maintenance operations, and which closes the grate at the top so that all the bunches of grapes fed through the loading hopper remain well grouped inside the crusher, and are then pushed towards the grate by the rotating rotor with paddles to be perfectly processed.

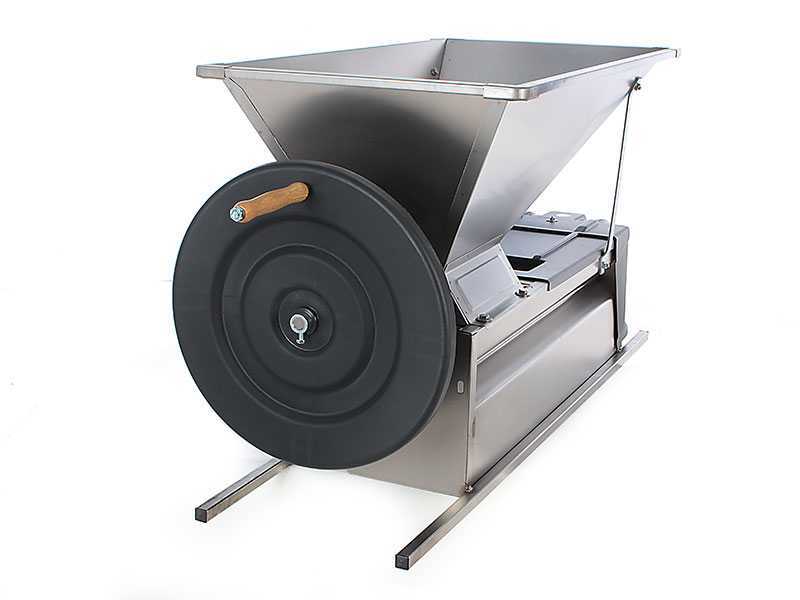

Side manual gear drive

The belt drive transmits the rotary motion to the rollers.

Equipped with practical wooden knob and flywheel for grapes processing.

The gears are made of high density Teflon.

Free items & Standard equipment

Standard equipment

The grape crusher - destemmer is shipped in its original packaging. Only the flywheel and knob need to be mounted.
