GreenBay TL 135 - Light Series Tractor Rotary Tiller - Fixed Hitch

Add a question
ID: 110754

EAN: 8054141548947

MPN: TL 135

GreenBay TL 135 - Light Series Tractor Rotary Tiller - Fixed Hitch
Sturdiness/Series
Light
Weight
150 Kg
Tractor power
Up to 25 HP
Body material
Enamelled steel
Working width
130 cm
Working depth
9 cm
Fixed hitch
Cardan shaft
Yes
Cast iron gearbox
Yes
Product Features
Model:
TL 135
Tractor power:
Up to 25 HP
Body material:
Enamelled steel
Sturdiness/Series:
Light
Shift:
Fixed hitch
Fixed hitch:
Fixed 3-point hitch:
Yes
3-point hitch category:
First
Manufacturing country:
China
Transmission data
Cast iron gearbox:
Yes
Cutting data
Working width:
130 cm
Working depth:
9 cm
No. of blades:
24
Blade type:
Hoes
:
Equipment
Rear adjustable Hood:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

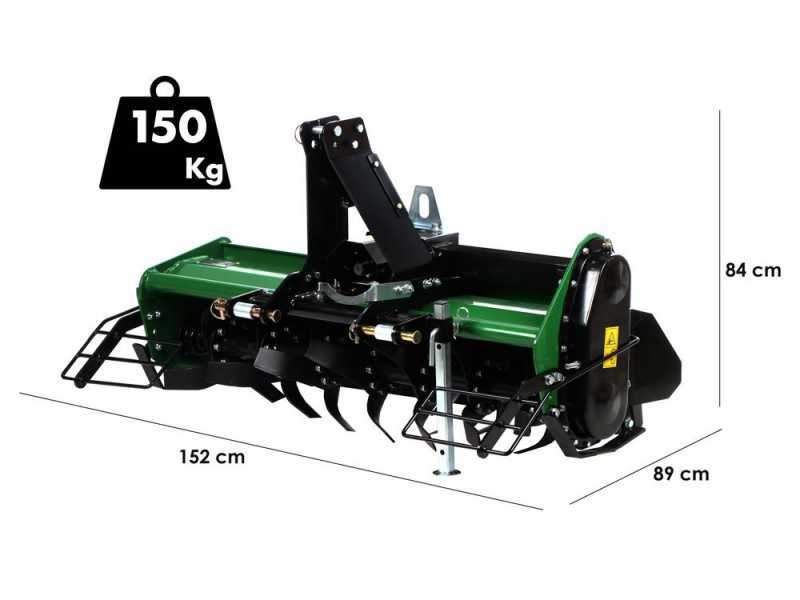

Product dimensions in cm (L x W x H):
152X 89 X 84 cm
Net weight:
150 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
150x60x50 cm
Gross weight (packaging included) :
180 Kg
Assembly time:
30 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 1.262,80
VAT Included
You're viewing:
Customers also viewed:
Description

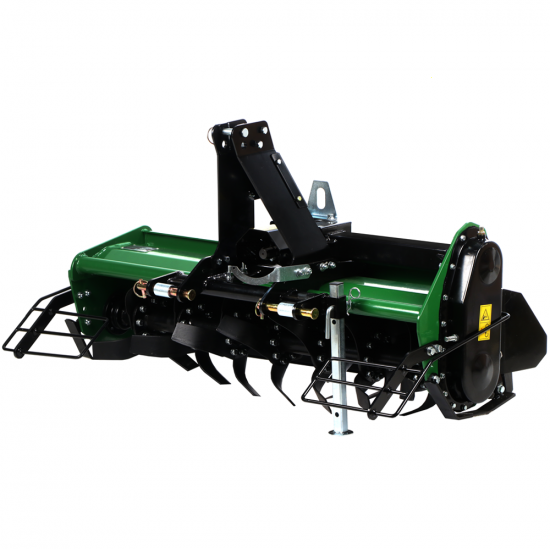

GreenBay TL 135 tractor-mounted rotary tiller

The GreenBay TL 135 tractor-mounted rotary tiller is a tool for soil tillage, by preparing it for sowing, shredding it after ploughing or to remove weeds.

It is an agricultural tool that is used to till the soil surface, remove weeds and unwanted vegetation. Equipped with a series of V-shaped blades mounted on a metal frame.

Designed to be handy and easy to use, it is often used for soil preparation in vegetable gardens and small crops. The lightweight rotary tiller is also easy to transport and store when not in use.

Composed by a box frame and a gearbox with chain drive in oil bath at 540 rpm.

It is a light-weight (255 kg) machine designed to be connected to medium and small sized tractors of up to 25 HP.

Suitable for a hobby use on medium to small sized areas.




Warning: the machine is shipped already filled with oil in the transmission. Assemble all parts and check bolt tightness.

Transmission and technical features

TECHNICAL DATA (brief overview):

  • Total width: 152 cm
  • Operating width: 130 cm
  • Weight: 255 kg
  • Required power: up to 25 HP
  • Working depth: 9 cm
  • Hoes per flange: 4
  • Total Hoes no.: 24
  • Disc Hoes no.: 7
  • 3-point Hitch
  • Gearbox 540 rpm
  • Chain drive in oil bath

Focus on the side support with inner locking bearing of the rotor with hammers.

View of the side support from the outside.

Height adjustable side support skids.

Movable rear housing that can be adjusted to various positions by means of a chain with levelling action on the tilled soil.

Side drive with large, sturdy chain in oil bath.

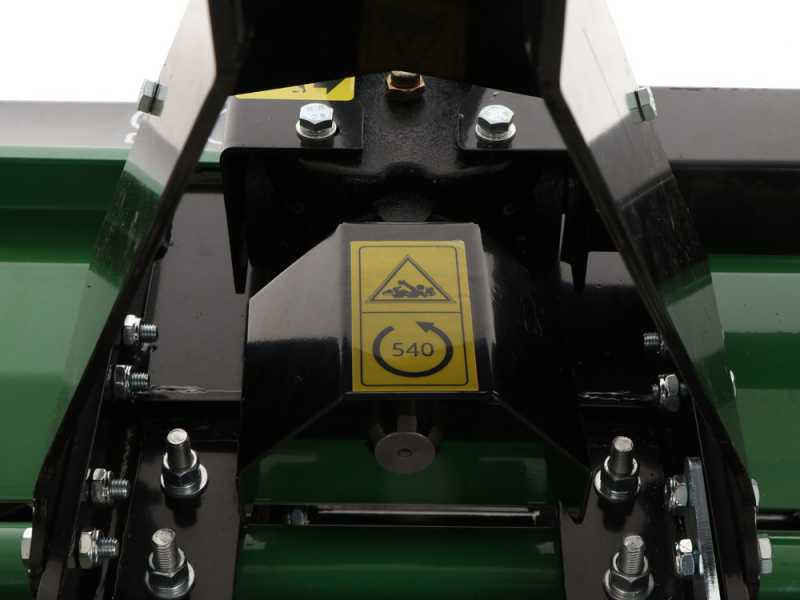

Focus on the sturdy cast iron gearbox with oil-bath gears.

Universal standard power take-off ( 1 3/8" Z6 ).

Universal linkage pins (with double attachment diameter, adaptable to all tractors on the market).

Focus on the front guard.

Hoes

Steel hoes: no. 6 discs with 4 hoes each for a total of 20 hoes.
Each flange is equipped with 4 hoes

What are the advantages?

There are several advantages with the use of a light rotary tiller compared to other agricultural tools, including:

1. Manoeuvrability: the lightweight rotary tiller is designed to be manoeuvrable and easy to use, making it ideal for working the soil in tight spaces or in small and vegetable gardens.

2. Efficiency: thanks to its V-shaped blades, the lightweight rotary tiller is able to remove quickly and efficiently weeds and unwanted vegetation, without damaging nearby plants.

3. Time saving: the use of the light rotary tiller can significantly reduce the time needed for soil preparation, compared to other heavier or more complex agricultural tools.

5. Versatility: the light rotary tiller can be used on different types of soil, including those with a softer texture or less compact soil structure.

The effective working width is 130 cm with a depth of 9 cm.

It is possible to adjust the side skids in order to decide the working depth of the cutter.

This allows working close to obstacles without the risk of hitting them with the tractor wheels.

Universal three-point hitch that can be adapted to all tractors on the market.

Focus on the sturdy 3-point hitch.

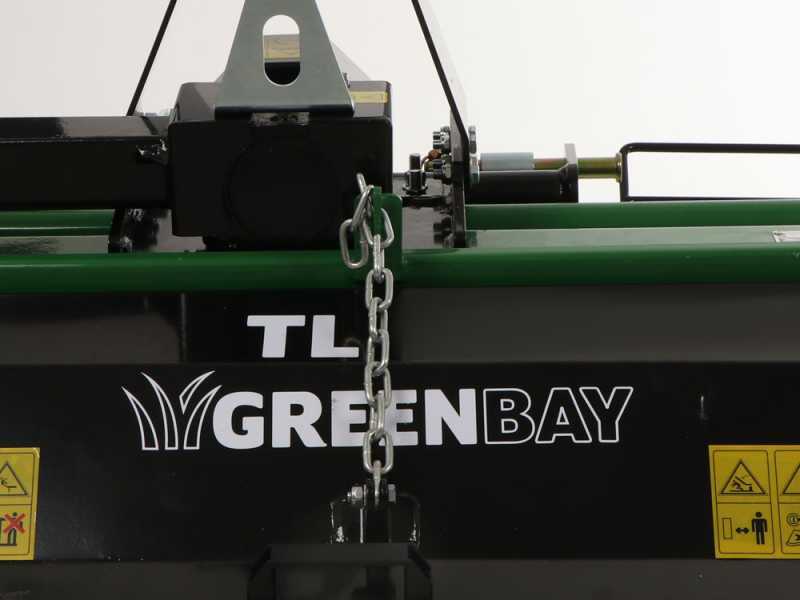

The rear housing is movable by means of a chain, in order to achieve a levelling action on the milled soil.


WARNING:

All tillers must be used on "clean" soils, i.e. free of stones and stones of a great size, which can damage to the milling hoes and, in the worst cases, damage the rotor, the frame, or the transmission components (oil seals, bearings, etc.).

Details and specifications

  • Oil-bath gearbox, the housing is made of cast iron, the inner gears of hardened steel.
  • Focus on the external rotor, with central opening provided with greaser.

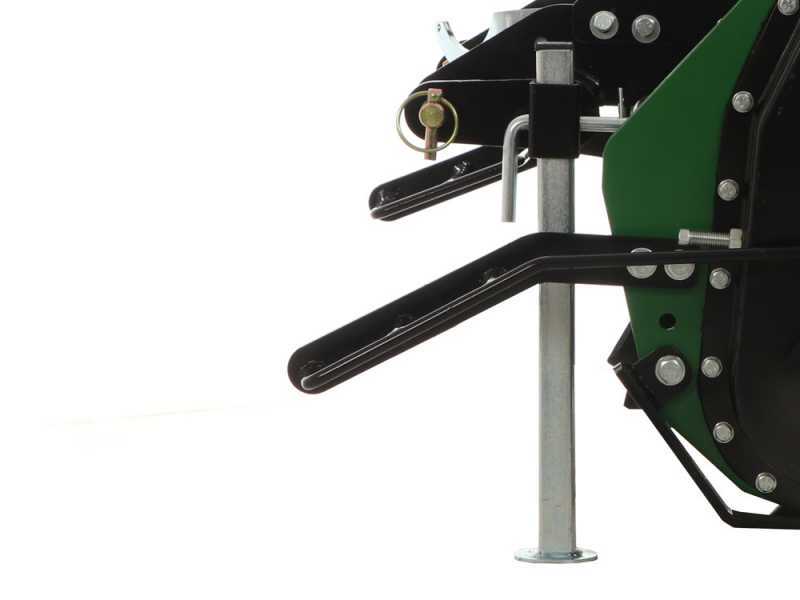

  • Support stand
  • Focus on the 3-point hitch.
  • PTO shaft support
  • Lubricated extension
  • Side skids
Free items & Standard equipment

Free items & Standard equipment

The rotary tiller is shipped on pallet. You’ll only have to assemble the 3-point hitch and a few other small components.

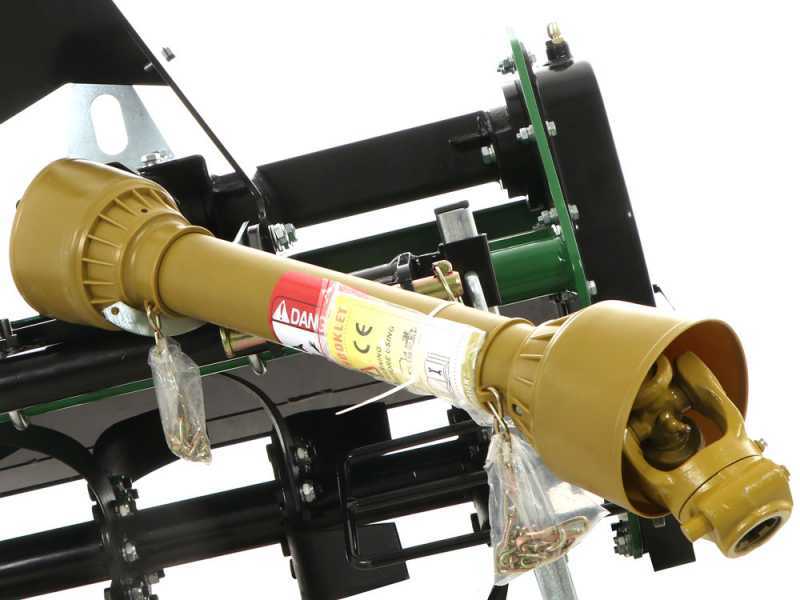

PTO with clutch and instruction manual is included in the package.
