GreenBay Tipper 300 Tracked Power Barrow - Dumper - Honda GP160 Engine

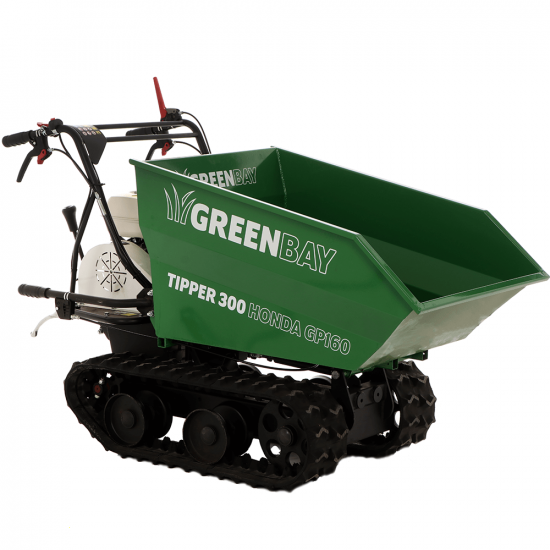

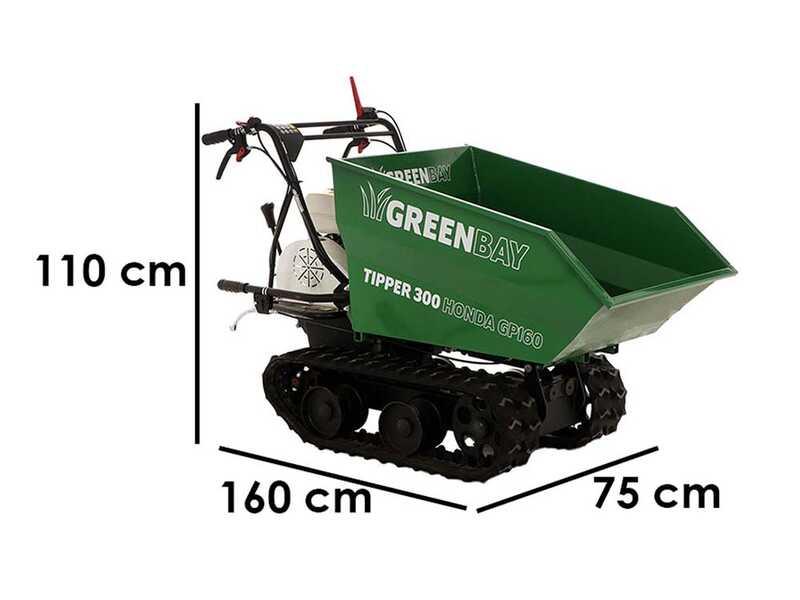

GreenBay TIPPER 300 HONDA GP160 Tracked Power Barrow:

It features a load capacity of 300 Kg.

A sturdy and versatile machine, designed for use in agriculture and construction. A very robust frame and dumper body allow the transport of any type of material quickly and easily.

Being free of holes, the container allows the transport of liquid materials without leakage.

The machine tracks allow it to move even over uneven and rough terrain. Honda GP160 engine 4 HP, 163 cc

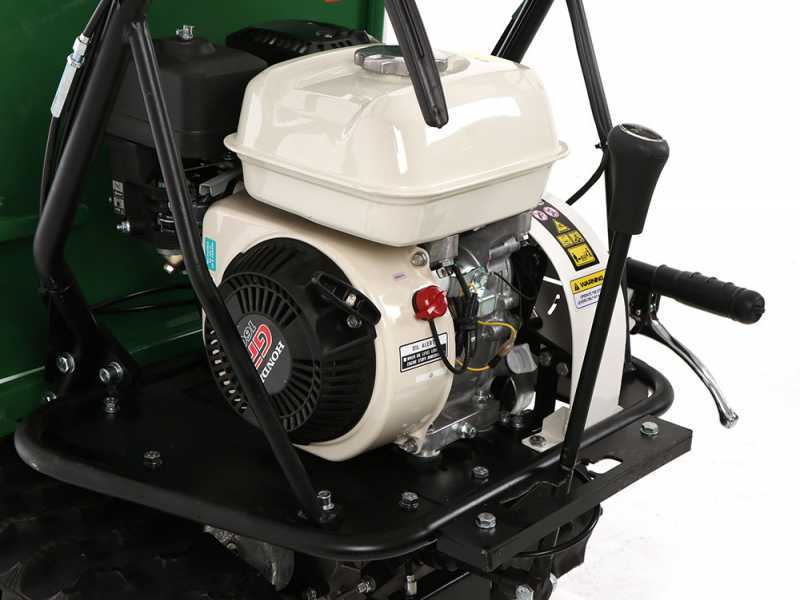

The HONDA GP160 engine mounted on the power barrow guarantees excellent durability and reliability of the machine.

It provides stability and safety during use even with heavy loads and slopes that normal wheelbarrows cannot handle.

The HONDA GP160 engine guarantees high performances and it is suitable for works where high power is required, achieved thanks to the high displacement of 163 cc.

Features:

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition ).

Easy re-coil start thanks to the automatic fuel priming system.

WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 4 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

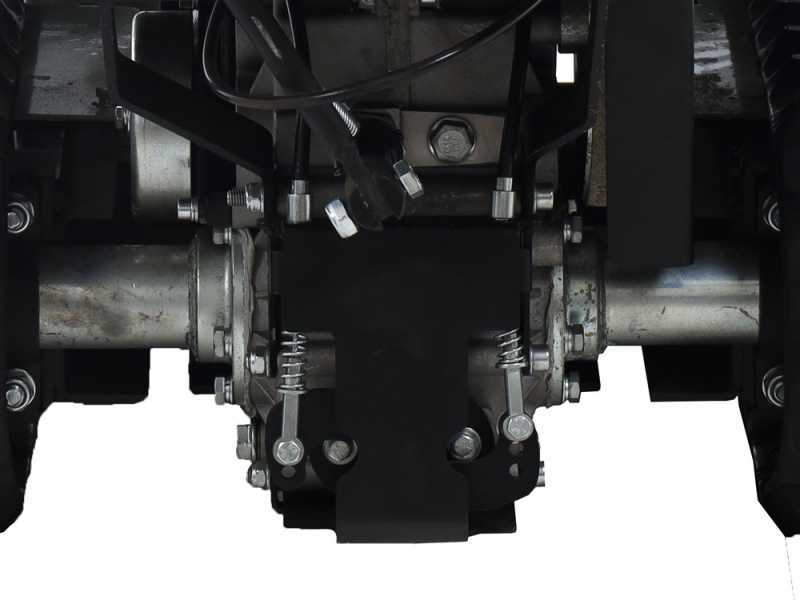

Gearbox: Large, reliable and accurate.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).

Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

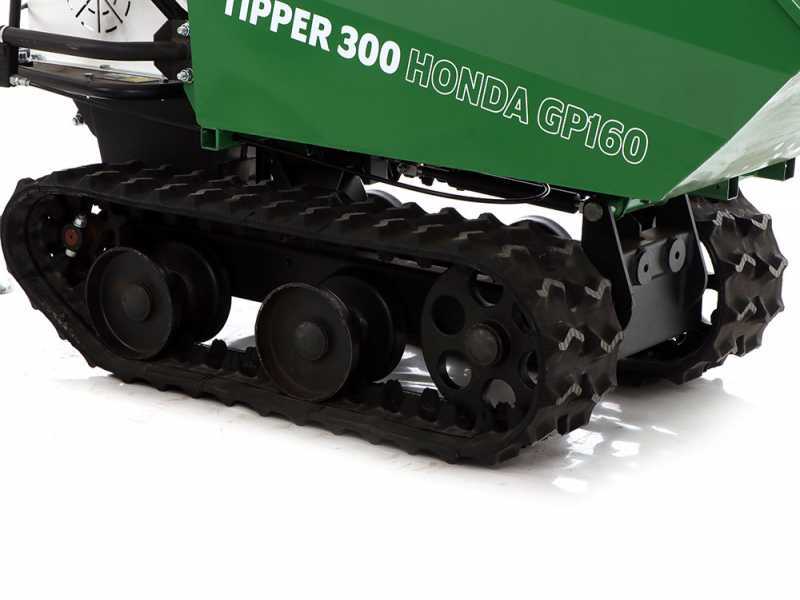

With their width and tread profile, they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 95 cm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Rear side of the crawler track with a pointed 'tank-like' upper corner that allows it to climb steps or other obstacles with ease.

The sturdy frame with steel structure in high thickness which limits the vibrations and noise.

The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

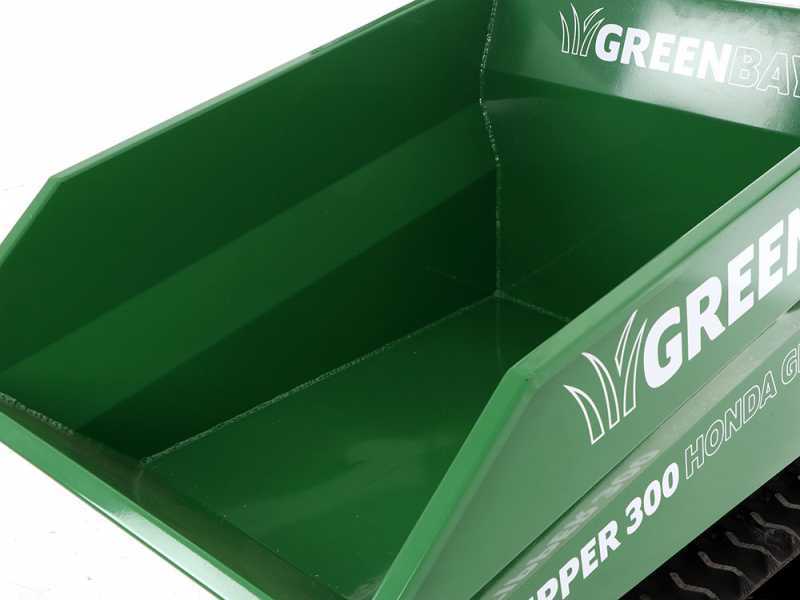

Body made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress.

In addition, the body structure is completely welded and free of holes, making it watertight, which allows the transport of any material with a high liquid content.

The load floor is at the minimum distance from the ground both to facilitate the operations of loading / unloading that to keep low the center of gravity of the machine.

Barrow dimensions 900x650x550 mm

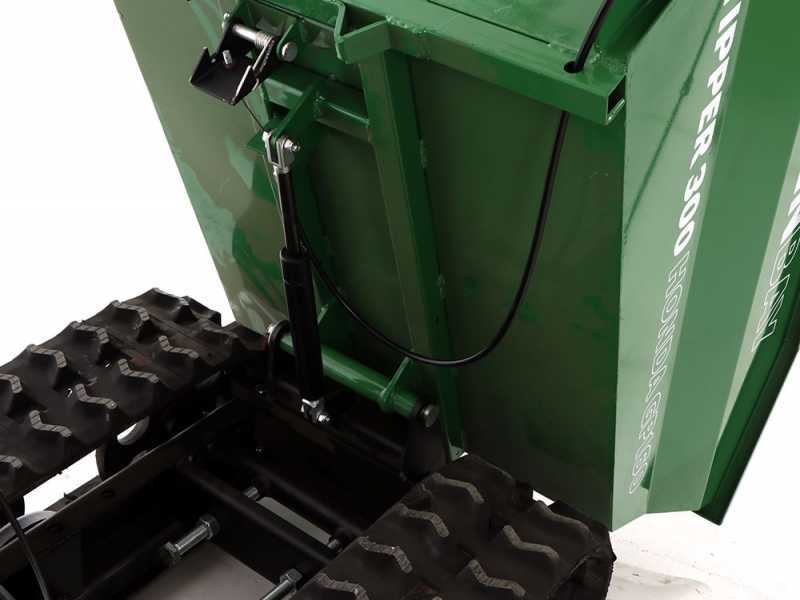

The mechanical tilting of the body is activated manually with the special rubber release lever placed on the side of the barrow.

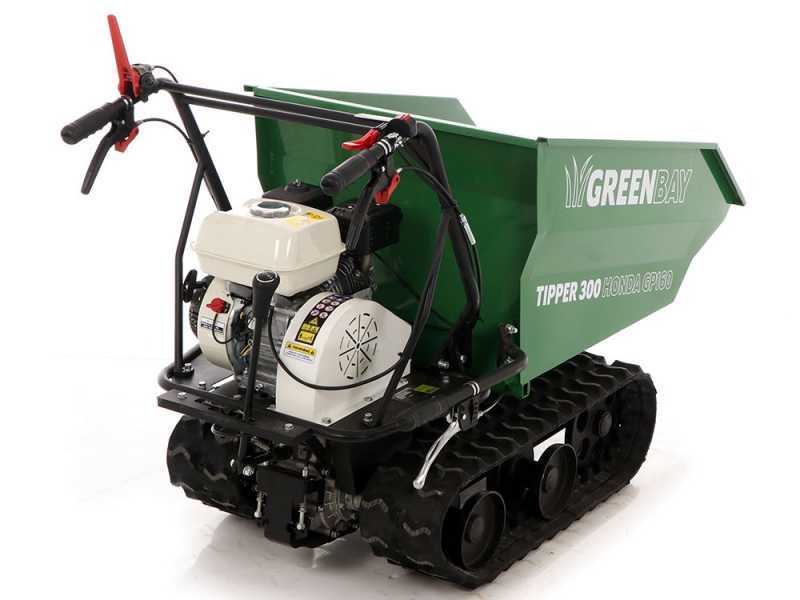

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.

Throttle lever and power switch
