GreenBay MiniTipper 300 H Petrol Wheelbarrow 4x4 - Honda GP160 Engine

Questions & Answers (2)
ID: K605995

EAN: 8054141546257

8,9/10
After-sales assistance & Spare parts
GreenBay  MiniTipper 300 H Petrol Wheelbarrow 4x4 - Honda GP160 Engine
+50 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
300 Kg
Barrow body type
Dumper
Body tipping
Manual
Max. slope
25 %
Motor brand
Honda
Motor Model
GP160
Motor type
4-stroke
Cubic capacity
163 cm³
Nominal power
5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
4-wheel drive
Product Features
Model:
MINITIPPER 300 H
Type :
Wheeled
Self-propelling:
Yes
Load capacity:
300 Kg
Max. slope:
25 %
Flow rate at 20% slope:
300 kg
Flow rate at 25% on slope:
240 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Manual
Body dimensions:
94x63.5x33 cm
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GP160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
4-wheel drive:
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Box:
Dumper
Parking brakes:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
4.00-8
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics

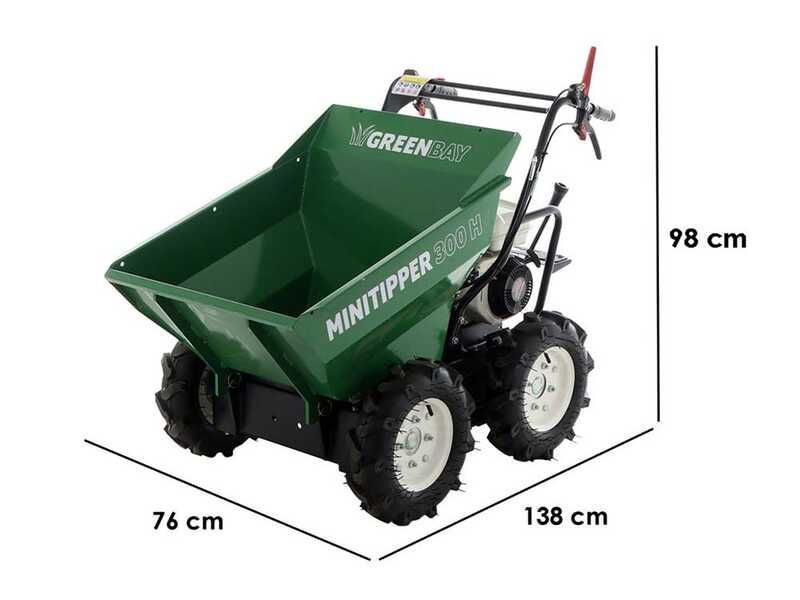

Product dimensions in cm (L x W x H):
138x76x98 cm
Net weight:
158 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
111x77x87 cm
Gross weight (packaging included) :
172 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
26 items in stock
Free Shipping
Estimated delivery: 18/11/2024 - 20/11/2024
€ 1.569,22
VAT Included
You're viewing:
Customers also viewed:
Description

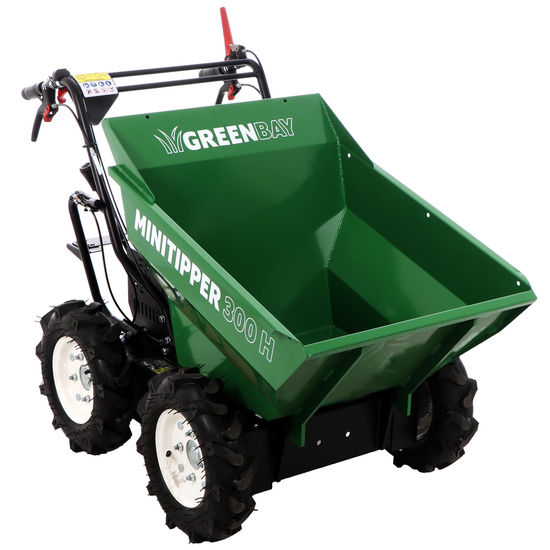

GREENBAY MINITIPPER 300 H Power Wheelbarrow

The GREENBAY MINITIPPER 300 H power barrow is a very sturdy machine suitable for transporting all types of material in agriculture, construction and forestry.

Thanks to its self-propelled wheels and powerful 4-stroke engine, dumper wheelbarrow with dumper body is capable of transporting loads of 300 kg, making it a tool that can be used in a wide variety of fields, from agriculture to animal husbandry to construction and gardening.

It provides stability and safety during use even with heavy loads and slopes that normal wheelbarrows cannot handle.

Wheeled power barrows are suitable for all users who have to carry out both demanding and less demanding work. For those who have to work in gardening or small-scale agriculture, making wheeled models exhaustive for the worker.

It has 4 drive wheels all of tracktor type
, thus allowing it to maintain excellent grip with the ground even in the most complicated conditions.

The sturdy steel frame and the manual gear shifting system with three forward and two backward speed gears make this power barrow versatile and high performing.

The machine is equipped with a powerful Honda GP160 petrol engine, capable of delivering:

  • 5 HP Power

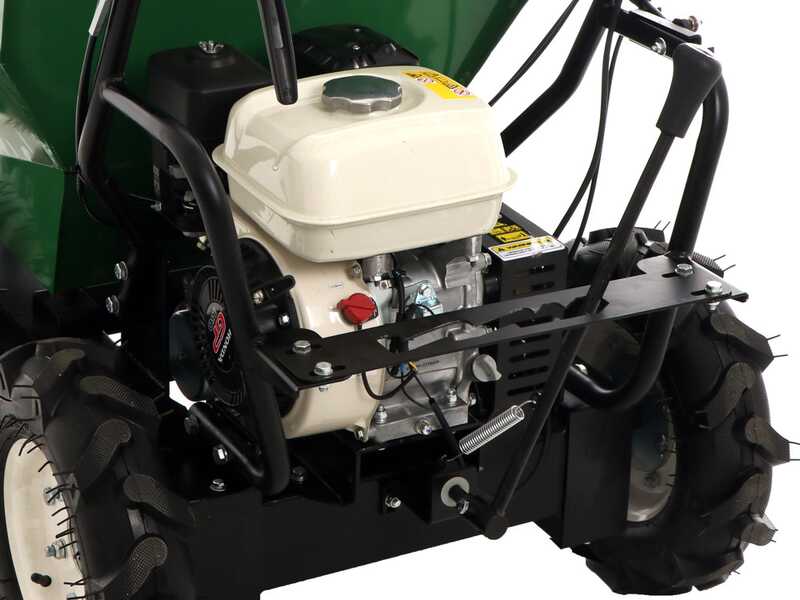

HONDA GP160 Engine

The HONDA GP160 engine guarantees high performances and it is suitable for works where high power is required, achieved thanks to the high displacement of 163 cc.


Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Cast Iron
Cubic Capacity:
163 cm³
Fuel:
Petrol

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition)

Easy re-coil start
thanks to the automatic fuel priming system.


WARNING!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting.

Nominal Power: 5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 4 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

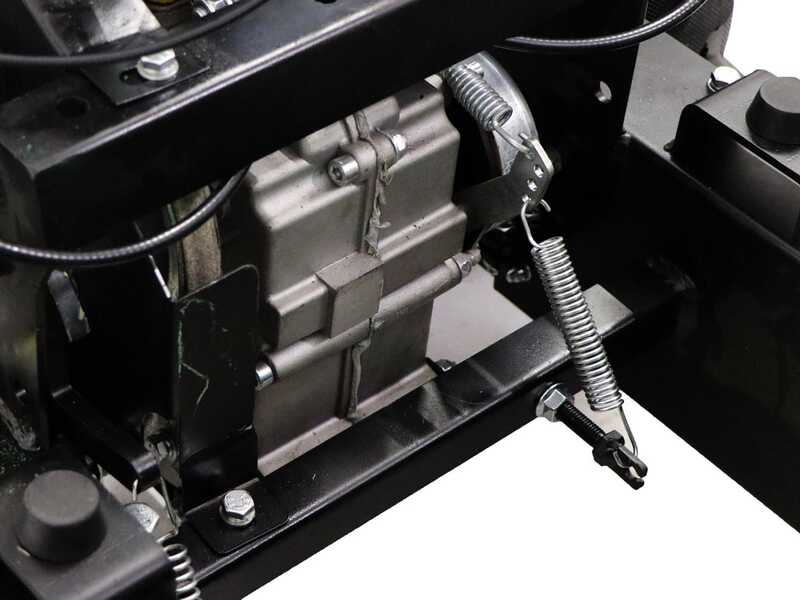

Gearbox, Parking Brakes and Transmission

Gearbox: large, easily the most robust and reliable on the market.
But nevertheless very smooth and precise Entirely made in Italy

Speed:
3 forward
1 reverse


Parking brakes:
attached to the gearbox, increased internal expansion type, for greater stability and safety.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).


Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

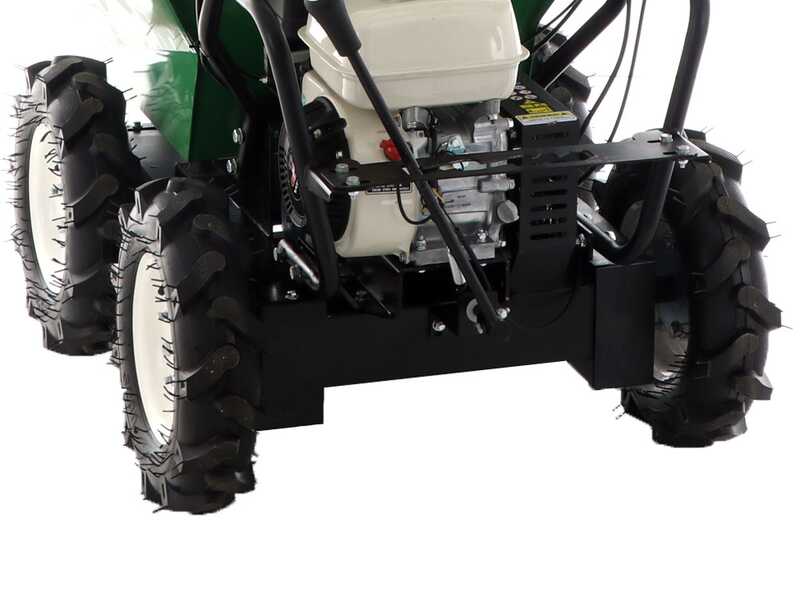

Self-Propelled and Wheels

This wheelbarrow is self-propelled to facilitate the operator's work

All four wheels are traktor type to provide greater grip and traction on muddy and more uneven terrain.

Having available 4 drivewheels will make very simple to move the wheelbarrow even in tight spaces while maintaining always a great adherence to the ground.

To turn the wheels, you will need to press one of the two levers on the handlebars according to the direction in which it needs to turn.

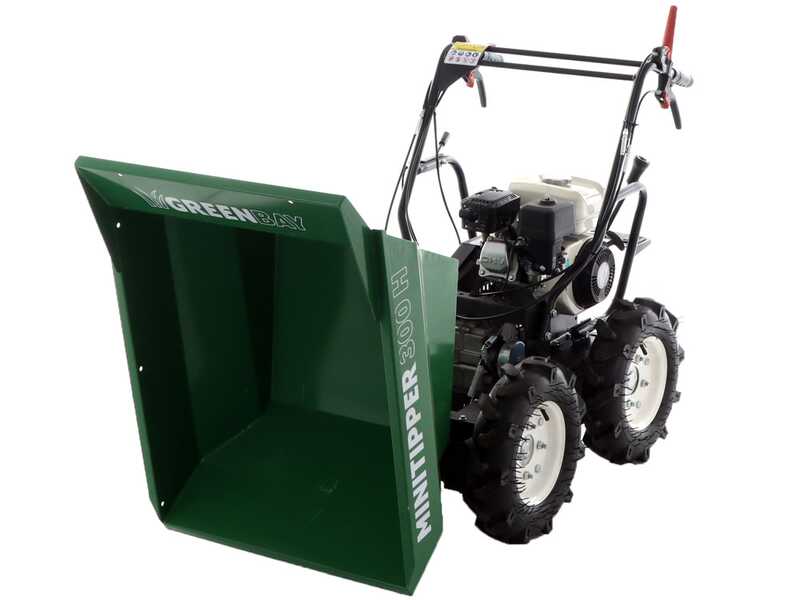

Tipping Dumper body

Body in high-strength steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The wheelbarrow has an effective capacity of 300 Kg, even on sloping grounds.

The barrow tilting operation is very simple, just press the lever in fact placed on the right of the machine. It will disengage the safe of the barrow and make it possible for the operator to overturn the same with extreme simplicity.

Barrow dimensions: 940x635x330 mm

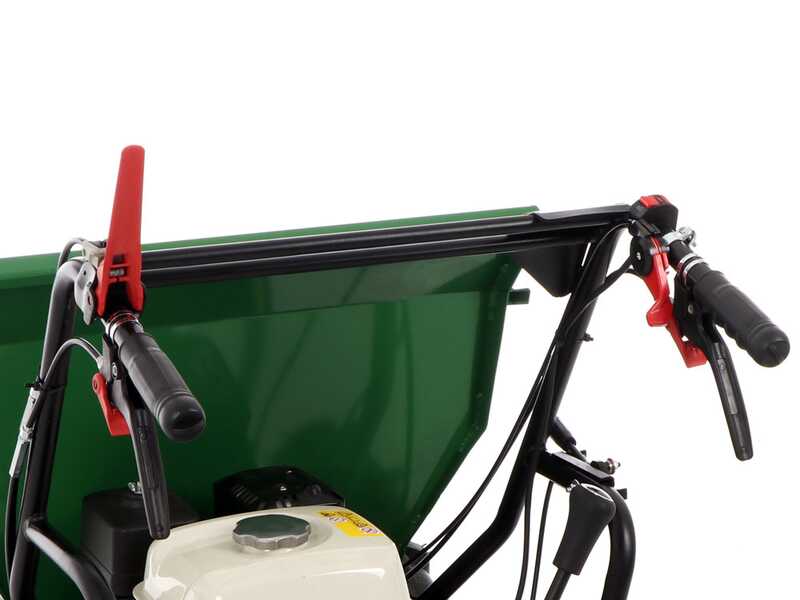

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The machine is provided with two lower levers for steering, respectively on the right and on the left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. By partially pulling either lever, the steering of the track concerned, right or left, will also be partial.
This allows the wheelbarrow to be steered extremely smoothly, without causing abrupt movements.

Safety brake allowing immediate stop.

Throttle lever

Gear lever

Lever for disengagin the barrow

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

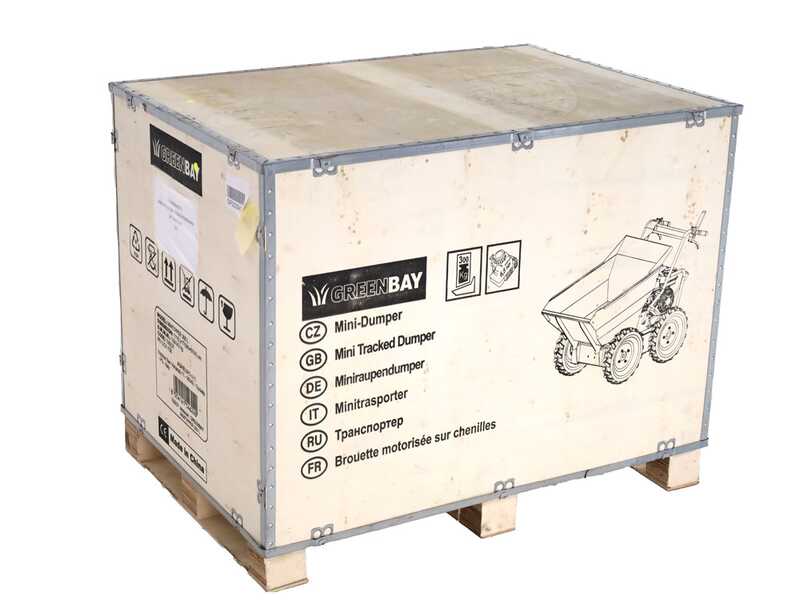

The wheelbarrow is provided in its original pallet packaging .

Manual and set of wrenches for adjusting and assembly
