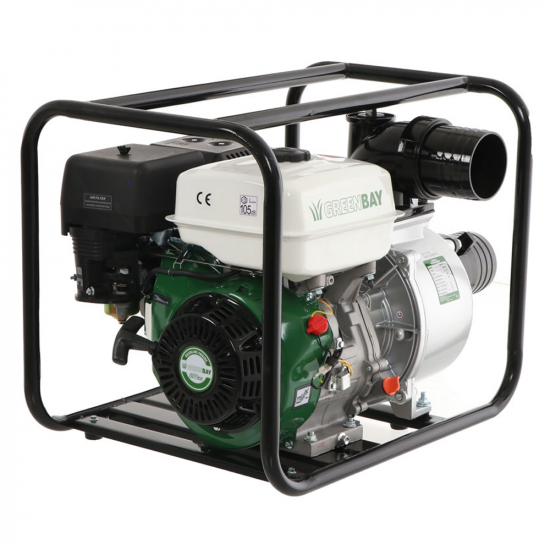

Greenbay GB-WP 100 Petrol Water Pump - with 100 mm Fittings

Add a question
ID: K603227

EAN: 8054141543638

MPN: GB-WP 100

8,9/10
After-sales assistance & Spare parts
Greenbay GB-WP 100 Petrol Water Pump - with 100 mm Fittings
Special offer
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
FC177F-1
Cubic capacity
270 cm³
Nominal power
9 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1330 L/min
Fittings diameter
100 mm
Max. head lift
25 m
Max. suction height
7 m
Aluminium fittings
Yes
Product Features
Model:
GB-WP 100
Power supply:
Petrol
Fuel:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Greenbay
Motor Model:
FC177F-1
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6 L
Oil tank capacity:
1.1 L
Manufacturing country:
China
Pump data
Pump brand:
Greenbay
Water pump type:
Self-priming
Pump material:
Aluminium
Fittings diameter:
100 mm
Flow rate:
1330 L/min
Max. head lift:
25 m
Max. suction height:
7 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics

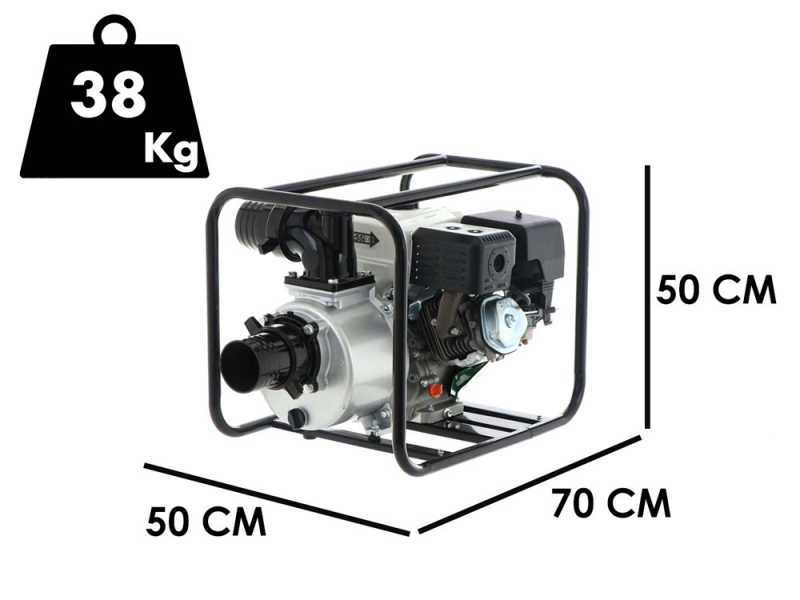

Product dimensions in cm (L x W x H):
70x50x50 cm
Net weight:
38 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
63x48x52 cm
Weight including packaging:
40.2 Kg
Assembly time:
5 minutes
Prompt Delivery
92 items in stock
Free Shipping
Estimated delivery: 20/05/2025 - 22/05/2025
Lowest price:
€ 335,91
-16 %
€ 281,98
Vat included
You're viewing:
Customers also viewed:
Description

Greenbay GB-WP 100 Water Pump

Greenbay GB-WP 100 is the ideal water pump for pumping water from any source, to irrigate through a hose or sprinklers.

In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or ponds and tanks that are difficult to reach, or even when you have to drain a flooded cellar or garage.

Thanks to its large 100 mm fittings it can effortlessly reach an excellent water flow rate, allowing you to work easily.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided with oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

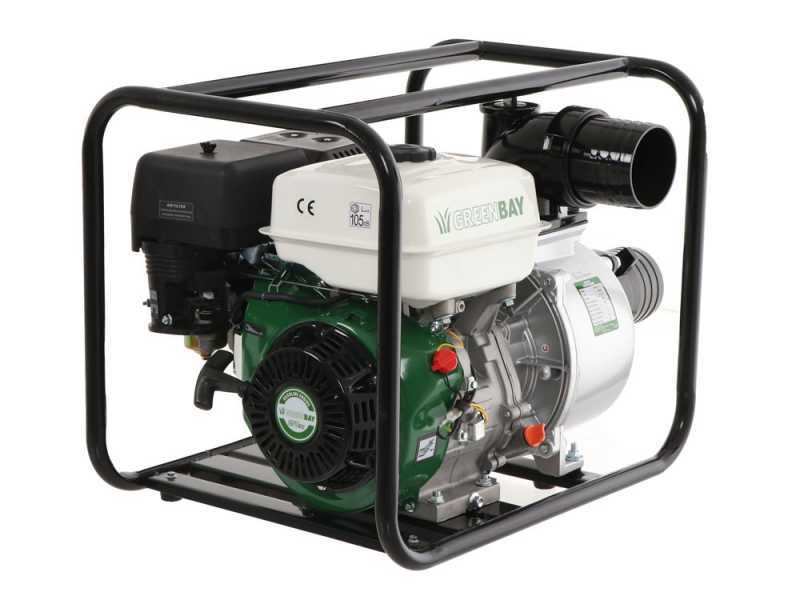

Engine Technical Features

Engine features:

Model: FC177F-1

Type: 4-stroke, single cylinder, forced cooling, OHV
Cubic capacity: 270 cc
Fuel: petrol

Power: 9 Hp
Tank: 6 L

The engine features recoil start system and a metal tank with fuel shut-off valve.

Focus on the engine adjustment controls that include air control and the regulation of the engine throttle.

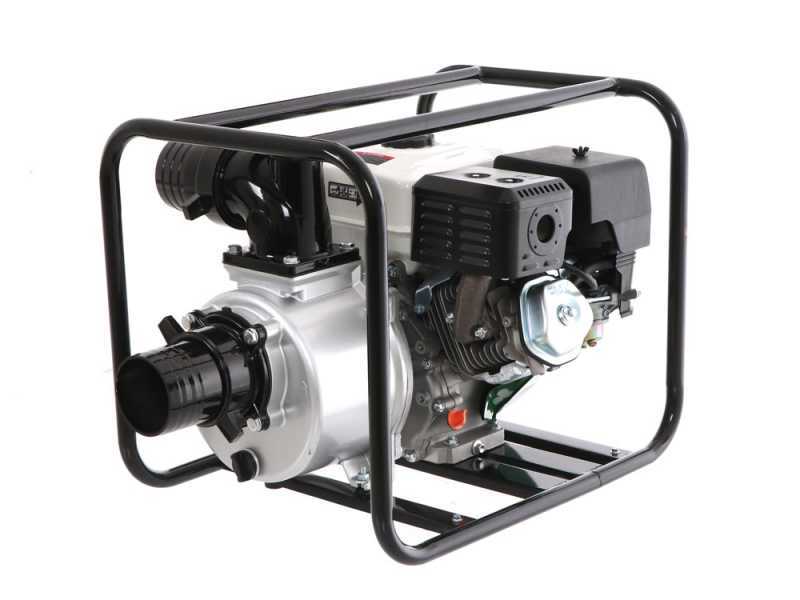

Water Pump Technical Features

The pump mounted on the GB-WP 100 is entirely made of cast aluminum alloy, which makes it very robust but lightweight at the same time and capable of withstanding prolonged pumping work.

Pump features:

Suction: 100 mm
Discharge: 100 mm
Max. suction height: 7 m
Max. flow rate: 1330 L/min
Max. head lift: 25 m

Focus on the 100 mm suction and discharge fittings.

Frame with supporting feet.

Focus on the pump filling cap

Focus on the pump emptying cap

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free Items Included

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 100 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
