GreenBay EXPANDER 500 HONDA GX200 Tracked Power Barrow - Extendable body - 500 kg Load capacity

Add a question
ID: K605165

EAN: 8054141546172

MPN: EXPANDER 500

8,9/10
After-sales assistance & Spare parts
GreenBay EXPANDER 500 HONDA GX200 Tracked Power Barrow - Extendable body - 500 kg Load capacity
+30 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
500 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Max. slope
25 %
Type
Tracked
Motor brand
Honda
Motor Model
GX200
Motor type
4-stroke
Cubic capacity
200 cm³
Nominal power
6 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
EXPANDER 500 HONDA GX200
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
25 %
Flow rate at 20% slope:
500 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Extendable sides
Extendable body:
Body tipping:
Manual
Body dimensions:
102.5x60x32.5 cm
Extended box size:
115.5x86x32.5 cm
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX200
Motor type:
4-stroke
Cubic capacity:
200 cm³
No. of cylinders:
1
Nominal power:
6 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Hydraulic piston:
Tubular extension sides:
Yes
Side panels hand levers:
Yes
Box:
Extendable
Assisted steering:
Yes
Total rollers no.:
4
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics

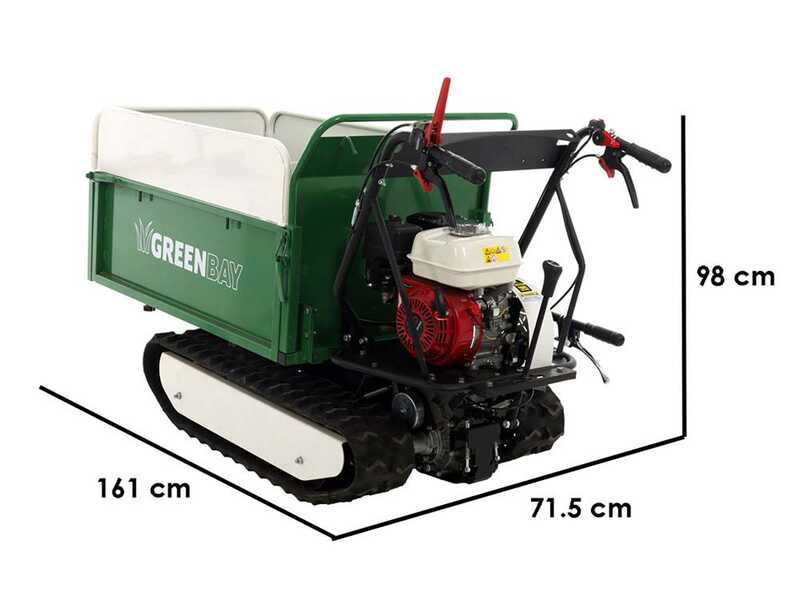

Product dimensions in cm (L x W x H):
161x71.5x98 cm
Net weight:
250 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
143x77x87 cm
Gross weight (packaging included) :
255 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Out of stock
Free Shipping
€ 2.225,38
VAT Included
You're viewing:
Customers also viewed:
Description

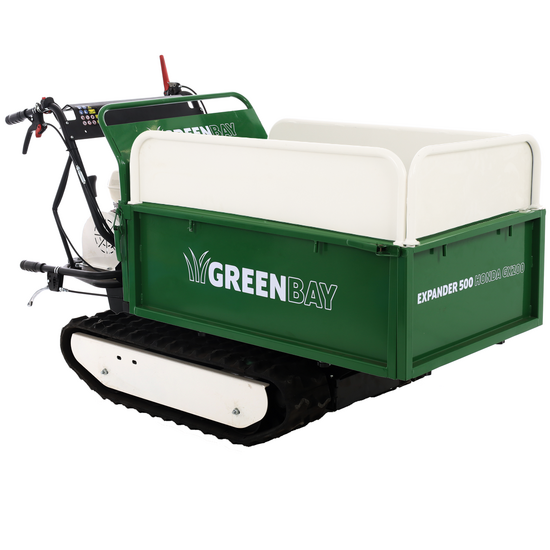

GreenBay EXPANDER 500 HONDA GX200 Tracked Power Barrow

The GreenBay EXPANDER 500 HONDA GX200 tracked power barrow with sturdy steel frame and gearbox with three forward and one backward gears make it a versatile and high-performing machinery. This is even thanks to extendable body with an effective load capacity of 500 kg.

The body of this tracked loader can be extended, which greatly increases the load capacity of the machinery. In addition, another great advantage is the additional removable tail lifts, which provide extraordinary working versatility. By using tail lifts, you will be able to increase the load, which will considerably reduce the number of transports to be carried out for the job.

The HONDA GX200 engine with which the wheelbarrow is equipped guarantees excellent longevity and reliability of the machine.

We remind that it is always good to:
1) check the engine oil level
2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

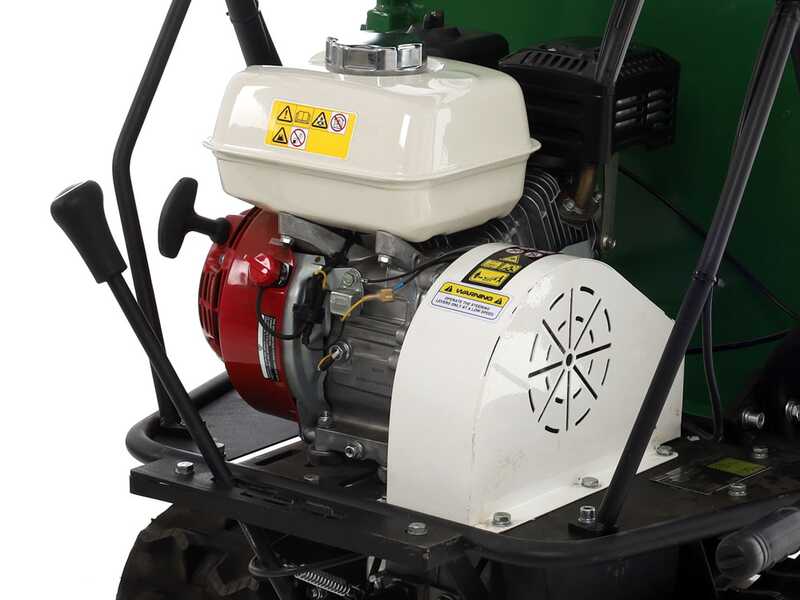

HONDA GX200 Engine

The HONDA GX200 engine guarantees high performances and it is suitable for works where high power is required, achieved thanks to the high displacement of 200 cc.


Features:

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type:
Cast Iron
Cubic Capacity:
200 cm³
Fuel:
Petrol

Brand new 4-stroke engine (overhead valve shaft OHV - recoil ignition ).

Easy re-coil start
thanks to the automatic fuel priming system.


WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: HP 5 (3600 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

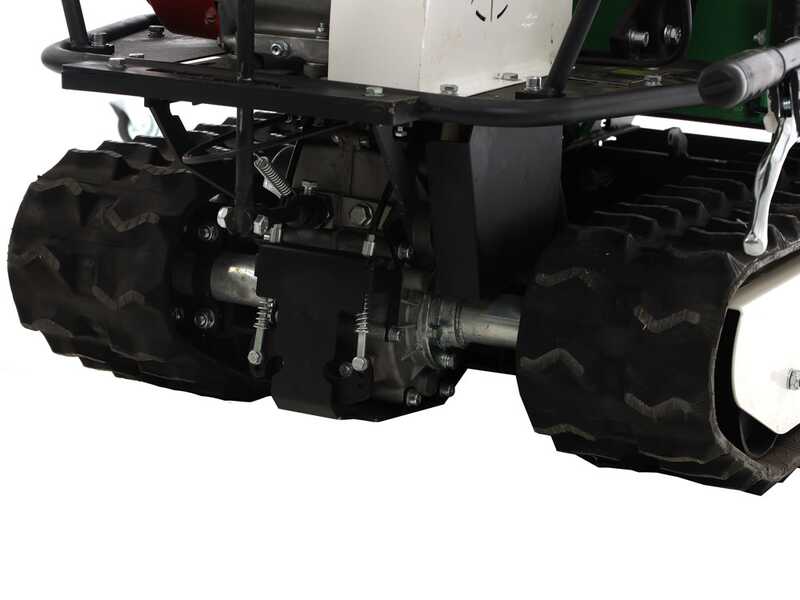

Gearbox, Parking Brake and Transmission

Gearbox: Large, reliable and accurate.

Speed:
3 forward gears
1 reverse gear


Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (if the machine is left in neutral position, even on a steep slope, it remains perfectly locked).


Transmission:
Sturdy and resistant, it allows managing the steering by acting on the single track, deactivating its rotation.

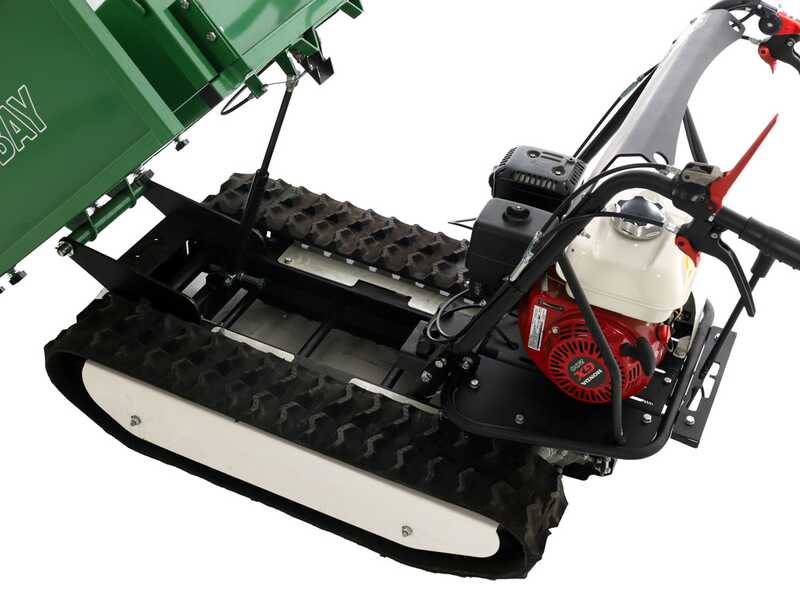

Tracks and bODY

With their width and tread profile they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain. Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .


Focus on the rear part of the track with "tank shaped” sharp upper corner that allows the shredder to easily climb steps or other obstacles.

Frame

The robust frame with steel structure in high thickness which limits the vibrations and noise. The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

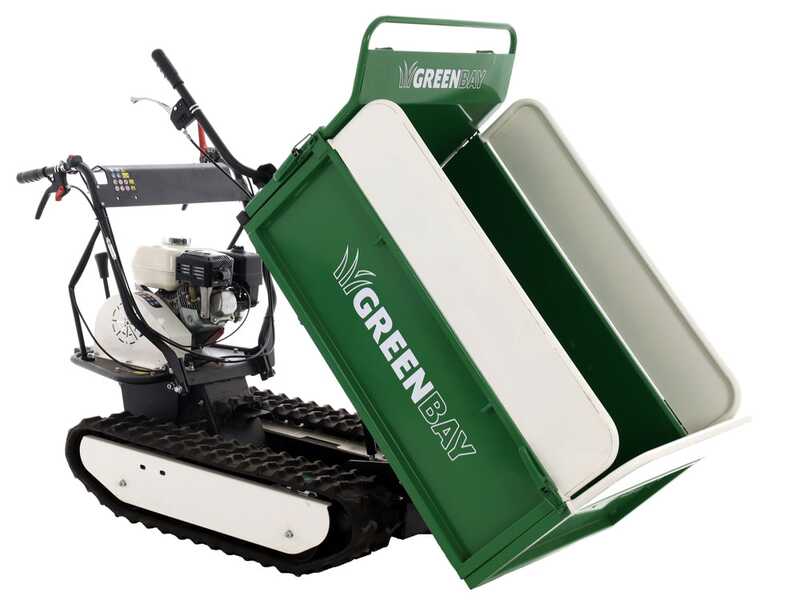

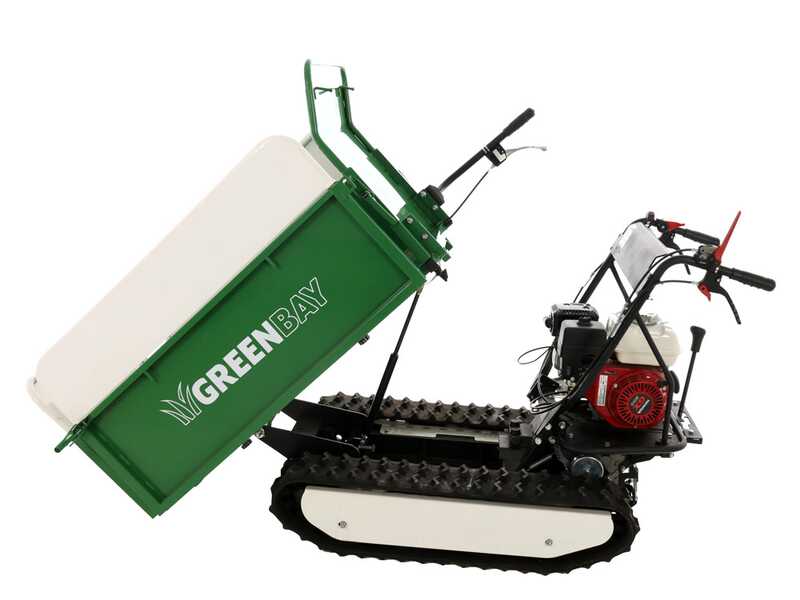

Extendable Tipping Body

Body made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is very close to the ground in order to make loading/unloading operations easier.

Mechanical tipping: use the proper rubber lever with spring to release it by hand. It is easy to use even with heavy loads by means of the tipping control lever on the side.


To facilitate the tipping operation by unloading the operator's weight, and to keep the body in the tipped position, the power barrow is equipped with a gas piston underneath the chassis.
It makes all work steps much easier.

Closed barrow dimensions: 1025 x 600 x 325 mm

Extended barrow dimensions: 1155 x 860 x 325 mm



The loading capacity can be significantly increased thanks to the extensible side panels.
Thus, in addition to the standard wing nut screws placed under the body, the power barrow is provided with sturdy hinges, which tighten the side panels to one another.

A further solution to further increase the load capacity is the standard-supplied removable panels. By using tail lifts, it will be possible to increase the load by considerably reducing the number of transports for the job.

An example of use is for transporting and loading wood.
Using tail lifts will enable you to increase the load by considerably reducing the number of transports to be carried out for the job.

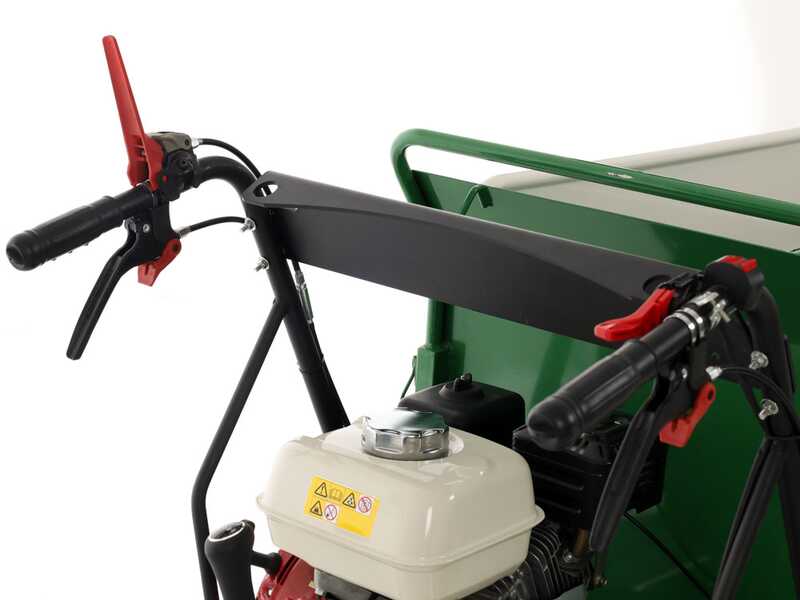

Controls

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Large red lever for motion activation.

The two lower levers are for the steering, respectively right and left.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow.

Safety brake that allows immediately stop the machine.

Accelerator handle and power switch.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

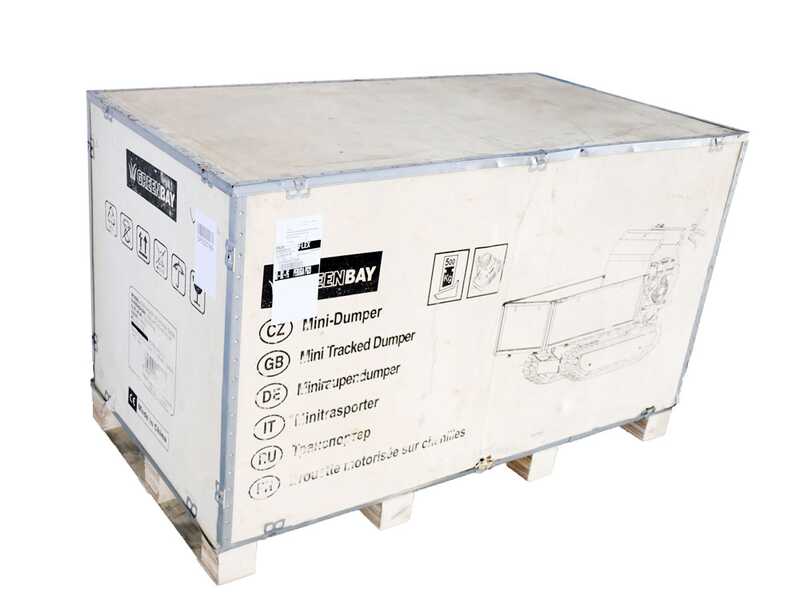

The tracked power barrow is provided in its original packaging

Manual and set of wrenches for adjusting and assembly
