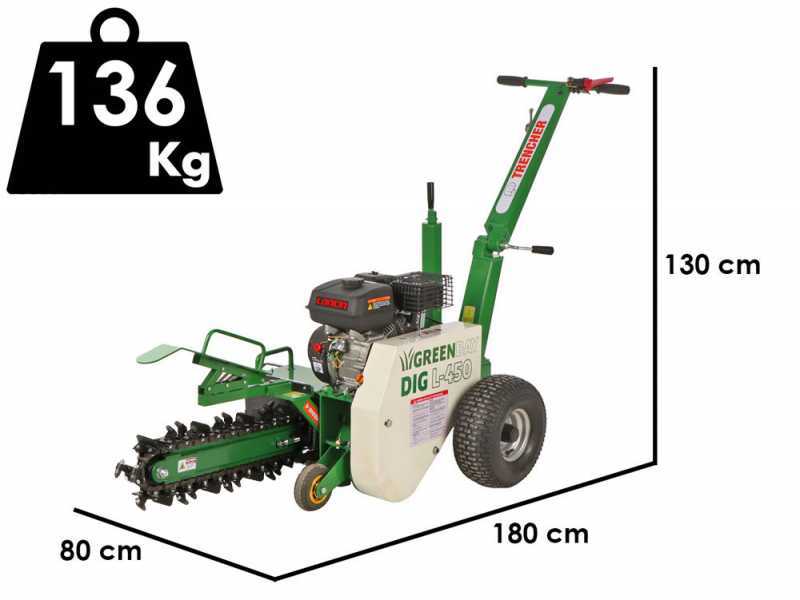

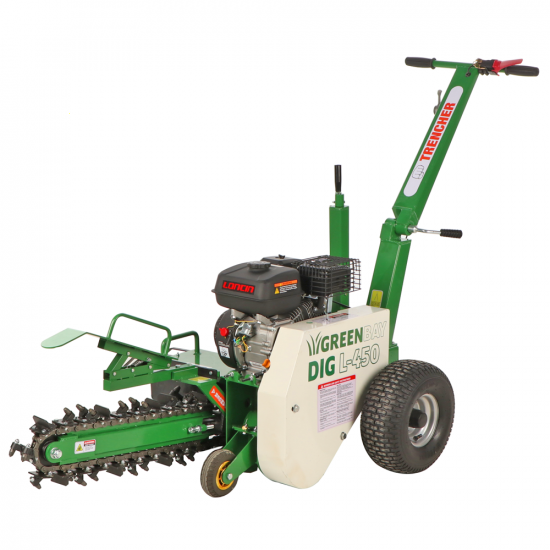

GreenBay DIG L-450 - Petrol Catenary - Loncin 196cc

The GreenBay DIG L - 450 is a high-performing trencher, ideal for digging even the hardest soils.

This machine has been manufactured with top-quality materials, which guarantees long-lasting durability and high performance to this GreenBay DIG L - 450 trencher model.

This trencher is ideal for those looking for a product suitable for digging up soil and asphalt for laying pipes and electrical cables. DIG L - 450 has features that make this machine a high-performance professional product, its chain has 21 blades made of carbide alloy, allowing it to be used on the hardest terrain.

GreenBay DIG L - 450 is a comfortable machine to use thanks to its handlebar with a variable height from 0 mm to 450 mm, which you can adjust according to your working needs.

This machine is powered by a Loncin 196 cc petrol engine, with a maximum power output of 6.5 Hp, which you can use to achieve professional digging in a few easy steps.

Thanks to the 21 blades, the machine can safely penetrate the ground, avoiding damage to the surrounding soil.

• Machine digging capacity: 60m/h
• Working width of: 100 mm
• Working length of: 600 mm

This machine has a compact and ergonomic design, so it is very easy to use even in narrow spaces.

These machines are equipped with low speed and high torque, which provide an optimal penetration into the soil and a lower wear of the chain with better results at the same time.

Laying the cables in the garden or building an irrigation system is a job that requires a lot of effort and time, thanks to the trencher you can do the job in the shortest possible time and with less effort.

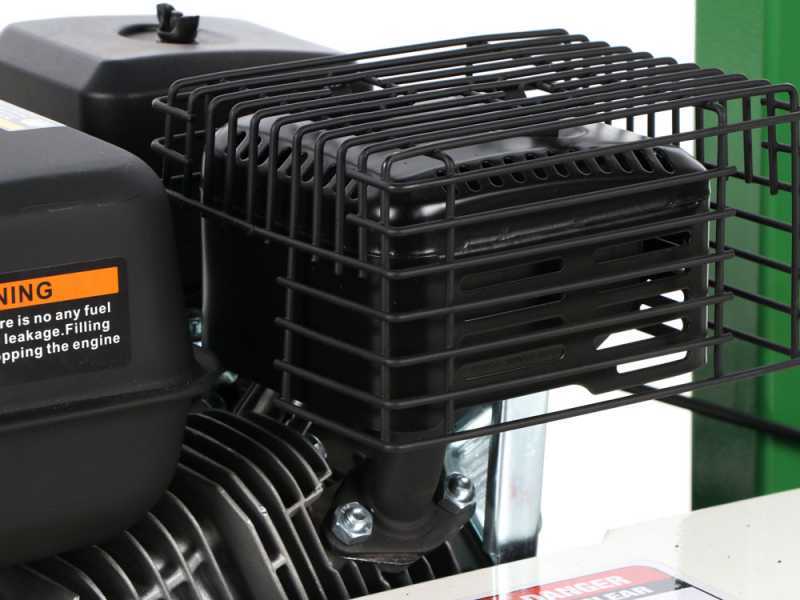

The GreenBay DIG L-450 has a 196 cc Loncin engine powered by high-performance petrol.

Features:

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 5.1 HP (2900 rpm rotation speed)
It is the real power of the engine shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the speed of rotation provided.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

The trencher is equipped with intermediate double belt drive transmission

This feature gives high sturdiness to the unit, protecting both the engine and all the shredding system from every possible internal hit or kickback.

Higher durability over time compared to the standard system of all the manufacturers of petrol-powered machineries directly connected to the shredding cutting system.

Its cutting action, thanks to 21 blades in carbide alloy, is ideal for very compact hard soils.

The DIG L - 450 Loncin trencher, with the use of the special handle, gives the possibility to reach a digging depth from 0 mm to 450 mm.

With a compact, narrow design, it can also be used in confined spaces.

The digging capacity of the machine is 60m / h, and it has a working width of 100mm, excellent for quick excavations intended for the laying of pipes and / or electrical cables.

Working length of 60 cm

Detail of the rotor lubrication system

The main controls of the trencher are simple and intuitive.

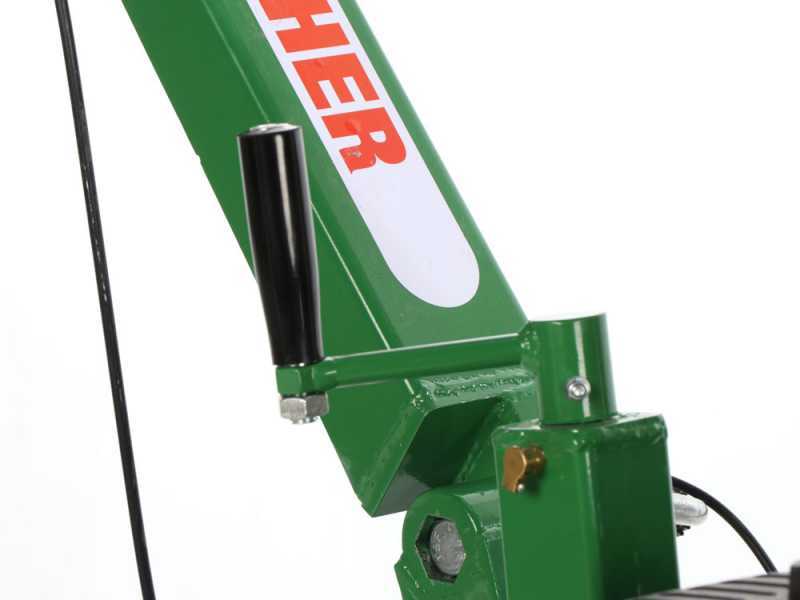

Thanks to a single handle, the handlebar height can be adjusted so that the machine is easy to use at any height.

Switch to stop the machine

Provided with throttle lever of the engine rpm.

Focus on the brake lever:

• 1 : added brake
• 2 :not added brake

Adjustable handlebars and digging depth in 4 different positions.

Tires from 14.5x7.00-6 Perfect for all terrain and with optimal manoeuvrability.

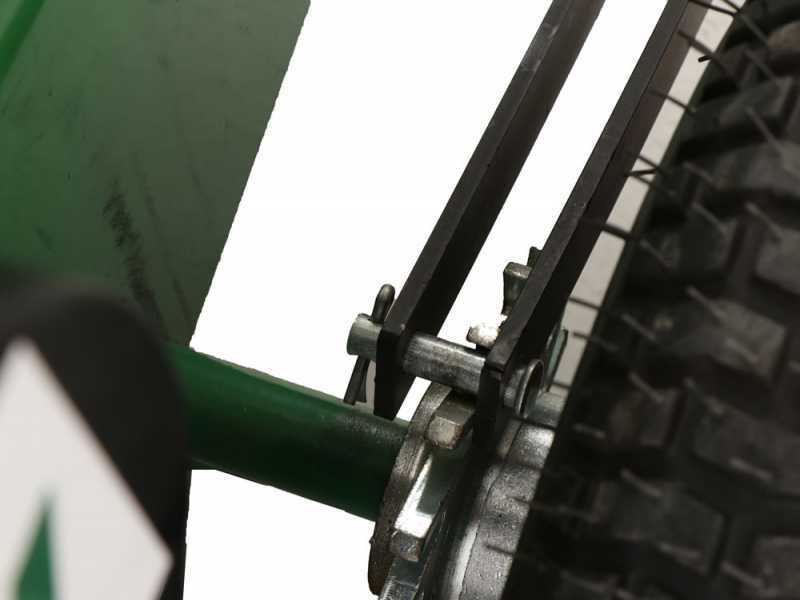

Wheel brake of easy access for safe operation.

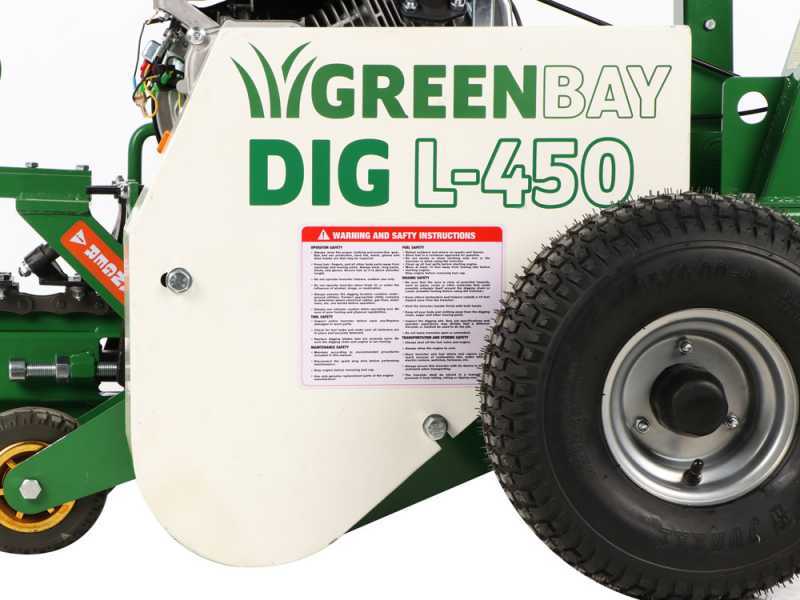

Focus on the protective casing of the belt, to avoid hits and damage

Comfortable and practical handle to ease transportation

Machine manual lifting pole

Protection device additional to the cutting apparatus

Focus on the chain tensioner

Focus on the lube of the primary shaft supporting the trencher

Chain Length: 2000 mm

Chain Speed (Max) 550m/min

5.42 mm thick steel
