GreenBay Deep LE-330 Stump Grinder - Loncin 420 cc Engine with Electric Start - Cutting Disc with 8 Hammers in Tungsten Carbide

Add a question
ID: K604426

EAN: 8054141545052

GreenBay Deep LE-330 Stump Grinder - Loncin 420 cc Engine with Electric Start - Cutting Disc with 8 Hammers in Tungsten Carbide
+50 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Body material
Steel
Electric start
Yes
Motor brand
Loncin
Motor Model
G420F(D)
Motor type
4-stroke
Cubic capacity
420 cm³
Nominal power
15 HP
Transmission type
Belt
Cutting above the surface
56 cm
Rotor size
200 mm
Number of teeth
8
Product Features
Model:
Deep LE-330
Body material:
Steel
Operating mode:
Spark ignition
Self-propelling:
Hand-pushed
Electric start:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G420F(D)
Motor type:
4-stroke
Cubic capacity:
420 cm³
No. of cylinders:
1
Nominal power:
15 HP
Rated power (HP):
12.2 HP
Motor speed:
2500 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Noise level:
104 dB(A)
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Tungsten carbide
Number of teeth:
8
Underground cutting depth :
33 cm
Cutting above the surface:
56 cm
Rotor size:
200 mm
Equipment
Battery for electric start:
Yes
Motor safety brake:
Yes
Electric start with key :
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
145x70-6
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes

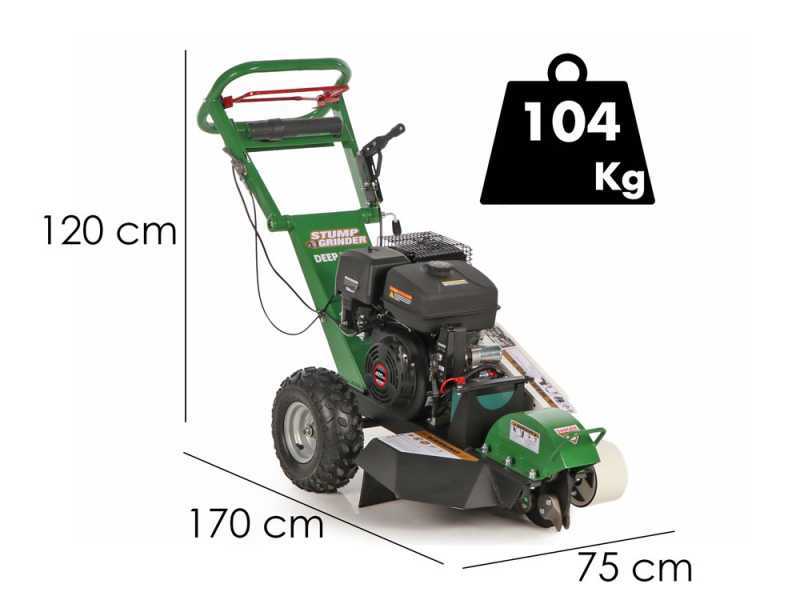

Dimensions and logistics
Product dimensions in cm (L x W x H):
170x70x120 cm
Net weight:
104 Kg
Packaging:
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
107x75x80 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 25/06/2024 - 27/06/2024
Suggested price:
€ 1.534,16
€ 1.304,04
VAT Included
You're viewing:
Customers also viewed:
Description

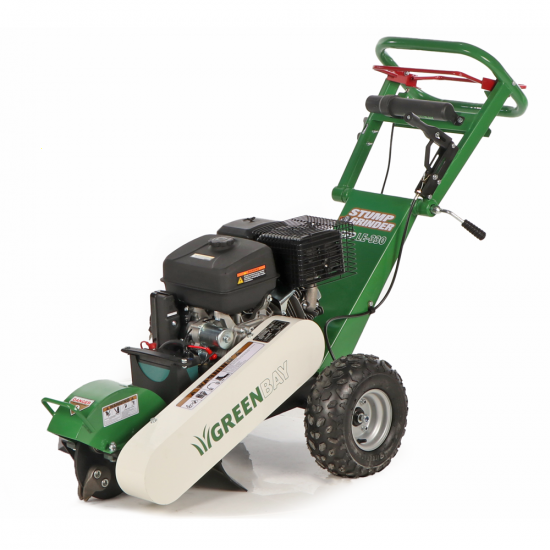

GreenBay Deep LE-330 Stump Grinder

The Deep LE-330 stump grinder by GreenBay is a perfect machine for cutting stubs and tree roots quickly and easily with no damage to the surrounding soil.

This machine is intended for both professionals and DIY enthusiasts and designed for a heavy-duty use.

The GreenBay Deep LE-330 stump grinder can cut up to 330 (13") mm underground and 560 ("22") mm above the surface. Equipped with an adjustable handlebar to fit the machine to any height.

Its compact design proves useful to effortlessly pass through even the tightest spaces.

The engine fitted on the GreenBay Deep LE-330 stump grinder is the Loncin 4-stroke engine with 15 Hp of power and 420 cc of cubic capacity, that features 2 ignition modes:

  • Recoil start
  • Electric start

The cutting action of the GreenBay stump grinder reaches 2500 rpm, thanks to the cutting disc equipped with 8 blades that protrude both internally and externally.

The construction materials are among the best on the market and suitable for this type of work:

  • 42CrMo steel type with HRC40-42 hardness (the material used for the machine body construction)
  • Tungsten (implemented in the manufactured of the 8 cutting blades)

Essential machine to be used after cutting plants to remove the remaining stump and quickly restore the affected area.

Loncin G420FD 15 Hp engine

Main features:

  • Engine brand and model: Loncin G 420 FD
  • Single-cylinder engine type : 4-Stroke- OHV
  • Cylinder type: Aluminium
  • Cubic capacity: 420 cm³
  • Power breakdown: 15 Hp
  • Type of ignition: Electric with key

Equipped with electric ignition with key.

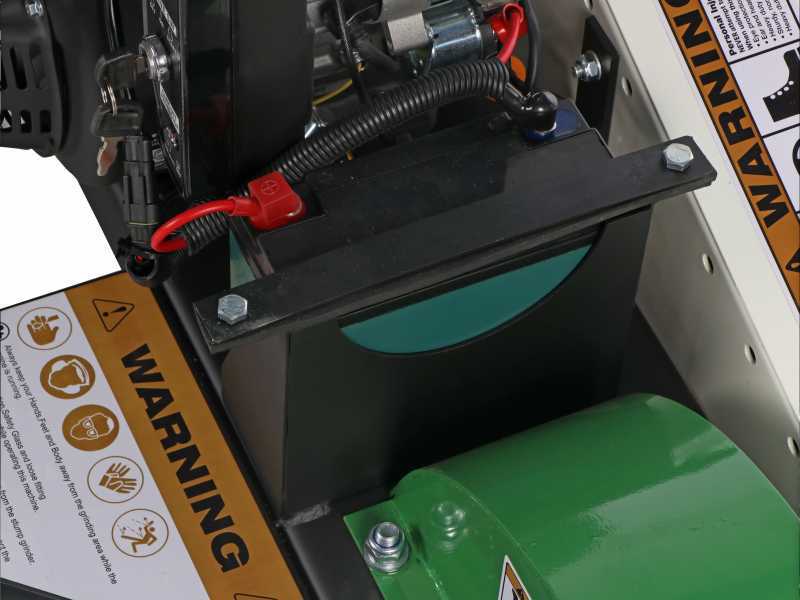

Focus on the battery compartment for the 12 V 20 Ah battery.

The engine on this stump grinder is equipped with electric start.

Nominal Power: 15 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 12.2 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Carefully read the instruction manual before starting the unit.

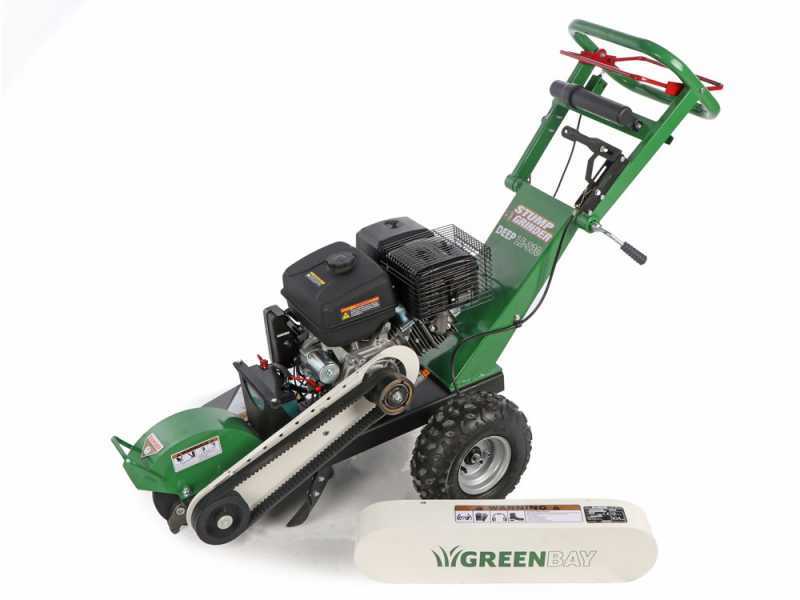

Belt drive

The stump grinder is equipped with a belt drive.

This feature gives the machine an unmatched sturdiness, protecting both the engine and the entire grinding system from any kind of internal shock or kickback.

Higher durability over time compared to the traditional systems used by all manufacturers featuring an 2/4-stroke engine directly connected to the grinding unit.

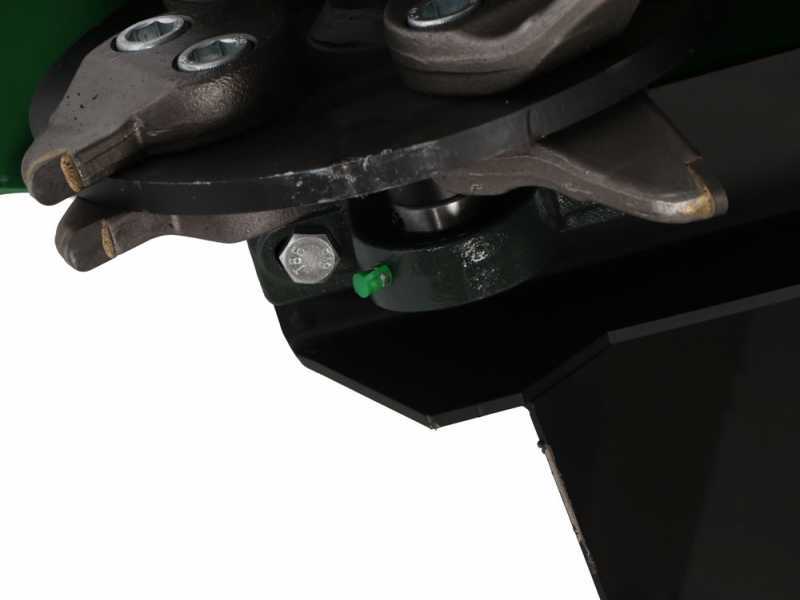

Cutting unit

The cutting disc with 8 blades with tungsten carbide beating pinions with 2 different bit spacing enhances the cutting performance of the stump grinder and allows to mill large tree stubs and cut down roots in an easy and efficient way.

The Deep LE-330 stump grinder comes with a cutting depth of 330 mm (13") underground and 560 mm (22") above the surface.

For improved milling performance, the cutting disc mounted on this model features blades that protrude both inwards and outwards

With a compact, narrow-shaped design, it can be conveniently used in tight spaces.

The stump grinder sets no limits on maximum cutting diameter.

Focus on the rotor lubrication system

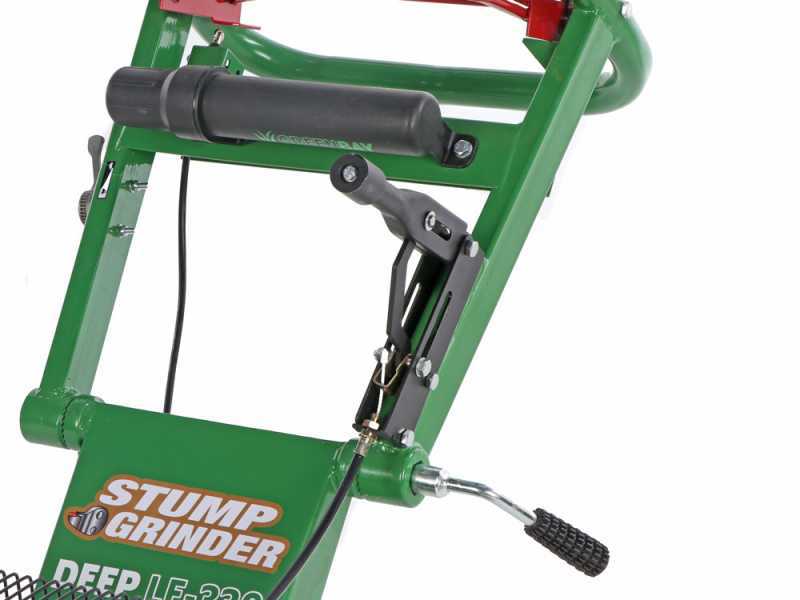

Controls on the handle

The main controls of the machine are user-friendly and easy to use.

Equipped with a drive handle

Safety lever: The safety lever must be held against the handle during operation. If you release the lever, the engine will stop.

Brake lever:

  • 1 Lever with unlocked handbrake
  • 2 Brake lever pulled upwards to stop machine movement

Main features

145-6 tyres, perfect for all types of terrain and with excellent manoeuvrability.

Easily accessible wheel brake for safe operation.

Electric start available

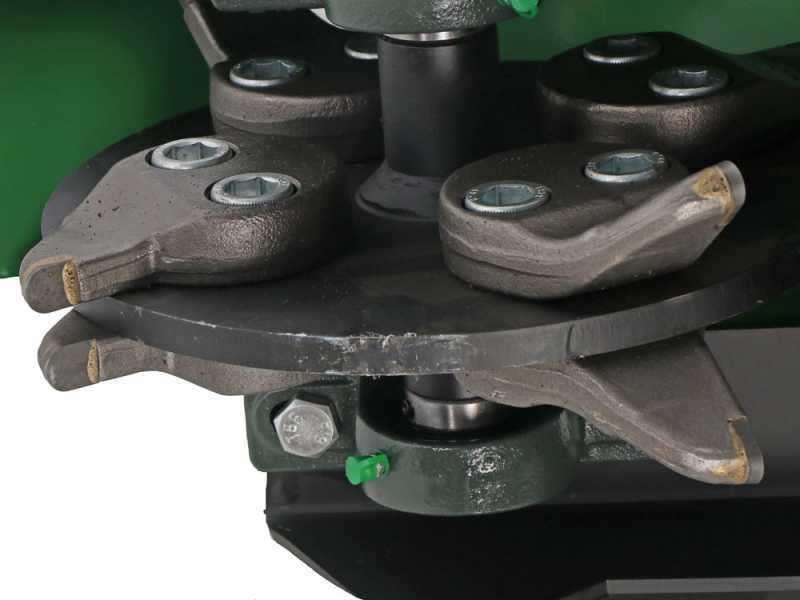

Focus on the cutting disc

Focus on the hammers

5.26 mm thick steel

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Standard equipment

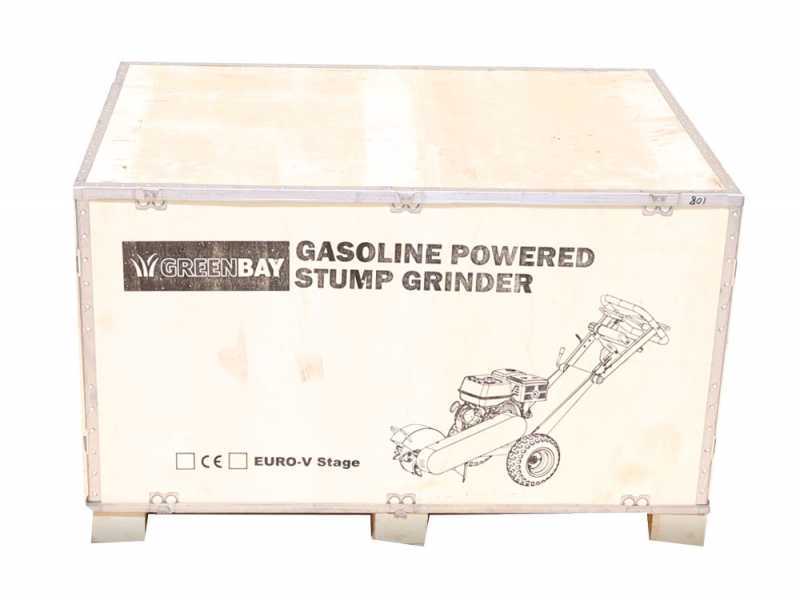

The machine is shipped in its original packaging, in a wooden box.

Instructions manual included
