GreenBay Deep BSE-330 Stump Grinder - B&S XR2100 420 cc Engine with Electric Start - Cutting Disc with 8 Hammers in Tungsten Carbide

Add a question
ID: K604435

EAN: 8054141545069

After-sales assistance & Spare parts
GreenBay Deep BSE-330 Stump Grinder - B&S XR2100 420 cc Engine with Electric Start - Cutting Disc with 8 Hammers in Tungsten Carbide
2 bottles of 1 L oil each2 bottles of 1 L oil each
Body material
Electric start
Motor brand
Motor Model
Motor type
Cubic capacity
420 cm³
Nominal power
15.5 HP
Transmission type
Cutting above the surface
56 cm
Rotor size
200 mm
Number of teeth
Product Features
Deep BSE-330
Body material:
Operating mode:
Spark ignition
Electric start:
Manufacturing country:
Motor data
Motor brand:
Motor Model:
Motor type:
Cubic capacity:
420 cm³
No. of cylinders:
Nominal power:
15.5 HP
Rated power (HP):
13.50 HP
Motor speed:
2500 RPM
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Noise level:
104 dB(A)
Manufacturing country:
Transmission data
Transmission type:
Cutting data
Body material:
Tungsten carbide
Number of teeth:
Underground cutting depth :
33 cm
Cutting above the surface:
56 cm
Rotor size:
200 mm
Battery for electric start:
Motor safety brake:
Electric start with key :
Recoil start system (with rope):
Rear wheels size:
Free gifts/extra features
Engine oil bottle for free:
Wooden pallet (safe shipping):
Instructions manual:
Dimensions and logistics

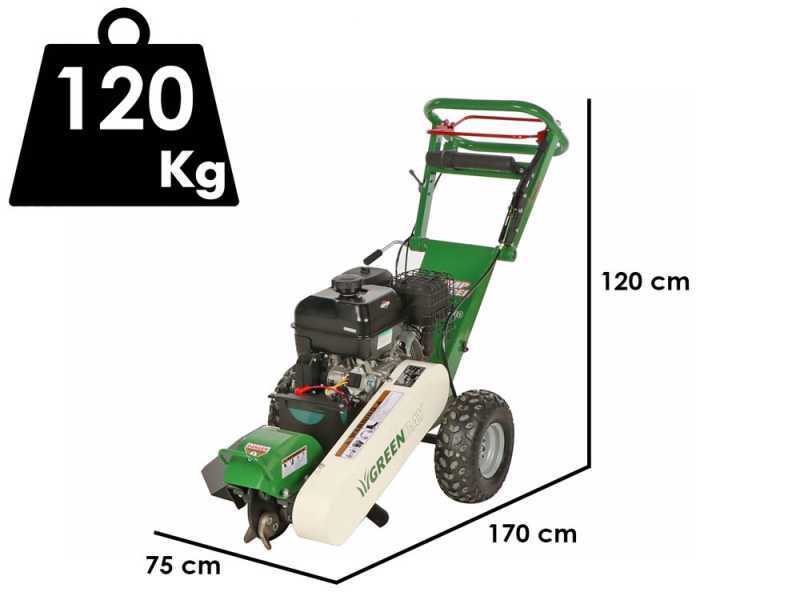

Product dimensions in cm (L x W x H):
170x70x120 cm
Net weight:
104 Kg
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
107x75x80 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Assembly time:
60 minutes
Out of stock
Free Shipping
Suggested price:
€ 1.705,80
€ 1.449,93
VAT Included
You're viewing:
Customers also viewed:

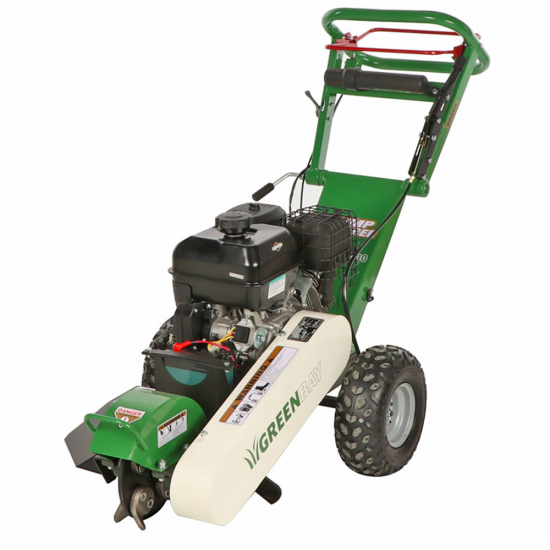

GreenBay Deep BSE-330 Stump Grinder

The Deep BSE-330 stump grinder by GreenBay is a heavy-duty machine perfect for cutting stubs and tree roots with ease.

This product allows performing milling in a quick and easy way without damaging the surrounding soil.

The GreenBay Deep BSE-330 stump grinder can cut up to 330 (13") mm underground and 560 (22") mm above the surface.

Equipped with an adjustable handlebar to fit the machine to any height.

Besides compact, the Deep BSE-330 proves functional and powerful, and is instead very practical to use through even the tightest spaces effortlessly.

The engine fitted on the GreenBay BSE-330 stump grinder is the Briggs & Stratton XR2100 4-stroke engine with 15.5 Hp of power and 420 cc of cubic capacity, that features 2 ignition modes:

  • Electric start
  • Recoil start

The cutting action of the GreenBay stump grinder reaches 2500 rpm, thanks to the cutting disc equipped with 8 blades that protrude both internally and externally.

The construction materials are among the best on the market and suitable for this type of work:

  • 42CrMo steel type with HRC40-42 hardness (the material used for the machine body construction)
  • Tungsten (implemented in the manufactured of the 8 cutting blades)

Essential machine to be used after cutting plants to remove the remaining stump and quickly restore the affected area.

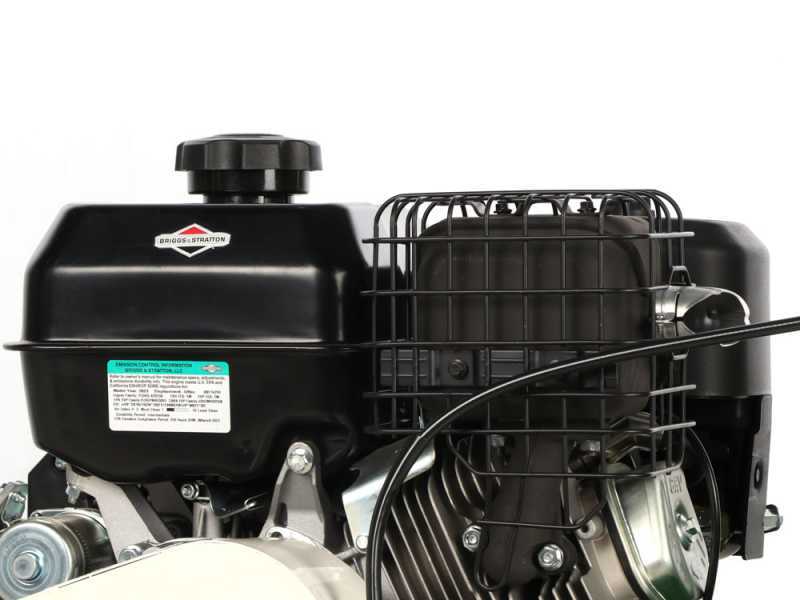

Briggs&Stratton 420 cc engine with electric start

The stump grinder mounts a powerful Briggs & StrattonXR2100 4-stroke air-cooled 420 cc engine, with overhead valves and aluminium cylinder.

Main features:

Engine type:
Single cylinder 4-stroke - OHV
Cylinder type:
Engine cooling:
air cooled
Cubic capacity:
420 cm³
Power supply:
Starting mode:
Tank capacity:
6.6 L

The engine is also equipped with recoil start. The starting system is equipped with battery.

Focus on the ignition lock with keys

Focus on the throttle lever

Focus on the air adjustment lever and the tank level indicator

Focus on the air filter

Focus on the spark plug

Nominal Power: 15.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 13.5 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

Please carefully read the instructions manual before starting the unit.

The engine is started electrically by key.

CAUTION: running the engine at less than maximum rpm, in addition to not grinding stubs efficiently and not being able to cut larger diameters, can lead to a whole series of anomalies:
- lowering of engine speed or switching off of the engine during use;
- rapid wear of drive belts between engine and rotor;
- damage to the centrifugal clutch, which, if the engine is not at maximum rpm, does not expand fully, causing it to wear out and have to be replaced;

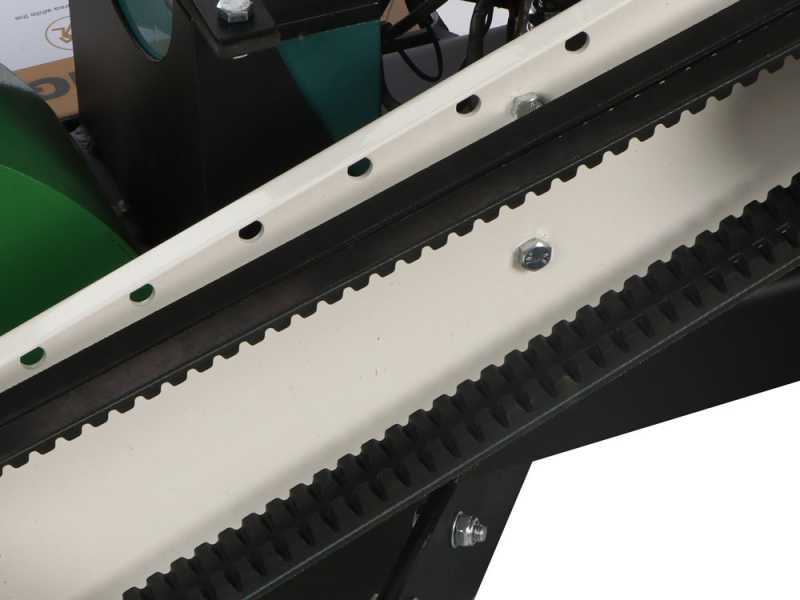

Belt drive

The stump grinder is equipped with a belt drive.

This feature gives the machine an unmatched sturdiness, protecting both the engine and the entire grinding system from any kind of internal shock or kickback.

Higher durability over time compared to the traditional systems used by all manufacturers featuring an 2/4-stroke engine directly connected to the grinding unit.

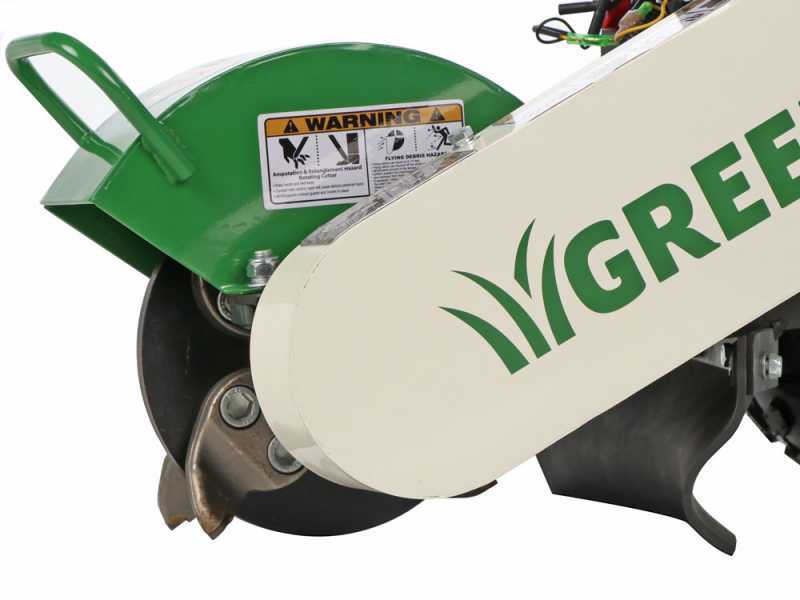

Cutting unit

The cutting disc with 8 blades with tungsten carbide beating pinions with 2 different bit spacing enhances the cutting performance of the stump grinder and allows to mill large tree stubs and cut down roots in an easy and efficient way.

The Deep LE-330 stump grinder comes with a cutting depth of 330 mm (13") underground and 560 mm (22") above ground.

For improved milling performance, the cutting disc mounted on this model features blades that protrude both inwards and outwards

With a compact, narrow-shaped design, it can be conveniently used in tight spaces.

The stump grinder sets no limits on maximum cutting diameter.

Focus on the rotor lubrication system

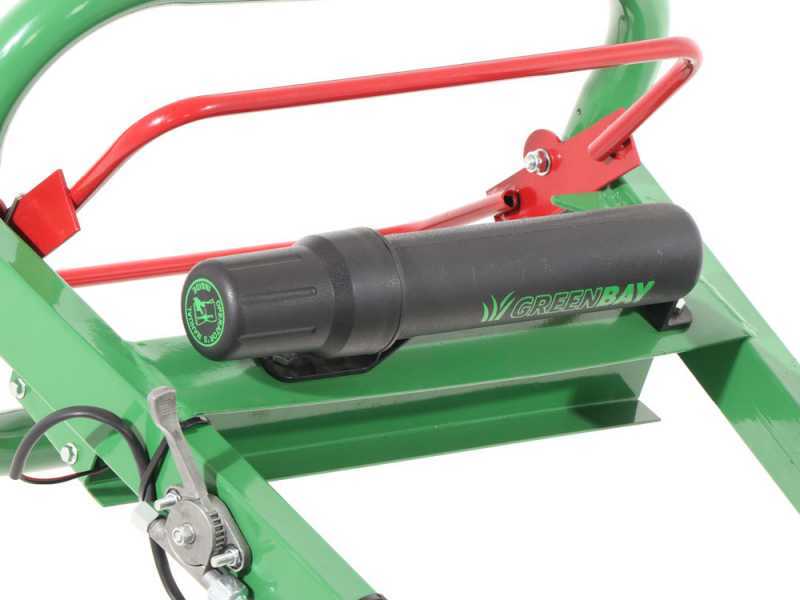

Controls on the handle

The main controls of the machine are user-friendly and easy to use.

Equipped with a drive handle

Safety lever: The safety lever must be held against the handle during operation. If you release the lever, the engine will stop.

Brake lever:

  • 1 Lever with unlocked handbrake
  • 2 Brake lever pulled upwards to stop machine movement


Main features

145-6 tyres, perfect for all types of terrain and with excellent manoeuvrability.

Easily accessible wheel brake for safe operation.

Electric start available

Focus on the cutting disc

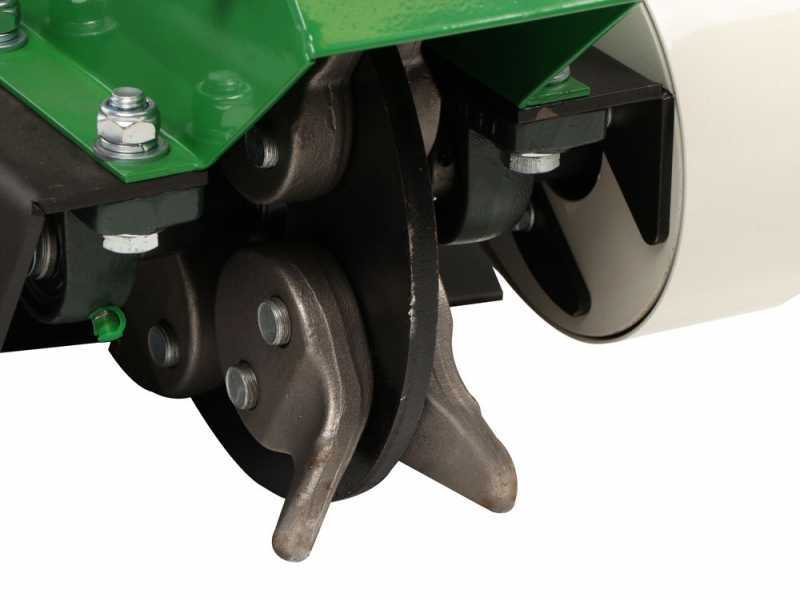

Focus on the hammers

5.26 mm thick steel

Free items & Standard equipment

Free Items Included


2 bottles of 10W40 oil, specific for 4-stroke engines

Standard equipment

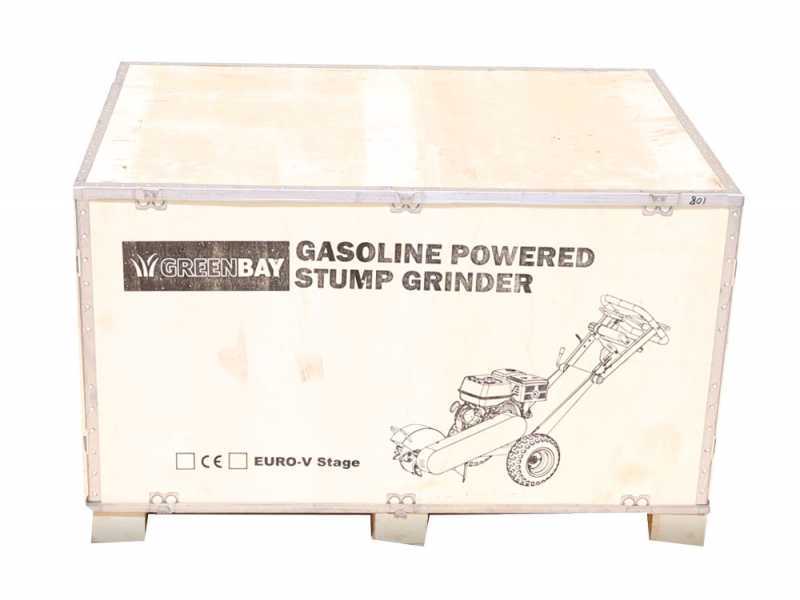

The machine is shipped in its original packaging, in a wooden box.

Instructions manual included
