GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

Hobby
Questions & Answers (1)
ID: K604418

EAN: 8054141545045

GreenBay
Catalog GreenBay
8,9/10
After-sales assistance & Spare parts
42Pictures
1Videos
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Body material
Steel
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Transmission type
Belt
Cutting above the surface
37 cm
Rotor size
200 mm
Number of teeth
8
Product Features
Model:
Deep L-200
Body material:
Steel
Operating mode:
Spark ignition
Self-propelling:
Hand-pushed
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
5.1 HP
Motor speed:
2200 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
3.6 L
Noise level:
101 dB(A)
Manufacturing country:
China
Transmission data
Transmission type:
Belt
Cutting data
Body material:
Tungsten carbide
Number of teeth:
8
Underground cutting depth :
20 cm
Cutting above the surface:
37 cm
Rotor size:
200 mm
Equipment
Motor safety brake:
Yes
Recoil start system (with rope):
Yes
Rear wheels size:
140x70-6
Free gifts/extra features
Engine oil bottle for free:
2
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics

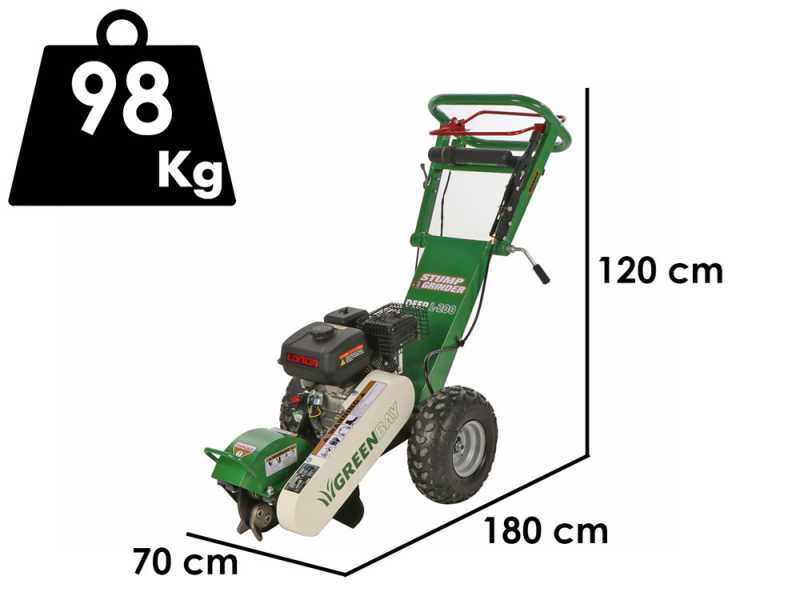

Product dimensions in cm (L x W x H):
180x70x120 cm
Net weight:
98 Kg
Packaging:
Original wooden box
Original packaging/s dimensions in cm (L x W x H):
107x75x66 cm
Gross weight (packaging included) :
120 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Out of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt) *
Suggested price:
€ 1.153,16
€ 980,19
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

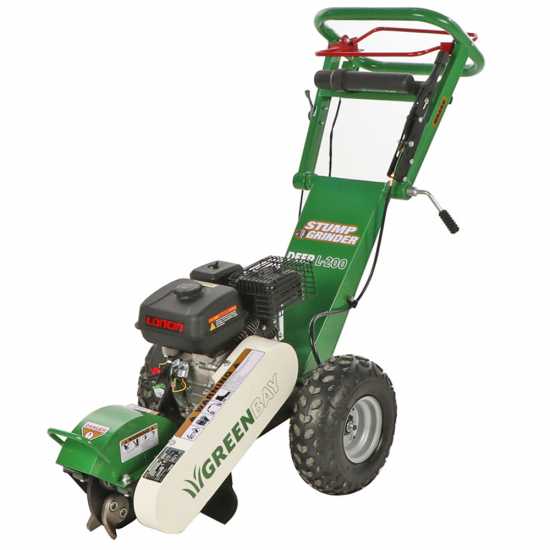

GreenBay Deep L-200 Stump Grinder

The Deep L-200 stump grinder by GreenBay is a heavy-duty machine perfect for cutting stubs and tree roots with ease. This machine can cut up to 200 (8") mm underground and 370 (15") mm above the surface.

The Deep L-200 compact design proves useful to effortlessly pass through even the tightest spaces.

Equipped with an adjustable handlebar to fit the machine to any height.

This GreenBay stump grinder stands out for the high cutting action, thanks to its cutting disc with 8 blades made of Tungsten.

The engine mounted on this machine by GreenBay is a Loncin G200F engine with 196 cc of cubic capacity, which delivers 6.5 Hp of power with a belt drive. The Loncin 4-stroke engine features a recoil start and transfers power to the cutting disc that reaches 2200 rpm.

The construction materials are among the best on the market and suitable for this type of work:

  • 42CrMo steel type with HRC40-42 hardness (the material used for the machine body construction)
  • Tungsten (implemented in the manufactured of the 8 cutting blades)

Essential machine to be used after cutting plants to remove the remaining stump and quickly restore the affected area.

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

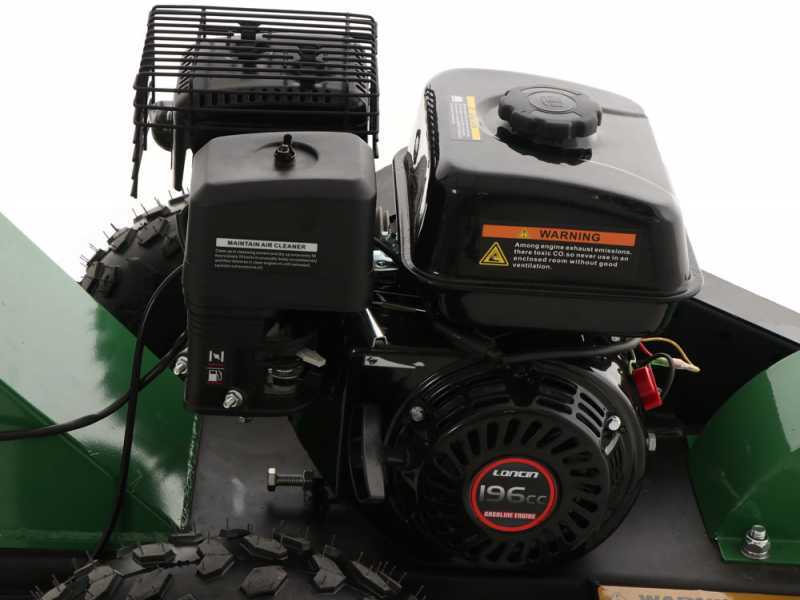

Loncin engine

The GreenBay Deep L-200 stump grinder is fitted with a high-performance Loncin 4-stroke engine with 196 cc of cubic capacity.

Main features:

Engine type:
Single-cylinder 4-stroke - OHC
Cylinder type:
Aluminium
Cubic capacity:
196 cm³

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.1 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

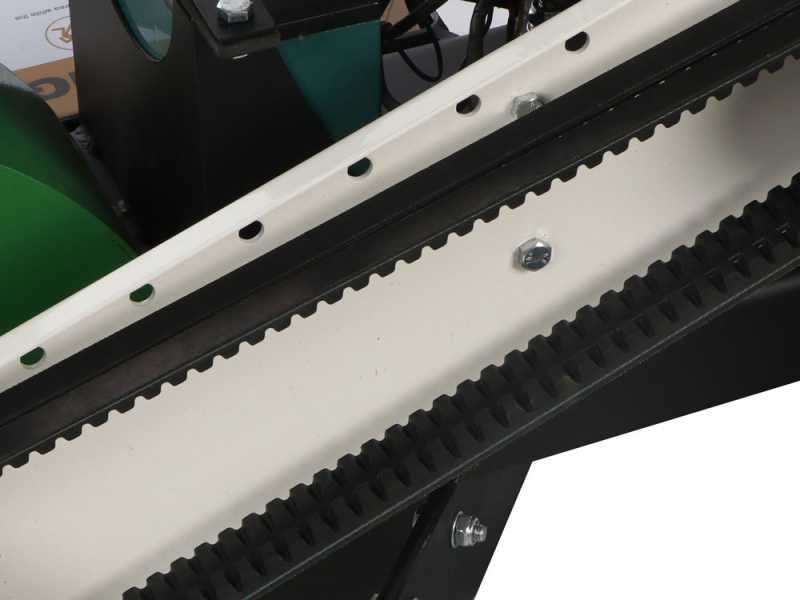

Belt drive

The stump grinder is equipped with a belt drive.

This feature gives the machine an unmatched sturdiness, protecting both the engine and the entire grinding system from any kind of internal shock or kickback.

Higher durability over time compared to the traditional systems used by all manufacturers featuring an 2/4-stroke engine directly connected to the grinding unit.

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

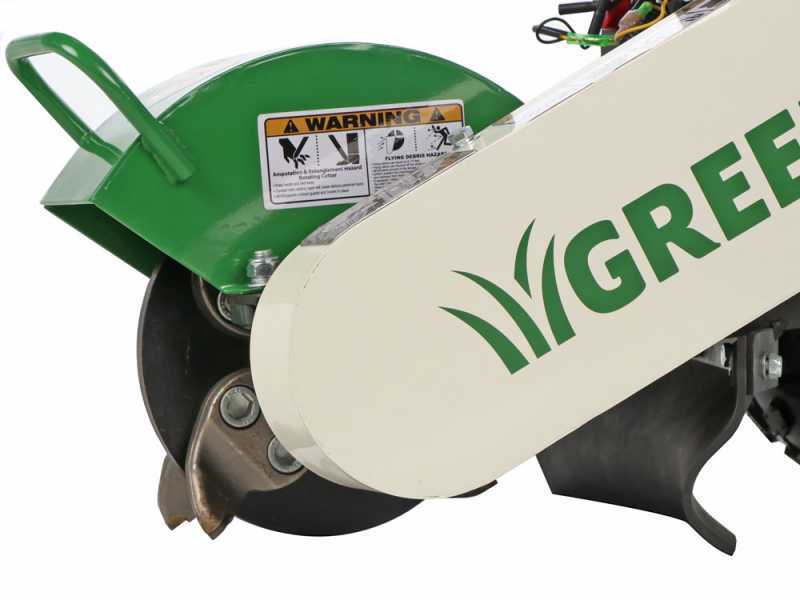

Cutting unit

The cutting disc with 8 blades with tungsten carbide beating pinions with 2 different bit spacing enhances the cutting performance of the stump grinder and allows to mill large tree stubs and cut down roots in an easy and efficient way.

The Deep L-200 stump grinder comes with a cutting depth of 200 mm (8") underground and 370 mm (15") above the surface.

For improved milling performance, the cutting disc mounted on this model features blades that protrude both inwards and outwards

With a compact, narrow-shaped design, it can be conveniently used in tight spaces.

The stump grinder sets no limits on maximum cutting diameter.

Focus on the rotor lubrication system

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

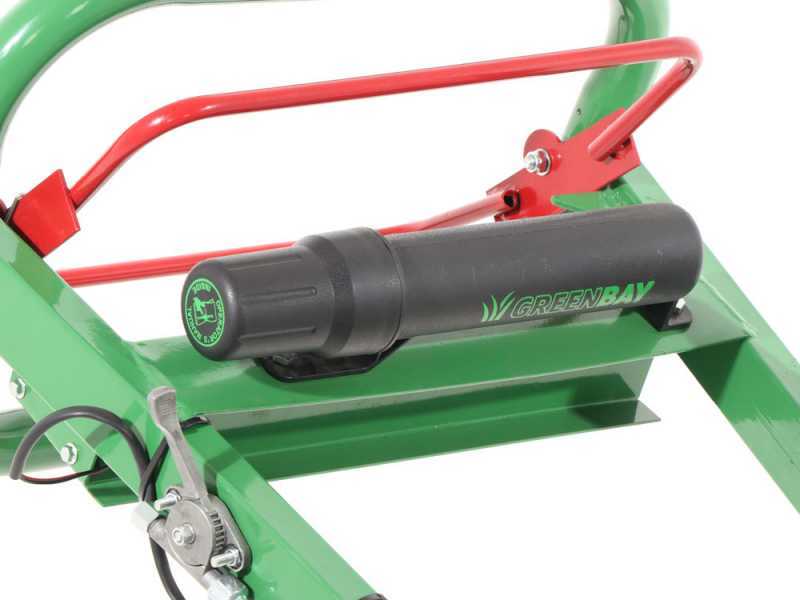

Controls on the handle

The main controls of the machine are user-friendly and easy to use.

Equipped with a drive handle

Safety lever: The safety lever must be held against the handle during operation. If you release the lever, the engine will stop.

Brake lever:

  • 1 Lever with unlocked handbrake
  • 2 Brake lever pulled upwards to stop machine movement

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

Main features

140-6 tyres, perfect for all types of terrain and with excellent manoeuvrability.

Easily accessible wheel brake for safe operation.

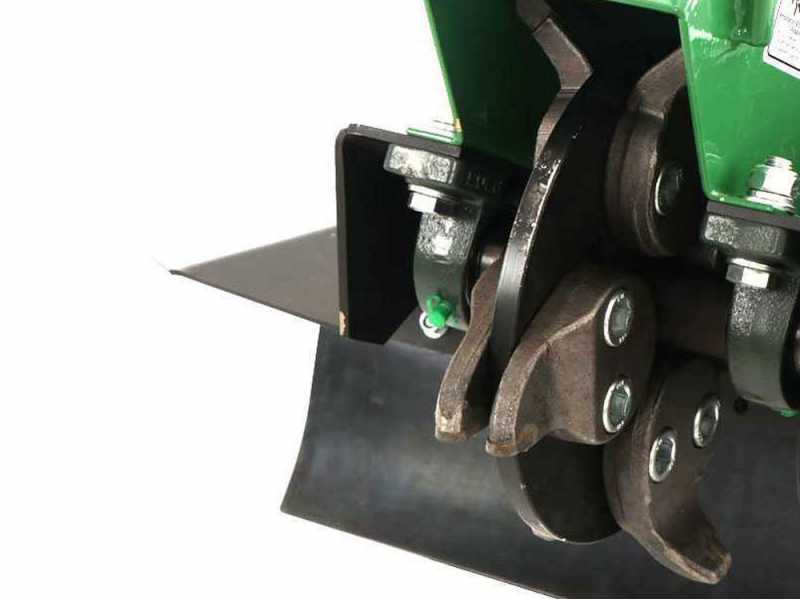

Focus on the cutting disc

Focus on the hammers

5.26 mm thick steel

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide

Standard equipment

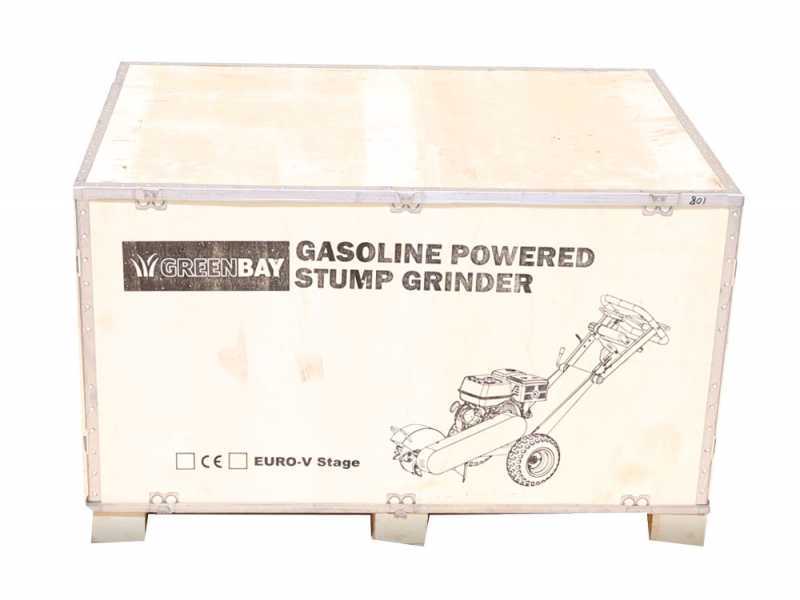

The machine is shipped in its original packaging, in a wooden box.

Instructions manual included

GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide GreenBay Deep L-200 Stump Grinder - Loncin 196 cc Engine - Cutting Disc with 8 Hammers in Tungsten Carbide
