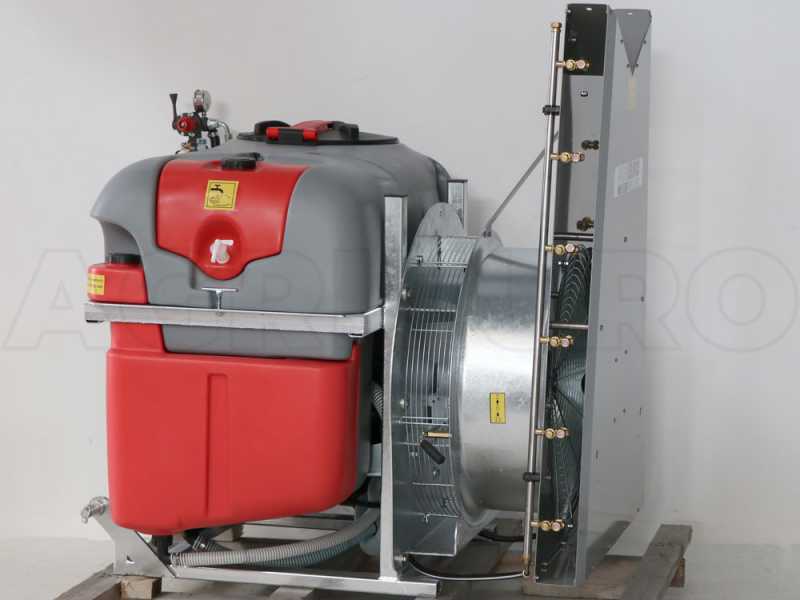

Gray Tower Reverse 400/70 -Tractor-Mounted Mist Blower for Spraying - Capacity 400 L - Pump AR713

The new Agrieuro Top-Line agricultural tractor-mounted sprayer is a device used for spraying plant protection products and other chemicals on the plants. The sprayer is connected to the tractor through a three-point hitch, which makes it easy to transport and use.

The operation of the sprayer is quite simple: the product is mixed with water inside the sprayer's tank, and is then sprayed onto the plants through the large 700 mm fan that generates a strong circular air flow that pushes the droplets already emitted and pulverised by the jets. The nozzles are designed to create a fine spray that settles evenly on the surface of the plants.

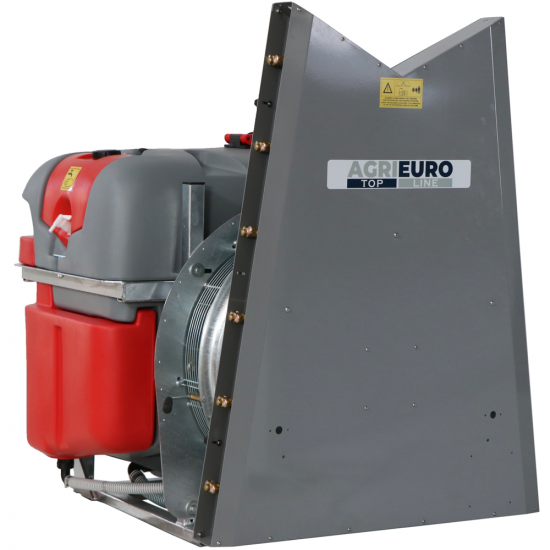

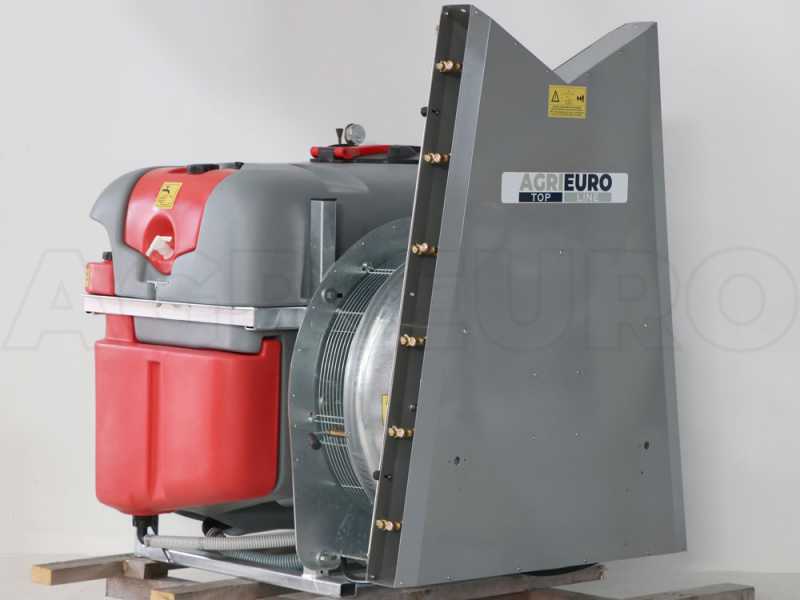

The vertical conveyor, fitted on this sprayer, is a system that allows the product to be distributed evenly over the entire plant, even in the most difficult-to-reach areas, compared to a rear and front vacuum system. The vertical conveyor consists of 6 nozzles on each side, arranged in such a way that the product is evenly distributed. This type of atomiser is particularly useful as it saves time and energy, thanks to its ability to cover large areas in a short time. Furthermore, the uniform product coverage reduces the risk of loss of product efficiency and the need for repeated applications.

One of the advantages of the agricultural tractor sprayer is its versatility. It can be used for spraying a wide range of chemicals, such as fungicides, insecticides and herbicides. In addition, the sprayer can cover large areas quickly and efficiently, making it an ideal option for farmers cultivating large fields through its 400 L tank.

Frame made of Swedish steel with hot-dip galvanisation treatment, which makes it very resistant to rust attack over time.

However, it is important to use the atomiser responsibly, avoiding excess chemicals and respecting local safety rules and regulations.

Thanks to its versatility and ability to cover large areas quickly and efficiently, it has become a popular choice among farmers around the world.

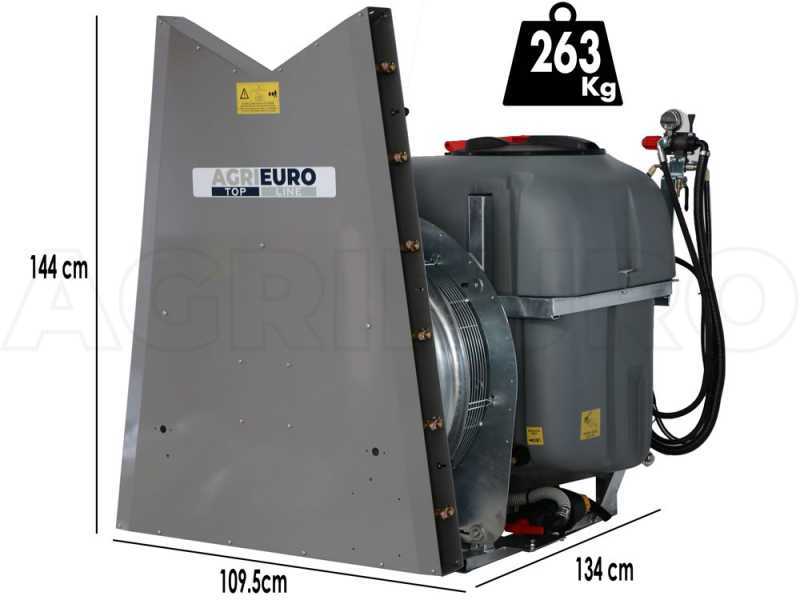

CAUTION: It is strongly recommended that you carefully check the lifting capacity of your tractor, taking into account the total weight of the machine when fully loaded.

Swedish steel fan unit with hot-dip galvanisation treatment, equipped with oil-bath gearbox.

Reverse front inlet fan with a diameter of 700 mm (9 blades).

The vertical conveyor end plate is powder-coated

The sprayer fan is the essential element that determines the power of the mist blower, thus determining its ability to push the atomised product in width and height. The nylon fans guarantee excellent weather resistance.

The sprayer with front suction has the advantage, compared to rear suction, of a flow directed to the rear side, eliminating the re-suction of the phytoiatric mixture, thus limiting the deposit of foliage and debris towards the flow suction grid and distancing the operator from the sprayed flow. This significantly reduces the risk of operator and animal exposure to chemicals, thus improving workplace health and safety, as well as improving spraying efficiency by reducing chemical consumption. This feature is further emphasised by the vertical conveyor.

Thanks to its front vacuum feature, the sprayer is more effective in the cultivation of orchards and vineyards, since it allows plant protection products to be sprayed on the branches and leaves of trees and vines without risking contamination of operators or nearby crops.

The sprayer's transmission is an oil-bath gearbox for maximum reliability over time.

The gearbox is manufactured in Italy by CMV of Lonigo. (Box made of cast iron)

Made in Italy guarantees excellent construction quality and materials for this component, as well as easy availability of spare parts if needed.

Focus on the fan drive engagement lever with speed 1° and 2° + neutral position.

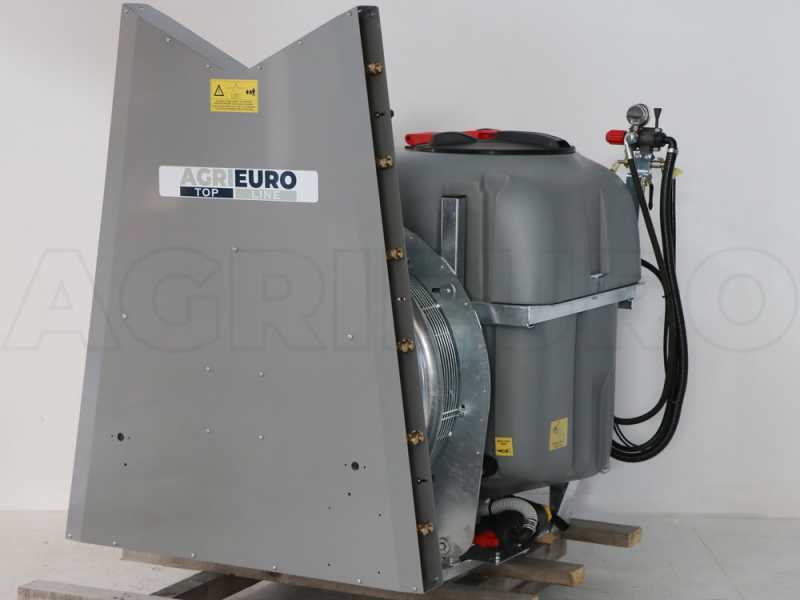

Stainless steel spray rods divided into two sectors, a left one with 6 jets and a right one with the other 6 jets.

Double brass spray nozzles with anti-drop and quick-closing system.

Ceramic nozzles 1.0 / 1.2

Provided with three steps that coincide with the positions:

• Nozzle with larger hole (higher liquid delivery)
• Central position = closed jet
• Nozzle with smaller hole (less liquid delivery)

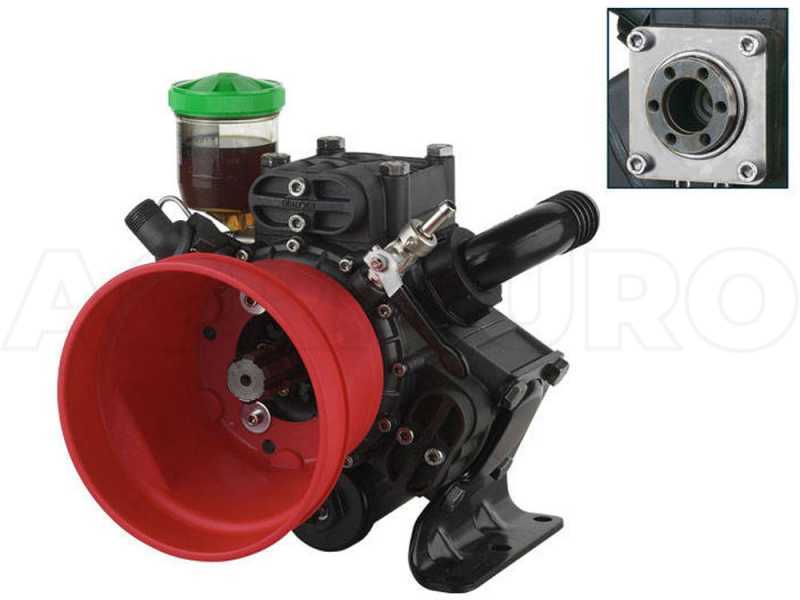

Annovi Reverberi AR-713 semi-hydraulic three-diaphragm aluminium pump used for spraying medium to large crops.

The parts in contact with the liquids are made of anodised aluminium and AISI 303/304. BlueFlex diaphragm that guarantee high standards of durability against chemicals used in plant protection treatments. NBR rubber seals. Die-cast carter with mechanical parts in an oil bath, tank made of transparent plastic material to check the level. Complete with overpressure valve with reset and Cardan protection.

Newly developed membrane locking system to prevent contact tearing even under heavy-duty conditions. Valves with a spherical sector profile that oppose less resistance to the passage of liquid and improve volumetric efficiency.

Performance

• N. membrane / pistons: 3
• Flow rate: 76 L/m
• Pressure: 40.0 bar
• Power: 7,3 CV
• RPM: 550
• Weight: 20.5 Kg

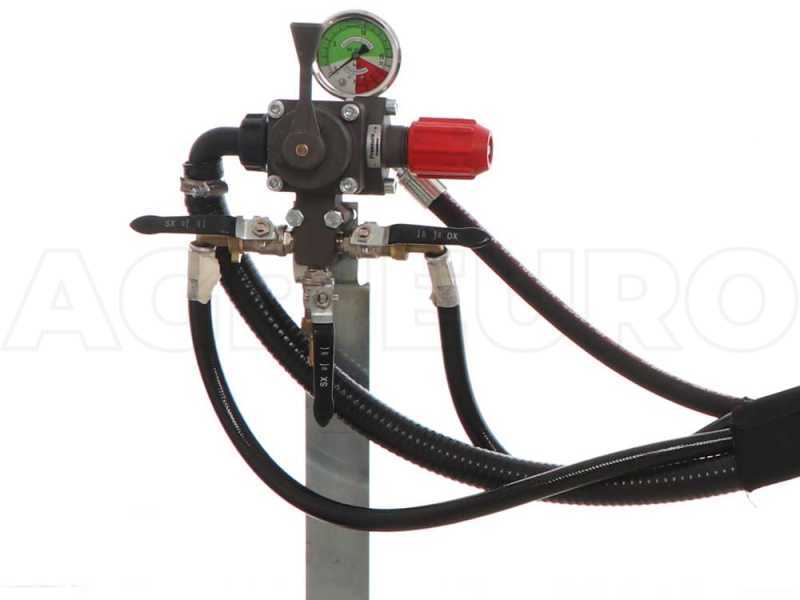

Three-way pressure adjustment unit.

Pressure adjustment knob.

Pressure gauge.

The two side taps supply respectively the right-hand sector of the fan and the left-hand sector.

Control lever for opening or closing the pressure.

This means that the two sectors can also be switched on separately, i.e. only the nozzles on the right-hand side or only on the left-hand side (e.g. when you are on the edge of your plot).

Remote control unit equipped with very long cables, which allows the control unit to be brought right up to the tractor.

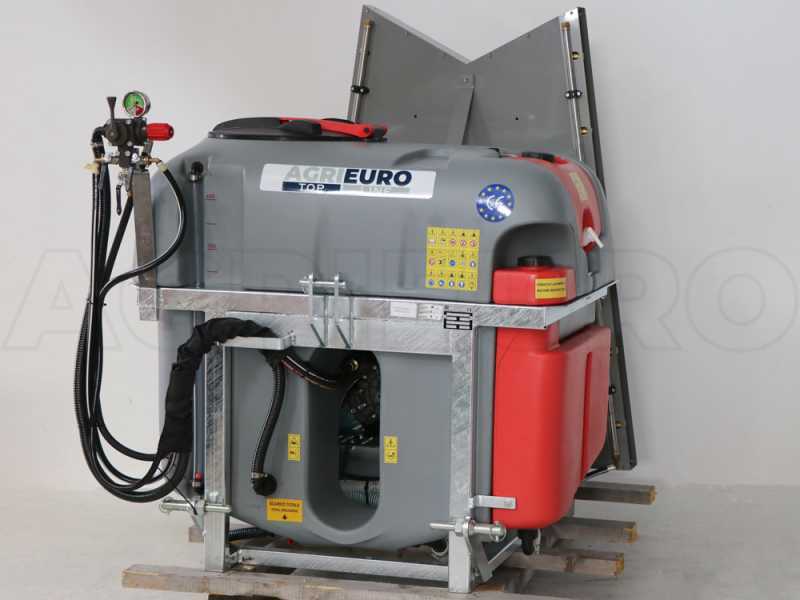

Reinforced Swedish steel frame with hot-dip galvanisation treatment complete with three-point hitch for tractor mounting.

The three-position attachment points to the lift are complete with pins. 1° and 2° category.

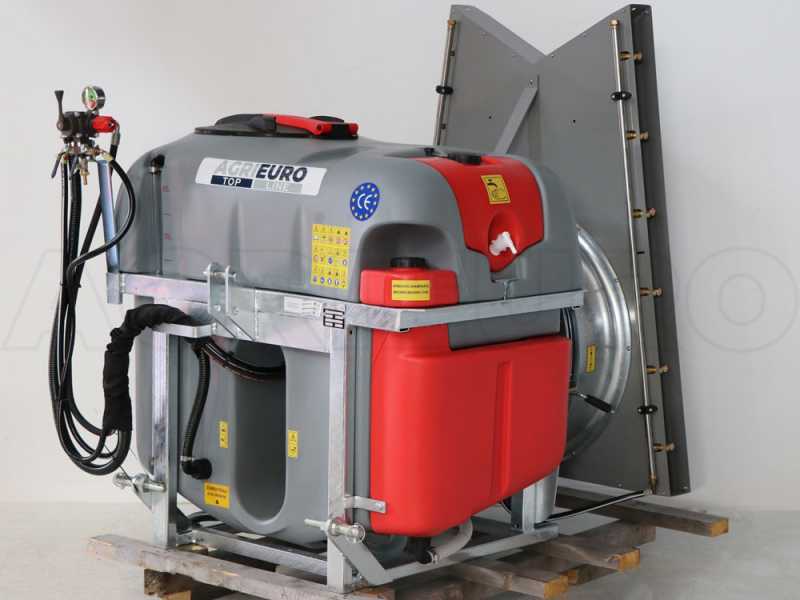

Polyethylene full-emptying tank, capacity (L) 300.

Additional tank for circuit cleaning (dedicated valve).

Detail of the lever for total emptying of the bottom tank.

Multi-volume hydraulic mixer, to constantly blend the solution inside the tank, equipped with a high-pressure spray that shoots into the centre of the tank.

Equipped with a self-filling system (the hose for self-filling the barrel must be purchased additionally).

Focus on the inlet water filter.

Machine in accordance with CE standards
