GeotechPro GeoPorter 630E Hydro - Tracked wheelbarrow - Hydraulic extension skip 600Kg

Questions & Answers (2)
ID: K607610

EAN: 8053435095266

MPN: 630E Hydro

GeotechPro GeoPorter 630E Hydro - Tracked wheelbarrow - Hydraulic extension skip 600Kg
+30 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
600 Kg
Barrow body type
Extendable sides
Body tipping
Hydraulic
Max. slope
25 %
Type
High undercarriage with tracks
Motor brand
Loncin
Motor Model
G270F
Motor type
4-stroke
Cubic capacity
270 cm³
Nominal power
9 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Tilting track
Product Features
Model:
GeoPorter 630E Hydro
Type :
High undercarriage with tracks
Self-propelling:
Yes
Load capacity:
600 Kg
Max. slope:
25 %
Flow rate at 20% slope:
600 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Extendable sides
Extendable body:
Body tipping:
Hydraulic
Box size:
95x63x32.8 cm
Extended box size:
106.5x86x32.8 cm
Effective inner height:
328 mm
High truck:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G270F
Motor type:
4-stroke
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6 L
Oil tank capacity:
0.95 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Lever on the handlebar
Equipment
Hydraulic piston:
Yes
Tubular extension sides:
Yes
Side panels hand levers:
Yes
Box:
With extendable side panels
Hydraulic tipping kit:
Yes
Assisted steering:
Yes
Tilting track:
Track width:
180 mm
Total rollers no.:
4
Recoil start system (with rope):
Yes
Rubber-coated soft grip:
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes

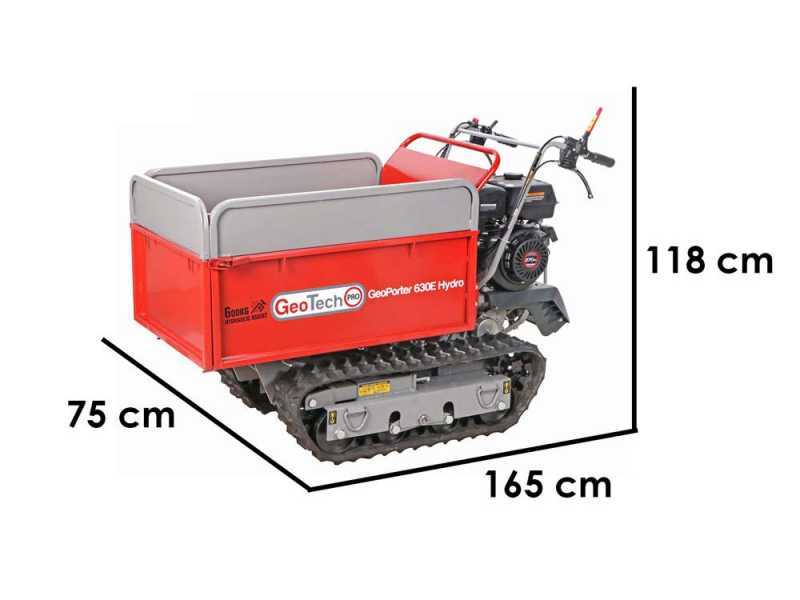

Dimensions and logistics
Product dimensions in cm (L x W x H):
165x76x118 cm
Net weight:
253 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
160x75x104 cm
Gross weight (packaging included) :
290 Kg
Assembly time:
15 minutes
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 2.613,75
VAT Included
You're viewing:
Customers also viewed:
Description

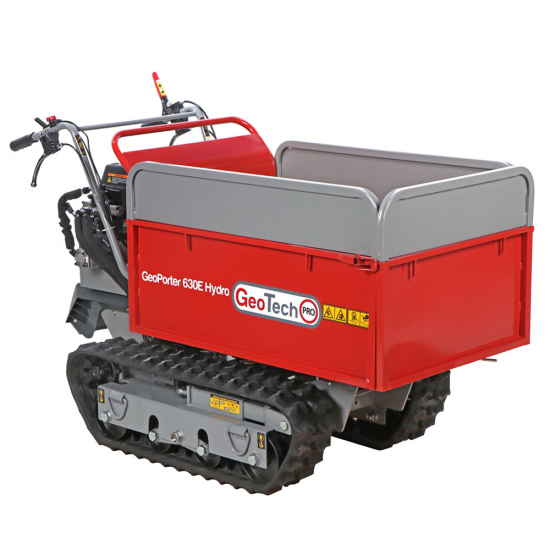

GeoPorter 630E Hydro wheelbarrow

The GeoPorter 630E Hydro wheelbarrow with extendable body is a highly efficient piece of work equipment, designed to handle loads of up to 600 kg with ease.

This tool is characterised by its robust steel frame, which ensures durability and strength, and its versatile gearbox, which has three forward and one reverse gear, optimising manoeuvrability in different working contexts.

One of the outstanding features of this wheelbarrow is the extendable body. This feature allows a significant increase in load capacity, making the equipment particularly suitable for projects that require the transport of large volumes.

In addition, the presence of additional removable side rails further increases the versatility of use, allowing adaptation to various work requirements.

The hydraulic tilting system is a further highlight. This mechanism significantly facilitates material unloading by eliminating the physical effort required to lift the loaded skip.

This feature is particularly useful in working environments where frequent loading and unloading of materials is required.

The wheelbarrow is also equipped with a speed control lever, which allows precise control of the movement, adapting to different types of terrain and inclinations.

The self-propelled track drive and the powerful 9HP Loncin G270F engine guarantee excellent performance even on sloping terrain, making it ideal for all types of transport, even in demanding conditions.

The ability of this wheelbarrow to operate effectively in various conditions makes it indispensable for a wide range of applications in the transport and materials handling sector.

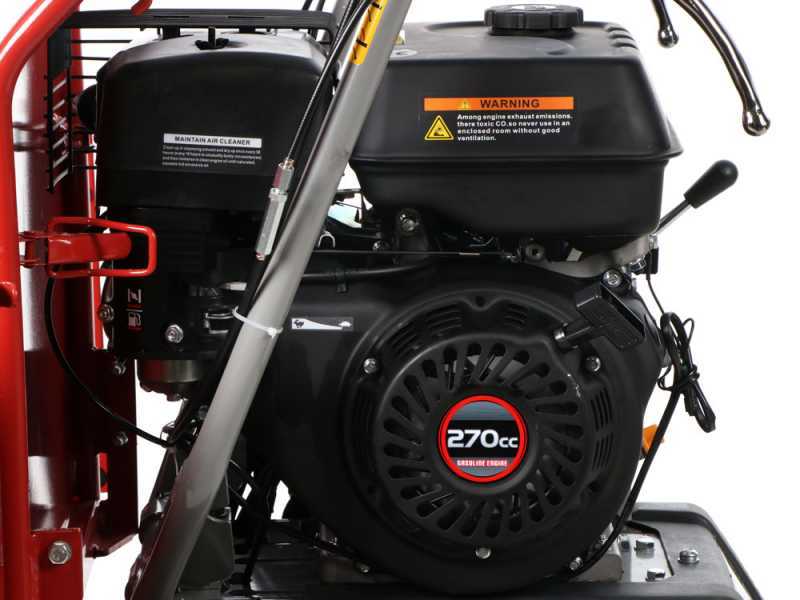

Loncin G270F engine

The Loncin G270F engine is suitable for works requiring great power, and which is obtained thanks to the high displacement of 270 cc.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Cast iron
Cubic capacity
270 cm³
Fuel:
Petrol
Power output
9 HP

ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 9 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is, most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 6.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

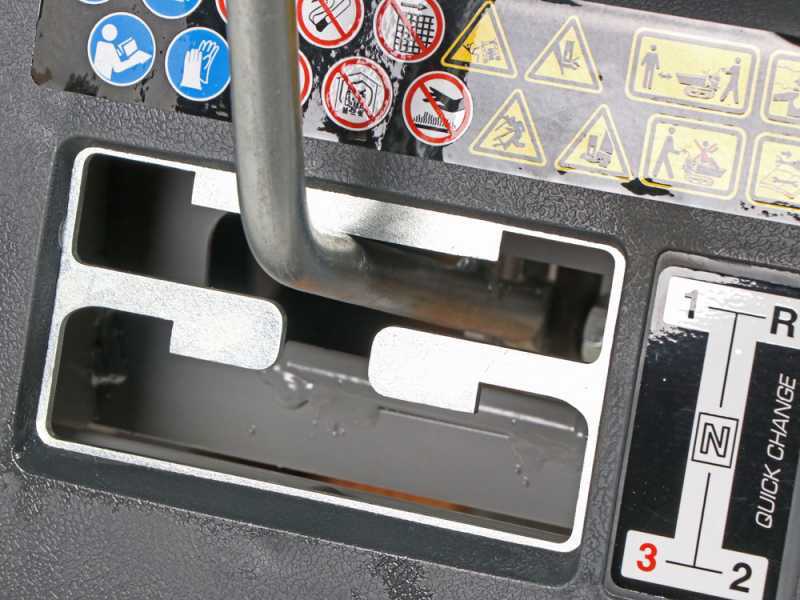

Gearbox, braking system and transmission

Gearbox large, reliable and precise.

Speed:
3 forward gears
1reverse gear


Parking brakes:
Attached to the gearbox, of the over-sized type with internal expansion, for greater stability and safety.
They are automatically activated when the controls are released (leaving the machine in neutral, even on a very steep slope, the machine remains perfectly blocked)


Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

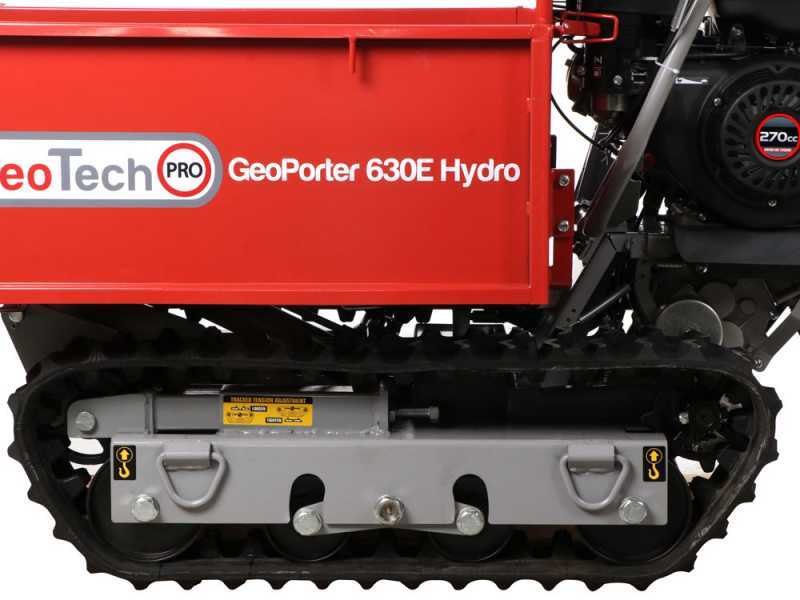

High undercarriage and tipping tracks

The power barrow is equipped with tilting tracks. The two central rollers, unlike the others, are mobile and can move depending on the obstacle in front of them, thus allowing the machine to always have maximum grip on the ground. This wheelbarrow model also has a high chassis and higher tracks than many of the power wheelbarrows on the market.

The shape of the tracks, an inverted trapezoid, allows the wheelbarrow to easily negotiate even the most insidious obstacles such as walls and steps, while still guaranteeing safety and stability. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

Tilting tracks in operation

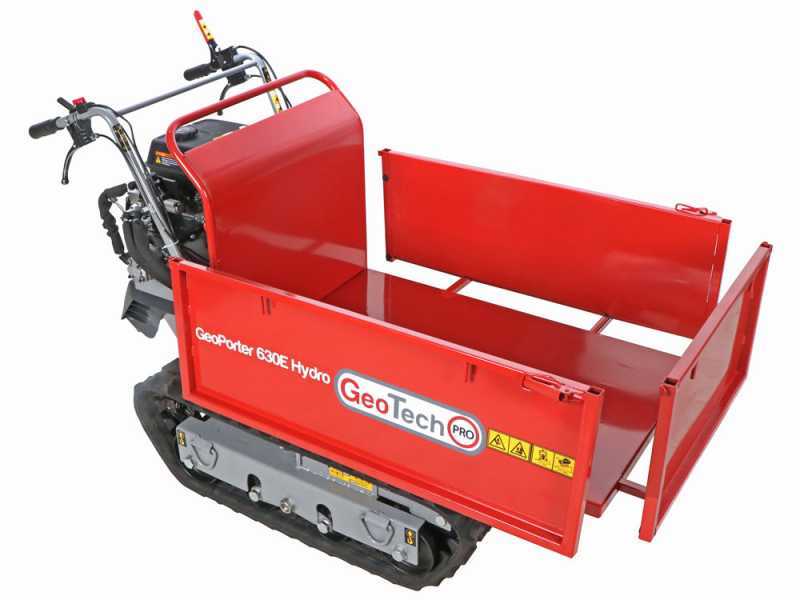

Extendable tipper

The body is made of high-resistance steel and reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading and unloading operations

To make tipping easier by unloading the operator’s weight and to keep the body in the tipped position, the wheelbarrow is equipped with a hydraulic piston under the chassis, which makes all work steps easier.

Load capacity can be increased thanks to extendable tailgates.
In addition to the classic wing nuts underneath the body, the wheelbarrow is equipped with strong hinges
that secure the side rails to each other.

A further solution for increasing the load capacity is to equip it with removable tail lifts.

An example of use is for transporting and loading wood.
Using the tail lifts give the possibility of increasing the load by considerably reducing the number of transports to be carried out for the job.

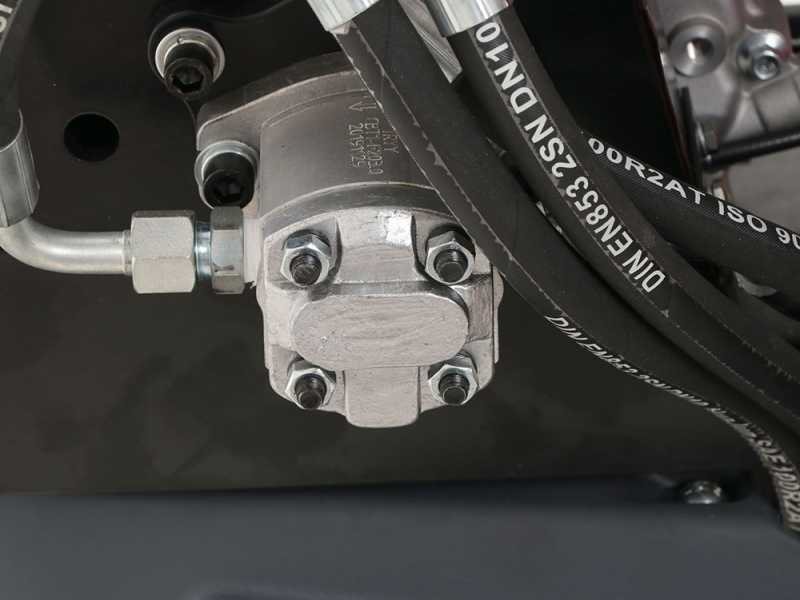

Skip with hydraulic tipping

Powerful hydraulic circuit featuring:

- oversized hydraulic pump:

- distributor with practical pump actuation lever

- robust hydraulic cylinder equipped with a lock valve that ensures that the caisson stops in the event of sudden pressure loss

Maximum tilting angle 80°

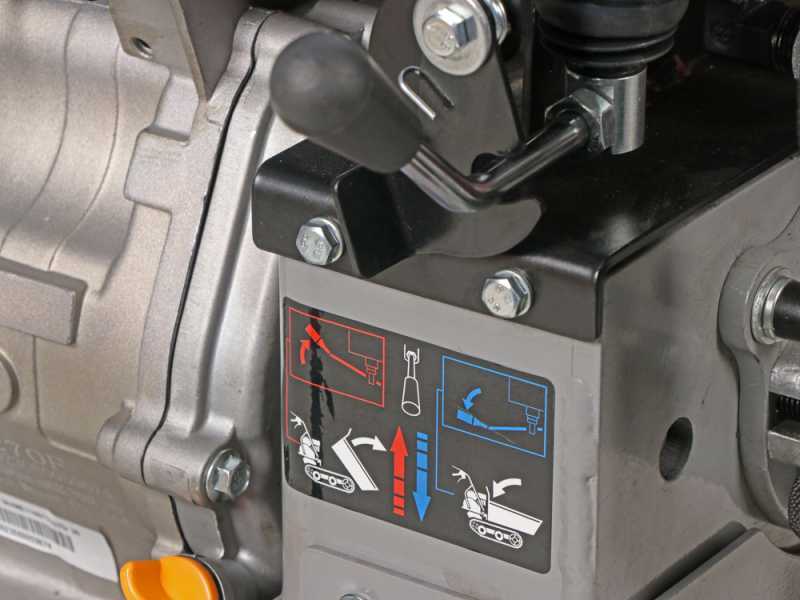

Controls

User-friendly and ergonomic controls offering high control and precision during use.

Large red lever for motion engagement.

The lower lever is for the steering.

The steering can be adjusted depending on the control lever, and it allows moving smoothly. By partially pulling either lever, the steering of the respective track, right or left, will also be partial.
This allows the steering of the wheelbarrow to be steered extremely smoothly, without causing any sudden movements.

Safety brake allows immediate stopping.

Accelerator handle and power supply switch.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

The power barrow is shipped in its original packaging.

Instruction manual and kit of assembly and maintenance tools.
