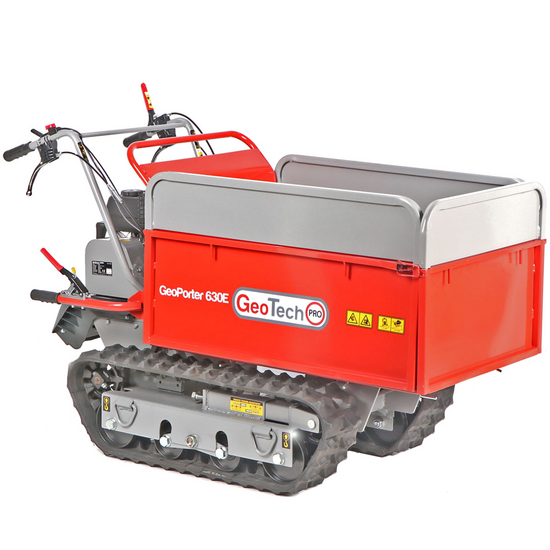

GeotechPro GeoPorter 630E - Crawler Loader - Extending Body 600Kg

Questions & Answers (3)
ID: K607636

EAN: 8053435095259

MPN: GeoPorter 630E

GeotechPro GeoPorter 630E - Crawler Loader - Extending Body 600Kg
+80 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
600 Kg
Barrow body type
Extendable sides
Body tipping
Manual
Max. slope
25 %
Type
High undercarriage with tracks
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Tilting track
Product Features
Model:
GeoPorter 630E
Type :
High undercarriage with tracks
Self-propelling:
Yes
Load capacity:
600 Kg
Max. slope:
25 %
Flow rate at 20% slope:
600 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Extendable sides
Extendable body:
Body tipping:
Manual
Box size:
95x63x32.8 cm
Extended box size:
106.5x86x32.8 cm
Effective inner height:
328 mm
High truck:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Oil tank capacity:
0.6 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Lever on the handlebar
Equipment
Tubular extension sides:
Yes
Side panels hand levers:
Yes
Box:
With extendable side panels
Assisted steering:
Yes
Tilting track:
Track width:
180 mm
Total rollers no.:
4
Recoil start system (with rope):
Yes
Rubber-coated soft grip:
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics

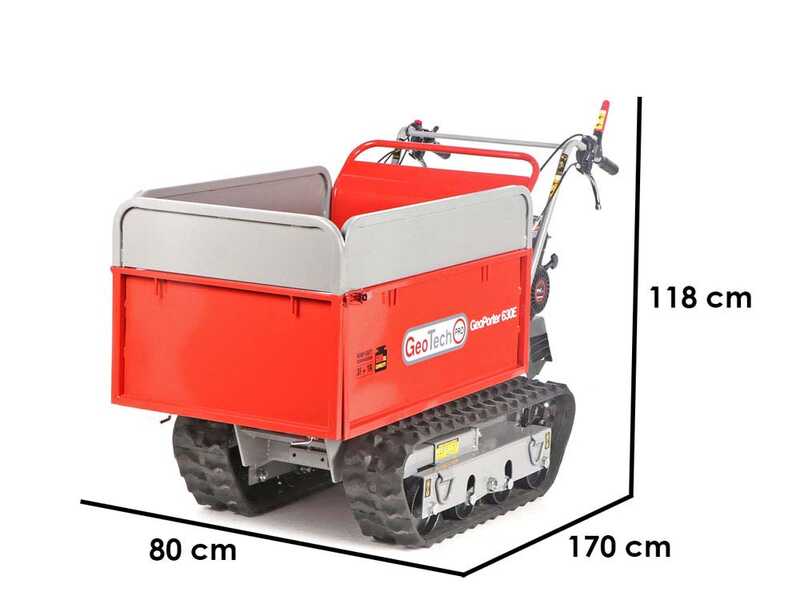

Product dimensions in cm (L x W x H):
170x80x118 cm
Net weight:
228.5 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
138x83x96 cm
Gross weight (packaging included) :
265 Kg
Assembly time:
30 minutes
Out of stock
Free Shipping
€ 2.050,92
VAT Included
You're viewing:
Customers also viewed:
Description

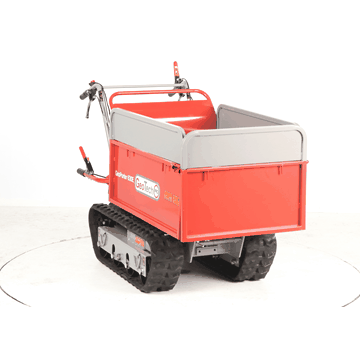

GeoPorter 630E wheelbarrow

The GeoPorter 630E, a wheelbarrow with an extendable body, is the optimal solution for handling heavy loads of up to 600 kg, combining efficiency, robustness and versatility.

This advanced tool is designed to meet the needs of different working environments, ensuring a high level of performance thanks to its superior steel frame that ensures durability and unrivalled strength.

With its flexible gearbox, which includes three forward and one reverse gear, the GeoPorter 630E optimises manoeuvrability in a variety of operating contexts, making transport operations easier and faster.

The main feature of this model is its extendable body, an innovative feature that allows the load capacity to be significantly increased, thus meeting the needs of the most demanding projects that require the transport of large volumes.

The addition of removable tailgates further enhances the versatility of the equipment, allowing it to be easily adapted to different work requirements.

Furthermore, the manual tipping system enhances the value of this tool, facilitating the unloading of materials without requiring excessive physical effort, a feature that is particularly advantageous in working environments where loading and unloading materials is a frequent practice.

The wheelbarrow GeoPorter 630E is also equipped with a speed control lever, which allows precise control of the movement, adapting to different types of terrain and inclinations.

Another distinguishing feature are the pivoting tracks that allow work to be carried out stably and quickly, and to maintain maximum grip with the ground at all times.

This, together with the track drive and powerful 6.5HP Loncin G200F engine, ensures excellent performance even on the most challenging and sloping terrain, confirming its suitability for a wide range of transport and materials handling applications.

Thanks to its ability to operate effectively under a variety of conditions, it stands out as an indispensable choice for professionals and companies in the sector looking for a reliable, high-performance solution to manage their transport and handling projects.

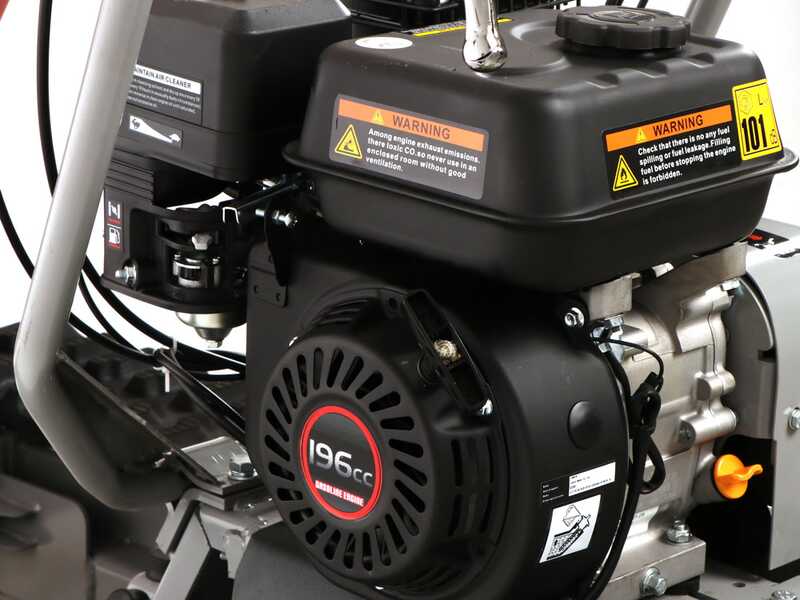

Motore Loncin G200F

The Loncin G200F engine is suitable for jobs where it is required high power due to its high displacement of 196 cc.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Cast iron
Cubic capacity
196 cm³
Fuel:
Petrol
Details of the air filter

Four-Stroke petrol engine of the latest generation with overhead valve “OHV technology.

Easy recoil start
, thanks to the automatic fuel priming system.


ATTENTION, The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

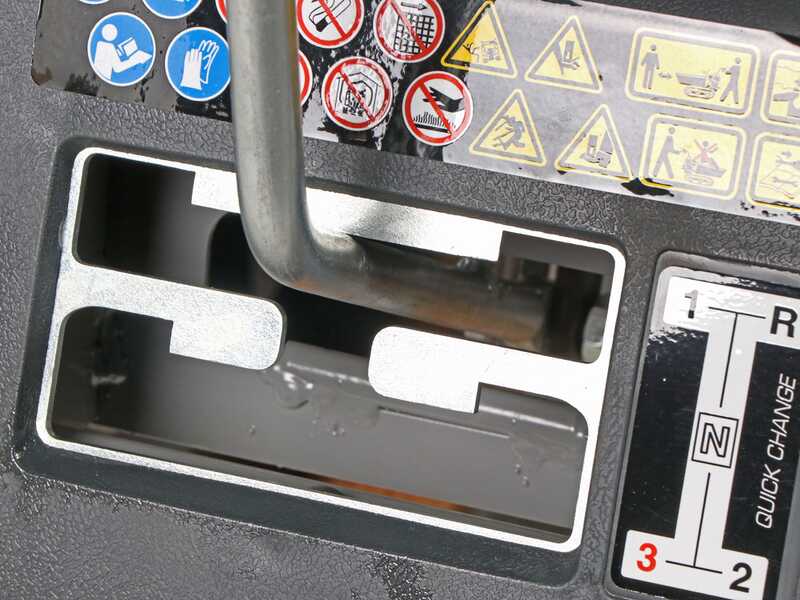

Gearbox, braking system and transmission

Gearbox large, reliable and precise.

Speed:
3 forward gears
1reverse gear


Parking brakes:
Attached to the gearbox, of the over-sized type with internal expansion, for greater stability and safety.
They are automatically activated when the controls are released (leaving the machine in neutral, even on a very steep slope, the machine remains perfectly blocked)


Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

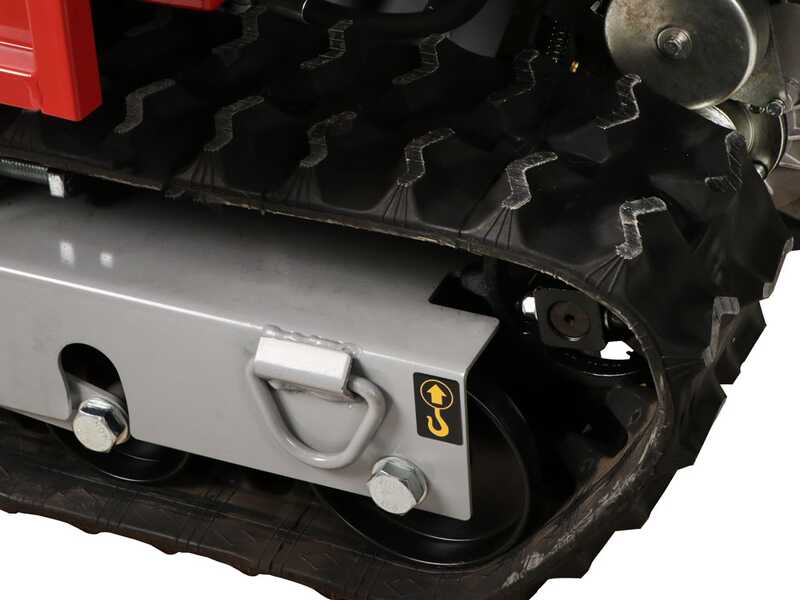

Tilting tracks and high wagon

The power barrow is equipped with tilting tracks. The two central rollers, unlike the others, are mobile and can move depending on the obstacle in front of them, thus allowing the machine to always have maximum grip on the ground. This wheelbarrow model also has a high chassis and higher tracks than many of the power wheelbarrows on the market.

The shape of the tracks, an inverted trapezoid, allows the wheelbarrow to easily negotiate even the most insidious obstacles such as walls and steps, while still guaranteeing safety and stability. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

Tilting tracks in operation

Frame

The robust frame with steel structure in high thickness which limits the vibrations and noise. The low centre of gravity also ensures an optimal stability during the work. The position of the engine and the transmission facilitates maintenance

Adjusting the track tension thanks to the tension springs.

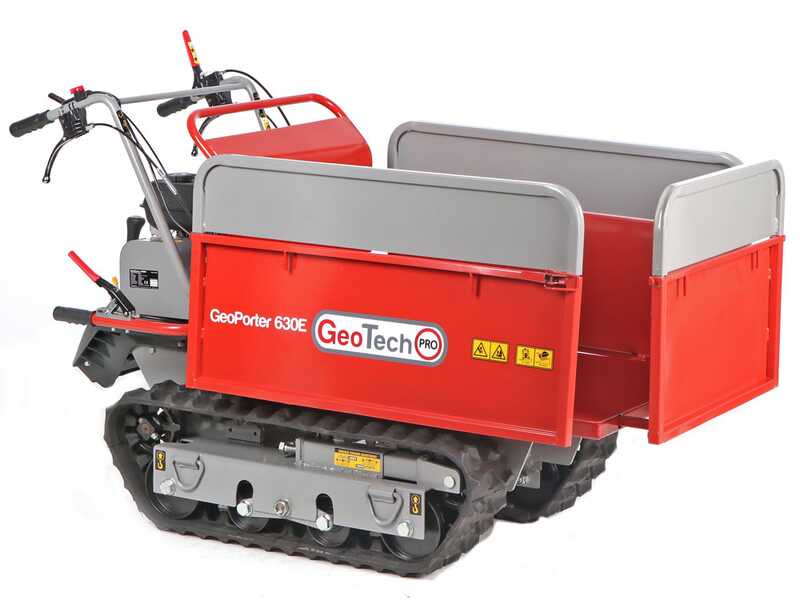

Extendable tipper

The body is made of high-resistance steel and reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading and unloading operations

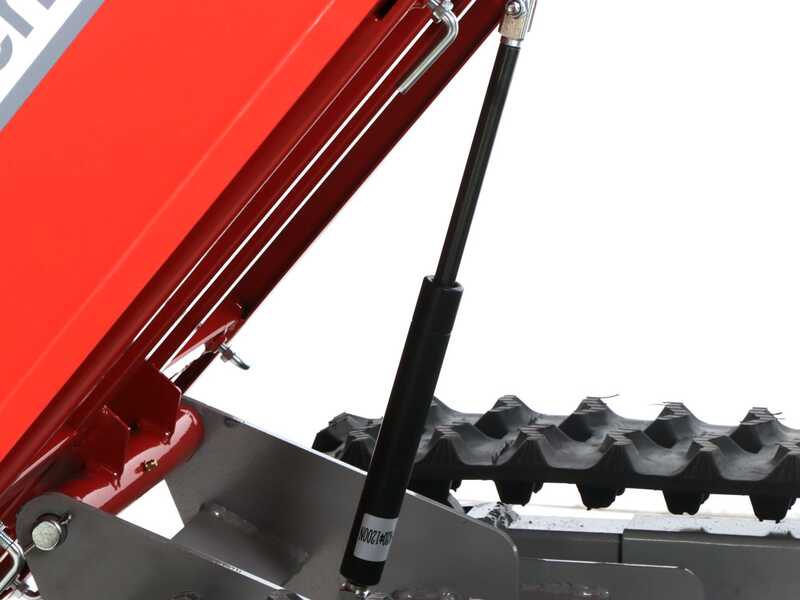

To make tipping easier by unloading the operator’s weight and to keep the body in the tipped position, the wheelbarrow is equipped with a hydraulic piston under the chassis.
This will make all stages of the work much easier.

Load capacity can be increased thanks to extendable tailgates.
In addition to the classic wing nuts underneath the body, the wheelbarrow is equipped with strong hinges that secure the side rails to each other.

A further solution that allows the load capacity to be further increased is to be equipped with removable tailgates.

An example of use is for transporting and loading wood.
Using the tail lifts give the possibility of increasing the load by considerably reducing the number of transports to be carried out for the job.

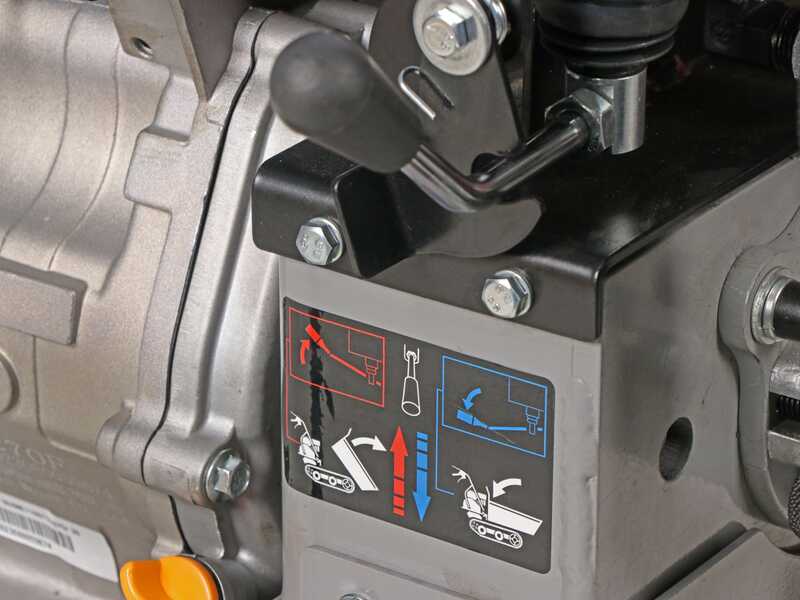

Controls

User-friendly and ergonomic controls offering high control and precision during use.

Large red lever for motion engagement.

The lower lever is for the steering.

The steering can be adjusted depending on the control lever, and it allows moving smoothly. By partially pulling either lever, the steering of the respective track, right or left, will also be partial
This allows the steering of the wheelbarrow to be steered extremely smoothly, without causing any sudden movements.

Safety brake allows immediate stopping.

Accelerator handle and power supply switch.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

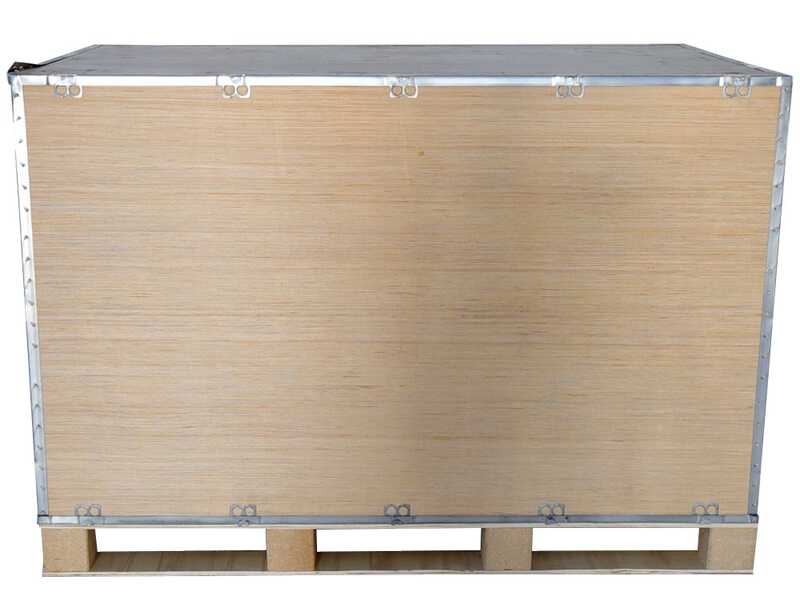

The power barrow is shipped in its original packaging.

Instruction manual and kit of assembly and maintenance tools.
