GeotechPro GeoPorter 630D - Tracked wheelbarrow - Dumper 600Kg

Questions & Answers (2)
ID: K607619

EAN: 8053435095273

MPN: 09726

GeotechPro GeoPorter 630D - Tracked wheelbarrow - Dumper 600Kg
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
600 Kg
Barrow body type
Dumper
Body tipping
Manual
Max. slope
25 %
Type
High undercarriage with tracks
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Tilting track
Product Features
Model:
GeoPorter 630D
Type :
High undercarriage with tracks
Self-propelling:
Yes
Load capacity:
600 Kg
Max. slope:
25 %
Flow rate at 20% slope:
600 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Manual
Box size:
109.6x68x50 cm
Effective inner height:
500 mm
High truck:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.6 L
Oil tank capacity:
0.6 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Lever on the handlebar
Equipment
Hydraulic piston:
Yes
Box:
Dumper
Hydraulic tipping kit:
Yes
Assisted steering:
Yes
Tilting track:
Track width:
180 mm
Total rollers no.:
4
Recoil start system (with rope):
Yes
Rubber-coated soft grip:
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics

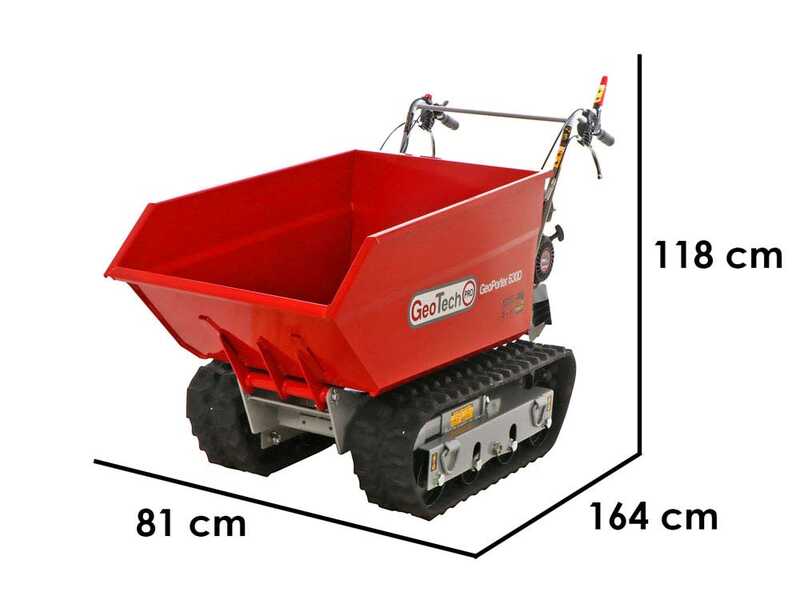

Product dimensions in cm (L x W x H):
164x81x118 cm
Net weight:
234.5 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
167x76x105 cm
Gross weight (packaging included) :
274 Kg
Assembly time:
15 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 1.931,00
VAT Included
You're viewing:
Customers also viewed:
Description

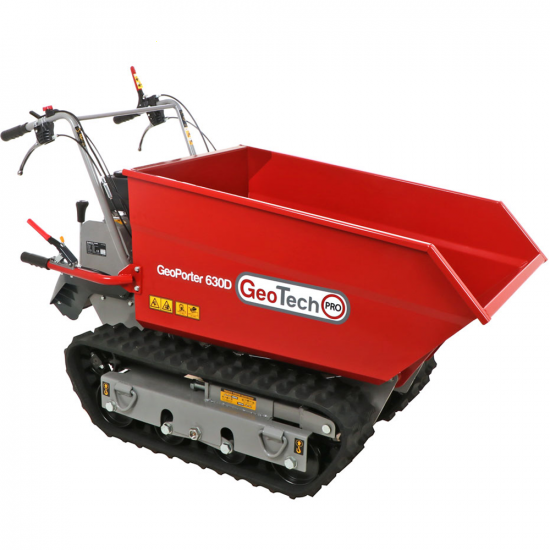

GeoPorter 630D wheelbarrow

The GeoPorter 630D, a high-quality dump truck, is designed to efficiently handle the most demanding material handling jobs. With its load capacity of 600 kg, it stands out as an essential tool for various work applications.

The robust steel frame ensures durability and strength, key elements to cope with the tough conditions on construction sites.

The wheelbarrow's gearbox configuration, with three forward and one reverse gear, provides exceptional versatility, making it easy for the operator to adapt to various working environments.

A distinctive selling point of the GeoPorter 630D is its manual tipping system, an innovative solution that significantly eases the effort involved in unloading materials, making operations faster and more efficient.

In addition, the wheelbarrow is equipped with a speed control lever, allowing precise control, adaptable to the specific needs of the terrain and load, thus optimising operational efficiency and time management.

The efficiency of the GeoPorter 630D is further enhanced by its self-propelled track drive and the 6.5HP Loncin G200Fengine, which enable it to operate efficiently even on difficult and sloping terrain.

This combination of features makes the wheelbarrow ideal for all types of transport, especially in demanding work environments where mobility and power are essential.

In conclusion, the GeoPorter 630D with a dumper body and Loncin G200F engine is the ideal solution for professionals looking for a reliable, powerful and versatile piece of equipment that can effectively meet their daily material transport needs.

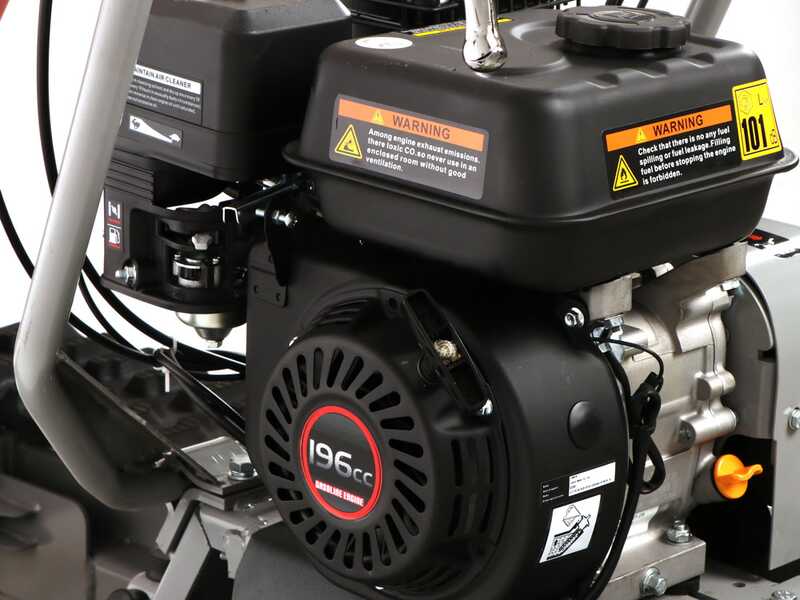

Motore Loncin G200F

The Loncin G200F engine is suitable for jobs where it is required high power due to its high displacement of 196 cc.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Cast iron
Cubic capacity
196 cm³
Fuel:
Petrol
Details of the air filter

Four-Stroke petrol engine of the latest generation with overhead valve “OHV technology.

Easy recoil start
, thanks to the automatic fuel priming system.


ATTENTION, The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

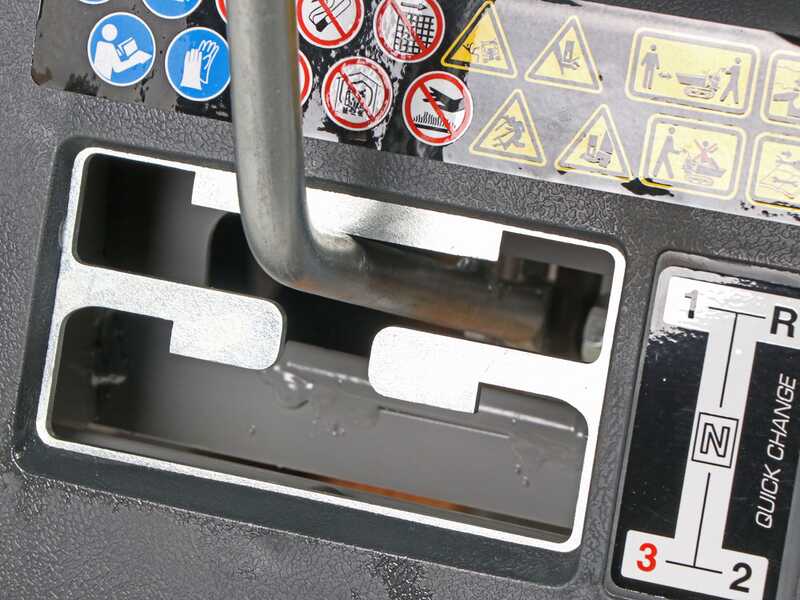

Gearbox, braking system and transmission

Gearbox large, reliable and precise.

Speed:
3 forward gears
1reverse gear

Through the lever located to the right of the gearbox, it will be possible to choose between two speeds. Fastest gears are suitable for smoother stretches, while setting the low speed will allow you to traverse even the roughest sections with ease


Parking brakes:
Attached to the gearbox, of the over-sized type with internal expansion, for greater stability and safety.
They are automatically activated when the controls are released (leaving the machine in neutral, even on a very steep slope, the machine remains perfectly blocked)


Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

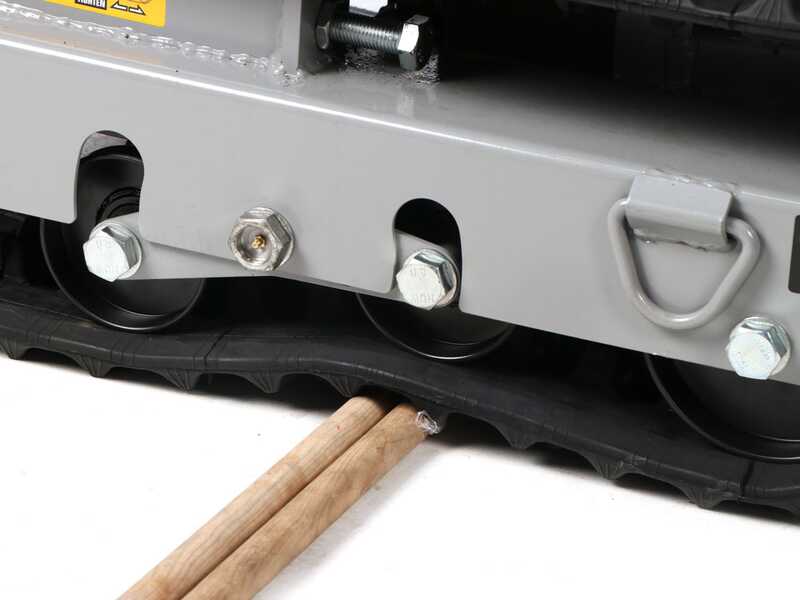

High undercarriage and tipping tracks

The power barrow is equipped with tilting tracks. The two central rollers, unlike the others, are mobile and can move depending on the obstacle in front of them, thus allowing the machine to always have maximum grip on the ground. This wheelbarrow model also has a high chassis and higher tracks than many of the power wheelbarrows on the market.

Such a high undercarriage, a good 13 cm above the ground, allows the wheelbarrow to travel over even the bumpiest and most uneven stretches of road with maximum safety and grip, since, due to the large clearance, the lower part of the wheelbarrow does not scrape the ground.

The shape of the tracks, an inverted trapezoid, allows the wheelbarrow to easily negotiate even the most insidious obstacles such as walls and steps, while still guaranteeing safety and stability. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

Tilting tracks in operation

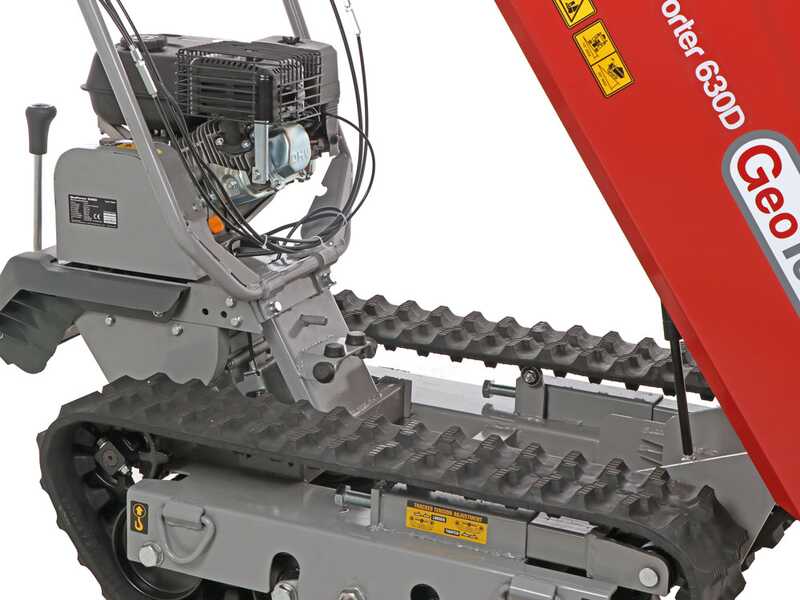

Extendable barrow with tipping system

The body is made of high-resistance steel and reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations

To facilitate the tipping operation, unloading the operator's weight, and to keep the body in the tipped position, the wheelbarrow is equipped with a hydraulic piston placed under the chassis.


This will make all stages of the work much easier.

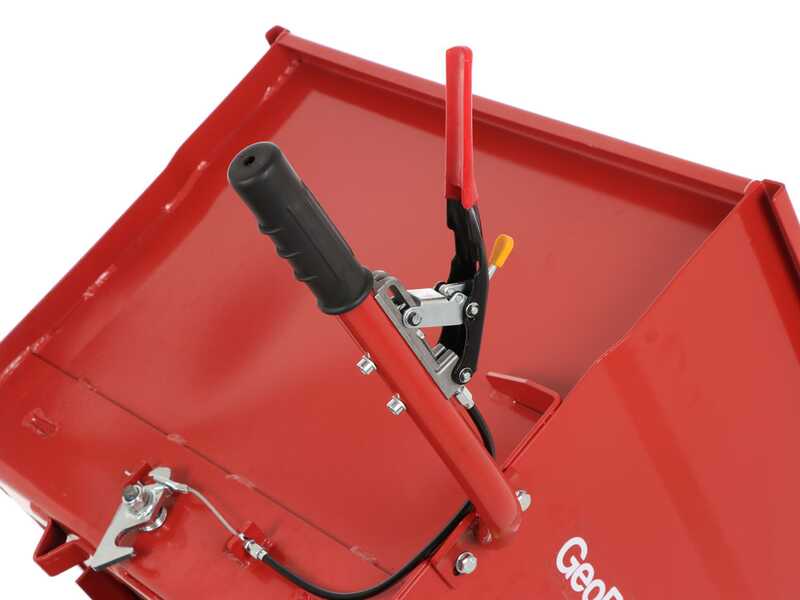

Controls

User-friendly and ergonomic controls offering high control and precision during use.

Large red lever for motion engagement.

The lower levers are for the steering.

Lever for manual tipping of the caisson.

The steering can be adjusted depending on the control lever, and it allows moving smoothly. By partially pulling either lever, the steering of the respective track, right or left, will also be partial
This allows the steering of the wheelbarrow to be steered extremely smoothly, without causing any sudden movements.

Safety brake allows immediate stopping.

Accelerator handle and power supply switch..

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

The power barrow is shipped in its original packaging.

Instruction manual and kit of assembly and maintenance tools.
