GeotechPro GeoPorter 630D Hydro - Tracked wheelbarrow - Hydraulic dumper 600Kg

Questions & Answers (1)
ID: K607617

EAN: 8053435095280

MPN: 09738A

GeotechPro GeoPorter 630D Hydro - Tracked wheelbarrow - Hydraulic dumper 600Kg
+30 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
600 Kg
Barrow body type
Dumper
Body tipping
Hydraulic
Max. slope
25 %
Type
High undercarriage with tracks
Motor brand
Loncin
Motor Model
G270F
Motor type
4-stroke
Cubic capacity
270 cm³
Nominal power
9 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Tilting track
Product Features
Model:
GeoPorter 630D Hydro
Type :
High undercarriage with tracks
Self-propelling:
Yes
Load capacity:
600 Kg
Max. slope:
25 %
Flow rate at 20% slope:
600 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Hydraulic
Box size:
162X68X49 cm
Effective inner height:
496 mm
High truck:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G270F
Motor type:
4-stroke
Cubic capacity:
270 cm³
No. of cylinders:
1
Nominal power:
9 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
6 L
Oil tank capacity:
0.95 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Lever on the handlebar
Equipment
Hydraulic piston:
Yes
Box:
Dumper
Hydraulic tipping kit:
Yes
Assisted steering:
Yes
Tilting track:
Track width:
180 mm
Total rollers no.:
4
Recoil start system (with rope):
Yes
Rubber-coated soft grip:
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes

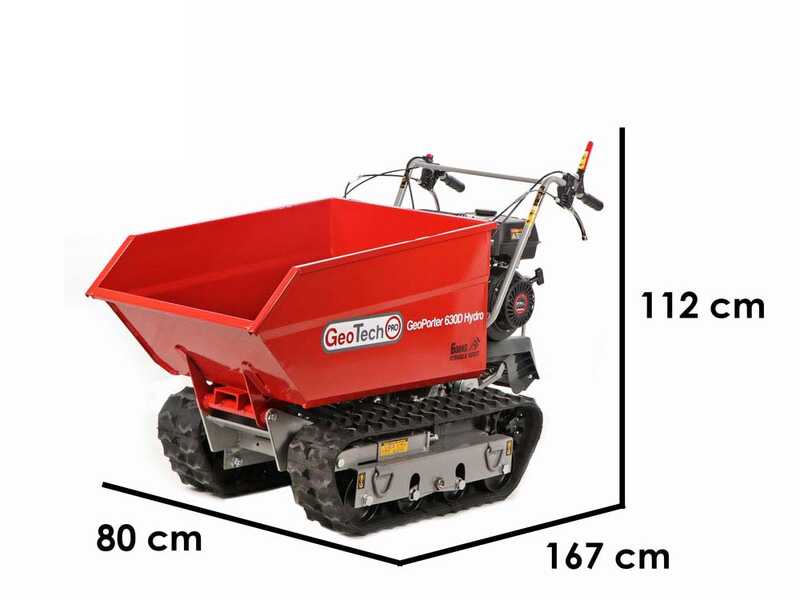

Dimensions and logistics
Product dimensions in cm (L x W x H):
167x80x112 cm
Net weight:
253 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
170x77x106 cm
Gross weight (packaging included) :
273 Kg
Assembly time:
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 04/06/2024 - 06/06/2024
€ 2.570,41
VAT Included
You're viewing:
Customers also viewed:
Description

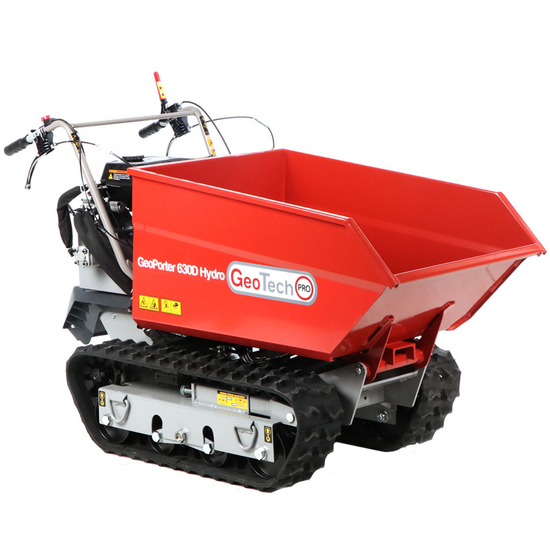

GeoPorter 630D Hydro wheelbarrow

This GeoPorter 630D Hydro wheelbarrow with dumper box is a high-quality piece of equipment designed to tackle the most demanding tasks in the material handling industry. With an effective load capacity of 600 kg, it is an essential tool for a wide range of work applications.

The chassis of this wheelbarrow, made of robust steel, ensures durability and strength, which are essential to meet the challenges of any construction site.

Furthermore, its gearbox configuration, with three forward and one reverse gear, offers unparalleled versatility, allowing the operator to easily adapt to different working situations.

One of the most appreciated features of this wheelbarrow is the hydraulic tipping system of the body. This innovative mechanism significantly reduces the effort required to unload the material, simplifying and speeding up each work step.

The wheelbarrow is also equipped with a lever for speed adjustment, which allows precise control and can be adapted to different terrain and load requirements. This greatly improves operational efficiency, ensuring optimal management of time and resources.

In addition, the self-propelled track drive, combined with the powerful 9HP Loncin G270F engine, makes this wheelbarrow exceptionally effective even in difficult and sloping terrain.

This capability makes it ideal for all types of transport, especially in demanding work environments where mobility and power are crucial.

In summary, this Loncin G270F dump truck with a Loncin G270F engine is an optimal choice for professionals looking for a reliable, powerful and versatile piece of equipment that can successfully meet the daily challenges of transporting materials.

Maximum forward speed in first gear: 2.44 Km/h

Maximum forward speed in second gear: 3.85 Km/h

Maximum forward speed in third gear: 5.09 Km/h

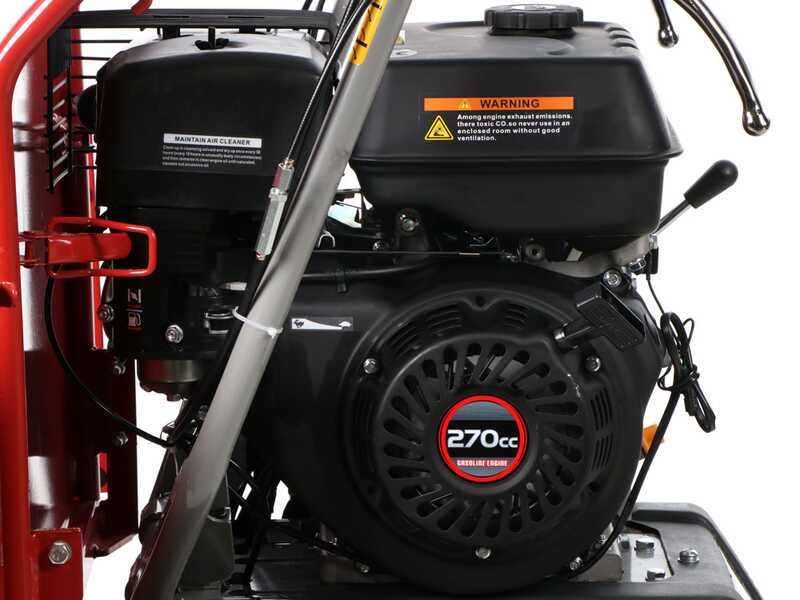

Loncin G270F engine

The Loncin G270F engine is suitable for works requiring great power, and which is obtained thanks to the high displacement of 270 cc.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Cast iron
Cubic capacity
270 cc³
Fuel:
Petrol
Power output
9 HP

Latest generation 4-stroke petrol engine with ‘OHV’ overhead valve shaft and automatic decompressor start.

Easy recoil start
thanks to automatic fuel priming system.


ATTENTION, The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 9 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is, most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 6.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

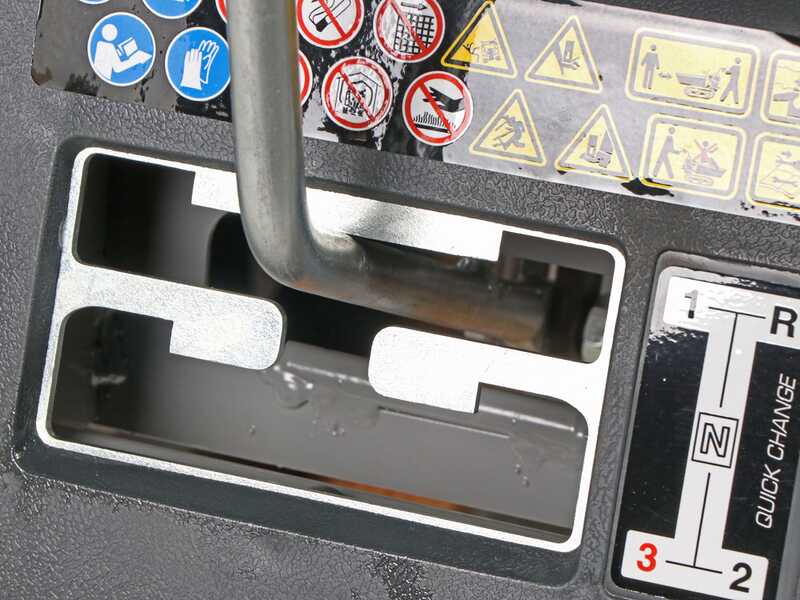

Gearbox, braking system and transmission

Gearbox large, reliable and precise.

Speed:
3 forward gears
1reverse gear

Through the lever located to the right of gearbox, it will be possible to choose between two speeds. Fastest gears are suitable for smoother stretches, while setting the low speed will allow you to traverse even the roughest sections with ease


Parking brakes:
Attached to the gearbox, of the over-sized type with internal expansion, for greater stability and safety.
They are automatically activated when the controls are released (leaving the machine in neutral, even on a very steep slope, the machine remains perfectly blocked)


Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

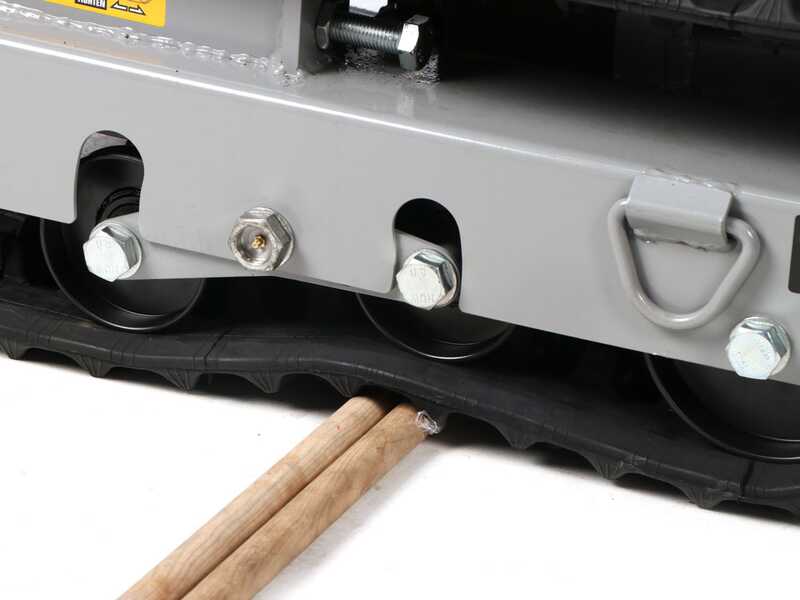

High undercarriage and tipping tracks

The power barrow is equipped with tilting tracks. The two central rollers, unlike the others, are mobile and can move depending on the obstacle in front of them, thus allowing the machine to always have maximum grip on the ground. This wheelbarrow model also has a high chassis and higher tracks than many of the power wheelbarrows on the market.

Such a high undercarriage, a good 13 cm above the ground, allows the wheelbarrow to travel over even the bumpiest and most uneven stretches of road with maximum safety and grip, since, due to the large clearance, the lower part of the wheelbarrow does not scrape the ground.

The shape of the tracks, an inverted trapezoid, allows the wheelbarrow to easily negotiate even the most insidious obstacles such as walls and steps, while still guaranteeing safety and stability. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

Tilting tracks in operation

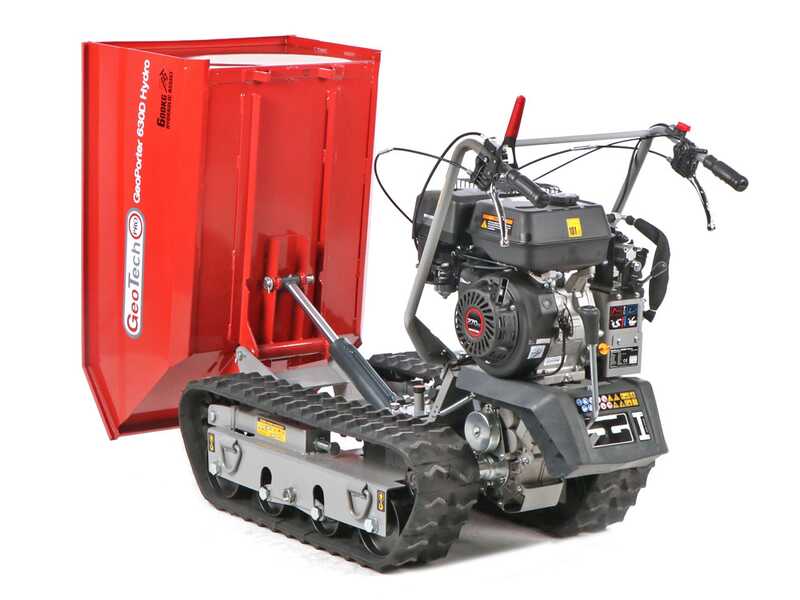

Extendable barrow with tipping system

The body is made of high-resistance steel and reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations

To facilitate the tipping operation, unloading the operator's weight, and to keep the body in the tipped position, the wheelbarrow is equipped with a hydraulic piston placed under the chassis.


This will make all stages of the work much easier.

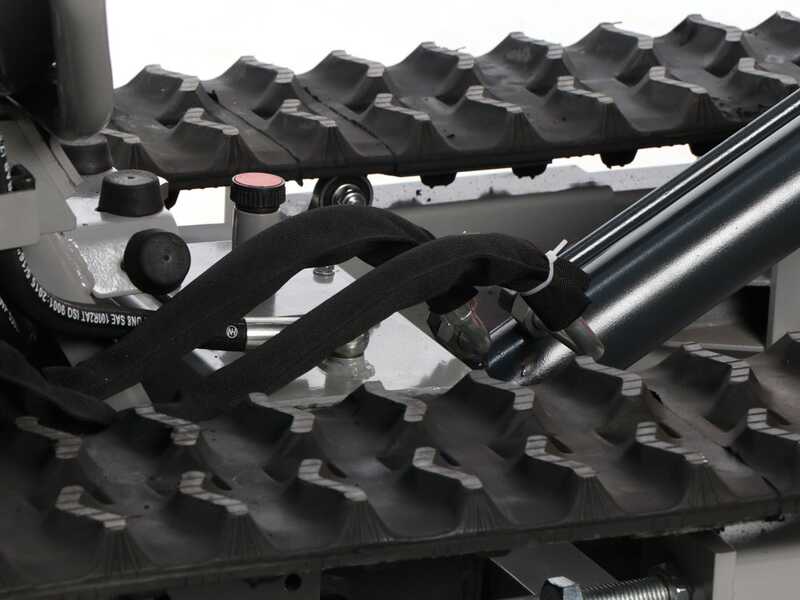

Skip with hydraulic tipping

Powerful hydraulic circuit featuring:

- oversized hydraulic pump:

- distributor with practical pump actuation lever

- robust hydraulic cylinder equipped with a lock valve that ensures that the caisson stops in the event of sudden pressure loss

- Maximum tilting angle 80°

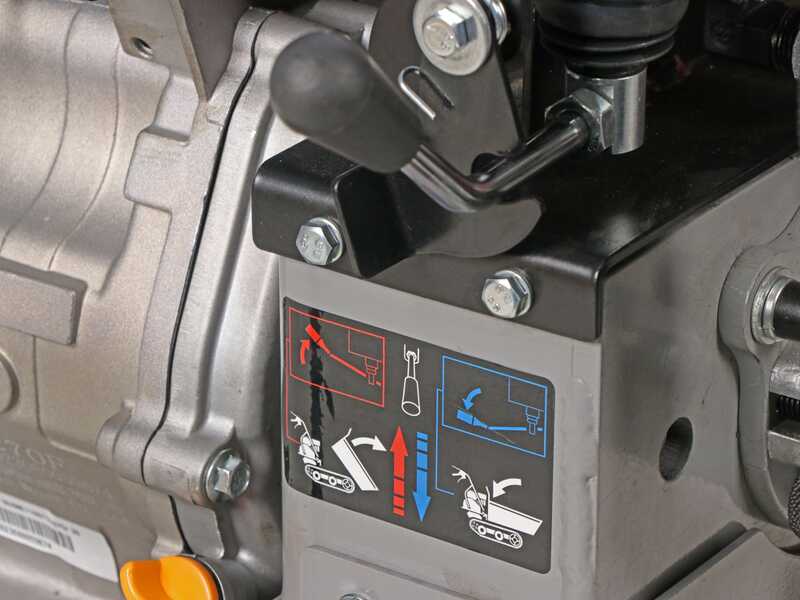

Controls

User-friendly and ergonomic controls offering high control and precision during use.

Large red lever for motion engagement.

The lower levers are for the steering.

The steering can be adjusted depending on the control lever, and it allows moving smoothly. By partially pulling either lever, the steering of the respective track, right or left, will also be partial
This allows the steering of the wheelbarrow to be steered extremely smoothly, without causing any sudden movements.

Safety brake allows immediate stopping.

Accelerator handle and power supply switch.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

The power barrow is shipped in its original packaging.

Instruction manual and kit of assembly and maintenance tools.
