GeoTech tracked power barrow-minidumper GeoPorter 530D Hydro - 500 kg

Questions & Answers (12)
ID: K4629

EAN: 9993089178450

MPN: 4629

GeoTech tracked power barrow-minidumper GeoPorter 530D Hydro - 500 kg
+900 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
500 Kg
Barrow body type
Dumper
Body tipping
Hydraulic
Max. slope
25 %
Type
Tracked
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
5.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
GeoPorter 530D Hydro
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
25 %
Flow rate at 20% slope:
500 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Hydraulic
Box size:
1000X700X450 mm
Effective inner height:
440 mm
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
5.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Box:
Dumper
Hydraulic tipping kit:
Yes
Assisted steering:
Yes
Total rollers no.:
6
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
175x70x100 cm
Net weight:
275 Kg
Packaging:
On pallet
Assembly time:
Assembled
Prompt Delivery
20 items in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
€ 2.212,22
VAT Included
You're viewing:
Customers also viewed:
Description

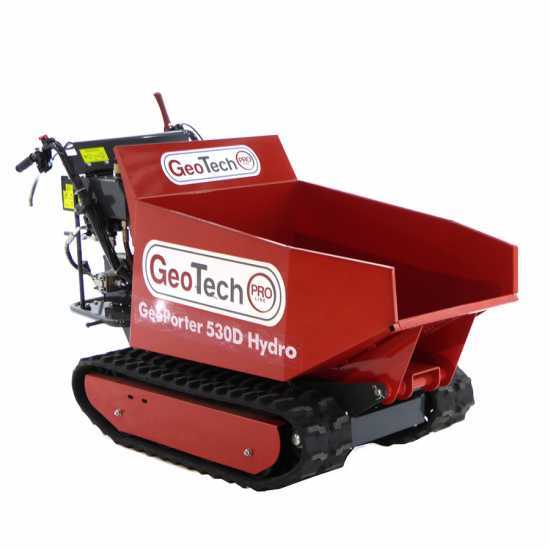

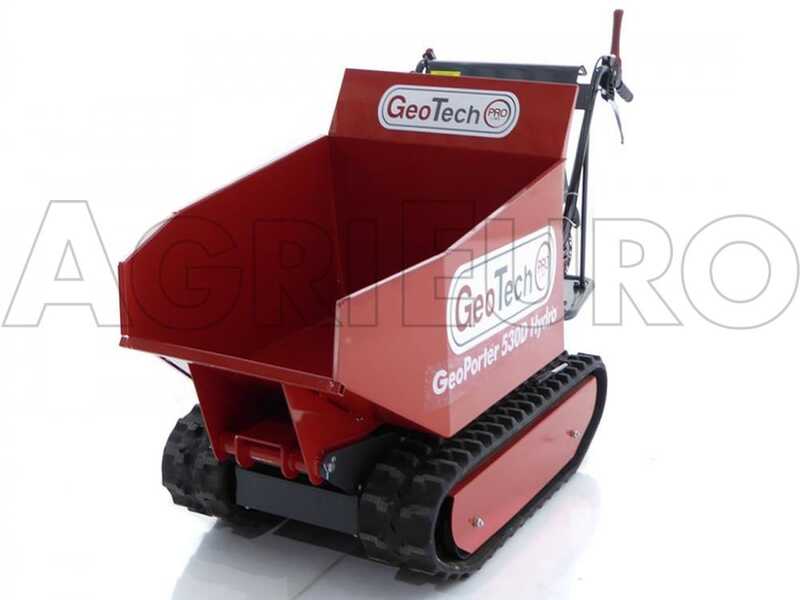

GeoPorter 530D Hydro tracked power barrow-minidumper

Tracked dumper with hydraulic tipping. Load capacity: 500 kg.

As the machine is equipped with a track drive system and is powered by a 196 cc engine, this mini dumper can carry loads up to 500 kg even on slopes. It is best suited to load different materials.

Thanks to its sturdy frame made of steel and its manual transmission with 3 forward speed and 1 reverse speed, this is a versatile and efficient machinery.

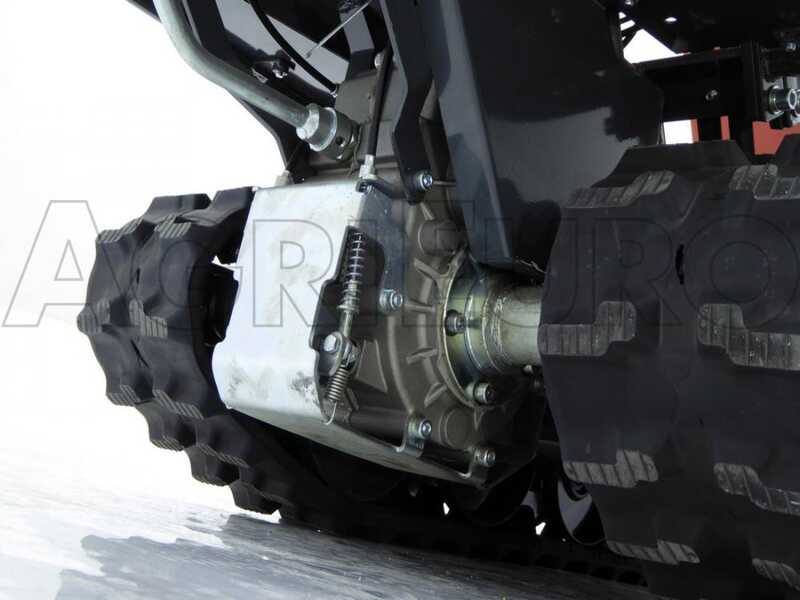

Gearbox, parking brake and transmission

Gearbox: it is big and the most reliable and efficient on the market. However, it is easy to use and reailable. It is entirely made in Italy.

Speeds:
3 forward speed, 1 reverse speed.


Parking brakes:

They are connected to the transmission gear in order to guarantee more balance and safety. Release the controls to start the parking brakes automatically (the machine will be kept totally blocked even on steep slopes and even if the speed is put in neutral).


Transmission:
The sturdy and strong transmission allows managing the power steering by disconnecting its rotation and choosing which roller should drive.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

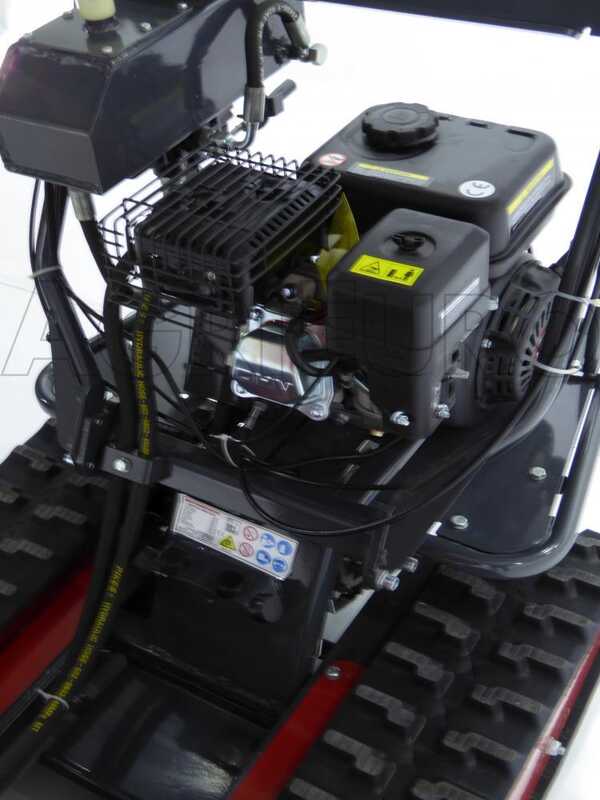

Loncin petrol powered engine

Specifications:

Engine type
OHV single-cylinder, 4 stroke
Cylinder type
Aluminum
Displacement
196 cm³






Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

Tracks and tread pattern

Tread pattern: it is sturdy and oversized. It has a greater height and length compared with other tracked power barrows with the same dimensions on the market. The driving wheel is made of casting cast iron/steel. The perfect balance between the front and the rear sides guarantees load balancing and a superb traction. The rollers are self-cleaning.


Rear side of the "crawler" track with a sharp angle which allows to run easily on steps and any other obstacle.

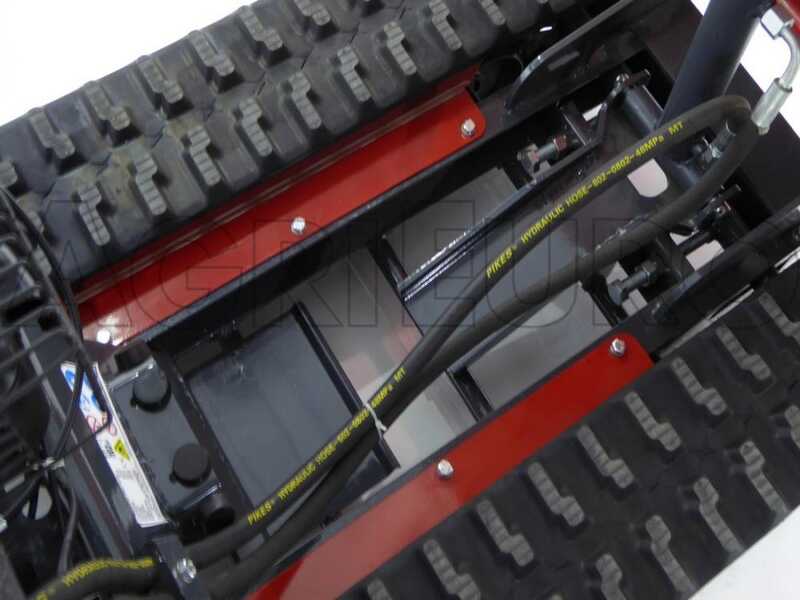

Frame

The sturdy frame with thick steel box-section prevents vibrations and noise. The low center of mass guarantees a great balance while working. The engine and the transmission are easily accessible to attempt maintenance.

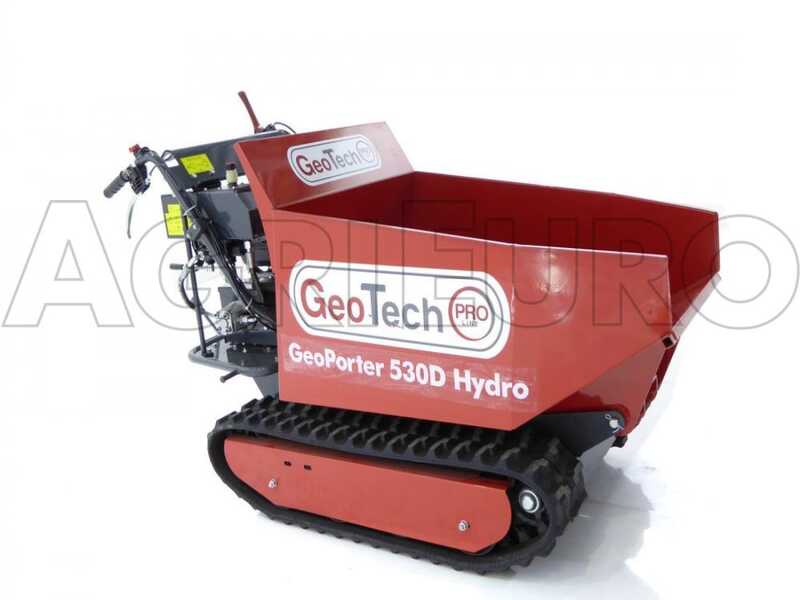

Dumper skip with tipping system

As the high impact steel skip is reinforced with tubular steel construction on the underside of the machine, it is intended to carry any load or to face any stress. The loading platform is very close to the ground in order to make loading/unloading operations easier.

Hydraulic tipping : by means of the proper lever.

500 kg loading capacity.

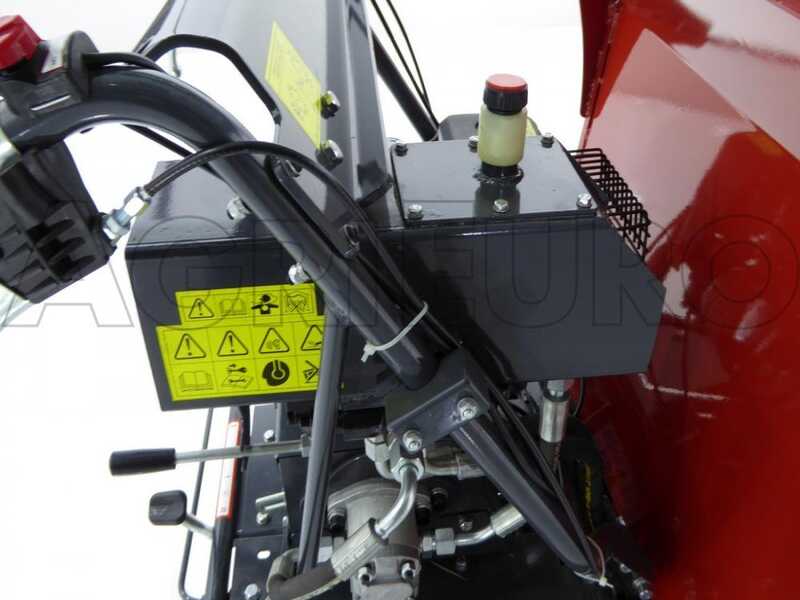

Dumper skip with tipping system

The sturdy hydraulic system consists of:

- oversized hydraulic pump;

- distributor equipped with handy pump activation lever;

- sturdy pneumatic ram with safety valve which has the function of blocking the skip in case of the pressure exceeds the pressure limits suddenly;

- maximum tipping angle: 80°.

Controls

Controls: easy to use and ergonomics. They are efficent and make your machine easy to manoeuvre.

Big red start lever.

Two steering triggers on the underside of the right and the left handle.

You can control the steering according to the control lever allowing a comfortable access. By squeezing one of the two triggers partially, the track on that side will turn in that direction partially as well. In this way you can steer your tracked power barrow very easily avoiding sudden movements.


Safety brake to stop the machine immediately.

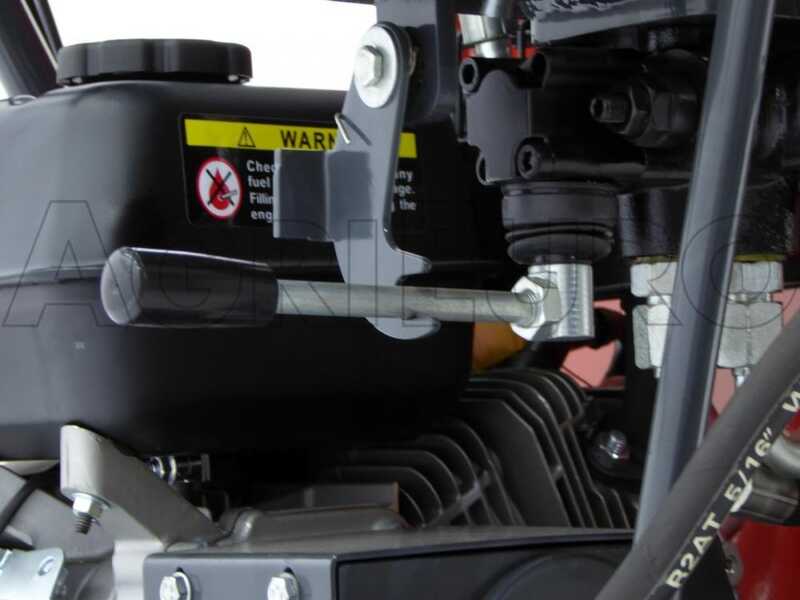

Hydraulic tipping activation lever.


Accelerator handle and electric switch.

Drive speed control lever.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

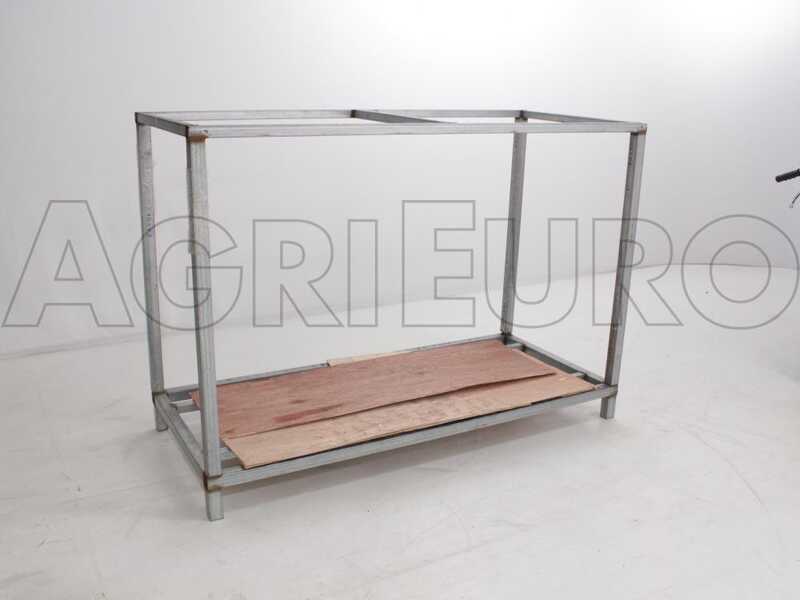

The tracked dumper is shipped in its original box on pallet with instructions manual and maintenance tools kit included.
