GeoTech tracked power barrow-minidumper GeoPorter 330D, 300 kg load capacity

Questions & Answers (13)
ID: K4627

EAN: 9999991088450

MPN: 4627

GeoTech tracked power barrow-minidumper GeoPorter 330D, 300 kg load capacity
+300 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
300 Kg
Barrow body type
Dumper
Body tipping
Manual
Max. slope
25 %
Type
Tracked
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
GeoPorter 330D
Type :
Tracked
Self-propelling:
Yes
Load capacity:
300 Kg
Max. slope:
25 %
Flow rate at 20% slope:
300 kg
Flow rate at 25% on slope:
240 kg
Barrow body type:
Dumper
Dumper body:
Body tipping:
Manual
Box size:
900X670X290 mm
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Oil tank capacity:
1.2 L
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Box:
Dumper
Assisted steering:
Yes
Track width:
18 mm
Total rollers no.:
6
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
160x64.5x110 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
148x74x111 cm
Gross weight (packaging included) :
213 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
17 items in stock
Free Shipping
Estimated delivery: 29/04/2024 - 02/05/2024
€ 1.483,82
VAT Included
You're viewing:
Customers also viewed:
Description

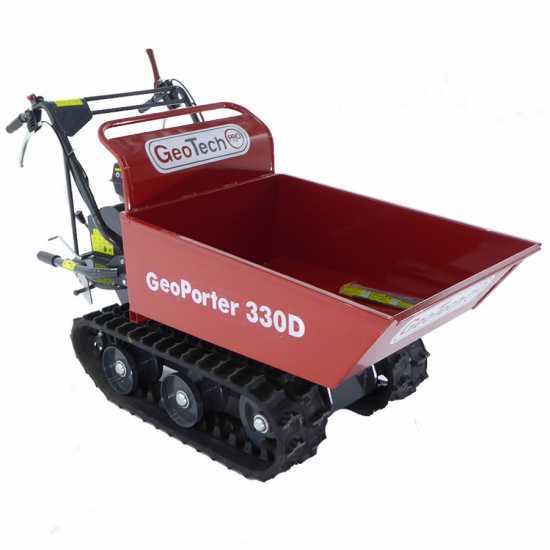

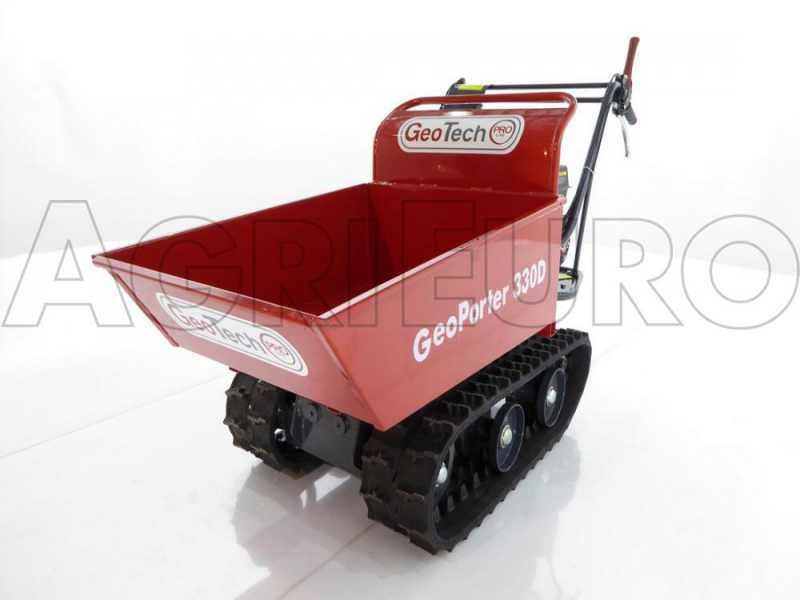

GeoPorter 330D tracked power barrow-minidumper

Tracked power barrow with dumper skip. Payload capacity: 300 kg.

As the machine is equipped with a track drive system and is powered by a Loncin engine, this mini dumper can carry loads up to 300 kg even on slopes. It is best suited to load different materials.

Thanks to its sturdy frame made of steel and its manual transmission with 3 forward speed and 1 reverse speed, this is a versatile and efficient machinery.

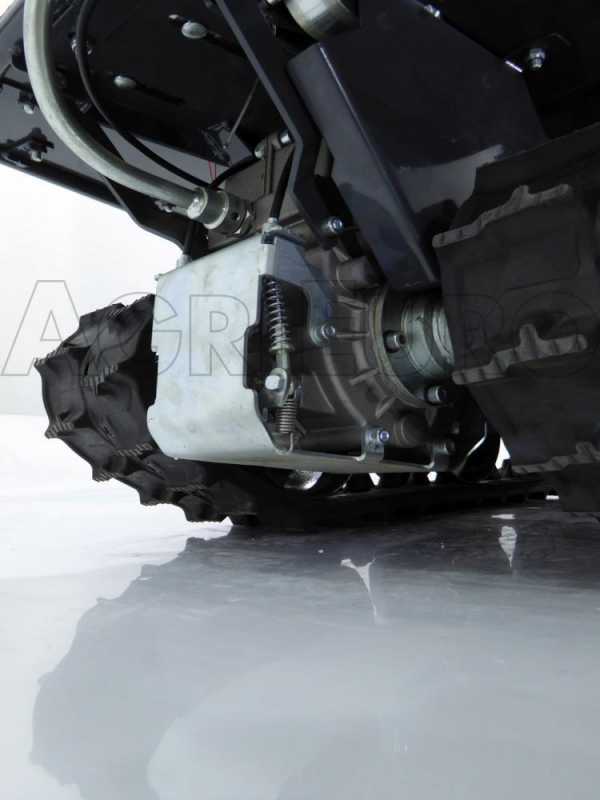

Gearbox, parking brake and transmission

Gearbox: big, reliable and efficient.

Speeds:
3 forward speed, 1 reverse speed.


Parking brakes:

They are connected to the transmission gear in order to guarantee more balance and safety. Release the controls to start the parking brakes automatically (the machine will be kept totally blocked even on steep slopes and even if the speed is put in neutral).


Transmission:
The sturdy and strong transmission allows managing the power steering by disconnecting its rotation and choosing which roller should drive.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

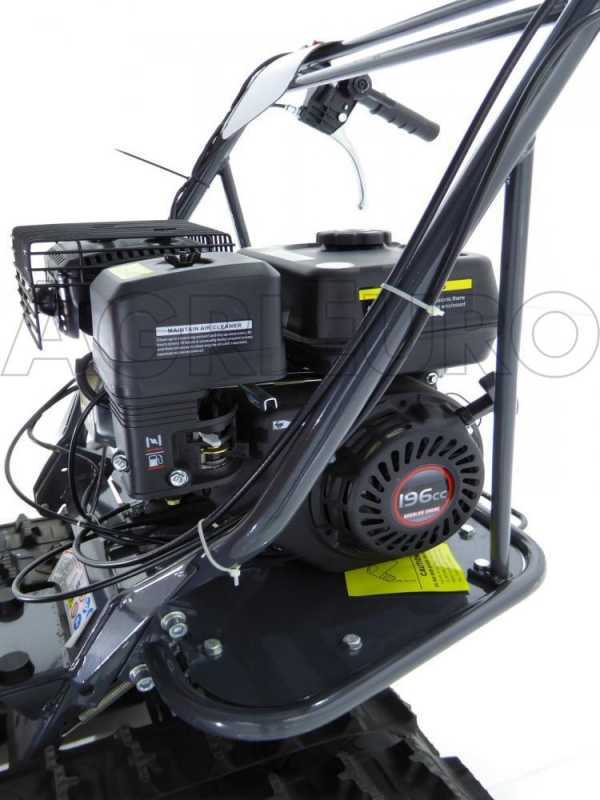

Loncin petrol powered engine

Loncin engine with overhead valve.


Specifications:

Engine type
OHV single-cylinder, 4 stroke
Cylinder type
Aluminum
Displacement
196 cm³
Horse power
6,5 HP






Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

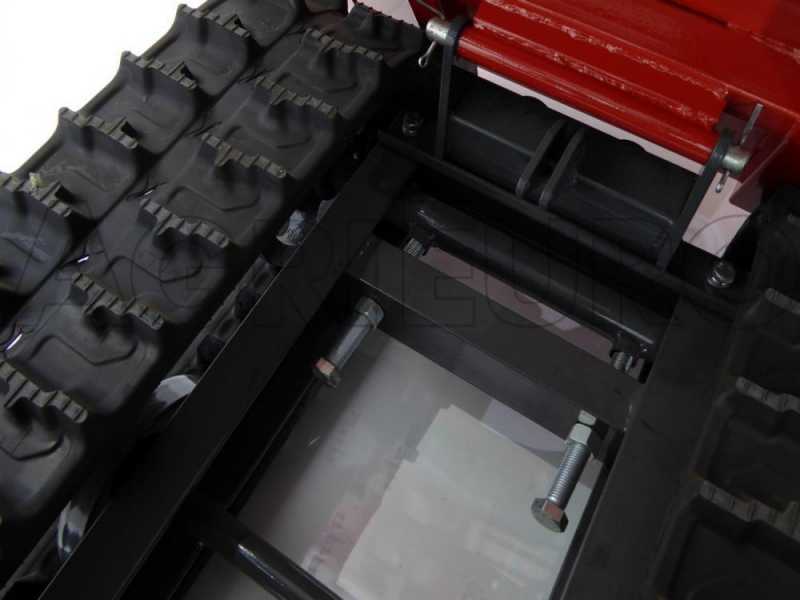

Tracks and tread pattern

Their width and structure are guarantee of extra-grip and balance on any type of ground. They are made of reinforced rubber as guarantee of extra grip on any surface and step.

Rear side of the “crawler” track with a upper sharp angle which allows to run easily on steps and any other obstacle.

Frame

The sturdy frame with thick steel box-section prevents vibrations and noise. The low center of mass guarantees a great balance while working. The engine and the transmission are easily accessible to attempt maintenance.

Automatic track tensioning adjustment by means of the tension springs.

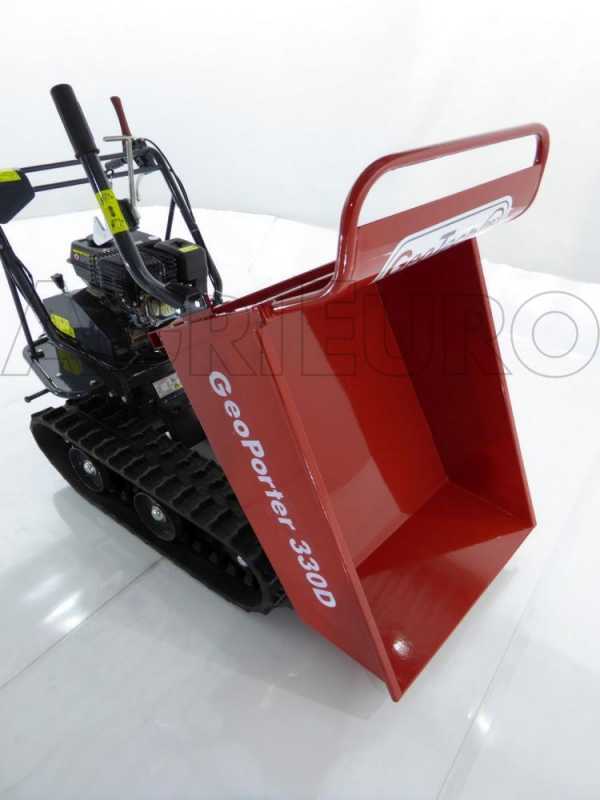

Dumper skip with tipping system

As the high impact steel skip is reinforced with tubular steel construction on the underside of the machine, it is intended to carry any load or to face any stress. The loading platform is very close to the ground in order to make loading/unloading operations easier.

Hydraulic tipping: use the proper rubber lever with spring to release it by hand. It is easy to use even with heavy loads by means of the tipping control lever on the side.

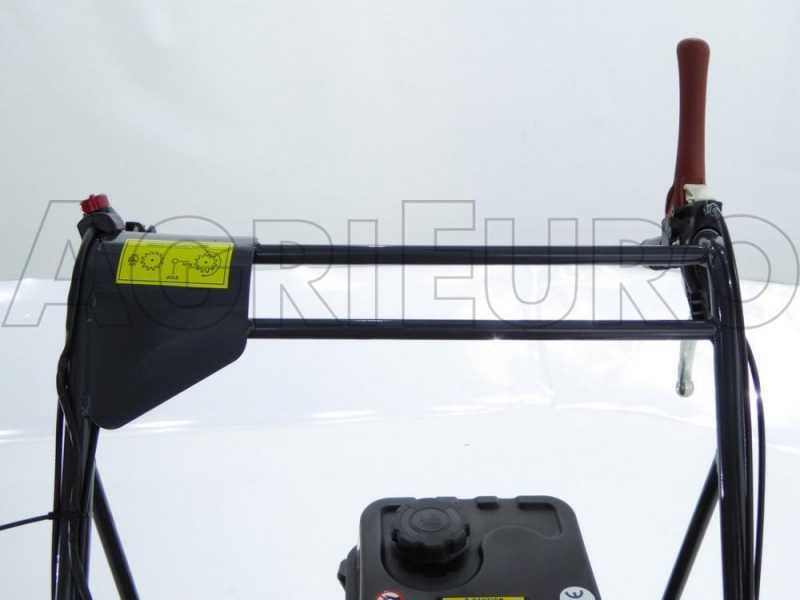

Controls

Controls: easy to use and ergonomics. They are efficent and make your machinery easy to manoeuvre.

Big red start lever.

Two steering triggers on the underside of the right and the left handle.

You can control the steering according to the control lever allowing a comfortable access. By squeezing one of the two triggers partially, the track on that side will turn in that direction partially as well. In this way you can steer your tracked power barrow very easily avoiding sudden movements.


Safety brake to stop the machine immediately.

Accelerator handle and electric switch.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Extra features

The tracked dumper is shipped in its original box with instructions manual and maintenance tools kit included.
