GeoTech tracked power barrow GeoPorter 530E Hydro, hydraulic tipping, 500 kg capacity

Questions & Answers (12)
ID: K4630

EAN: 9993089178443

MPN: 4630

GeoTech tracked power barrow GeoPorter 530E Hydro, hydraulic tipping, 500 kg capacity
+300 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Load capacity
500 Kg
Barrow body type
Extendable sides
Body tipping
Hydraulic
Max. slope
25 %
Type
Tracked
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
GeoPorter 530E Hydro
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
25 %
Flow rate at 20% slope:
500 kg
Flow rate at 25% on slope:
400 kg
Barrow body type:
Extendable sides
Extendable body:
Body tipping:
Hydraulic
Box size:
105x63x33 cm
Extended box size:
125x103x33 cm
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Tubular extension sides:
Yes
Side panels hand levers:
Yes
Box:
Extendable
Assisted steering:
Yes
Total rollers no.:
6
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
175x70x100 cm
Net weight:
256 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
168x76x111 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 10/04/2024 - 12/04/2024
Suggested price:
€ 2.369,22
€ 2.245,41
VAT Included
You're viewing:
Customers also viewed:
Description

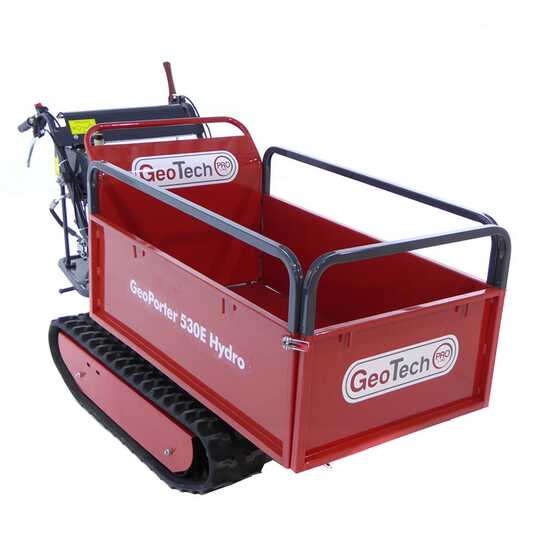

GeoPorter 530E Hydro tracked power barrow

Tracked power barrow with extendable skip. Payload capacity: 500 Kg.

As the machine is equipped with a track drive system and is powered by a Loncin engine, this tracked power barrow can carry loads up to 500 Kg even on slopes. It is best suited to load different materials.

Thanks to its sturdy frame made of steel and its manual transmission with 3 forward speed and 1 reverse speed, this is a versatile and efficient machinery.

It is equipped with a skip with extendable side panels that increase the platform loading capacity.

Moreover, the machine is provided with extension sides for different applications.

The hydraulic tipping makes any operation easier reducing operator's motion.

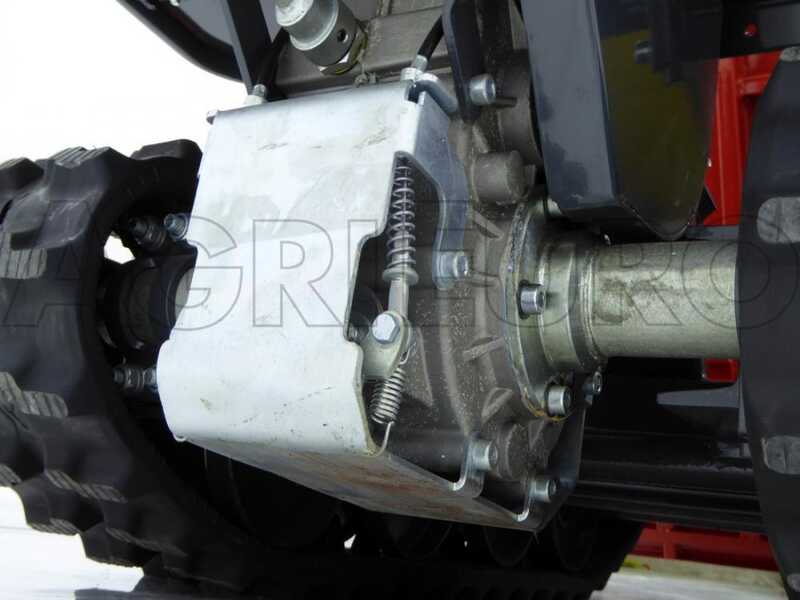

Gearbox, parking brake and transmission

Gearbox: big, reliable and efficient.

Speeds:
3 forward speed and 1 reverse speed.


Parking brakes:

They are connected to the transmission gear in order to guarantee more balance and safety. Release the controls to start the parking brakes automatically (the machine will be kept totally blocked even on steep slopes and even if the speed is put in neutral).


Transmission:
The sturdy and strong transmission allows managing the power steering by disconnecting its rotation and choosing which roller should drive.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

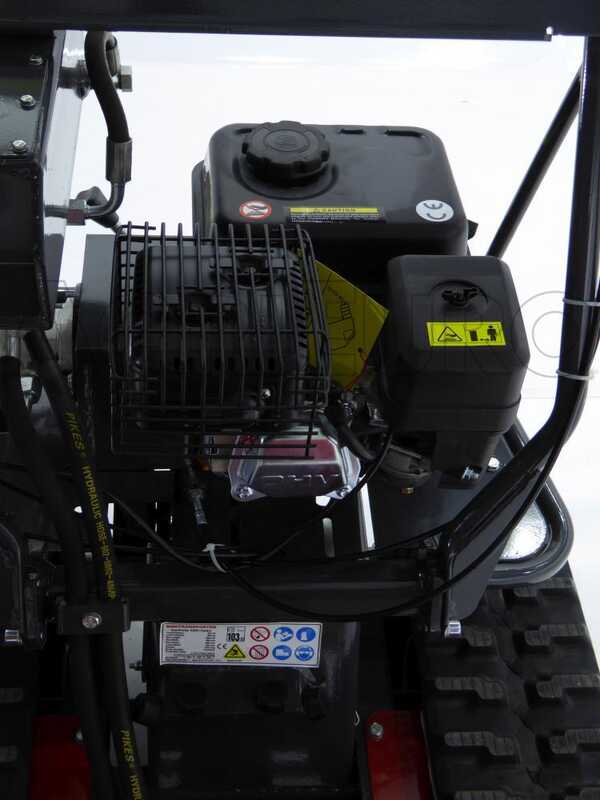

Loncin petrol powered engine

Loncin engine with overhead valve.


Specifications:

Engine type
OHV single-cylinder, 4 stroke
Cylinder type
Aluminum
Displacement
196 cm³
Horse power
6,5 HP






Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

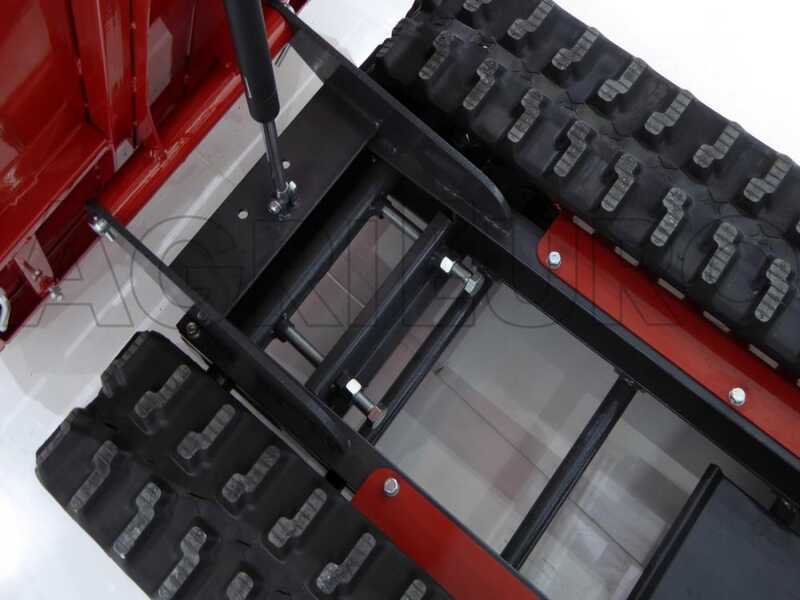

Tracks and tread pattern

Their width and structure are guarantee of extra-grip and balance on any type of ground. They are made of reinforced rubber as guarantee of extra grip on any surface and step.

Rear side of the “crawler” track with a upper sharp angle which allows to run easily on steps and any other obstacle.

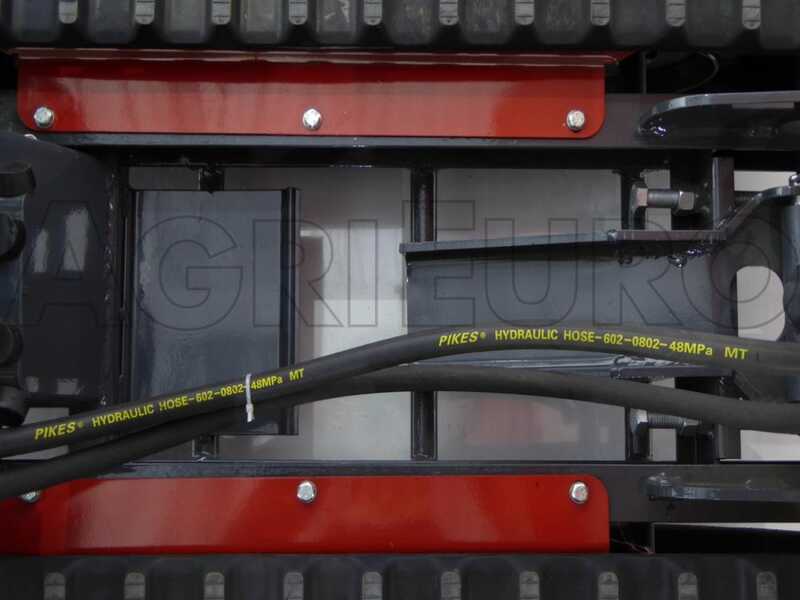

Frame

The sturdy frame with thick steel box-section prevents vibrations and noise. The low center of mass guarantees a great balance while working. The engine and the transmission are easily accessible to attempt maintenance.

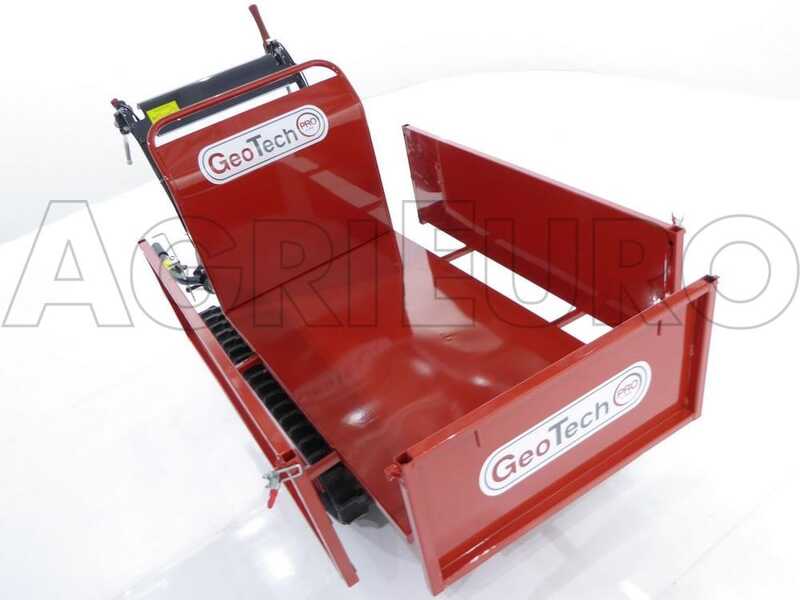

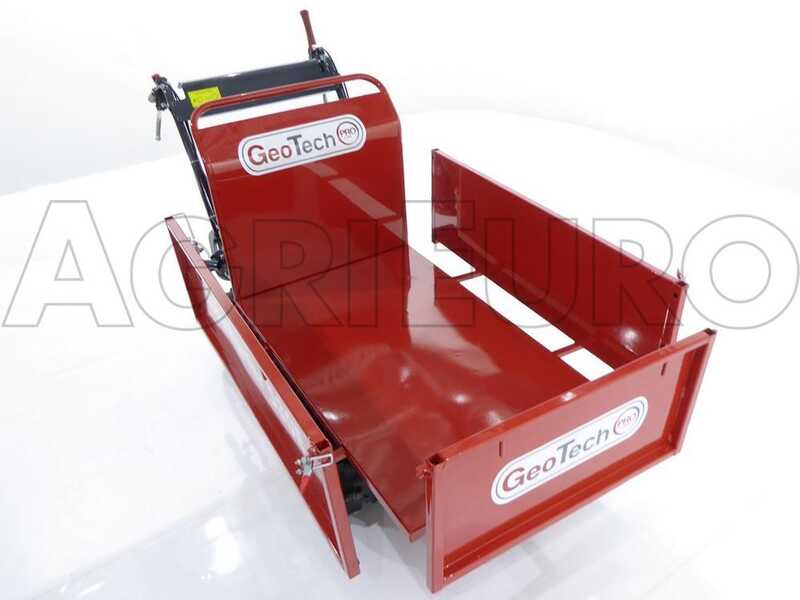

Extendable skip with tipping system

As the high impact steel skip is reinforced with tubular steel construction on the underside of the machine, it is intended to carry any load or to face any stress. The loading platform is very close to the ground in order to make loading/unloading operations easier.

The tracked power barrow is provided with a pneumatic cylinder which assists tipping system. Remove the ram to allow a complete tip over.

Increase the inside box volume by means of the extendable side panels. In addition to the standard threaded pin with handle on the underside of the skip, the machine is equipped with sturdy adjustable hinges to guarantee the side panel will be totally locked.

Moreover, the machine is provided with extension sides on standard kit. The extension sides can increase the loading capacity.

For example, you can use them to carry and load logs. Increase the load by means of the extension sides to optimize your work.

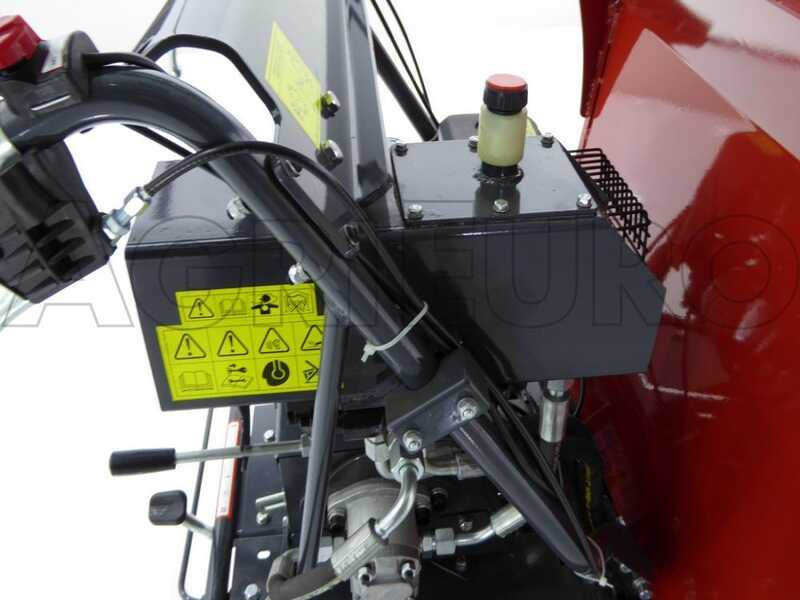

Skip with hydraulic tipping

The sturdy hydraulic system consists of:

- oversized hydraulic pump;

- distributor equipped with handy pump activation lever;

- sturdy pneumatic ram with safety valve which has the function of blocking the skip in case of the pressure exceeds the pressure limits suddenly;

- maximum tipping angle: 80°.

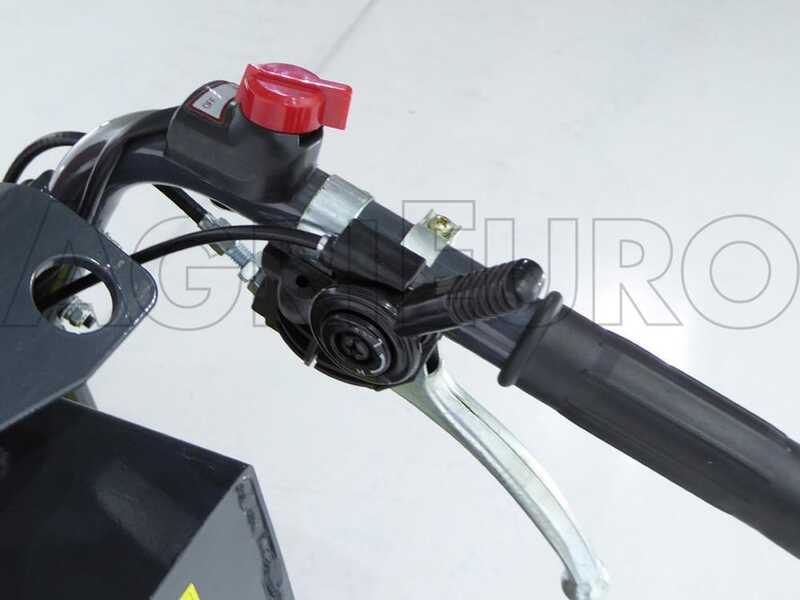

Controls

Controls: easy to use and ergonomics. They are efficent and make your machine easy to manoeuvre.

Big red start lever.

Two steering triggers on the underside of the right and the left handle.

You can control the steering according to the control lever allowing a comfortable access. By squeezing one of the two triggers partially, the track on that side will turn in that direction partially as well. In this way you can steer your tracked power barrow very easily avoiding sudden movements.


Safety brake to stop the machine immediately.

Accelerator handle and electric switch.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

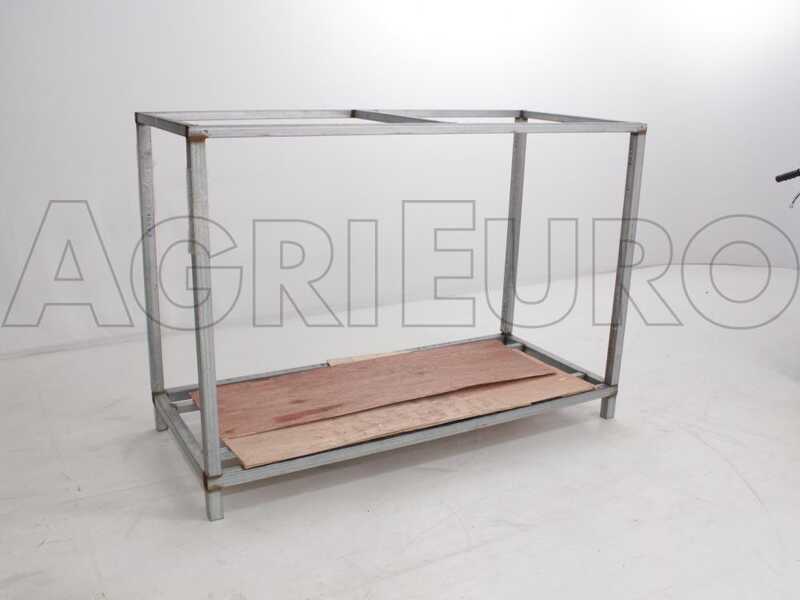

Extra features

The tracked dumper is shipped in its original box with instructions manual and maintenance tools kit included.
